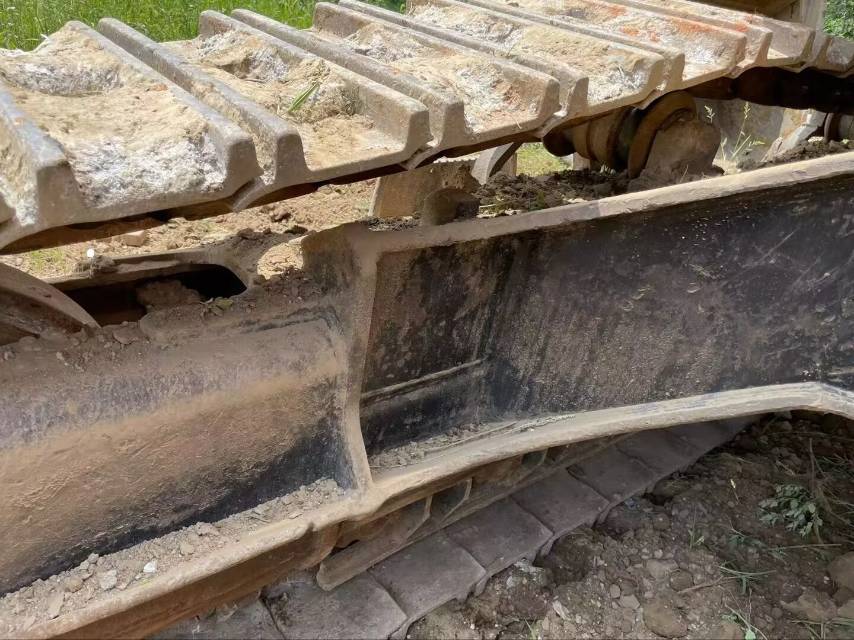

2022 Caterpillar 340DL
Product Description

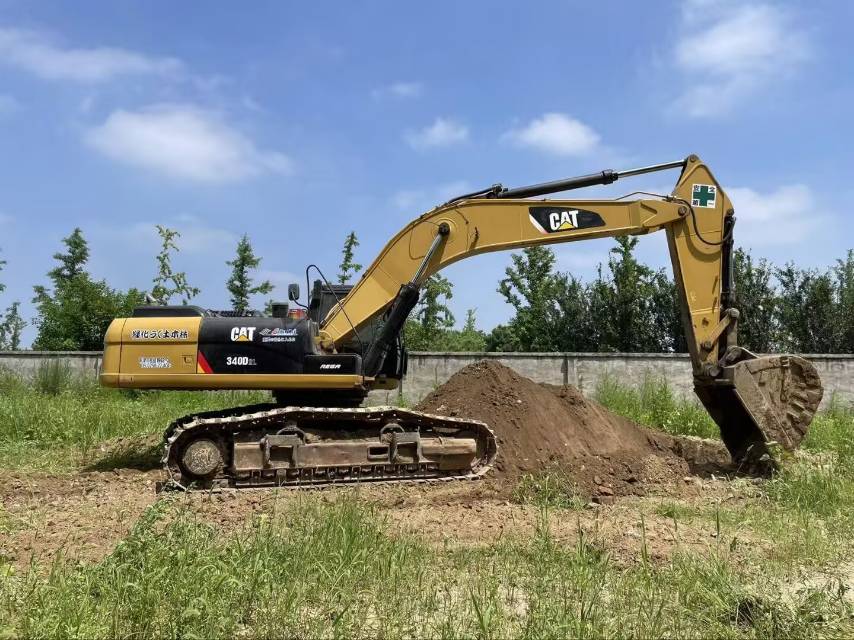

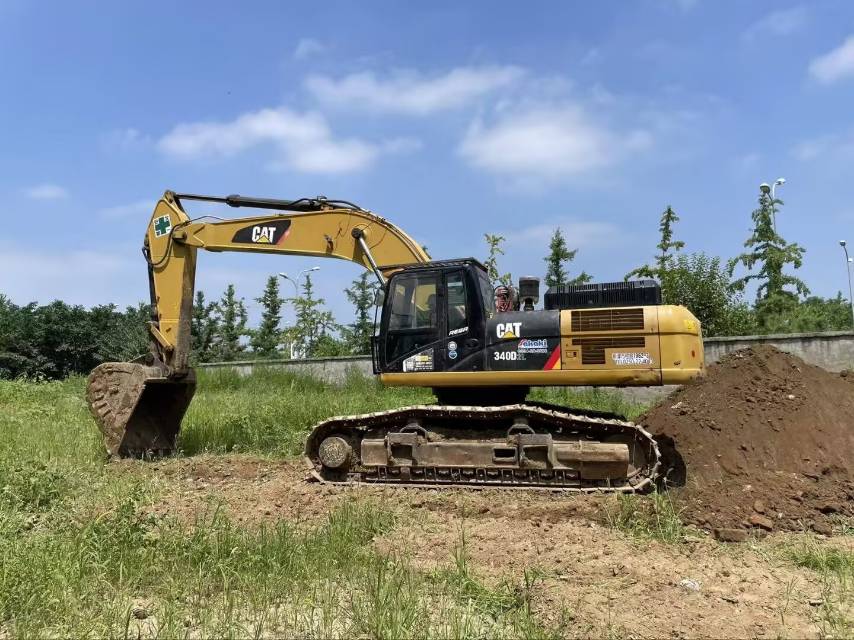

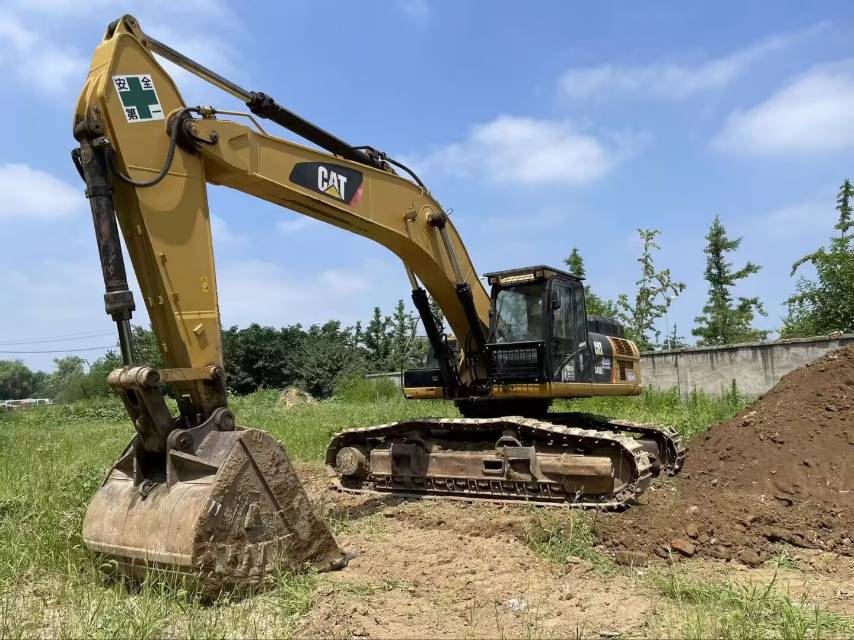

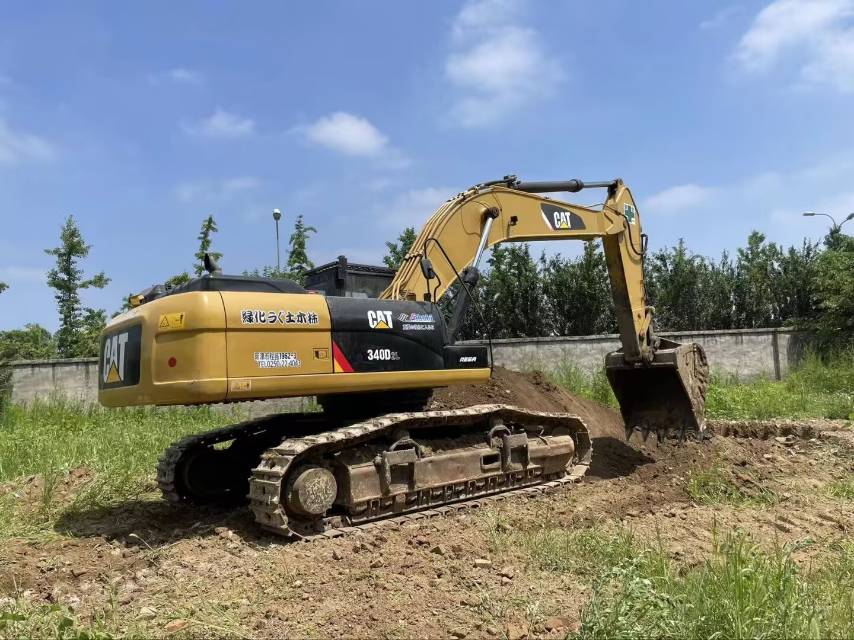

Available for immediate sale: 2022 Caterpillar 340DL hydraulic excavator located in Inner Mongolia, China. This machine presents in original condition with strong engine performance and well-coordinated hydraulic systems. The unit demonstrates consistent power delivery suitable for earthmoving and general construction applications.
- Year: 2022
- Model: Caterpillar 340DL
- Location: Inner Mongolia, China
- Condition: Original configuration, no oil leaks reported

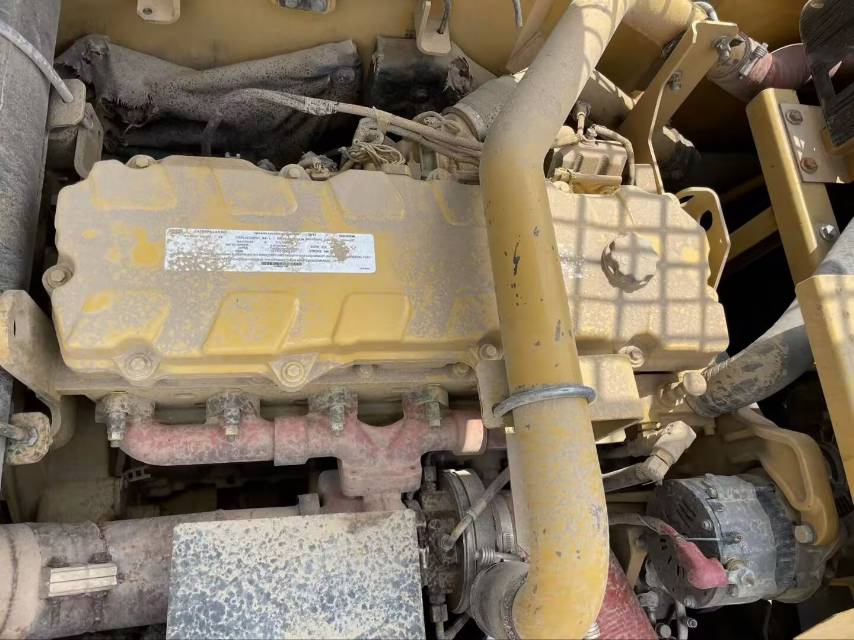

- Engine: Good operational status

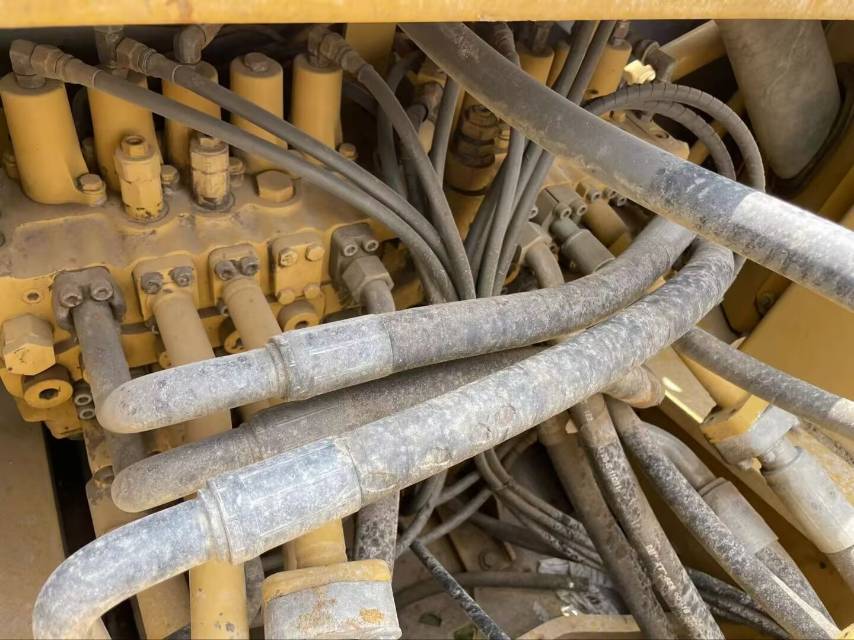

- Hydraulics: Responsive and coordinated action
This excavator has been maintained for site-ready earthwork operations. Inspection and test operation available by arrangement. Serious inquiries welcome. Contact: +86 135 8181 3578
| Specifications | Value |
|---|---|
| No. | 1105264 |
| Tonnage (tons) | 40 |
| Working weight (kg) | 38100-38600 |
| Bucket capacity (m³) | 1.88/2.14 |
| Boom length (mm) | 6500/6180 |
| Rod length (mm) | 2550/2800/3200 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar C9 ACERT |
| Rated power (kw/rpm) | 209 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 112 x 149 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.8 |
| Rotation speed (rpm) | 10 |
| Bucket digging force (kN) | 176 |
| Rod digging force (kN) | 158 |
| Travel speed (km/h) | 5 |

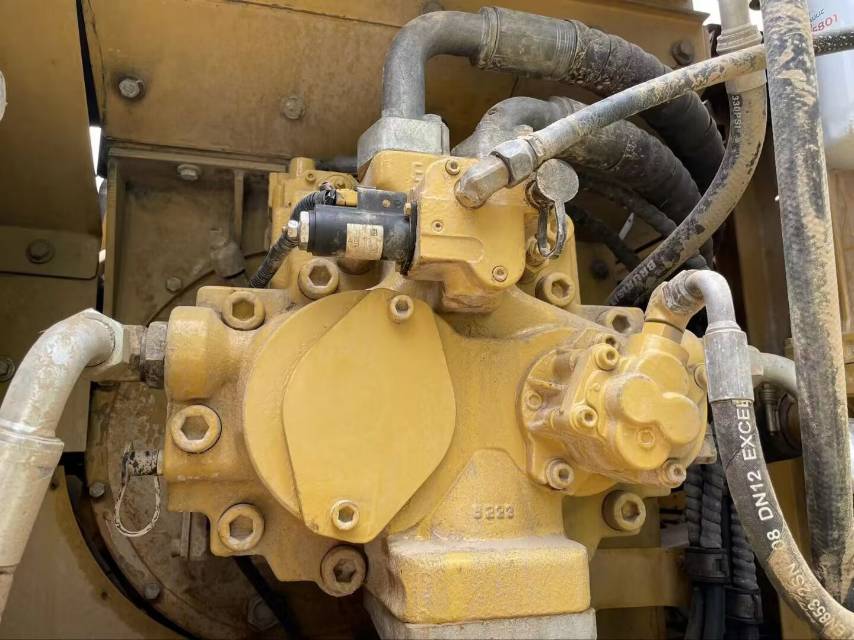

| Maximum flow of main pump (l/min) | 2 x 280 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 150 x 1151 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 170 x 1738 |
| Boom cylinders - Number × diameter × stroke (mm) | 150 x 1440 |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 310 |
| Engine Oil changes (L) | 40 |
| Coolant (L) | 40 |
| Hydraulic System (L) | 410 |
| Total transport length (mm) | 11200 |
| Total transport width (mm) | 3520 |
| Total transport height (mm) | 3690 |
| Full cab height (mm) | 3420 |
| Counterweight ground clearance (mm) | 1500 |
| Minimum ground clearance (mm) | 743 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | 5066 |
| Track gauge (mm) | 2920 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3520 |
| Maximum digging depth (mm) | 7322 |
| Maximum excavation height (mm) | 10550 |
| Maximum unloading height (mm) | 7277 |
| Maximum vertical digging depth (mm) | 5712 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 11084 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 7035 |
see more
Overview
No.1105264
Brand Name：
CaterpillarModel Number：
340DL
Year：
2022
Hour：
4185h
Location：
InnerMongolia China
Pub Date：
