2016 Caterpillar 345D
Product Description
Commanding a 45-ton operating weight with precision, this 2016 Caterpillar 345D hydraulic excavator delivers superior operator control across demanding jobsites. Built in Japan with Caterpillar's CAT C13ACERT engine producing 283kW of rated power, this machine combines proven reliability with exceptional performance metrics.

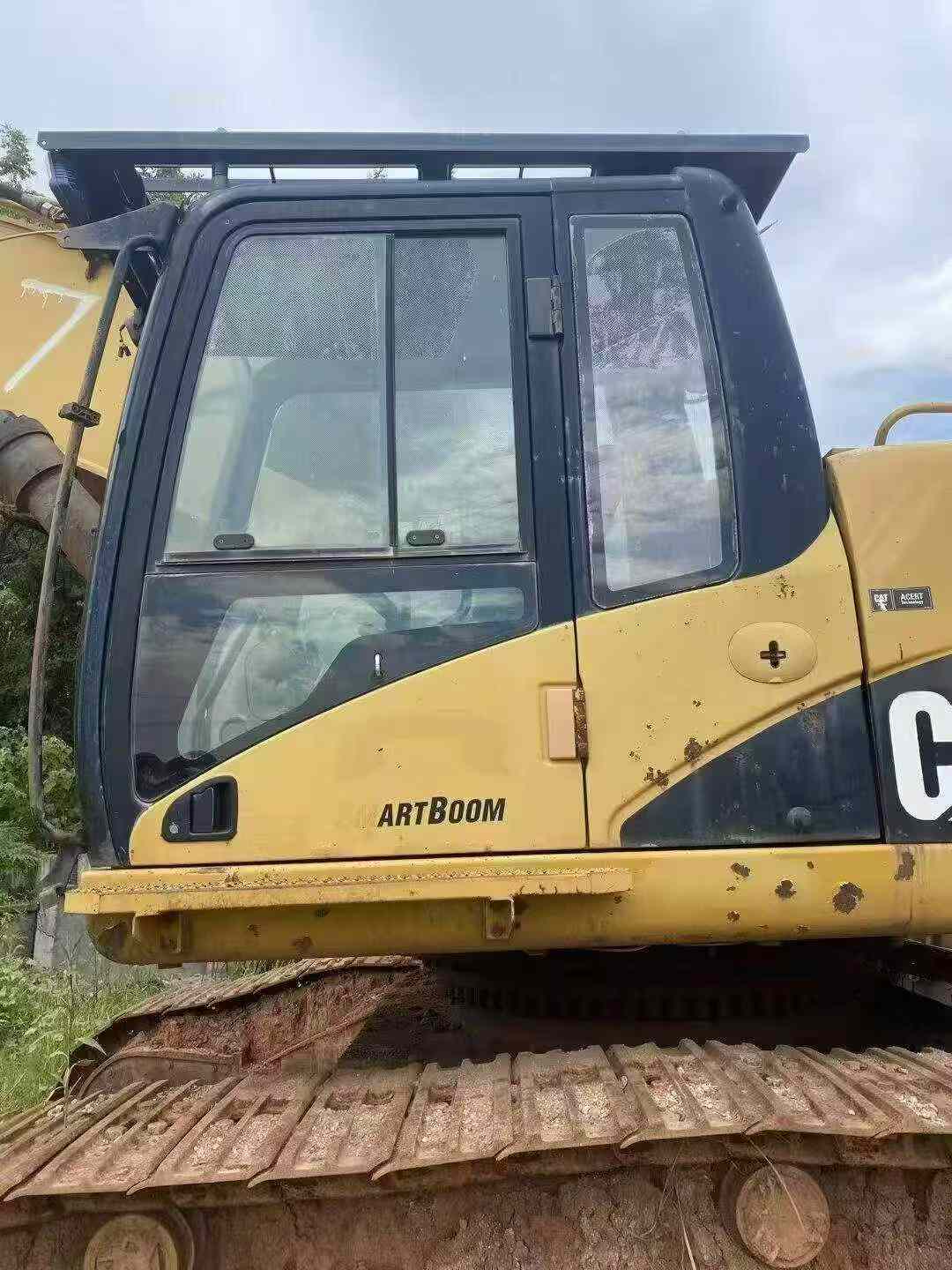

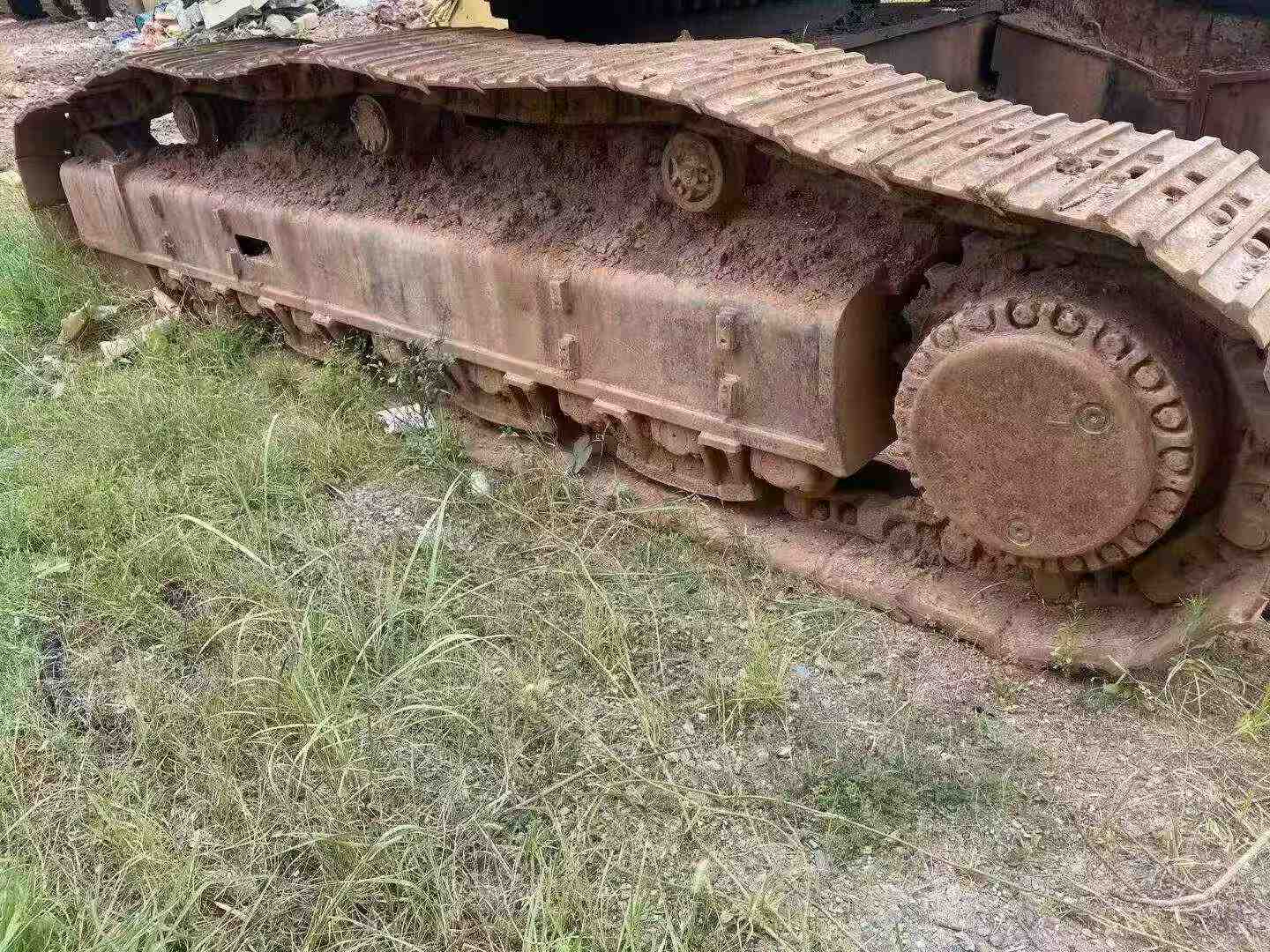

Operator-focused engineering ensures productive shifts with enhanced cabin visibility and intuitive controls. The spacious cab provides clear sightlines to the work area, while the machine's 8.7 rpm rotation speed enables smooth, controlled movements. Stability remains uncompromised thanks to 750mm track plates and a robust undercarriage design, maintaining balance even during maximum reach operations of 12,940mm.
- Maximum digging depth: 8,920mm for versatile excavation work
- Bucket capacity range: 1.8-3.5m³ to match application needs
- Hydraulic flow: 734 L/min for responsive attachment control
- Travel speeds: 2.8/4.5 km/h with confident maneuverability
- Current location: Luzhou, Sichuan, China
Designed for long-term durability with accessible service points and proven Caterpillar components throughout.
| Specifications | Value |
|---|---|
| No. | 1032433 |
| Tonnage (tons) | 45 |
| Working weight (kg) | 45375 |
| Bucket capacity (m³) | 1.8-3.5 |
| Boom length (mm) | 4300 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar CAT C13ACERT |
| Rated power (kw/rpm) | 283 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 12.5 |
| Rotation speed (rpm) | 8.7 |
| Climbing ability (%) | 70/35 ° |
| Travel speed (km/h) | 2.8/4.5 |
| Maximum flow of main pump (l/min) | 734 |
| Fuel Tank (L) | 705 |
| Hydraulic Tank (L) | 570(system included) |
| Engine Oil changes (L) | 42 |
| Coolant (L) | 35.5 |
| Hydraulic System (L) | 570 |
| Total transport length (mm) | 12450 |
| Total transport height (mm) | 3680 |
| Track plate width (mm) | 750 |
| Maximum digging depth (mm) | 8920 |
| Maximum unloading height (mm) | 7820 |
| Maximum vertical digging depth (mm) | 5860 |
| Maximum excavation radius of stop surface (mm) | 12940 |
Overview
No.1032433
Brand Name：
CaterpillarModel Number：
345DYear：
2016
Location：
Sichuan China
Pub Date：
