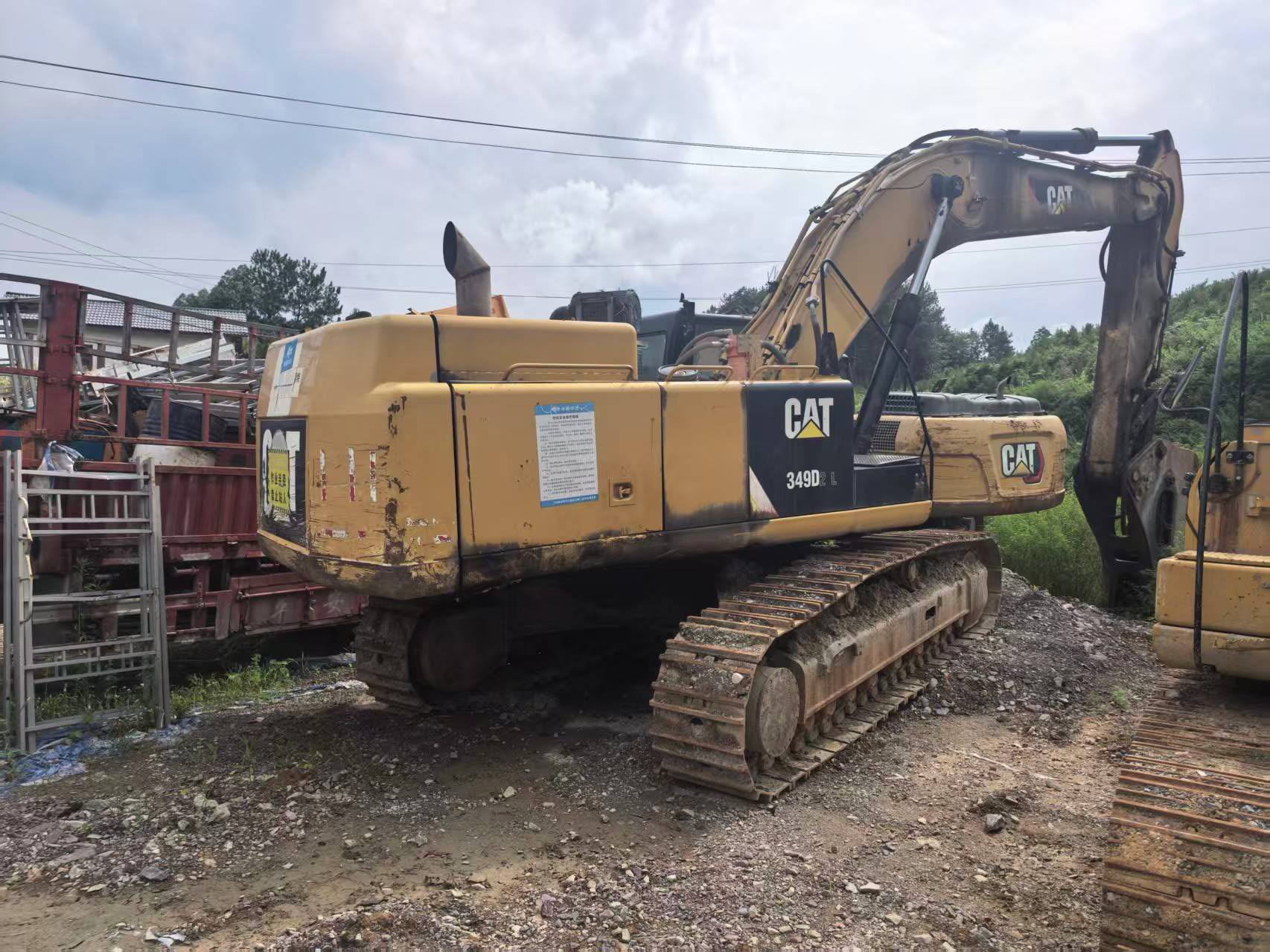

2017 Caterpillar 349D2
1/1
Product Description
This 2017 Caterpillar 349D2 excavator represents a well-maintained addition to any heavy construction fleet. Originally deployed on owner-operated projects, this machine has been consistently serviced and operated under controlled conditions. Currently located in Jilin, China, the unit is available for on-site inspection and demonstration.
Key features include:
- Manufactured in 2017 by Caterpillar, ensuring proven reliability and global parts availability
- Single-owner operation with documented maintenance history
- Suitable for large-scale earthmoving, mining, and quarry applications
- Pre-purchase testing available at current location in Jilin Province
- Well-maintained condition with consistent operational care
This 349D2 offers contractors and fleet managers a dependable solution for demanding excavation projects. Inspection appointments can be arranged to verify operational status and overall machine condition.
| Specifications | Value |
|---|---|
| No. | 1115739 |
| Tonnage (tons) | 49 |
| Working weight (kg) | 45260 |
| Bucket capacity (m³) | 3.2 |
| Boom length (mm) | 6900 |
| Rod length (mm) | 3350 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cat C13 ACERT |
| Rated power (kw/rpm) | 289 |
| Cylinder diameter × stroke (mm) | 130 x 157 |
| Displacement (L) | 12.5 |
| Rotation speed (rpm) | 8.7 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 267 |
| Rod digging force (kN) | 201 |
| Maximum tractive force (kN) | 338 |
| Travel speed (km/h) | 4.5 |
| Turning torque (Nm) | 149 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | 734 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 31.4 |
| Pilot Oil Circuit (MPa) | 4.11 |
| Pilot pump flow (L/min) | 43 |
| Bucket cylinders - Number × diameter × stroke (mm) | 160 x 1356 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 190 x 1778 |
| Boom cylinders - Number × diameter × stroke (mm) | 160 x 1575 |
| Fuel Tank (L) | 705 |
| Hydraulic Tank (L) | 243 |
| Engine Oil changes (L) | 42 |
| Coolant (L) | 35.5 |
| Hydraulic System (L) | 570 |
| Total transport length (mm) | 11940 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3690 |
| Full cab height (mm) | 3640 |
| Counterweight ground clearance (mm) | 1320 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3770 |
| Total track length (mm) | 5070 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 750 |
| Maximum digging depth (mm) | 7600 |
| Maximum excavation height (mm) | 10800 |
| Maximum unloading height (mm) | 7470 |
| Maximum vertical digging depth (mm) | 6300 |
| Maximum excavation radius of stop surface (mm) | 11660 |
| Maximum effective digging depth (mm) | 7460 |
see more
Overview
No.1115739
Brand Name：
CaterpillarModel Number：
349D2
Year：
2017
Hour：
10000h
Location：
JiLin China
Pub Date：
