2019 Caterpillar 349D2

1/9
Buy Caterpillar 349D2 Used Excavator / 1
Buy Caterpillar 349D2 Used Excavator / 2
Buy Caterpillar 349D2 Used Excavator / 3
Buy Caterpillar 349D2 Used Excavator / 4
Buy Caterpillar 349D2 Used Excavator / 5
Buy Caterpillar 349D2 Used Excavator / 6
Buy Caterpillar 349D2 Used Excavator / 7
Buy Caterpillar 349D2 Used Excavator / 8
Buy Caterpillar 349D2 Used Excavator / 9

Product Description

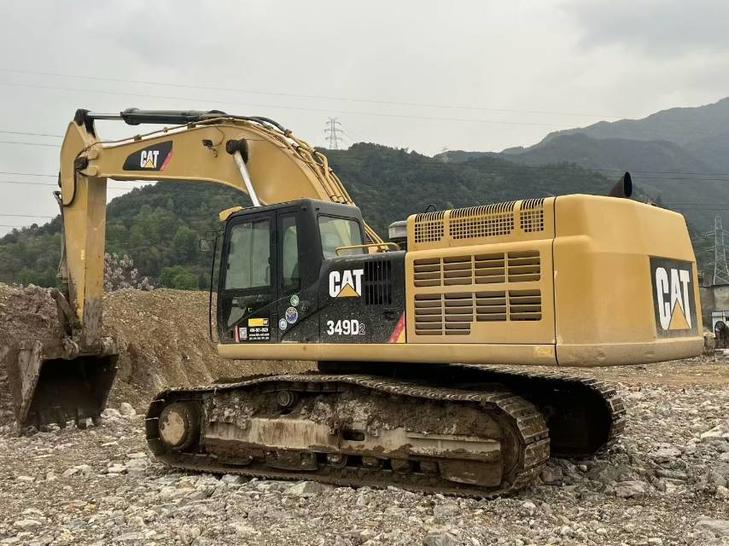

This 2019 Caterpillar 349D2 hydraulic excavator is available for immediate purchase in Zhejiang, China. With approximately 3,000 operating hours, this machine is ready for deployment on your next project. The unit has been maintained in working condition and is available for on-site inspection and test operation before purchase.

Key features of the CAT 349D2 include:

  • Proven Cat C13 ACERT engine delivering reliable performance
  • Advanced hydraulic system for efficient digging and lifting operations
  • Spacious operator cab with ergonomic controls
  • Robust undercarriage designed for demanding applications
  • Suitable for mining, quarrying, and heavy construction work

This excavator represents a cost-effective solution for contractors seeking dependable heavy equipment. Pricing is negotiable based on inspection results. Contact us to schedule a site visit and operational demonstration in Zhejiang.

SpecificationsValue
No.1075603
Tonnage (tons)49
Working weight (kg)45260
Bucket capacity (m³)3.2
Boom length (mm)6900
Rod length (mm)3350
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCat C13 ACERT
Rated power (kw/rpm)289
Cylinder diameter × stroke (mm)130 x 157
Displacement (L)12.5
Rotation speed (rpm)8.7
Climbing ability (%)70
Bucket digging force (kN)267
Rod digging force (kN)201
Maximum tractive force (kN)338
Travel speed (km/h)4.5
Turning torque (Nm)149
Main overflow set pressure (Mpa)35
Maximum flow of main pump (l/min)734
Traveling Hydraulic Circuit (Mpa)35
Rotary Hydraulic Circuit (Mpa)31.4
Pilot Oil Circuit (MPa)4.11
Pilot pump flow (L/min)43
Bucket cylinders - Number × diameter × stroke (mm)160 x 1356
Bucket rod cylinders - Number × diameter × stroke (mm)190 x 1778
Boom cylinders - Number × diameter × stroke (mm)160 x 1575
Fuel Tank (L)705
Hydraulic Tank (L)243
Engine Oil changes (L)42
Coolant (L)35.5
Hydraulic System (L)570
Total transport length (mm)11940
Total transport width (mm)3340
Total transport height (mm)3690
Full cab height (mm)3640
Counterweight ground clearance (mm)1320
Minimum ground clearance (mm)510
Back end turning radius (mm)3770
Total track length (mm)5070
Track gauge (mm)2740
Track plate width (mm)750
Maximum digging depth (mm)7600
Maximum excavation height (mm)10800
Maximum unloading height (mm)7470
Maximum vertical digging depth (mm)6300
Maximum excavation radius of stop surface (mm)11660
Maximum effective digging depth (mm)7460
see more

Overview

No.1075603

Brand Name:

Caterpillar

Model Number:

349D2

Year:

2019

Location:

Zhejiang China

Pub Date
