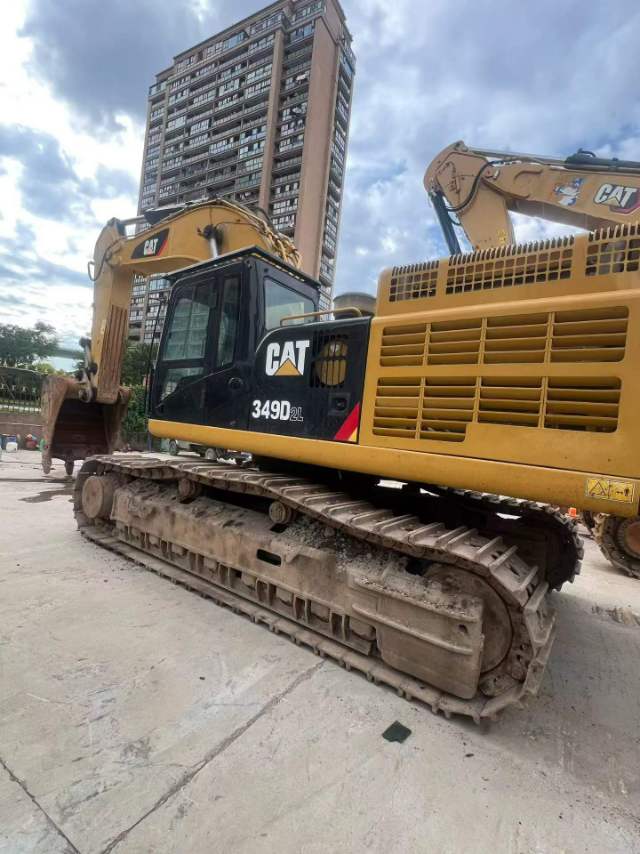

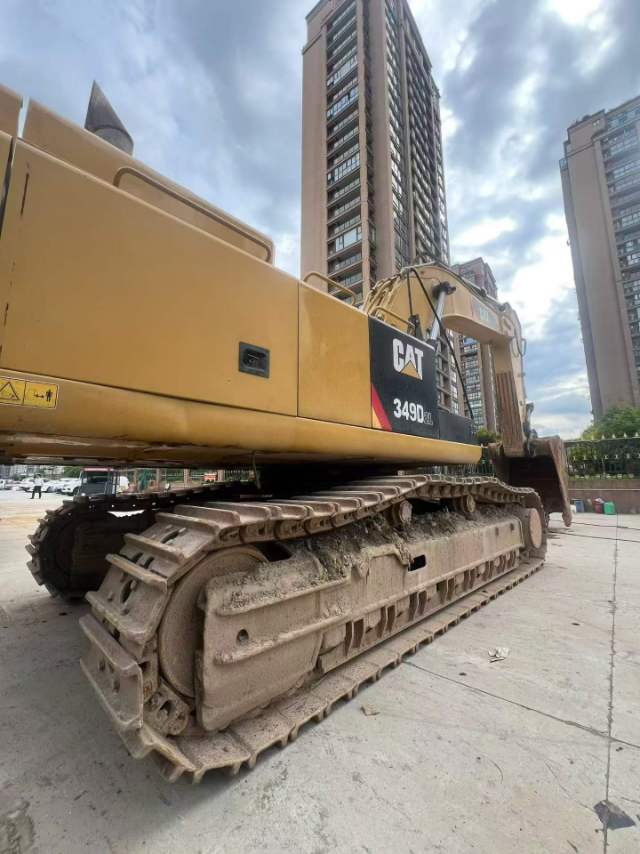

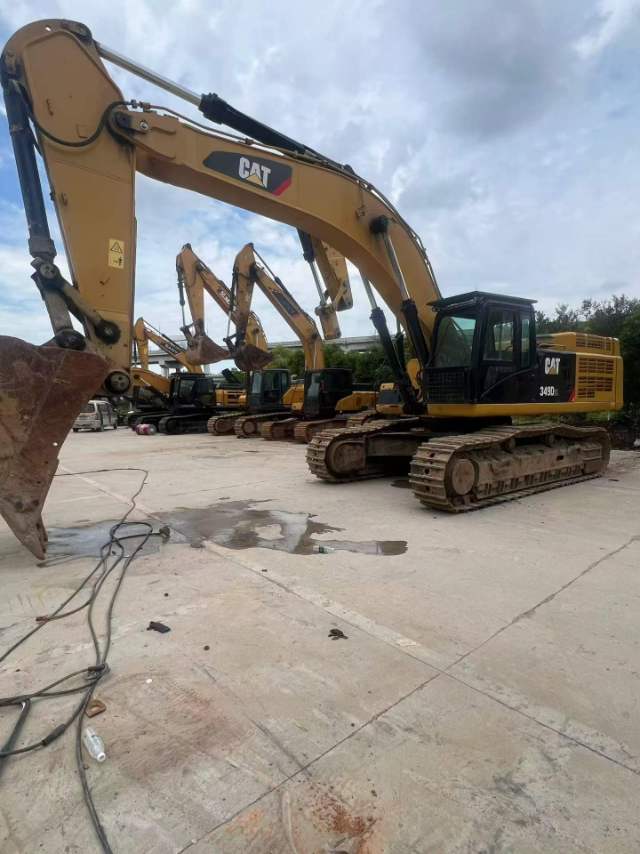

2019 Caterpillar 349D2L
Product Description
Discover the 2019 Caterpillar 349D2L, a robust and reliable excavator currently available in Zhejiang, China. This machine is in exceptional condition, with no leaks and comes fully supported by all necessary documentation, including invoices and certificates. The 349D2L is known for its durability and performance, making it a trusted choice for demanding construction and excavation tasks. Its impeccable maintenance record ensures that it is ready to operate at peak efficiency. Negotiable pricing is available, providing an excellent opportunity to acquire a high-quality, used heavy machine at a competitive cost.
- Year: 2019
- Brand: Caterpillar
- Model: 349D2L
- Location: Zhejiang, China
- Condition: Excellent, no leaks, all documentation included
| Specifications | Value |
|---|---|
| No. | 1056627 |
| Tonnage (tons) | 49 |
| Working weight (kg) | 45260 |
| Bucket capacity (m³) | 3.2 |

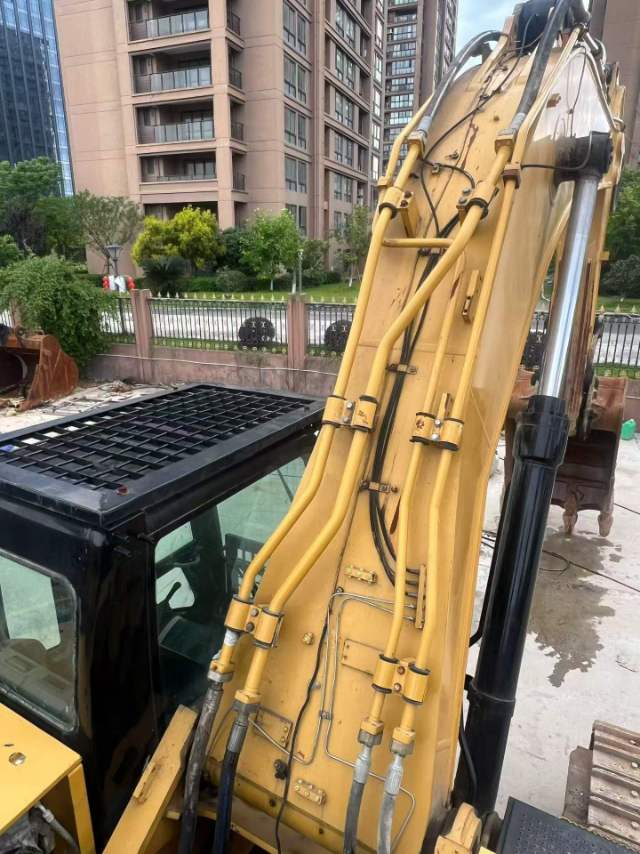

| Boom length (mm) | 6900 |
| Rod length (mm) | 3350 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

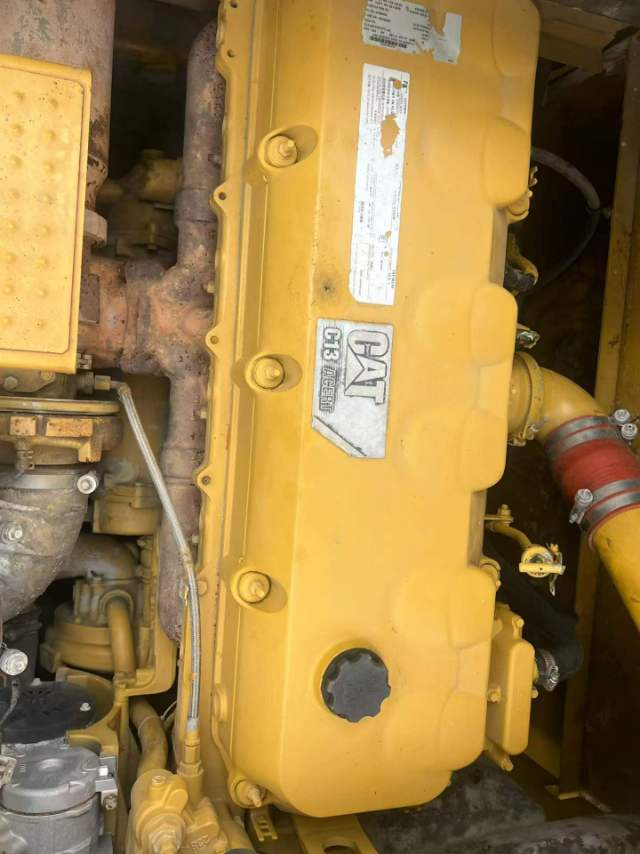

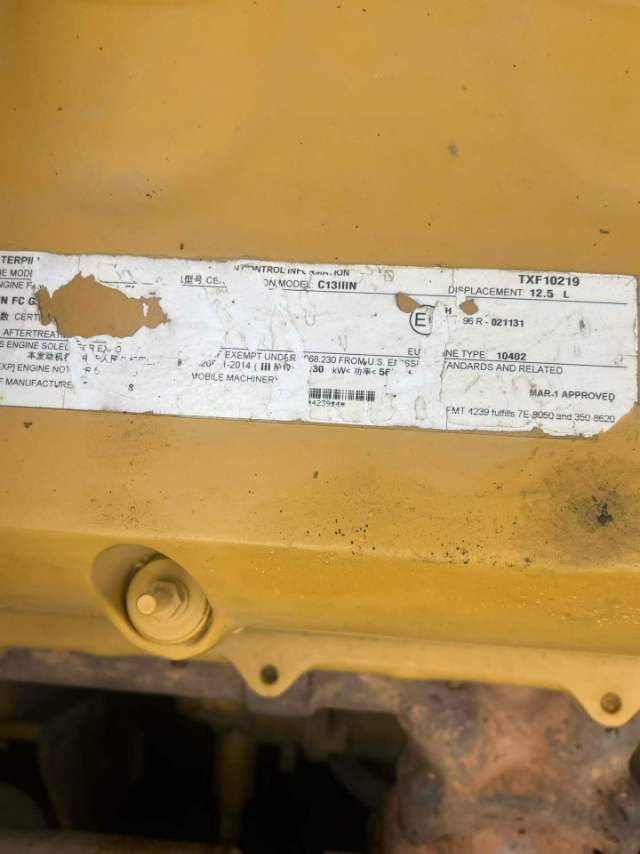

| Engine type | Cat C13 ACERT |
| Rated power (kw/rpm) | 289 |
| Cylinder diameter × stroke (mm) | 130 x 157 |
| Displacement (L) | 12.5 |
| Rotation speed (rpm) | 8.7 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 267 |
| Rod digging force (kN) | 201 |
| Maximum tractive force (kN) | 338 |
| Travel speed (km/h) | 4.5 |
| Turning torque (Nm) | 149 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | 734 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 31.4 |
| Pilot Oil Circuit (MPa) | 4.11 |
| Pilot pump flow (L/min) | 43 |
| Bucket cylinders - Number × diameter × stroke (mm) | 160 x 1356 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 190 x 1778 |
| Boom cylinders - Number × diameter × stroke (mm) | 160 x 1575 |
| Fuel Tank (L) | 705 |
| Hydraulic Tank (L) | 243 |
| Engine Oil changes (L) | 42 |
| Coolant (L) | 35.5 |
| Hydraulic System (L) | 570 |
| Total transport length (mm) | 11940 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3690 |
| Full cab height (mm) | 3640 |
| Counterweight ground clearance (mm) | 1320 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3770 |
| Total track length (mm) | 5070 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 750 |
| Maximum digging depth (mm) | 7600 |
| Maximum excavation height (mm) | 10800 |
| Maximum unloading height (mm) | 7470 |
| Maximum vertical digging depth (mm) | 6300 |
| Maximum excavation radius of stop surface (mm) | 11660 |
| Maximum effective digging depth (mm) | 7460 |
see more
Overview
No.1056627
Brand Name：
CaterpillarModel Number：
349D2LYear：
2019

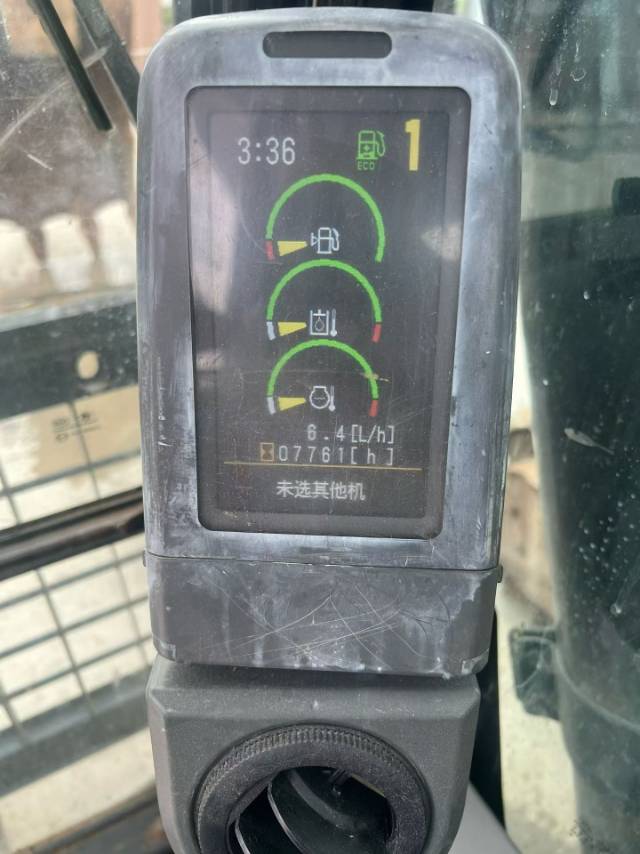

Hour：
7700h
Location：
Zhejiang China
Pub Date：
