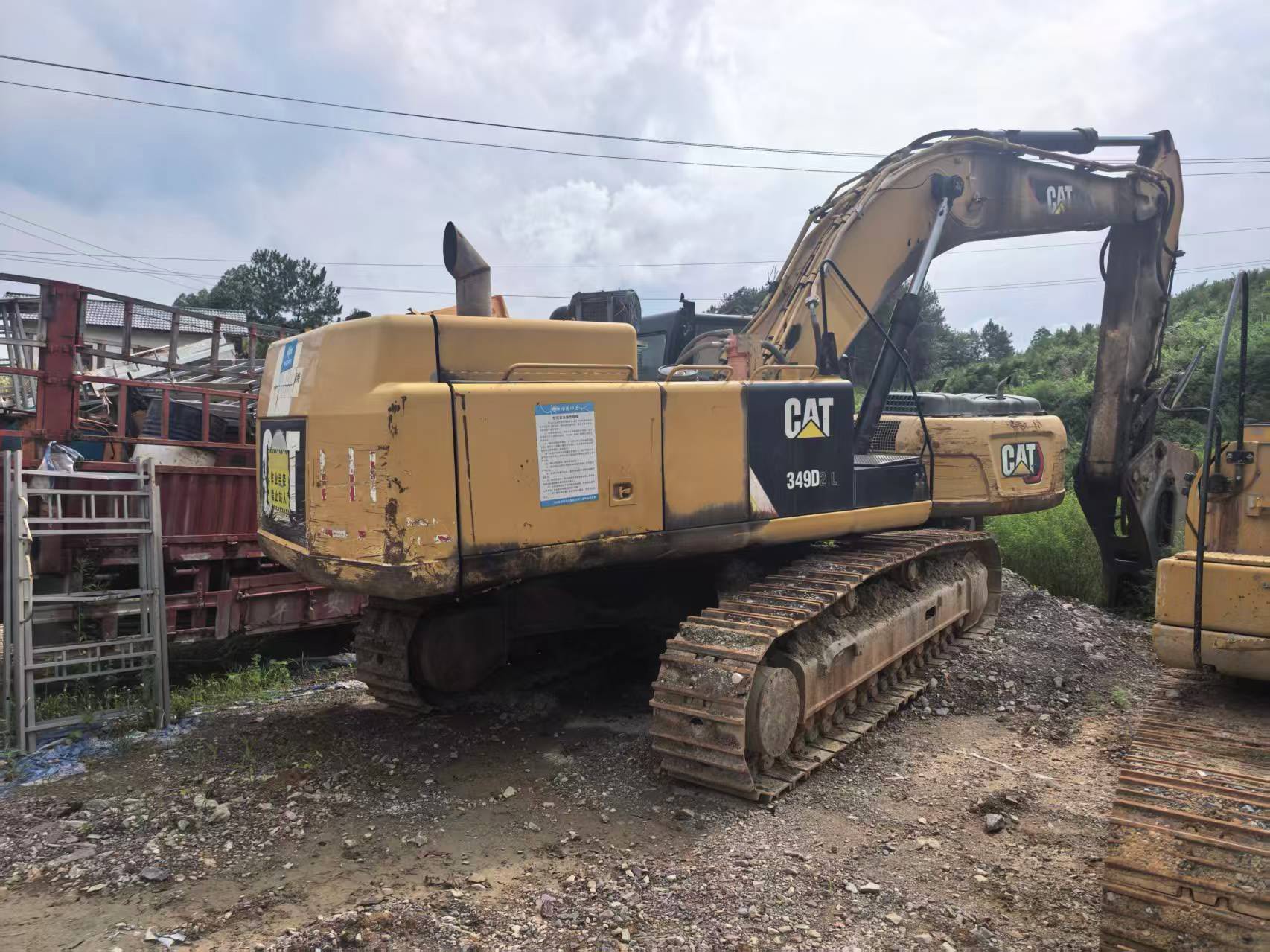

2017 Caterpillar 349DL
1/1
Product Description
This 2017 Caterpillar 349DL hydraulic excavator is currently located in Hunan, China and available for immediate inspection. The machine has been consistently operated by a single owner on private construction projects, ensuring controlled working conditions and documented usage history.
According to the seller, this unit presents in excellent mechanical condition with no major repairs or accident history on record. The excavator is available for on-site testing and demonstration to qualified buyers.
Key features of the Cat 349DL include:
- Proven track record in demanding earthmoving applications
- Well-maintained by original owner
- No reported structural damage or major component overhauls
- Ready for pre-purchase inspection
- Suitable for mining, quarrying, and heavy construction operations
Contact our sales team to arrange a technical inspection or request additional documentation on this Caterpillar 349DL excavator.
| Specifications | Value |
|---|---|
| No. | 1115750 |
| Tonnage (tons) | 49 |
| Working weight (kg) | 47122 |
| Bucket capacity (m³) | 1.8-3.11 |
| Boom length (mm) | 7400/6900/6550 |
| Rod length (mm) | 4300/3900/3350 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar Cat C13 ACERT |
| Rated power (kw/rpm) | 283 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 130 x 157 |
| Displacement (L) | 12.5 |
| Rotation speed (rpm) | 8.7 |
| Maximum tractive force (kN) | 338 |
| Travel speed (km/h) | 4.5 |
| Turning torque (Nm) | 149 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | 734 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 31.4 |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 4.11 |
| Pilot pump flow (L/min) | 43 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-160 x 1356 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-190 x 1778 |
| Boom cylinders - Number × diameter × stroke (mm) | 1-160 x 1575 |
| Fuel Tank (L) | 705 |
| Hydraulic Tank (L) | 243 |
| Engine Oil changes (L) | 42 |
| Coolant (L) | 35.5 |
| Hydraulic System (L) | 570 |
| Total transport length (mm) | 12450 |
| Total transport width (mm) | 3640 |
| Total transport height (mm) | 3680 |
| Full cab height (mm) | 3210 |
| Counterweight ground clearance (mm) | 1320 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3770 |
| Total track length (mm) | 5360 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 750 |
| Total track width (mm) | 3640 |
| Maximum digging depth (mm) | 8920 |
| Maximum unloading height (mm) | 7870 |
| Maximum vertical digging depth (mm) | 5860 |
| Maximum excavation radius of stop surface (mm) | 12940 |
| Maximum effective digging depth (mm) | 8790 |
Overview
No.1115750
Brand Name：
CaterpillarModel Number：
349DLYear：
2017
Hour：
10000h
Location：
Hunan China
