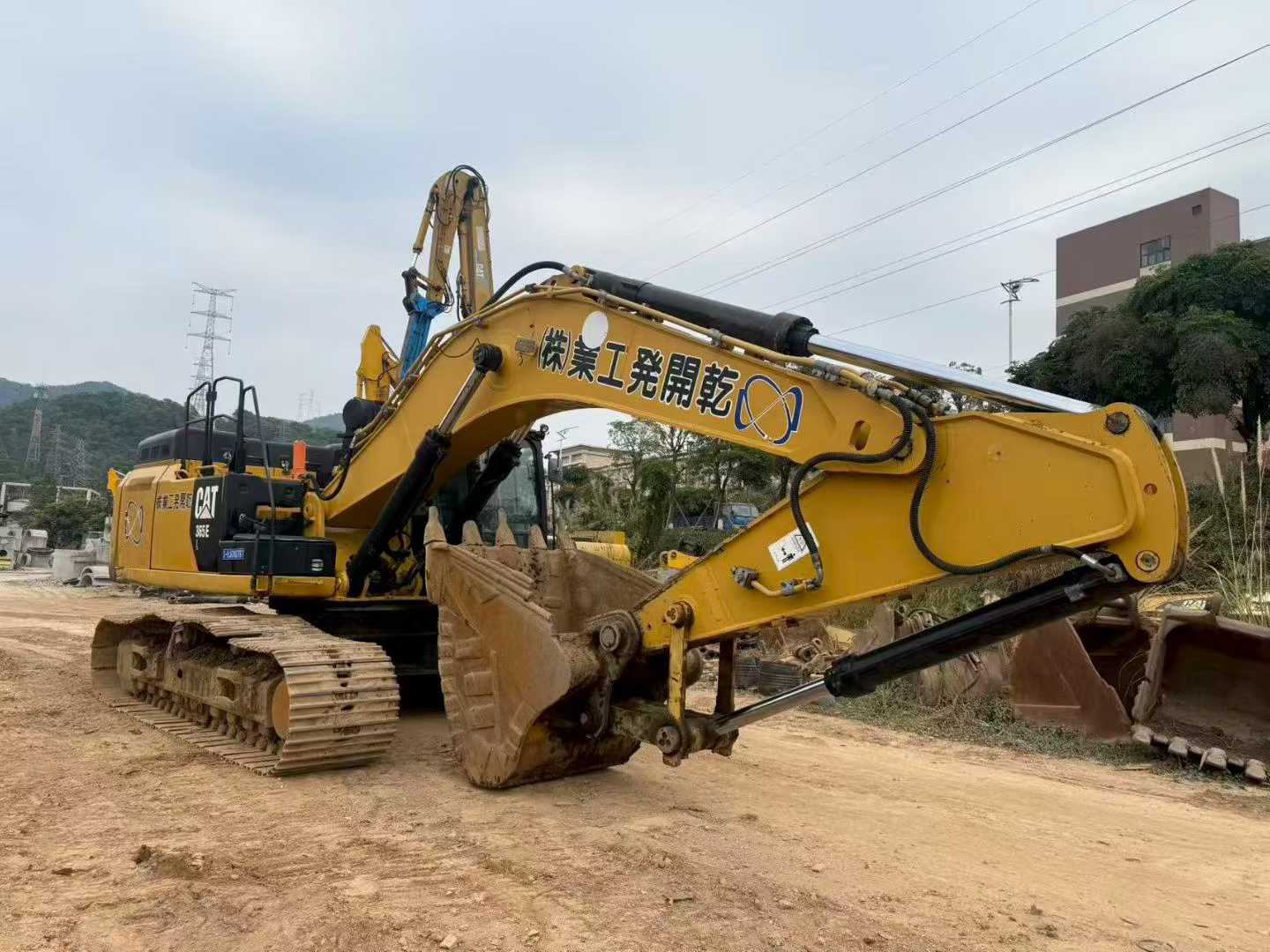

2016 Caterpillar 349EL
Product Description
Proven reliability meets exceptional performance in this 2016 Caterpillar 349EL excavator, now available from our Shenzhen facility. Built on Caterpillar's legendary engineering standards, this 49-ton workhorse delivers consistent productivity with a Cat C13 ACERT engine producing 301 kW of rated power and meeting US Tier 4 emission standards. Operating weight ranges from 47,800 to 53,300 kg, while the 3.1 m³ bucket capacity and 12,120 mm maximum digging radius handle demanding excavation tasks with confidence.
Caterpillar ownership means long-term value protection. Parts availability remains unmatched globally, minimizing downtime and keeping operational costs predictable. Strong resale values make this brand the safest investment in used heavy equipment. Key specifications include:
- 268 kN bucket digging force with 184 kN rod digging force
- 8,180 mm maximum digging depth and 10,730 mm excavation height

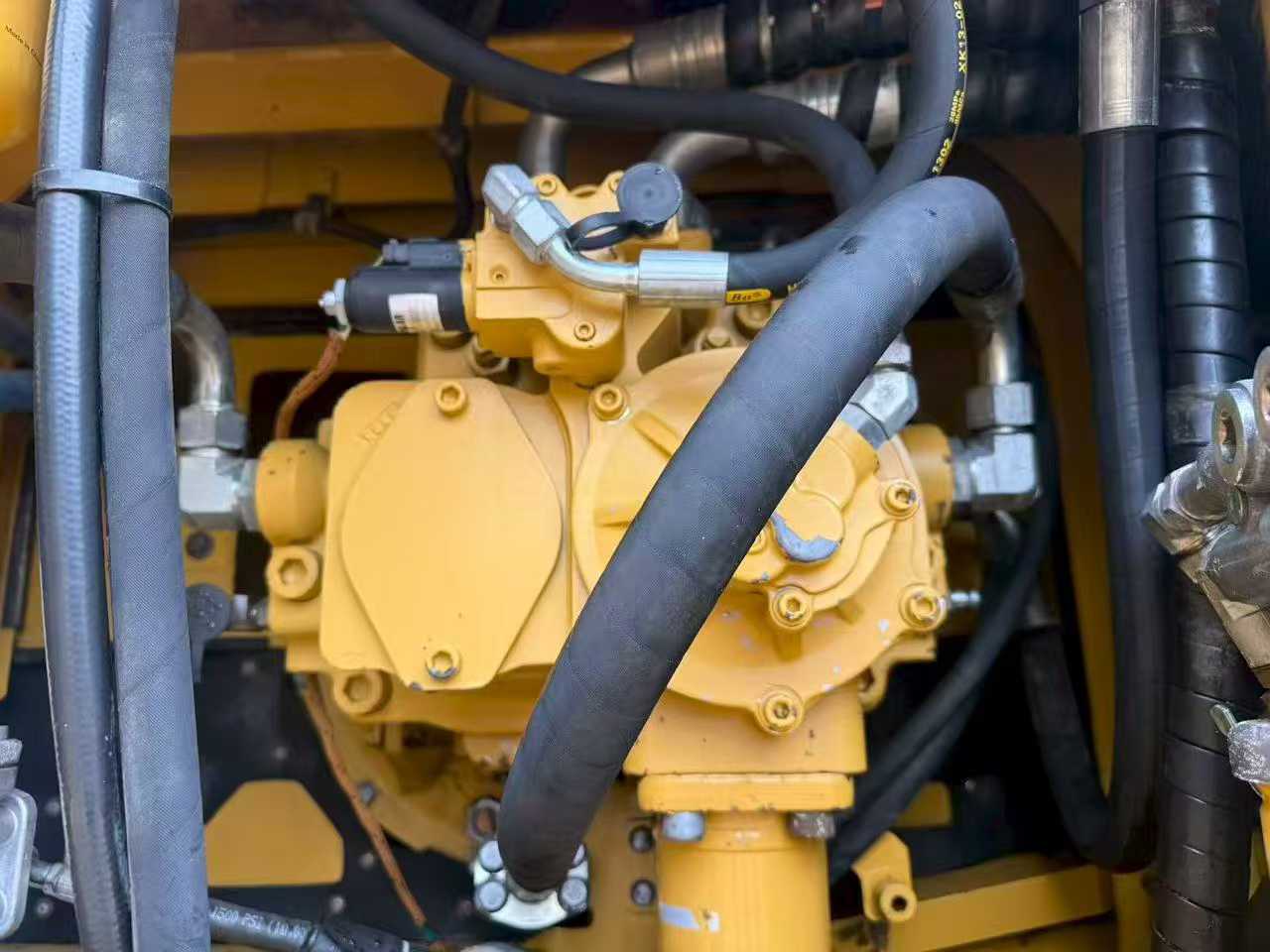

- 770 L/min main pump flow for responsive hydraulic performance

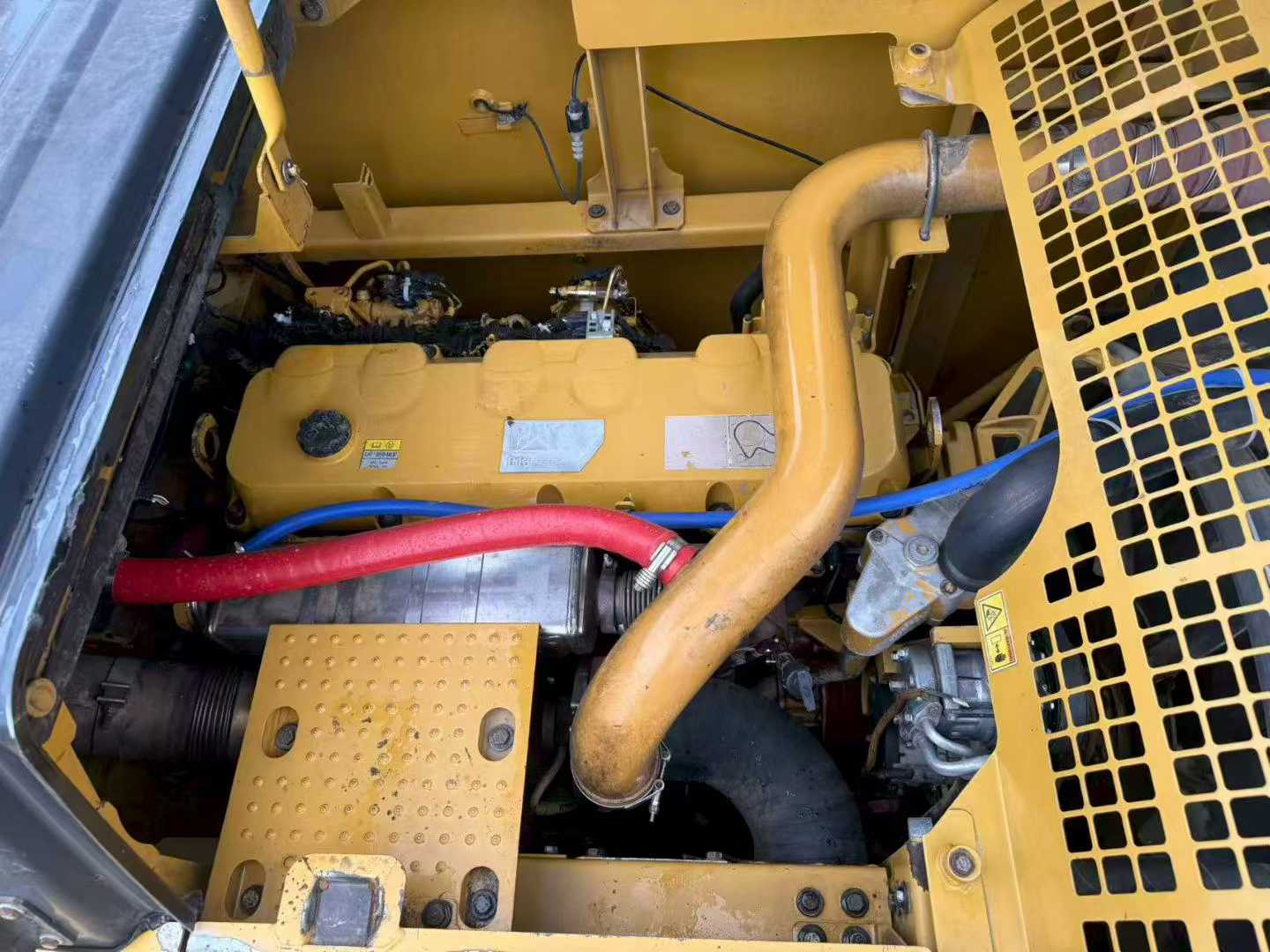

- Water-cooled 12.5L displacement engine with proven durability
- Multiple boom and rod configurations for application flexibility
Backed by Caterpillar's worldwide dealer network, this machine represents
| Specifications | Value |
|---|---|
| No. | 1027106 |
| Tonnage (tons) | 49 |
| Working weight (kg) | 47800-53300 |
| Bucket capacity (m³) | 3.1 |
| Boom length (mm) | 6900/6550 |
| Rod length (mm) | 3900/3350/3000/2500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar Cat C13 ACERT |
| Rated power (kw/rpm) | 301 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 130 x 157 |
| Displacement (L) | 12.5 |
| Working form | Meet US Tier4 emission standards. |
| Rotation speed (rpm) | 8.7 |
| Bucket digging force (kN) | 268 |
| Rod digging force (kN) | 184 |
| Maximum tractive force (kN) | 335 |
| Travel speed (km/h) | 4.7 |
| Maximum flow of main pump (l/min) | 770 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 27.5 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Pilot pump flow (L/min) | 27 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 170 x 1396 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 190 x 1758 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 170 x 1524 |
| Fuel Tank (L) | 720 |
| Hydraulic Tank (L) | 407 |
| Engine Oil changes (L) | 43 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 570 |
| Total transport length (mm) | 11930 |
| Total transport width (mm) | 3340/3490/3640 |
| Total transport height (mm) | 3670 |
| Full cab height (mm) | 3220 |
| Counterweight ground clearance (mm) | 1280 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3760 |
| Total track length (mm) | 5370 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600/750/900 |
| Total track width (mm) | 3340/3490/3640 |
| Maximum digging radius (mm) | 12120 |
| Maximum digging depth (mm) | 8180 |
| Maximum excavation height (mm) | 10730 |
| Maximum unloading height (mm) | 7450 |
| Maximum vertical digging depth (mm) | 5890 |
| Maximum effective digging depth (mm) | 8050 |
