2020 Caterpillar 349EL
Product Description

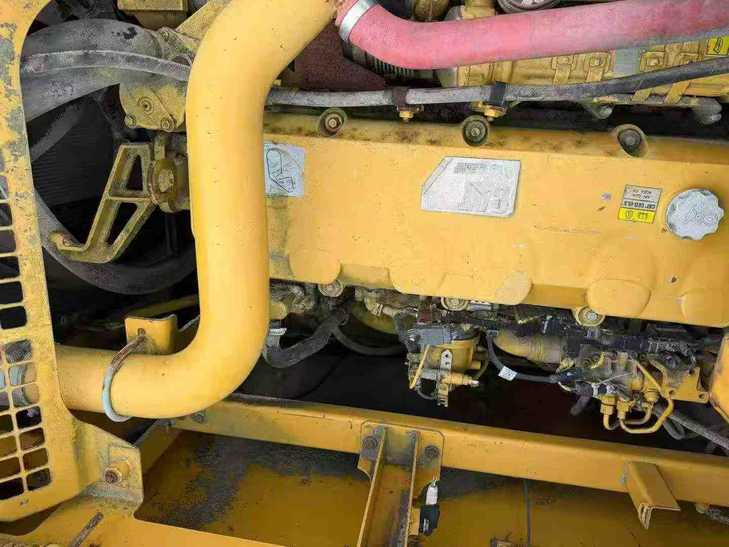

Built for serious earthmoving, the 2020 Caterpillar 349EL delivers 49-ton class performance backed by one of the most trusted names in heavy equipment. Powered by a Cat C13 ACERT engine producing 301 kW, this large excavator meets US Tier 4 emission standards and offers a bucket digging force of 268 kN — numbers that hold up on demanding job sites worldwide.
Choosing Caterpillar in the used market is a calculated decision. Cat's global dealer network means parts are available across most major markets, including Asia, the Middle East, and the Americas. Resale value holds stronger than most competitors at comparable age and hours, making this unit a sound long-term asset whether you're operating it or eventually moving it on.
- Engine: Caterpillar Cat C13 ACERT, 301 kW, water-cooled, 12.5L displacement
- Operating weight: 47,800 – 53,300 kg
- Bucket capacity: 3.1 m³ (backhoe configuration)
- Bucket digging force: 268 kN | Rod digging force: 184 kN
- Maximum digging depth: 8,180 mm | Maximum digging radius: 12,120 mm
- Maximum excavation height: 10,730 mm | Maximum unloading height: 7,450 mm
- Main pump max flow: 770 L/min | Hydraulic system capacity: 570 L
- Fuel tank: 720 L | Travel speed: 4.7 km/h | Max tractive force: 335 kN
- Transport dimensions: 11,930 mm (L) × 3,340 mm (W) × 3,670 mm (H)
- Currently located in Zhejiang, China — well-positioned for export
| Specifications | Value |
|---|---|
| No. | 1073461 |
| Tonnage (tons) | 49 |
| Working weight (kg) | 47800-53300 |
| Bucket capacity (m³) | 3.1 |
| Boom length (mm) | 6900/6550 |
| Rod length (mm) | 3900/3350/3000/2500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar Cat C13 ACERT |
| Rated power (kw/rpm) | 301 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 130 x 157 |
| Displacement (L) | 12.5 |
| Working form | Meet US Tier4 emission standards. |
| Rotation speed (rpm) | 8.7 |
| Bucket digging force (kN) | 268 |
| Rod digging force (kN) | 184 |
| Maximum tractive force (kN) | 335 |
| Travel speed (km/h) | 4.7 |
| Maximum flow of main pump (l/min) | 770 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 27.5 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Pilot pump flow (L/min) | 27 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 170 x 1396 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 190 x 1758 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 170 x 1524 |
| Fuel Tank (L) | 720 |
| Hydraulic Tank (L) | 407 |
| Engine Oil changes (L) | 43 |
| Coolant (L) | 50 |
| Hydraulic System (L) | 570 |
| Total transport length (mm) | 11930 |
| Total transport width (mm) | 3340/3490/3640 |
| Total transport height (mm) | 3670 |
| Full cab height (mm) | 3220 |
| Counterweight ground clearance (mm) | 1280 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3760 |
| Total track length (mm) | 5370 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600/750/900 |
| Total track width (mm) | 3340/3490/3640 |
| Maximum digging radius (mm) | 12120 |
| Maximum digging depth (mm) | 8180 |
| Maximum excavation height (mm) | 10730 |
| Maximum unloading height (mm) | 7450 |
| Maximum vertical digging depth (mm) | 5890 |
| Maximum effective digging depth (mm) | 8050 |
Overview
No.1073461
Brand Name：
CaterpillarModel Number：
349ELYear：
2020
Location：
Zhejiang China
Pub Date：
