HOME>>Caterpillar>>Caterpillar 374FL

2023 Caterpillar 374FL

1/8

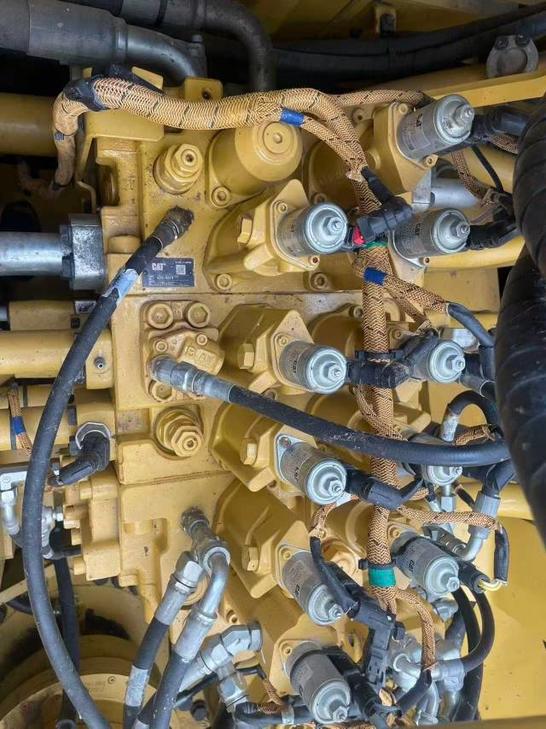

Buy Caterpillar 374FL Used Excavator / 1
Buy Caterpillar 374FL Used Excavator / 2
Buy Caterpillar 374FL Used Excavator / 3
Buy Caterpillar 374FL Used Excavator / 4
Buy Caterpillar 374FL Used Excavator / 5
Buy Caterpillar 374FL Used Excavator / 6
Buy Caterpillar 374FL Used Excavator / 7
Buy Caterpillar 374FL Used Excavator / 8

Product Description

Discover the robust and reliable 2023 Caterpillar 374FL, now available in Guangdong, China. This used heavy machine has been meticulously maintained and is ready to tackle your most demanding projects. With over 900,000 RMB invested, this excavator offers exceptional value and performance, making it a smart choice for any construction or mining operation.

  • Year: 2023
  • Brand: Caterpillar
  • Model: 374FL
  • Location: Guangdong, China
  • Investment: Over 900,000 RMB
SpecificationsValue
No.1085786
Tonnage (tons)74
Working weight (kg)70970-75170
Bucket capacity (m³)4.4/4.6
Boom length (mm)3800
Rod length (mm)3600
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCat® C15 ACERT™
Rated power (kw/rpm)352/1600
Cylinder diameter × stroke (mm)137 x 171
Displacement (L)15.2
Rotation speed (rpm)6.5
Bucket digging force (kN)314.4
Rod digging force (kN)240
Maximum tractive force (kN)492
Travel speed (km/h)4.1
Turning torque (Nm)215
Main overflow set pressure (Mpa)37
Rotary hydraulic motor typeNon-rotary pump
Maximum flow of main pump (l/min)952.0
Traveling Hydraulic Circuit (Mpa)35
Rotary Hydraulic Circuit (Mpa)29.4
Pilot Oil Circuit (MPa)4.0-4.4
Pilot pump flow (L/min)63
Bucket cylinders - Number × diameter × stroke (mm)190 x 1433
Bucket rod cylinders - Number × diameter × stroke (mm)210 x 2118
Boom cylinders - Number × diameter × stroke (mm)190 x 1792
Fuel Tank (L)935
Hydraulic Tank (L)612
Engine Oil changes (L)60
Coolant (L)74
Hydraulic System (L)729
Total transport length (mm)13230
Total transport width (mm)3400
Total transport height (mm)4990
Counterweight ground clearance (mm)1540
Minimum ground clearance (mm)840
Back end turning radius (mm)4015
Total track length (mm)5870
Track gauge (mm)2750
Track plate width (mm)650
Maximum digging depth (mm)9650
Maximum excavation height (mm)13210
Maximum unloading height (mm)9000
Maximum vertical digging depth (mm)8530
Maximum excavation radius of stop surface (mm)14230
Maximum effective digging depth (mm)9550
