2019 Caterpillar 390DL
Product Description
This 2019 Caterpillar 390DL hydraulic excavator is now available for immediate sale in Sichuan, China. Acquired new by the current owner, this machine represents a solid opportunity for operators seeking proven Caterpillar performance in the large excavator class. The 390DL is engineered for high-production earthmoving, demolition, and heavy construction applications where power and reliability are essential.
Key features include:
- Model year 2019 with documented ownership history

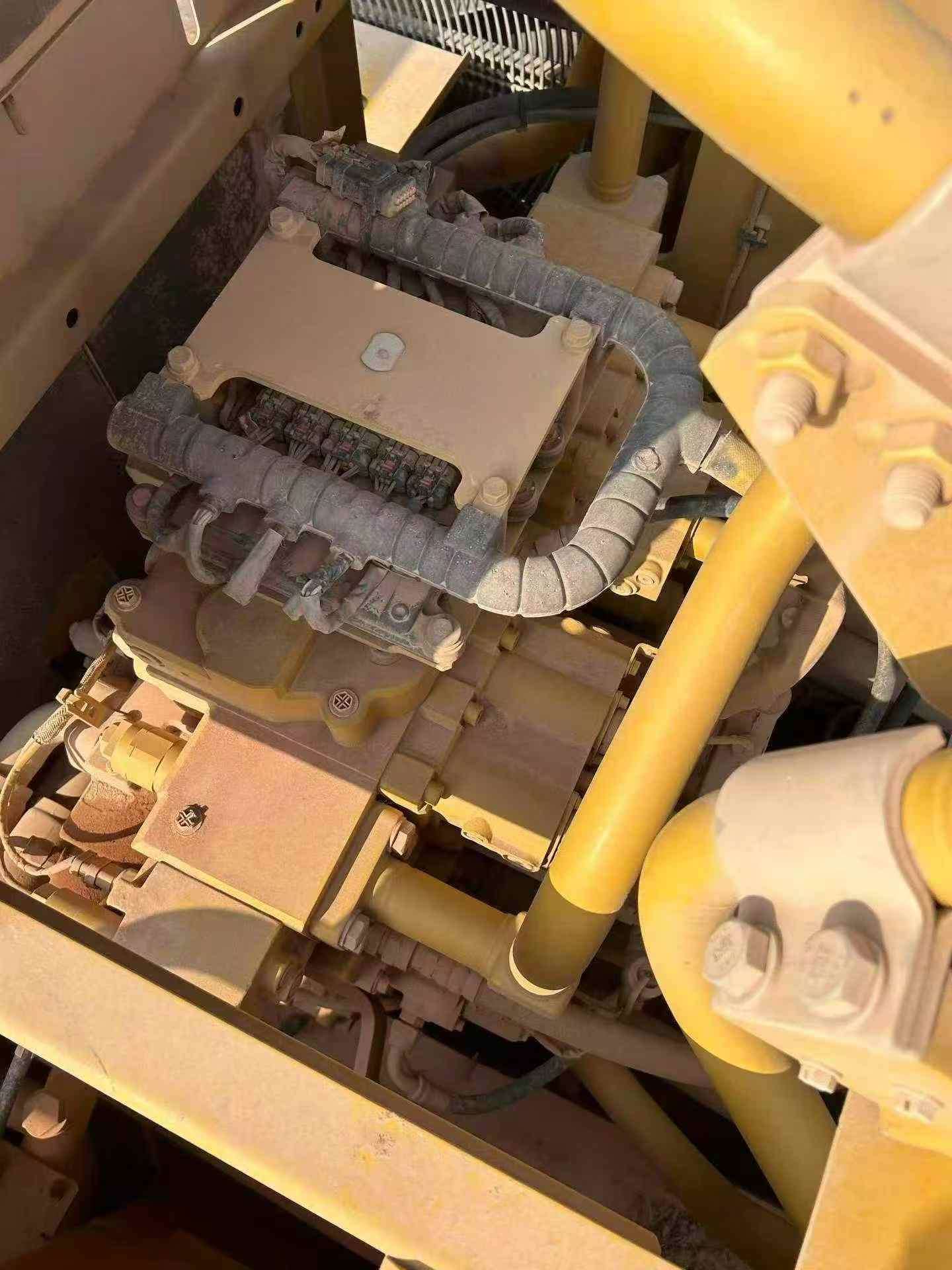

- Cat C18 ACERT engine delivering robust hydraulic performance
- Advanced hydraulic system for superior digging and lifting capacity
- Spacious ROPS/FOPS certified cab with ergonomic controls
- Currently located in Sichuan Province, China
The owner is open to reasonable offers. Interested buyers are encouraged to contact us promptly for inspection arrangements, operating hours verification, and pricing discussions.
| Specifications | Value |
|---|---|
| No. | 1082389 |
| Tonnage (tons) | 90 |
| Working weight (kg) | 90390 |
| Bucket capacity (m³) | 4.6 |
| Boom length (mm) | 8400 |
| Rod length (mm) | 4400 |
| Country of origin | America |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar C18 ACERT(ATAAC) |
| Rated power (kw/rpm) | 390 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 145 x 171 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 18.1 |
| Ground specific pressure (Kpa) | 88.3-122.4 |
| Rotation speed (rpm) | 5.9 |
| Bucket digging force (kN) | 363 |
| Rod digging force (kN) | 276 |
| Maximum tractive force (kN) | 590 |
| Travel speed (km/h) | 4.5 |
| Turning torque (kN/m) | 260 |
| Main overflow set pressure (Mpa) | 35 |
| Type of walking hydraulic motor | 980 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 35 |
| Control Hydraulic Circuit (Mpa) | 26 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Pilot pump flow (L/min) | 90 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-210 x 2262 |
| Fuel Tank (L) | 1240 |
| Engine Oil changes (L) | 65 |
| Coolant (L) | 101 |
| Hydraulic System (L) | 995(including fuel tank) |
| Total transport length (mm) | 14700 |
| Total transport width (mm) | 4260 |
| Total transport height (mm) | 5290 |
| Full cab height (mm) | 3760 |
| Minimum ground clearance (mm) | 900 |
| Back end turning radius (mm) | 4680 |
| Total track length (mm) | Standard 5840/ Extended 6360 |
| Track gauge (mm) | 3510 |
| Track plate width (mm) | 650/750/900 |
| Total track width (mm) | 4260 |
| Maximum digging depth (mm) | 9660 |
| Maximum unloading height (mm) | 9270 |
| Maximum vertical digging depth (mm) | 6850 |
| Maximum excavation radius of stop surface (mm) | 14690 |
| Maximum effective digging depth (mm) | 9550 |
