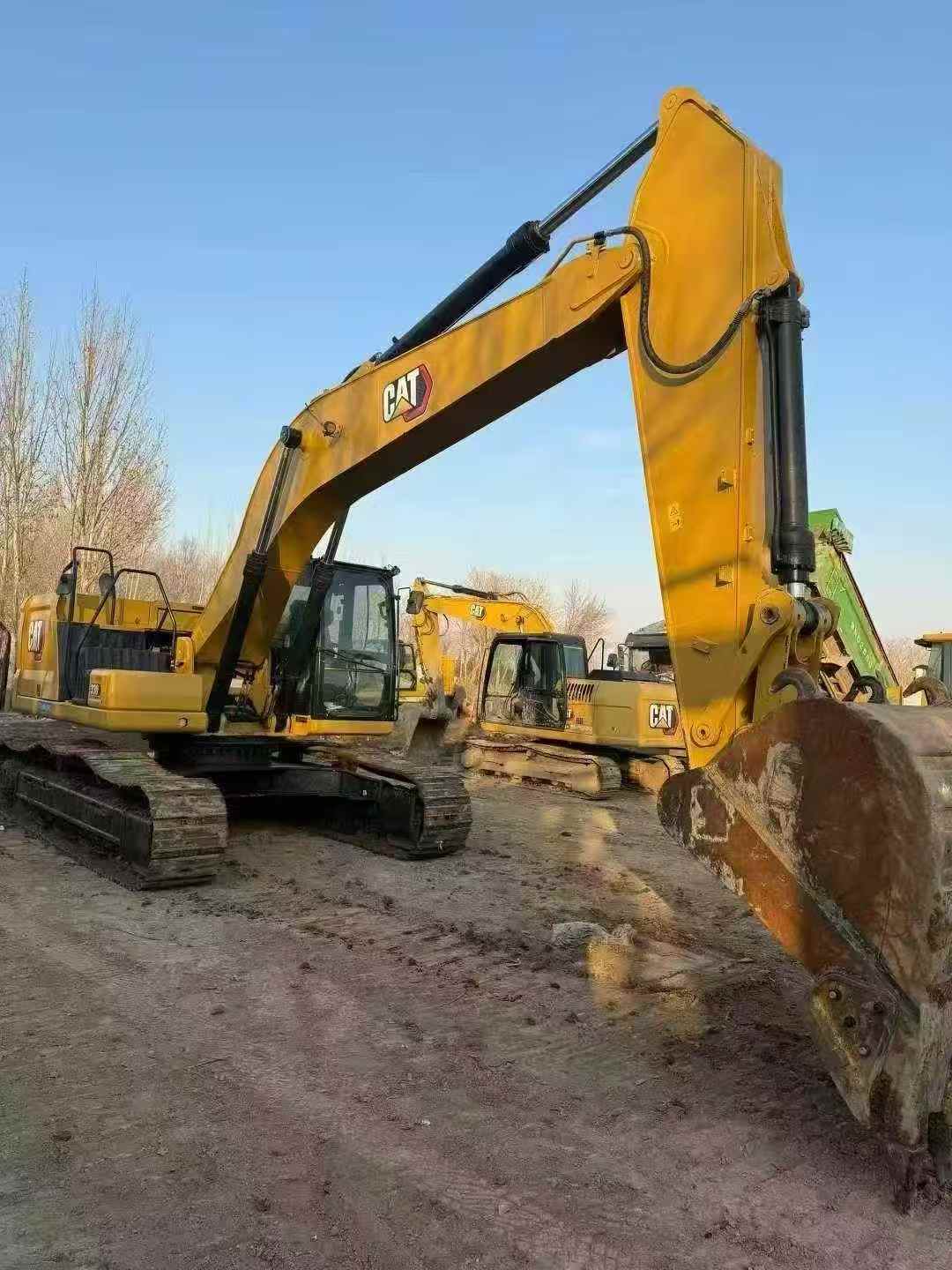

2021 Caterpillar 390FLME
Product Description
Engineered for large-scale excavation, this 2021 Caterpillar 390FLME delivers exceptional performance through advanced hydraulic architecture and proven powertrain technology. Operating at 90 tons with a 92,020 kg working weight, the machine centers on a Cat C18 ACERT engine producing 391 kW of rated power from an 18.1-liter displacement. Hydraulic efficiency reaches professional-grade standards with main pump flow of 952 L/min in equipment mode and 1,064 L/min while traveling, supported by 35 MPa circuit pressure across all major systems.
- Power System: Cat C18 ACERT engine, 391 kW at optimal RPM, 590 Nm turning torque
- Hydraulic Capacity: 813L tank, 997L total system volume, 35 MPa working pressure
- Cylinder Configuration: 220×2262 mm arm cylinders, 210×1967 mm boom cylinders, reinforced 200×1451 mm bucket cylinders
- Rotation Performance: 6.2 RPM swing speed with dedicated 35 MPa rotary circuit
- Fuel Autonomy: 1,240L tank capacity for extended operational cycles
Currently located in Xuzhou, Jiangsu, this joint venture-manufactured excavator represents Caterpillar's commitment to engineeri
| Specifications | Value |
|---|---|
| No. | 995554 |
| Tonnage (tons) | 90 |
| Working weight (kg) | 92020 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

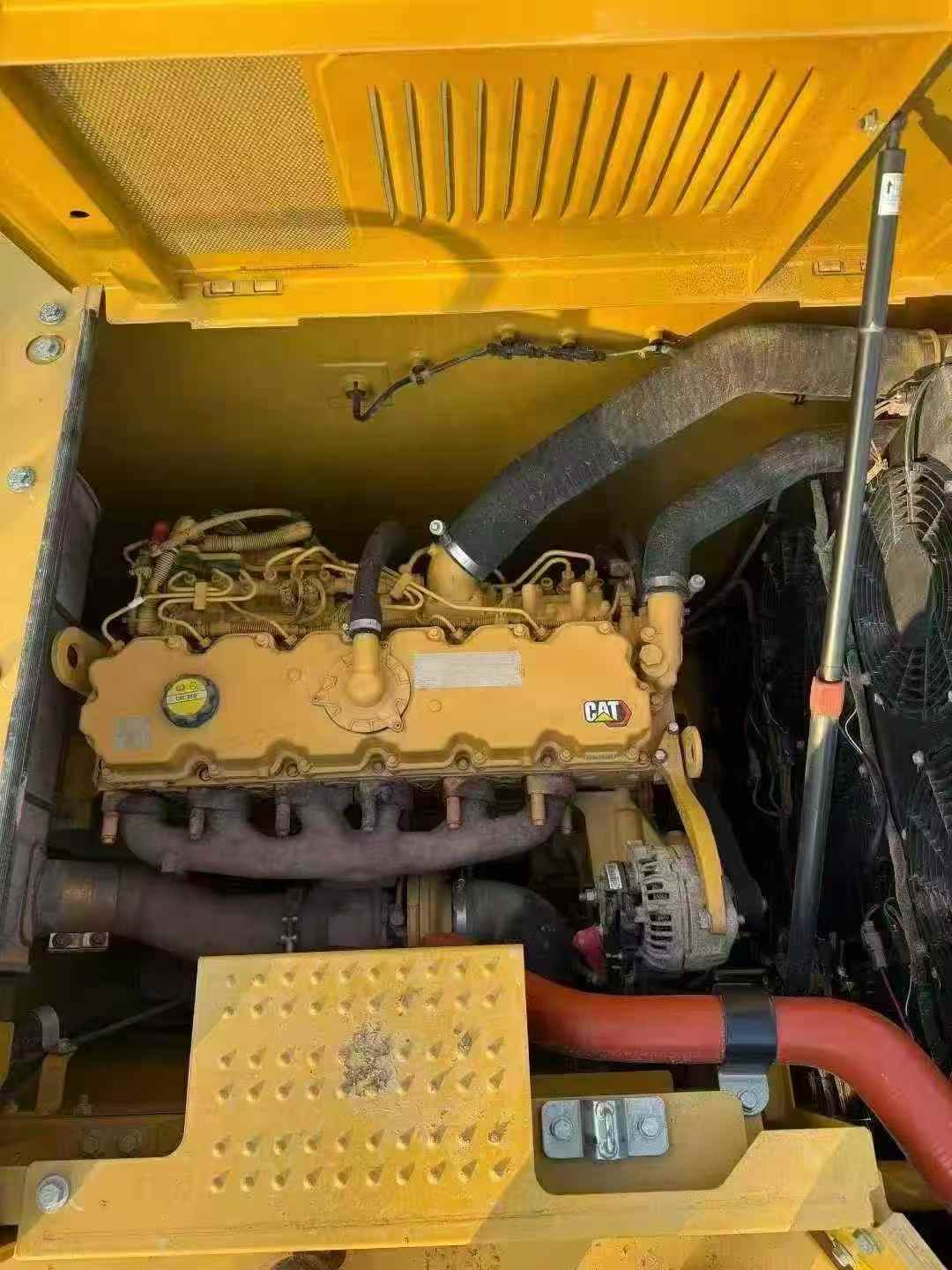

| Engine type | Cat C18 ACERT |
| Rated power (kw/rpm) | 391 |
| Cylinder diameter × stroke (mm) | 145 x 183 |
| Displacement (L) | 18.1 |
| Rotation speed (rpm) | 6.2 |
| Turning torque (Nm) | 590 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | Equipment: 952; Driving: 1064 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 4.0-4.4 |
| Pilot pump flow (L/min) | 67 |
| Bucket cylinders - Number × diameter × stroke (mm) | Hb2-series bucket cylinder diameter × stroke: 200×1451; Jc-series bucket cylinder diameter × stroke: 220×1586 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | Cylinder diameter × stroke: 220×2262 |
| Boom cylinders - Number × diameter × stroke (mm) | Cylinder diameter × stroke: 210×1967 |
| Fuel Tank (L) | 1240 |
| Hydraulic Tank (L) | 813 |
| Engine Oil changes (L) | 60 |
| Coolant (L) | 74 |
| Hydraulic System (L) | 997 |
Overview
No.995554
Brand Name：
CaterpillarModel Number：
390FLMEYear：
2021
Location：
Jiangsu China
Pub Date：
