2020 Caterpillar CAT330 GC
Product Description
Equipped with advanced hydraulics and a powerful engine, the 2020 Caterpillar 新一代CAT330 GC 液压 stands out in its class. Designed for precision and efficiency, this model features a robust hydraulic system that ensures smooth operation and enhanced digging force. The engine is engineered to deliver high performance with reduced fuel consumption, making it an ideal choice for demanding construction projects. Located in 广东省惠州市, this excavator is ready to meet the rigorous standards of your job site.
- Advanced hydraulic system for improved efficiency and control
- Powerful and fuel-efficient engine
- Optimized for durability and reliability in tough conditions
- Available for immediate delivery from 广东省惠州市
| Specifications | Value |
|---|---|
| No. | 1001001 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 30700 |
| Bucket capacity (m³) | 1.6 |
| Boom length (mm) | 6150 |
| Rod length (mm) | 3200 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

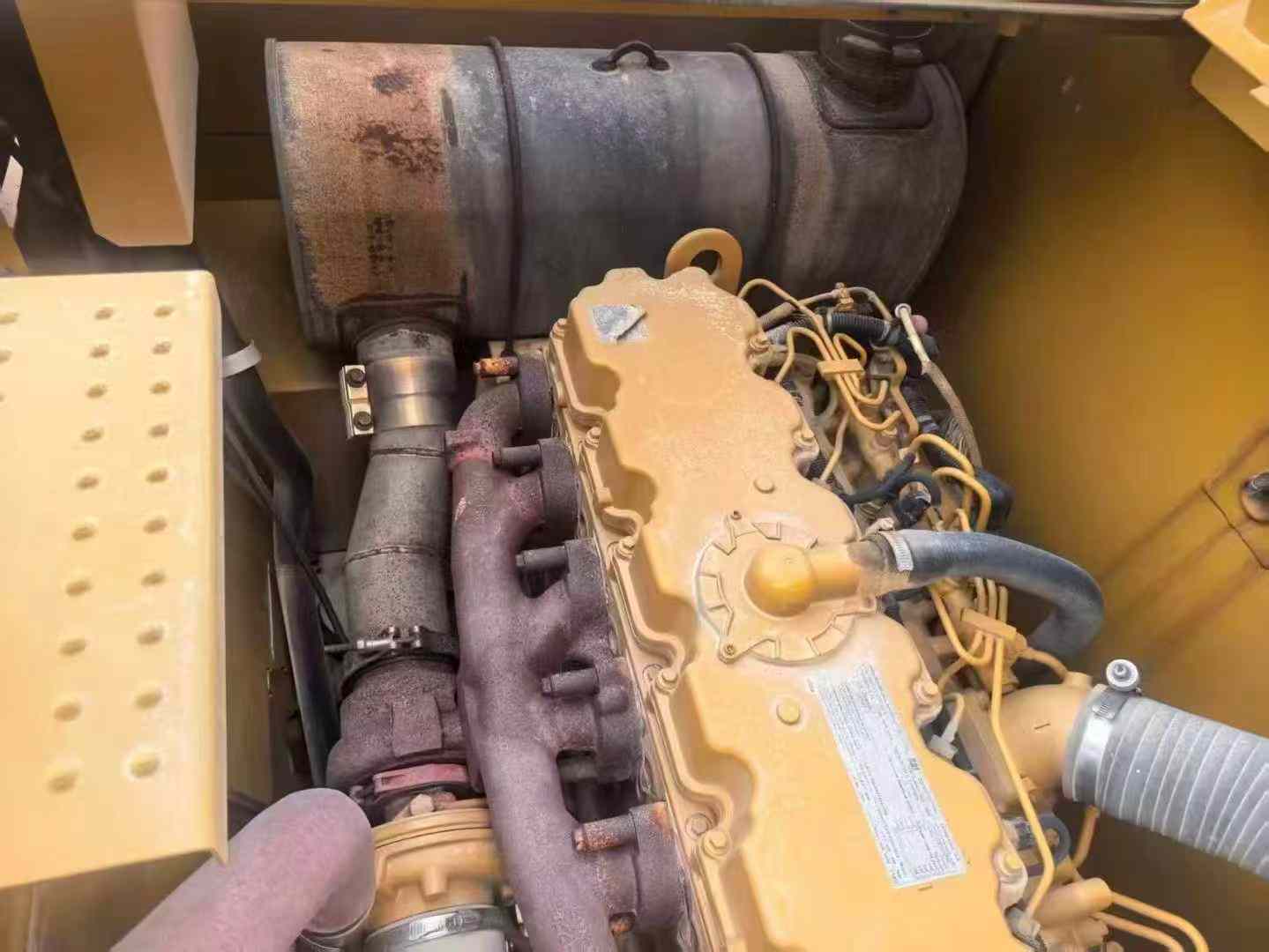

| Engine type | Cat® C7.1 |
| Rated power (kw/rpm) | 151/2200 |
| Cylinder diameter × stroke (mm) | 105*135 |
| Displacement (L) | 7.01 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 179 |
| Rod digging force (kN) | 126 |
| Turning torque (Nm) | 105k |
| Maximum flow of main pump (l/min) | 560 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 28.4 |
| Working Hydraulic Circuit (Mpa) | 35 |
| Fuel Tank (L) | 474 |
| Hydraulic Tank (L) | 147 |
| Engine Oil changes (L) | 25 |
| Coolant (L) | 25 |
| Hydraulic System (L) | 310 |
| Total transport length (mm) | 10420 |
| Total transport width (mm) | 3190/3390 |
| Total transport height (mm) | 3050 |
| Counterweight ground clearance (mm) | 1110 |
| Minimum ground clearance (mm) | 490 |
| Back end turning radius (mm) | 3130 |
| Total track length (mm) | 4850 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600/800 |
| Center distance of support wheel (mm) | 3990 |
| Maximum digging radius (mm) | 10690 |
| Maximum digging depth (mm) | 7260 |
| Maximum excavation height (mm) | 9980 |
| Maximum unloading height (mm) | 6930 |
| Maximum vertical digging depth (mm) | 6030 |
| Maximum excavation radius of stop surface (mm) | 10690 |
