2022 Caterpillar CAT333

1/9
Buy Caterpillar CAT333 Used Excavator / 1

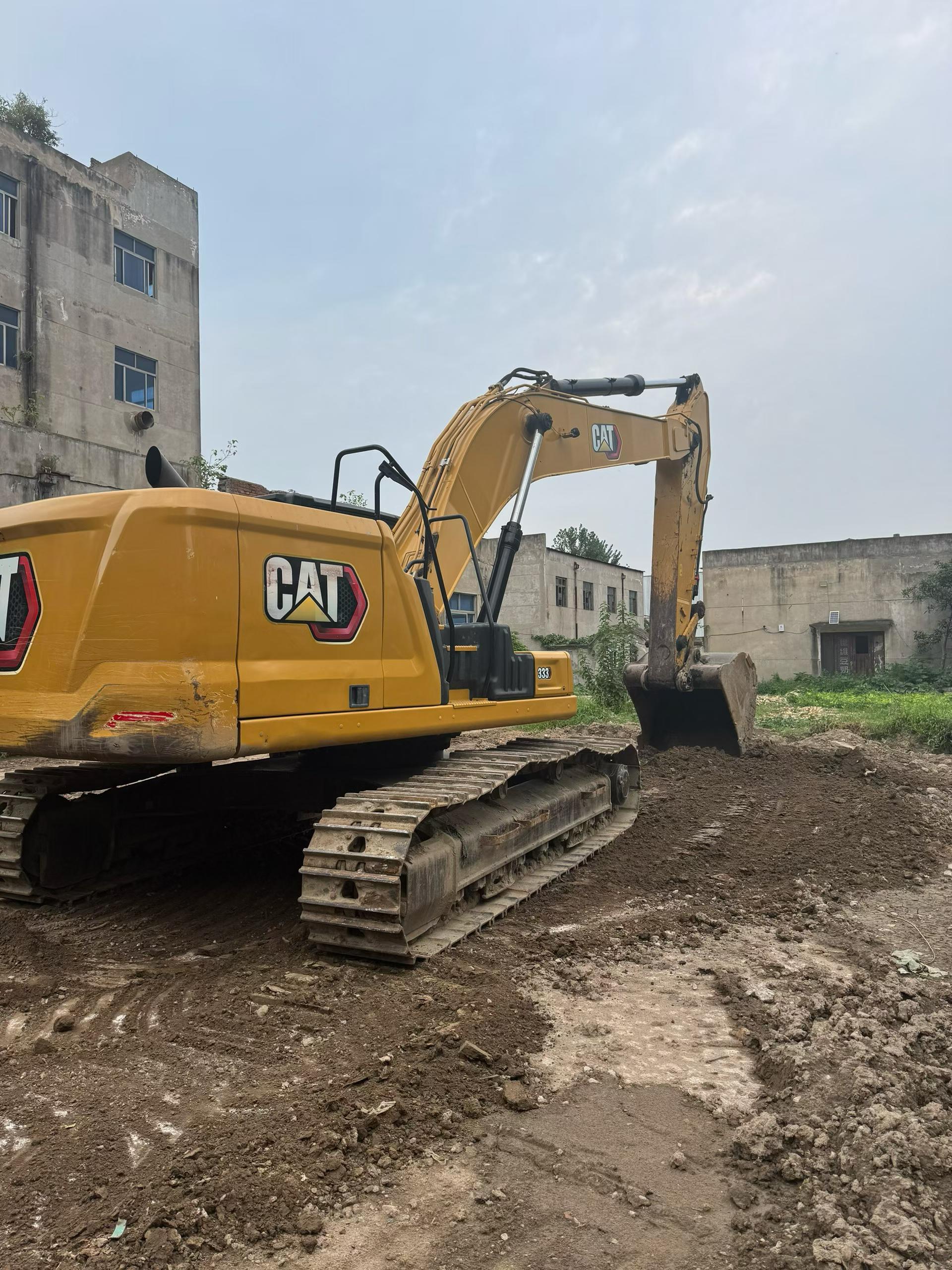

Buy Caterpillar CAT333 Used Excavator / 2

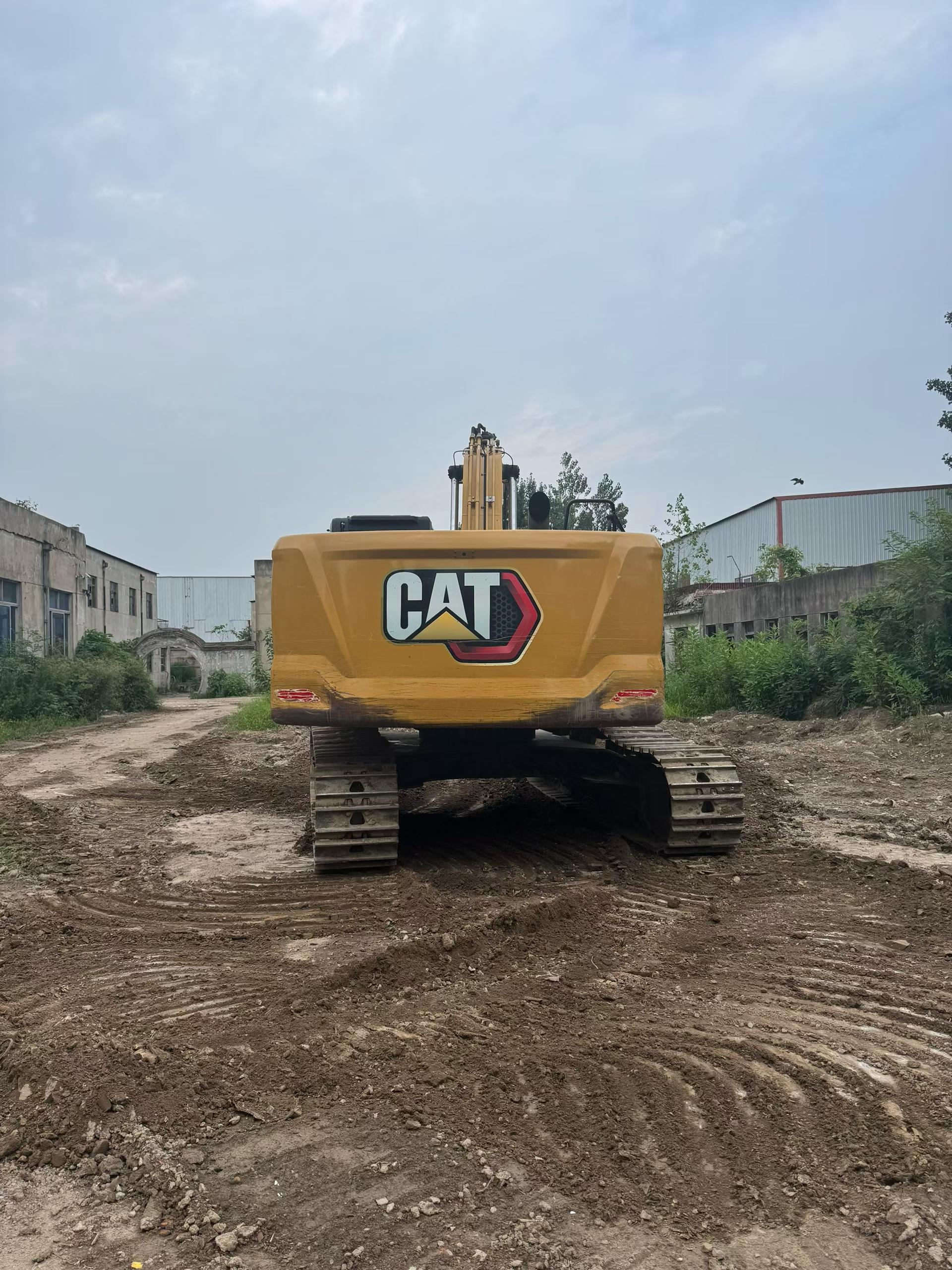

Buy Caterpillar CAT333 Used Excavator / 3

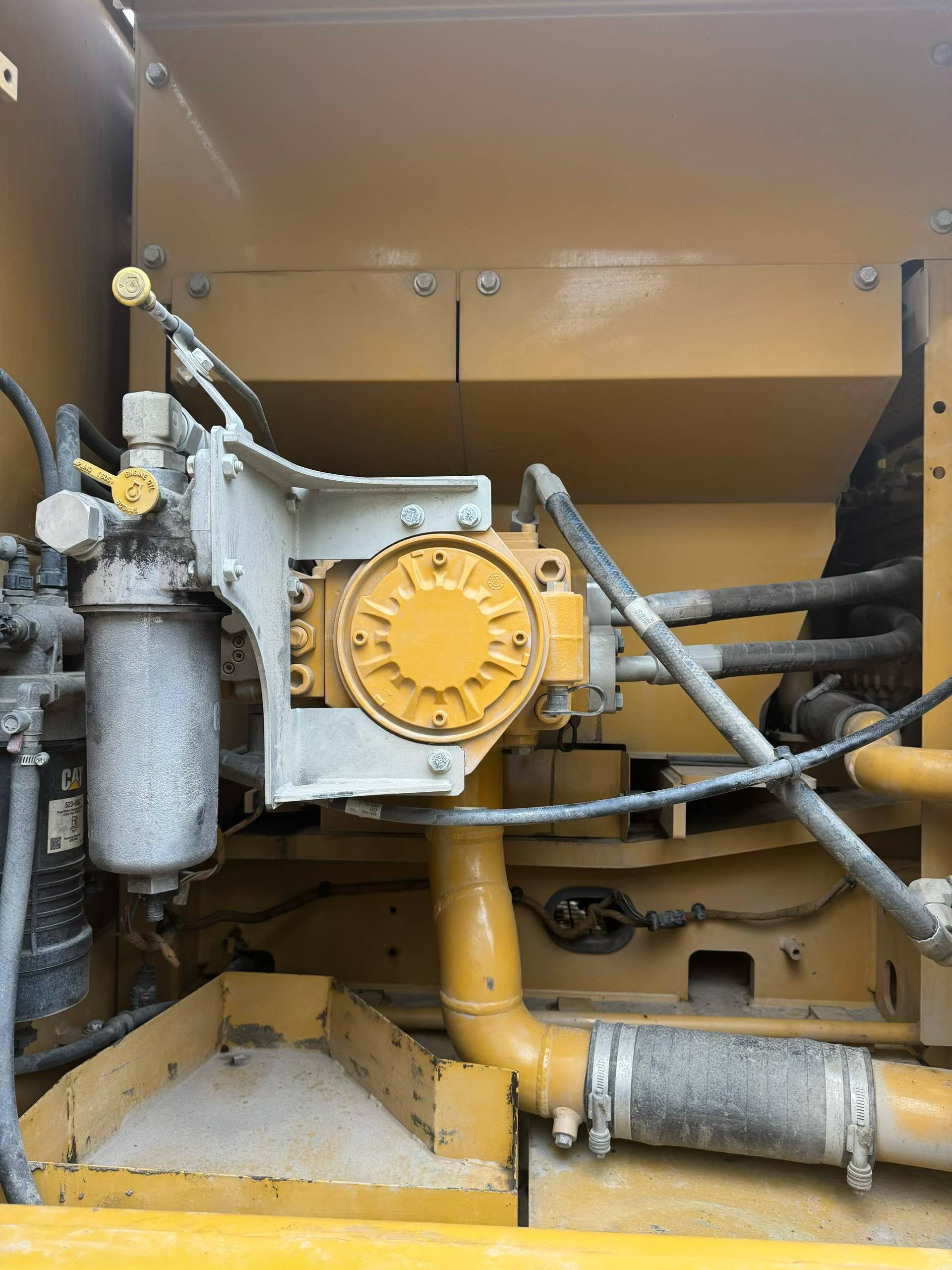

Buy Caterpillar CAT333 Used Excavator / 4

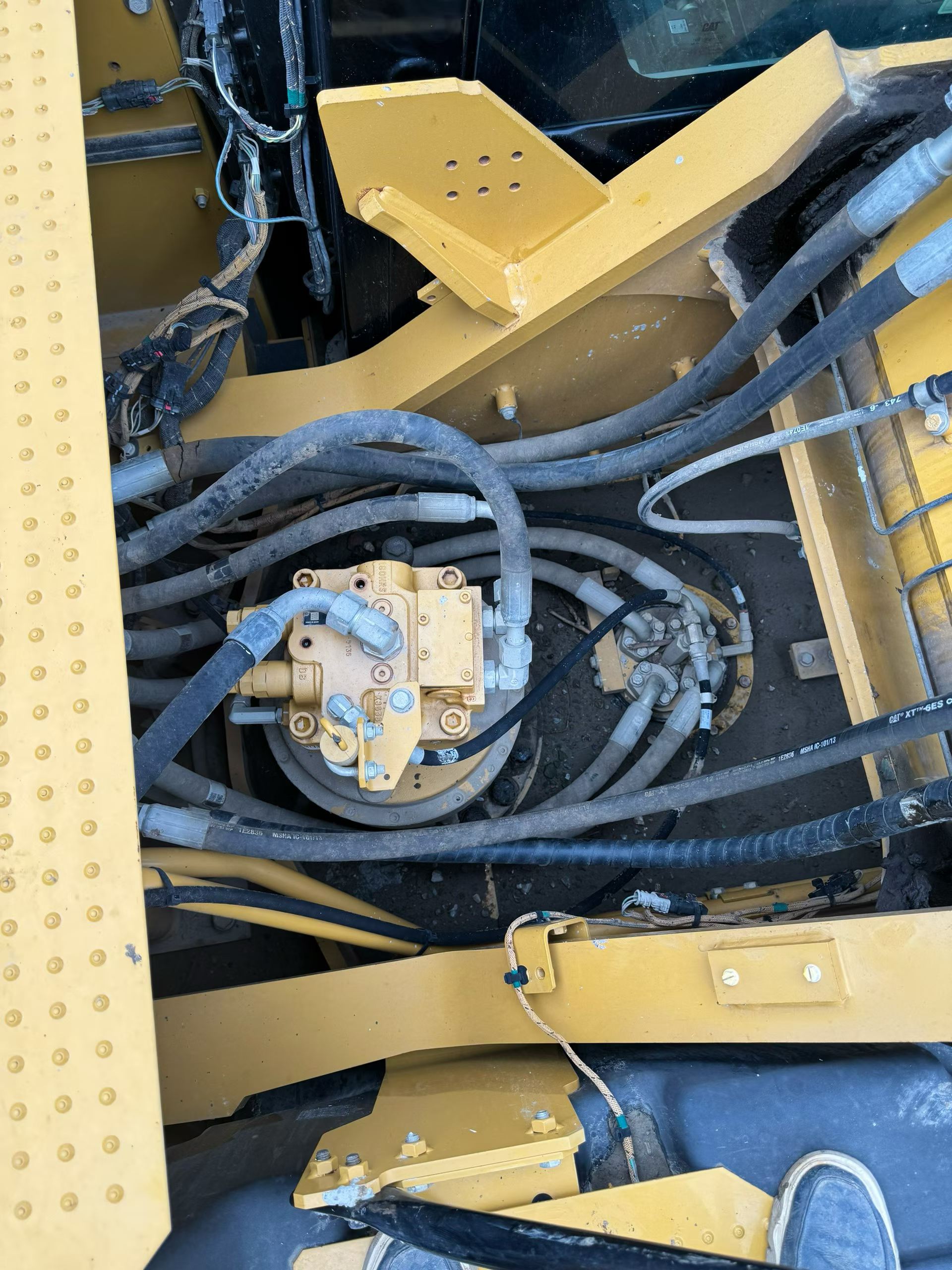

Buy Caterpillar CAT333 Used Excavator / 5

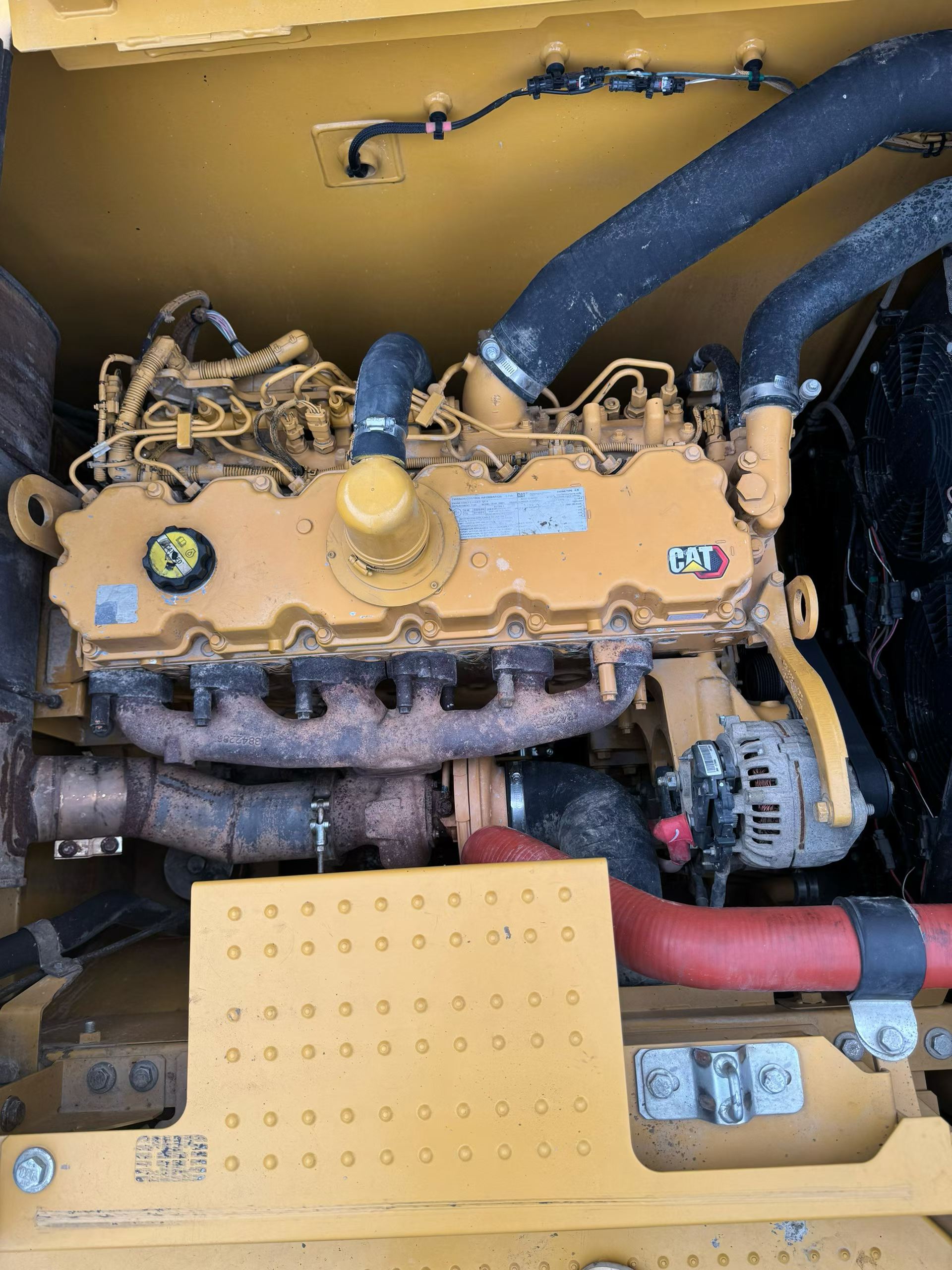

Buy Caterpillar CAT333 Used Excavator / 6

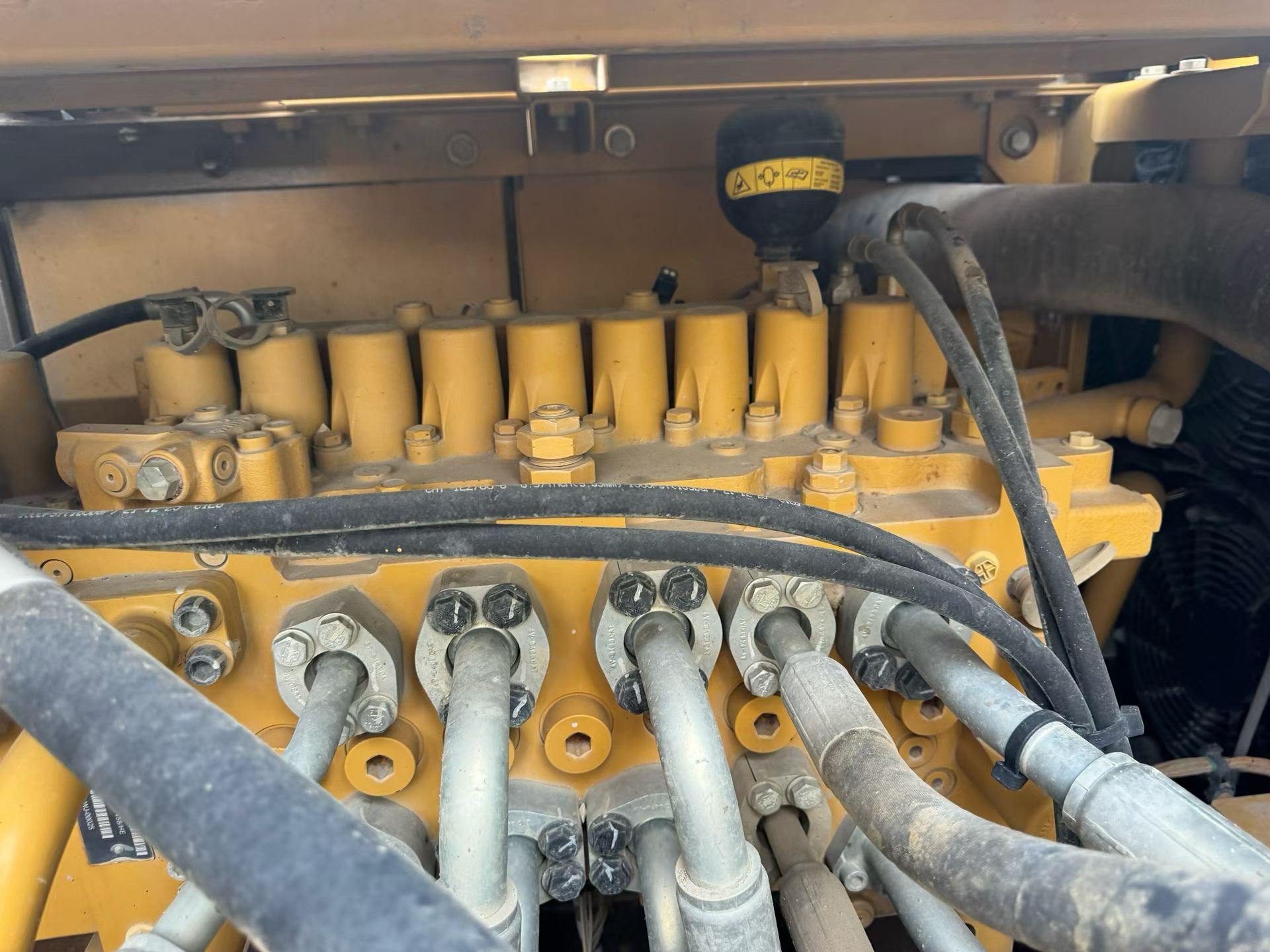

Buy Caterpillar CAT333 Used Excavator / 7

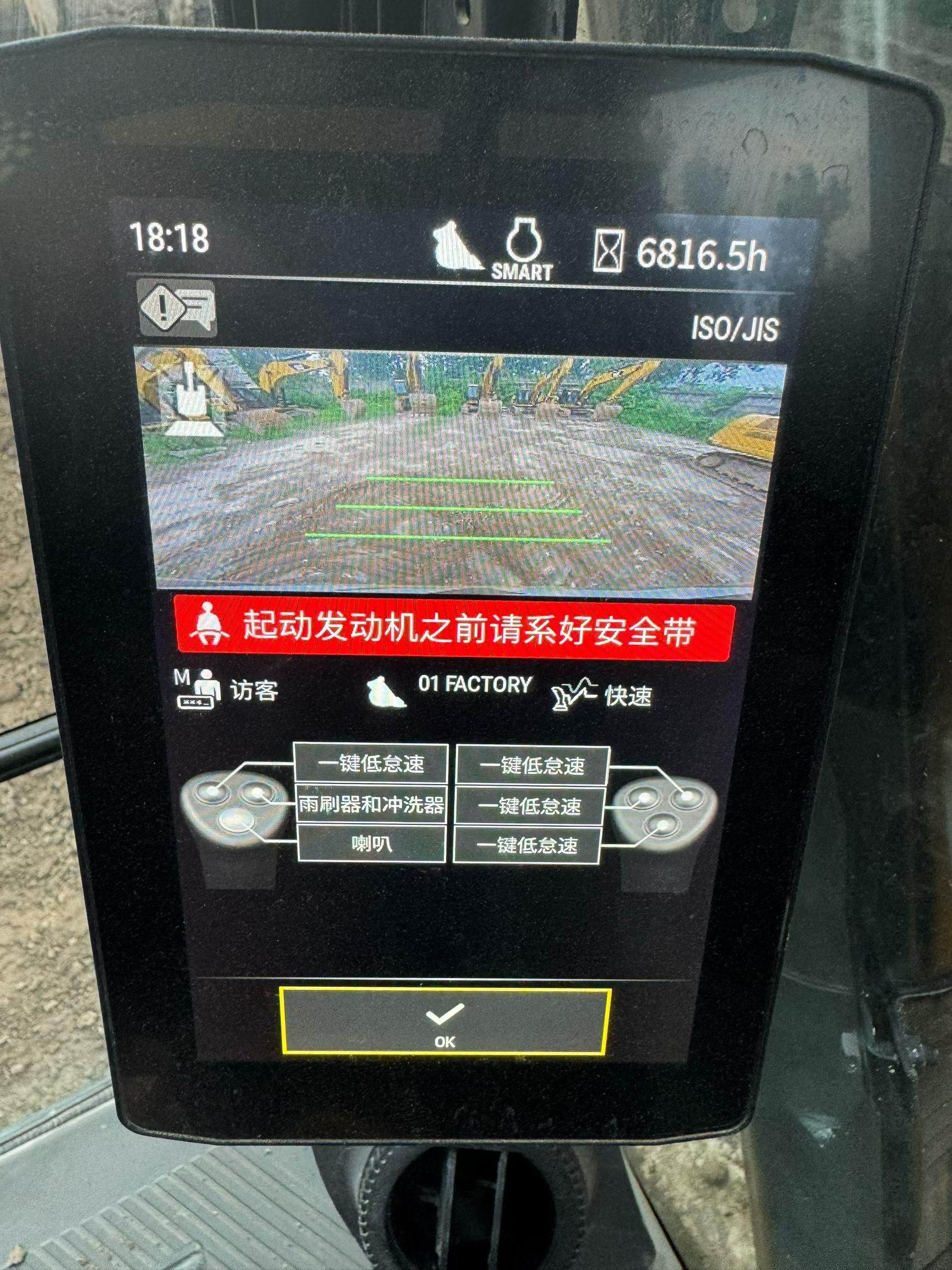

Buy Caterpillar CAT333 Used Excavator / 8

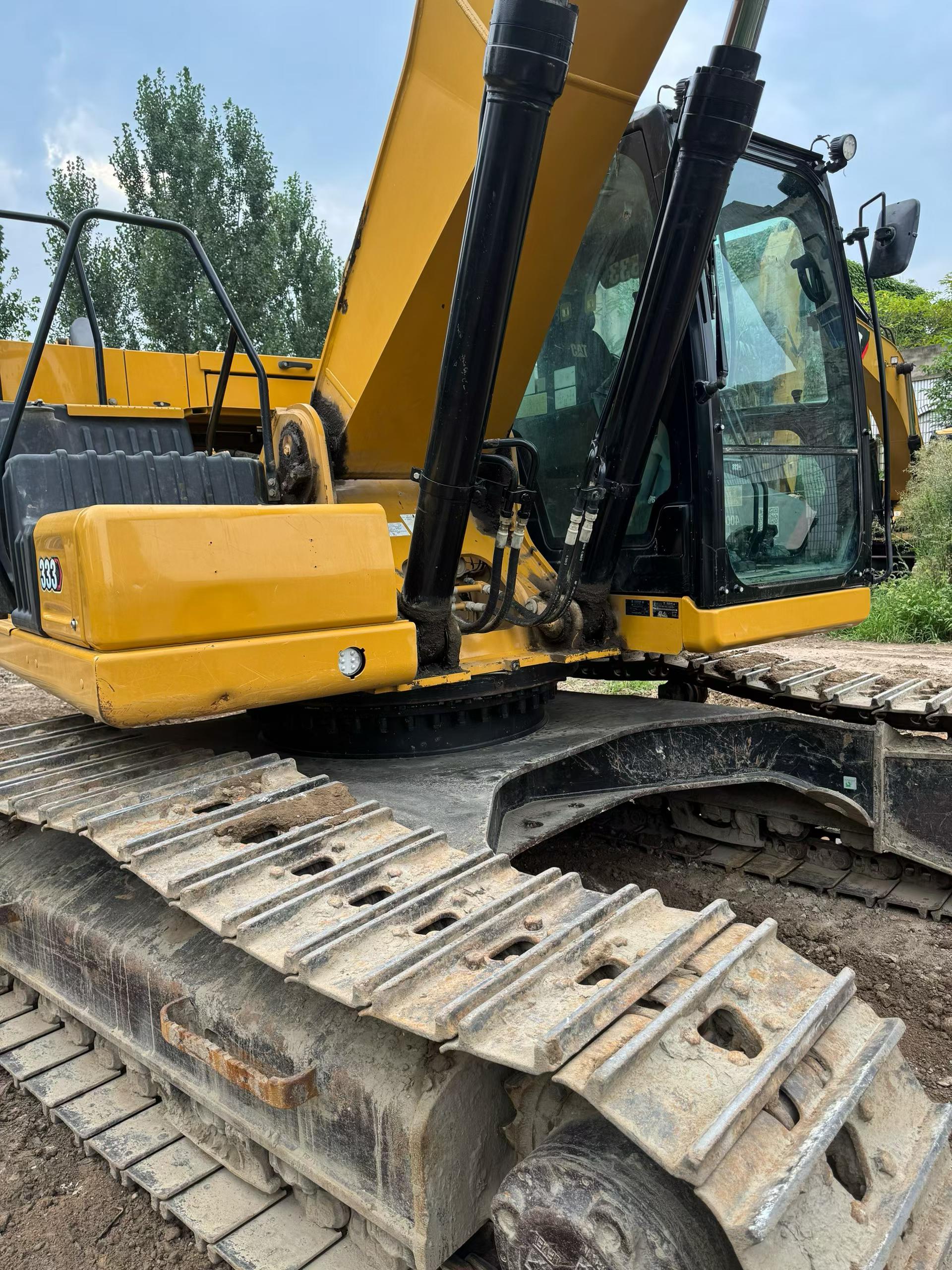

Buy Caterpillar CAT333 Used Excavator / 9

Product Description

Discover the reliability and performance of this 2022 Caterpillar CAT333, available in Jiangsu, China. This used heavy machine boasts an original undercarriage and bucket, ensuring durability and efficiency for your projects. With a verified history free from any hammer use, this excavator is ready to tackle a wide range of construction and excavation tasks. Trust in the quality and robust design that Caterpillar is known for, providing you with a machine that stands up to the demands of your worksite.

  • Year: 2022
  • Brand: Caterpillar
  • Model: CAT333
  • Location: Jiangsu, China
  • Features: Original undercarriage and bucket, no history of hammer use
SpecificationsValue
No.1115618
Tonnage (tons)33
Working weight (kg)32900
Bucket capacity (m³)1.88
Boom length (mm)6150
Rod length (mm)3200
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeCat® C7.1
Rated power (kw/rpm)225
Cylinder diameter × stroke (mm)105*135
Displacement (L)7.01
Emission standardCountry IV
Rotation speed (rpm)11.6
Bucket digging force (kN)197
Rod digging force (kN)147
Turning torque (Nm)111k
Maximum flow of main pump (l/min)560
Traveling Hydraulic Circuit (Mpa)35
Rotary Hydraulic Circuit (Mpa)29.8
Working Hydraulic Circuit (Mpa)35
Fuel Tank (L)474
Hydraulic Tank (L)147
Engine Oil changes (L)25
Coolant (L)25
Hydraulic System (L)310
Total transport length (mm)10450
Total transport width (mm)3340/3540
Total transport height (mm)3060
Counterweight ground clearance (mm)1120
Minimum ground clearance (mm)480
Back end turning radius (mm)3130
Total track length (mm)4860
Track gauge (mm)2740
Track plate width (mm)600/800
Total track width (mm)3340
Center distance of support wheel (mm)3990
Maximum digging radius (mm)10680
Maximum digging depth (mm)7370
Maximum excavation height (mm)9660
Maximum unloading height (mm)6510
Maximum vertical digging depth (mm)6240
Maximum excavation radius of stop surface (mm)10680
see more

Overview

No.1115618

Brand Name:

Caterpillar

Model Number:

CAT333

Year:

2022

Location:

Jiangsu China

Pub Date
