2022 Caterpillar CAT352
Product Description

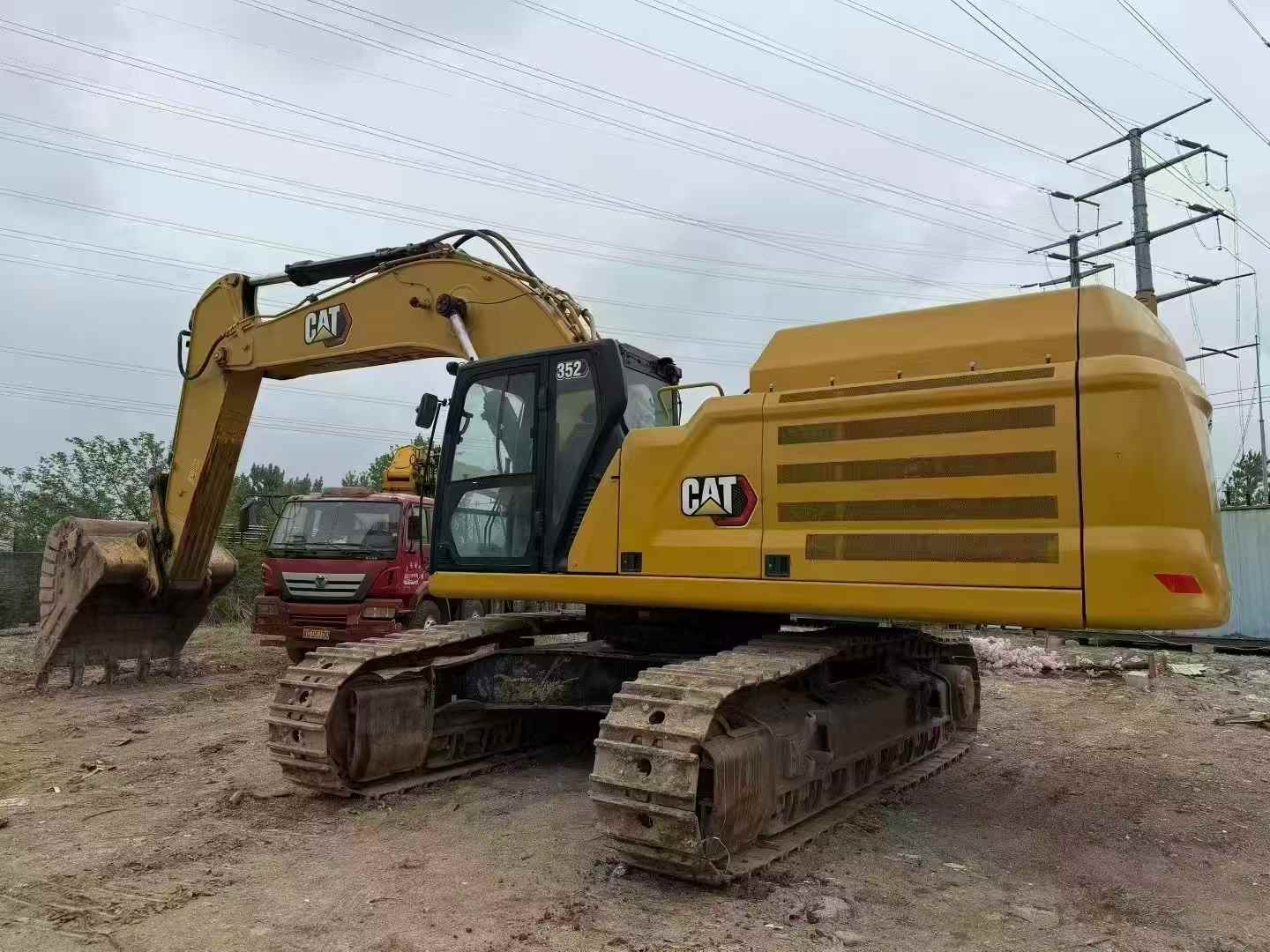

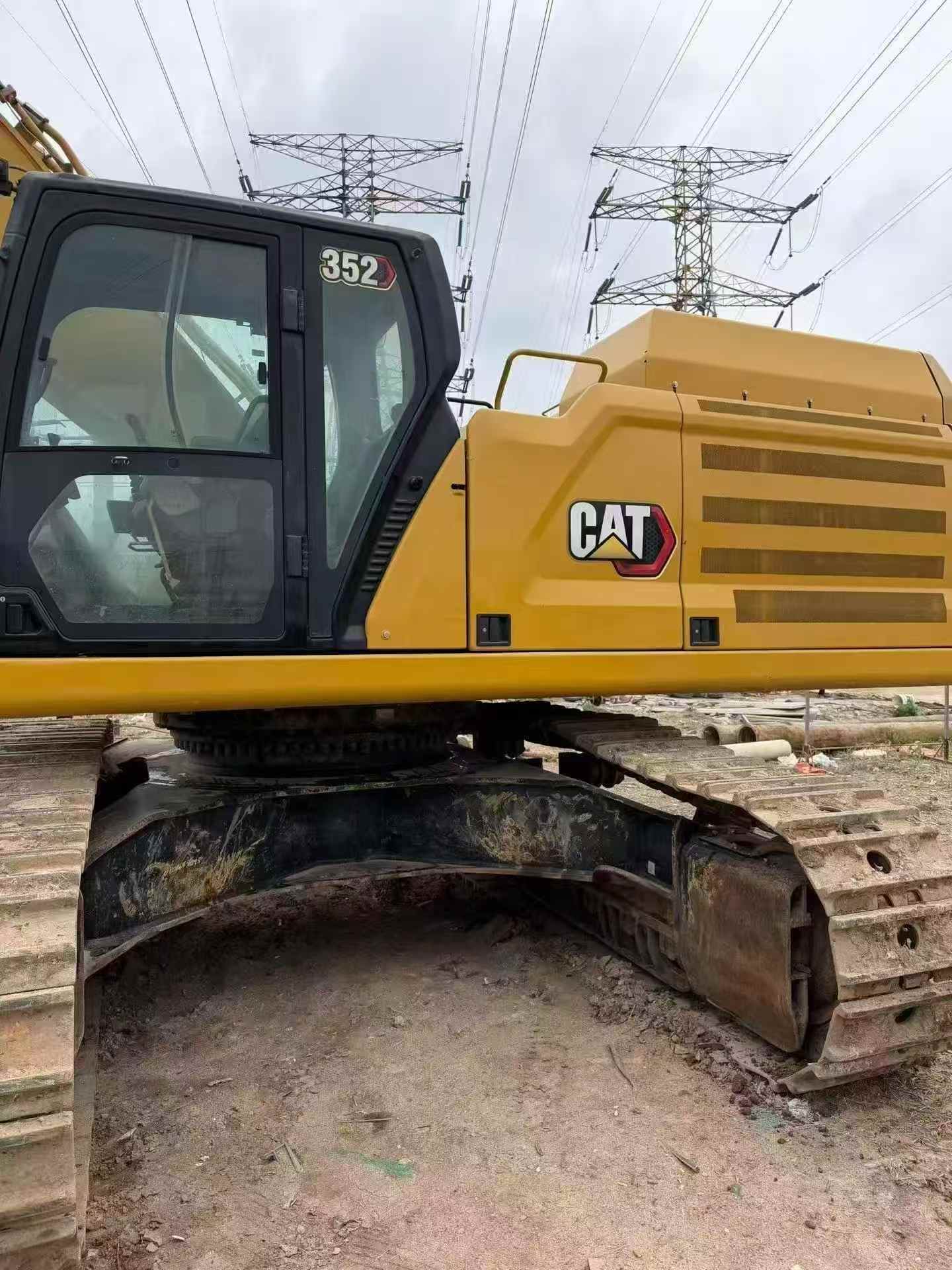

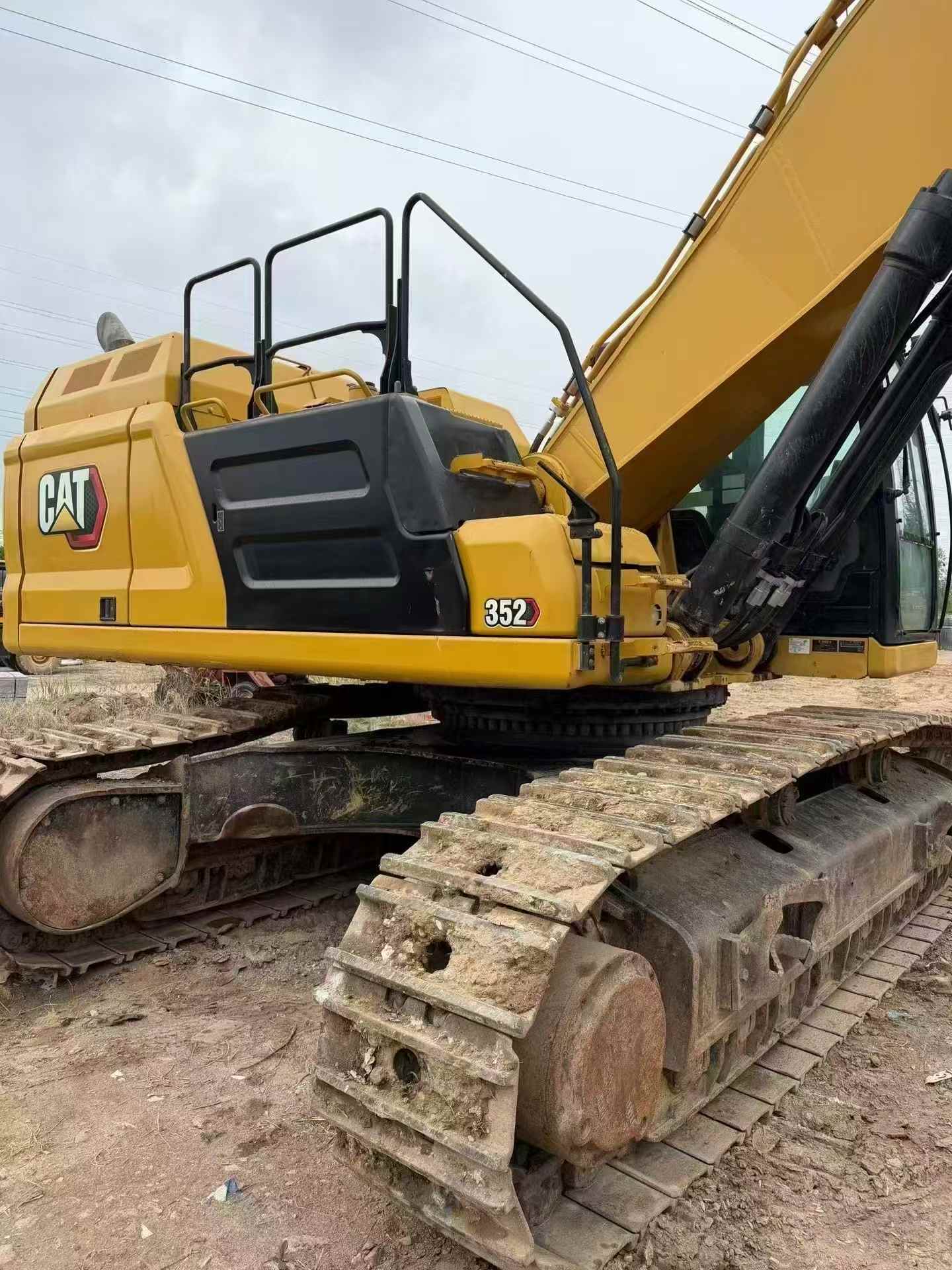

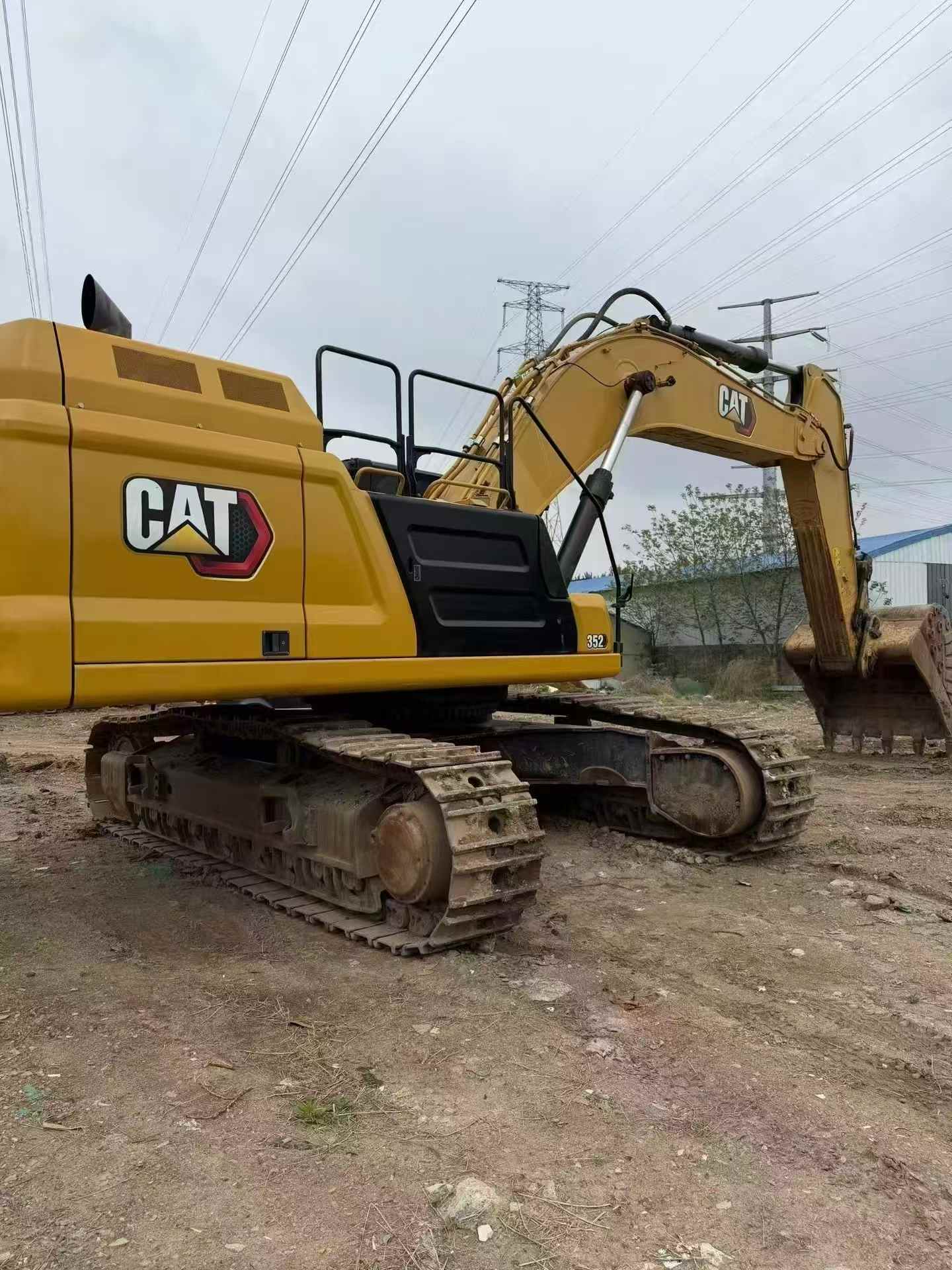

FairTradeMachinery presents a 2022 Caterpillar CAT352 hydraulic excavator, currently located in Jiangsu, China. This late-model machine represents excellent value for operations requiring proven reliability and performance in demanding applications.
Key features of this unit include:
- Authentic hour meter reading with verifiable company records
- Well-maintained condition consistent with professional fleet operation
- Caterpillar's renowned fuel efficiency and hydraulic power
- Suitable for excavation, trenching, and material handling tasks
- Available for immediate inspection and purchase
This CAT352 offers contractors and fleet operators a cost-effective solution with minimal depreciation. The machine's documentation can be verified through official company channels, ensuring transparency in your procurement process. Contact our team for detailed specifications, additional photographs, and competitive export pricing to your destination.
| Specifications | Value |
|---|---|
| No. | 1058309 |
| Tonnage (tons) | 52 |
| Working weight (kg) | 50600 |

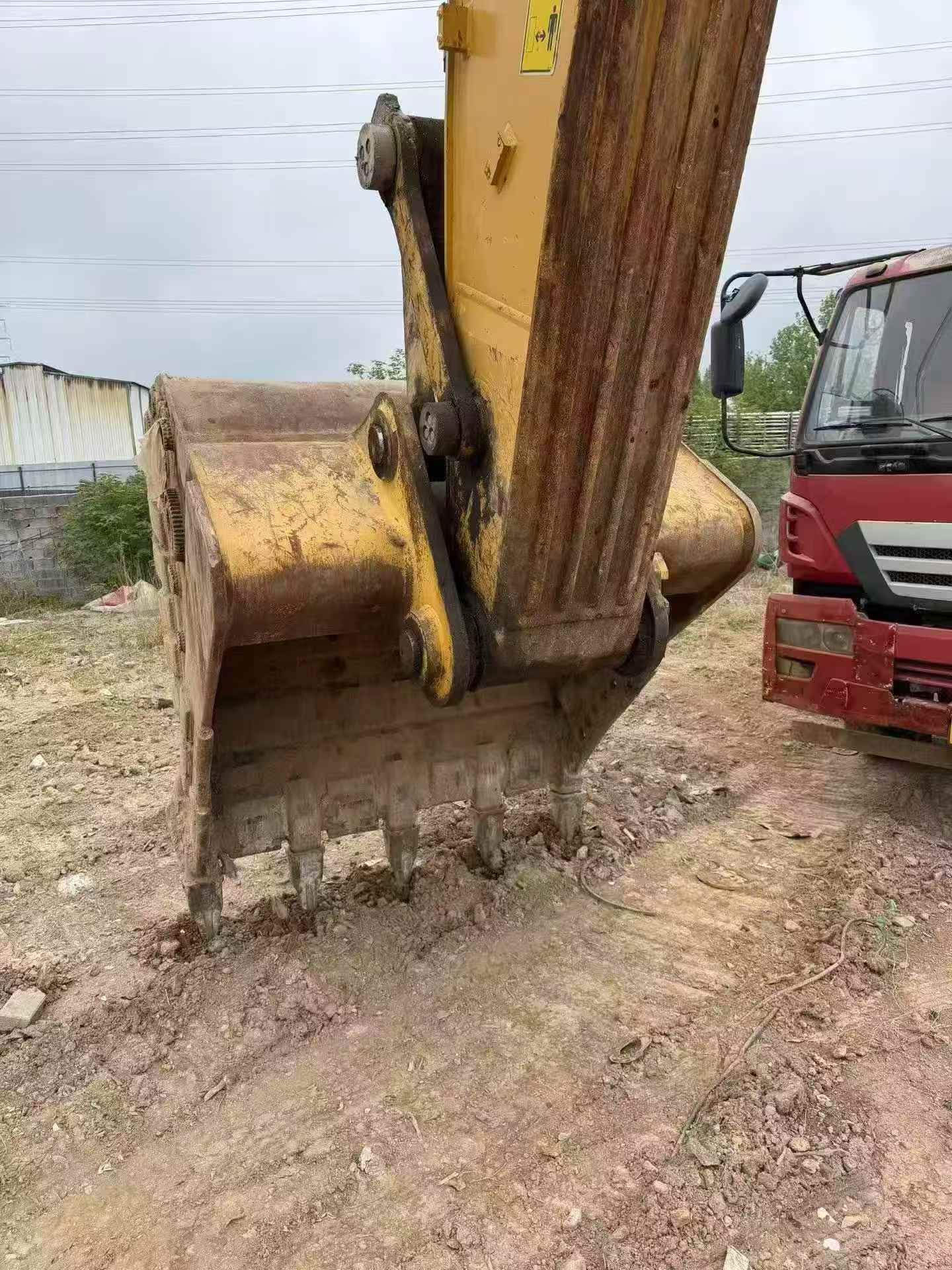

| Bucket capacity (m³) | 3.2 (Rock Bucket) |

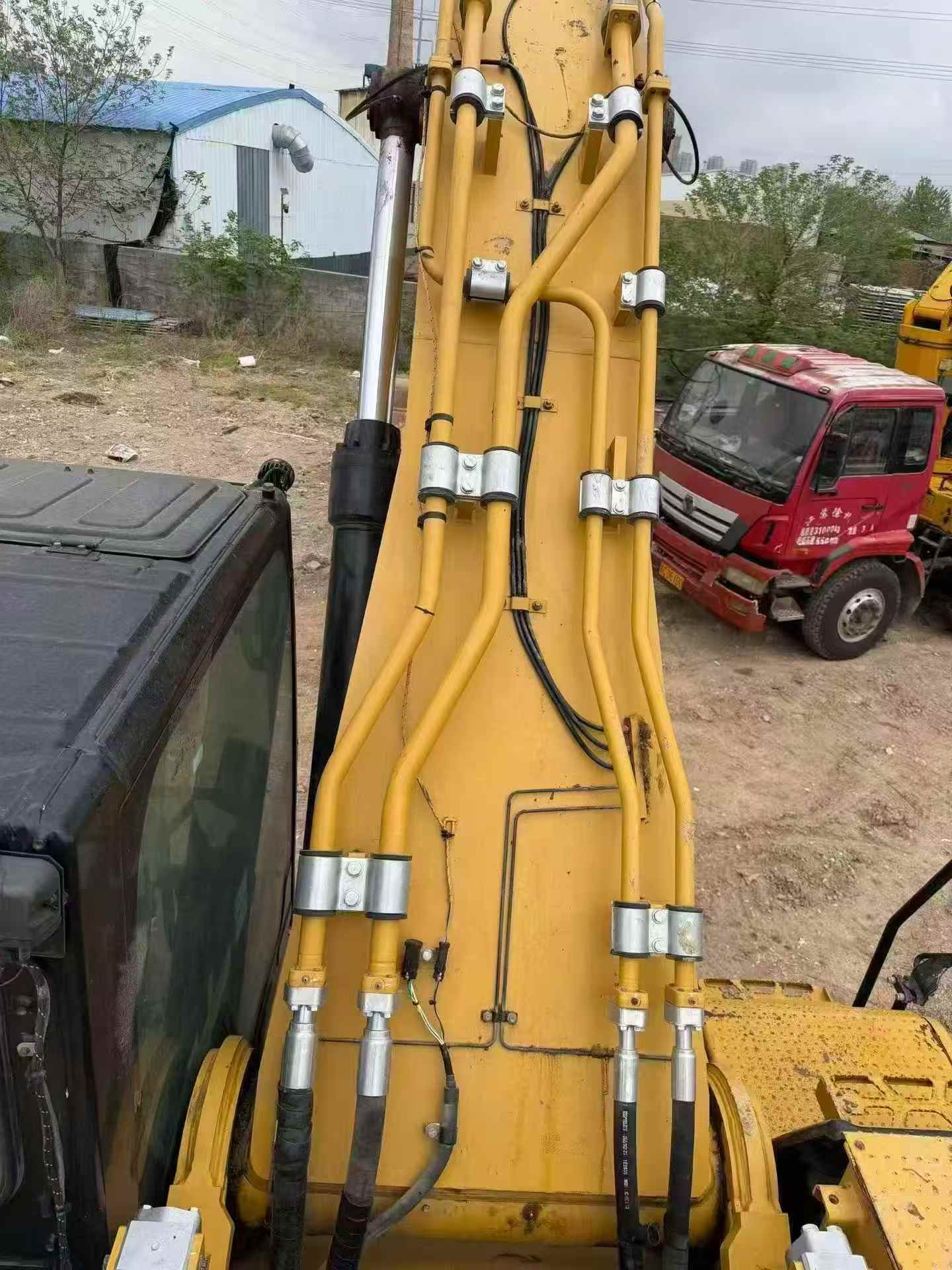

| Boom length (mm) | 6550 |
| Rod length (mm) | 3000 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

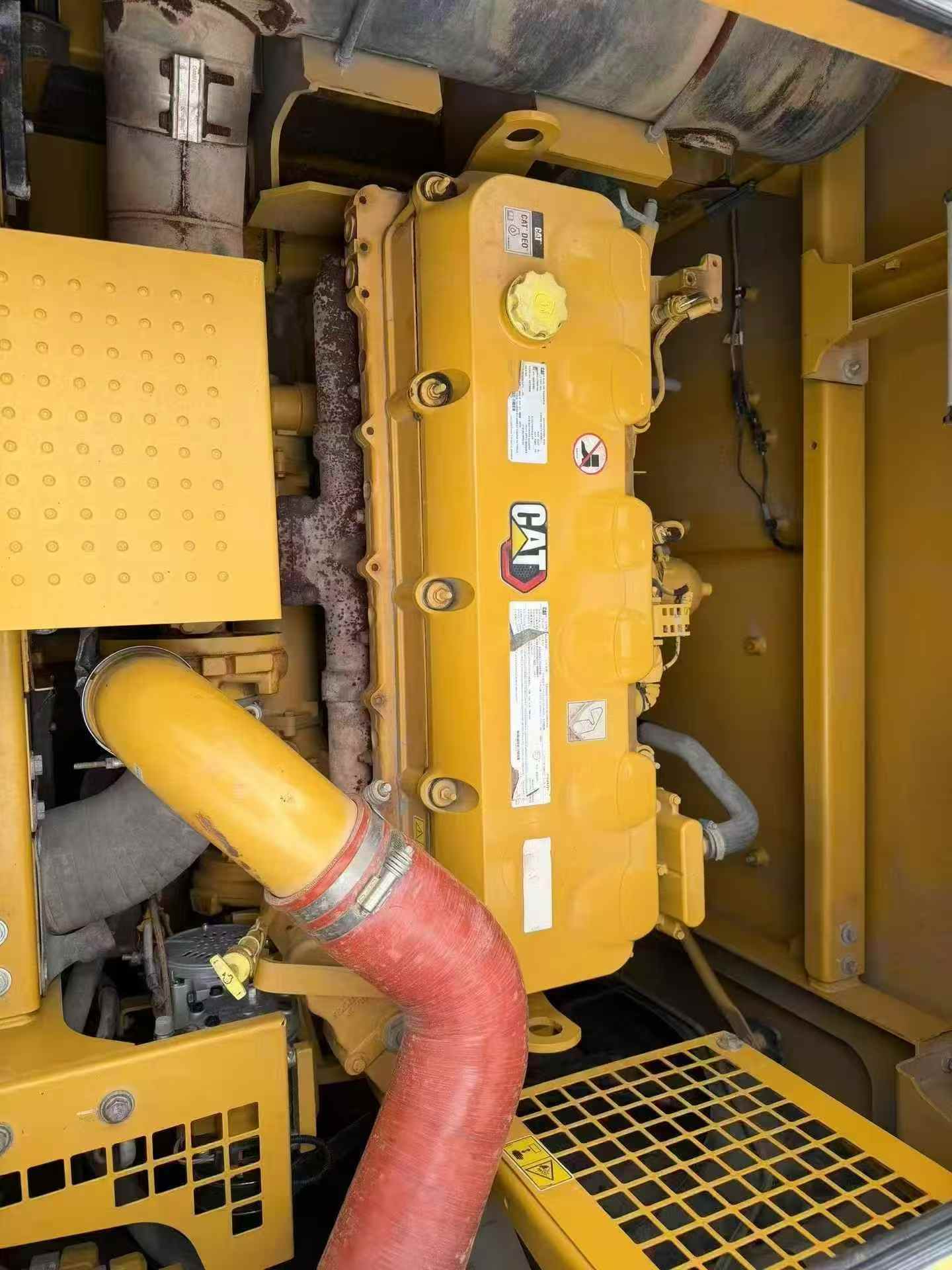

| Engine type | C13B |
| Rated power (kw/rpm) | 332/1700 |
| Cylinder diameter × stroke (mm) | 130*157 |
| Displacement (L) | 12.5 |
| Emission standard | Country IV |
| Rotation speed (rpm) | 8.3 |
| Bucket digging force (kN) | 293 |
| Rod digging force (kN) | 212 |
| Turning torque (Nm) | 189k |

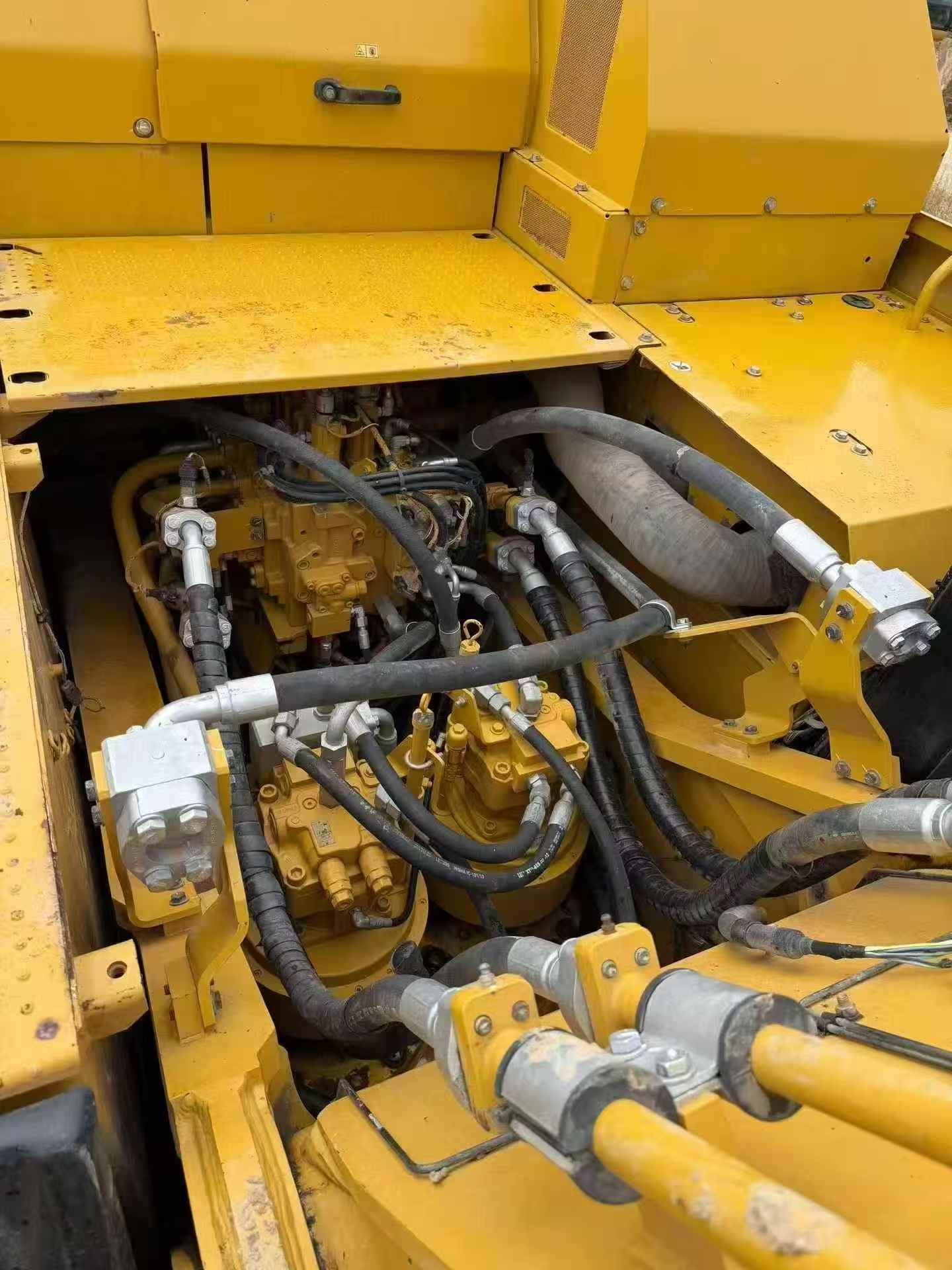

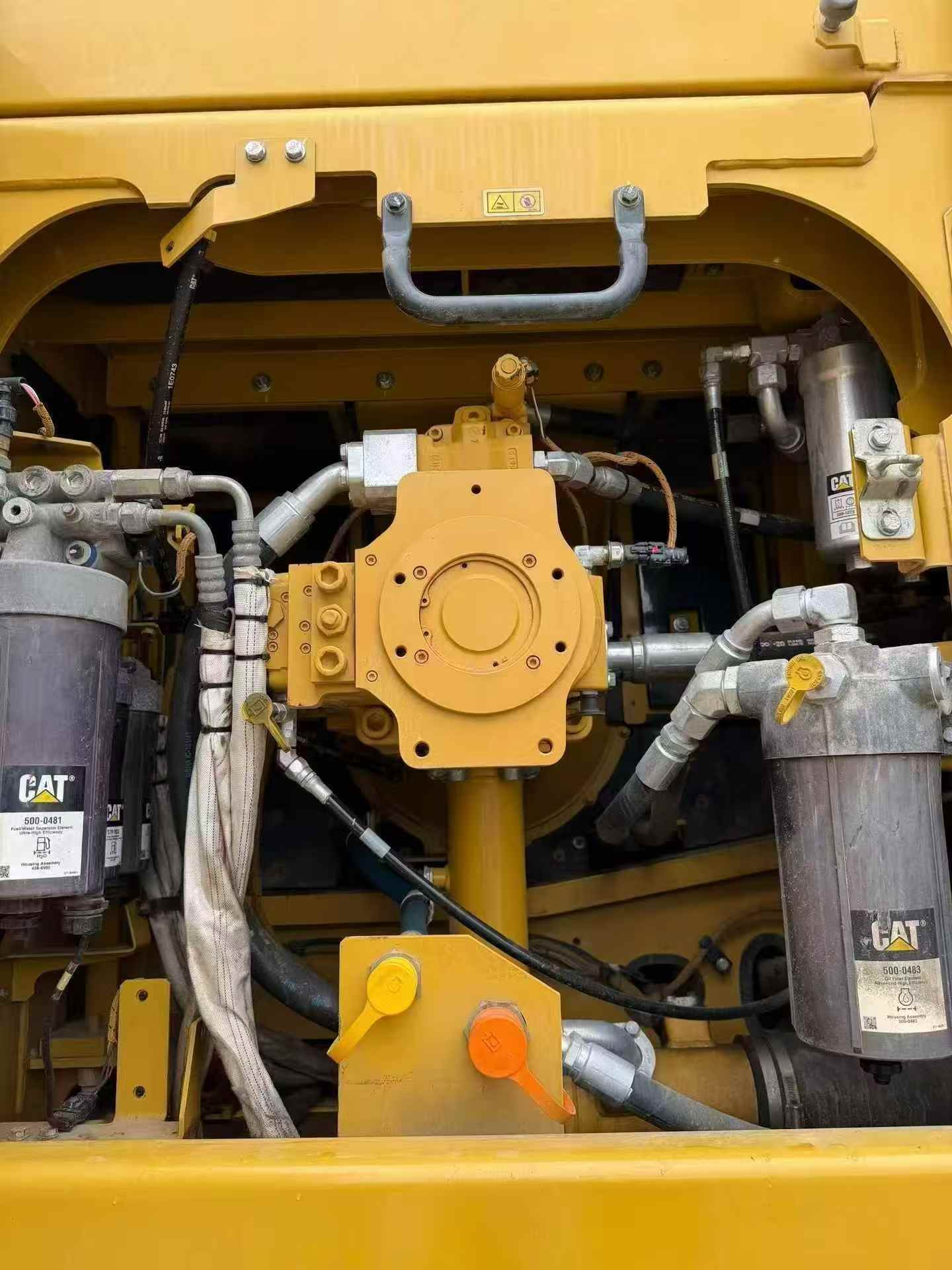

| Maximum flow of main pump (l/min) | 779 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 35 |
| Fuel Tank (L) | 715 |
| Hydraulic Tank (L) | 217 |
| Engine Oil changes (L) | 40 |
| Coolant (L) | 52 |
| Hydraulic System (L) | 550 |
| Total transport length (mm) | 11580 |
| Total transport width (mm) | 3539 |
| Total transport height (mm) | 4040 |
| Counterweight ground clearance (mm) | 1280 |
| Minimum ground clearance (mm) | 475 |
| Back end turning radius (mm) | 3760 |
| Total track length (mm) | 5370 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Center distance of support wheel (mm) | 4360 |
| Maximum digging radius (mm) | 11240 |
| Maximum digging depth (mm) | 7270 |
| Maximum excavation height (mm) | 10290 |
| Maximum unloading height (mm) | 6780 |
| Maximum vertical digging depth (mm) | 4540 |
| Maximum excavation radius of stop surface (mm) | 11240 |
see more
Overview
No.1058309
Brand Name：
CaterpillarModel Number：
CAT352
Year：
2022
Location：
Jiangsu China
Pub Date：
