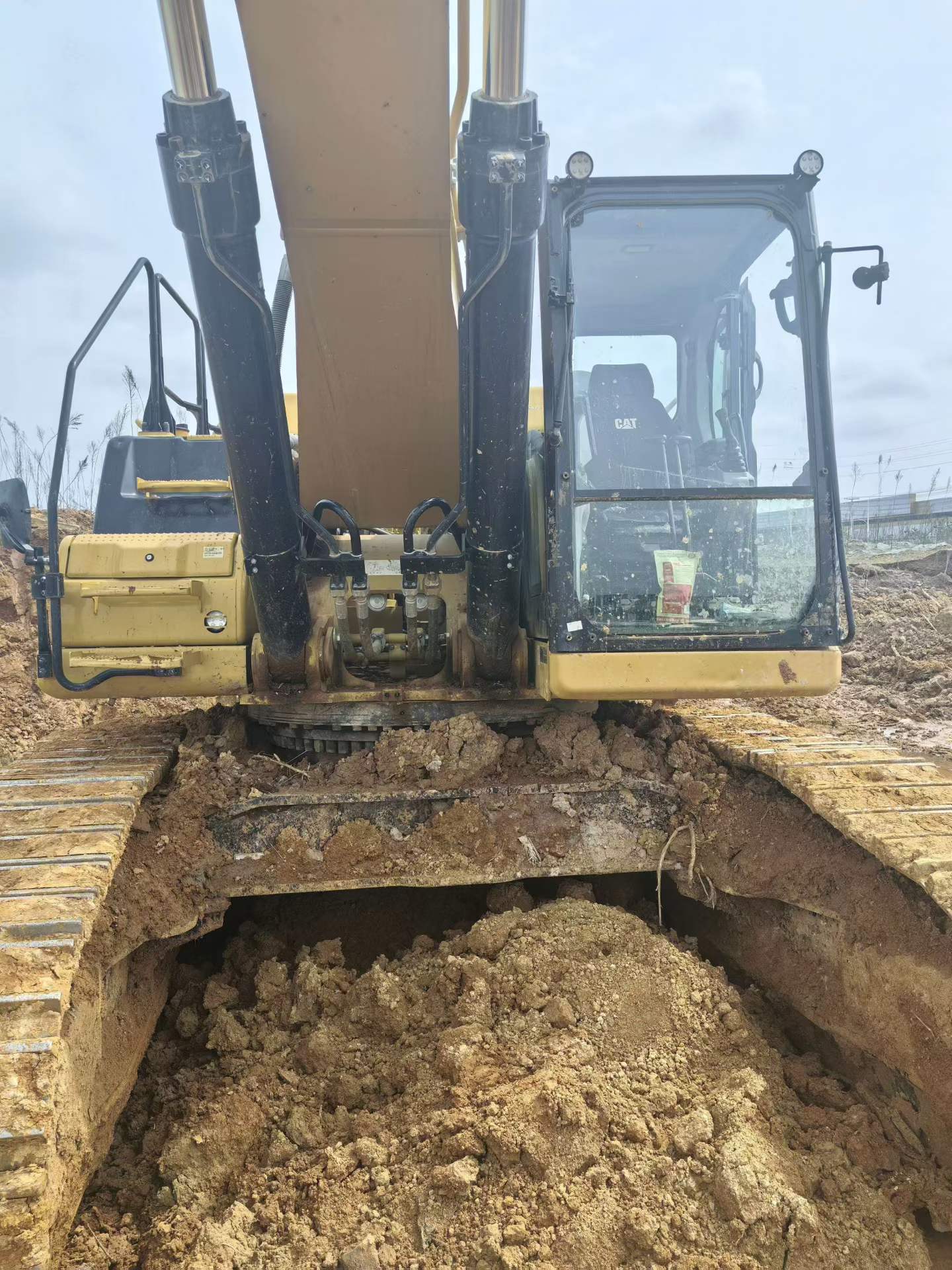

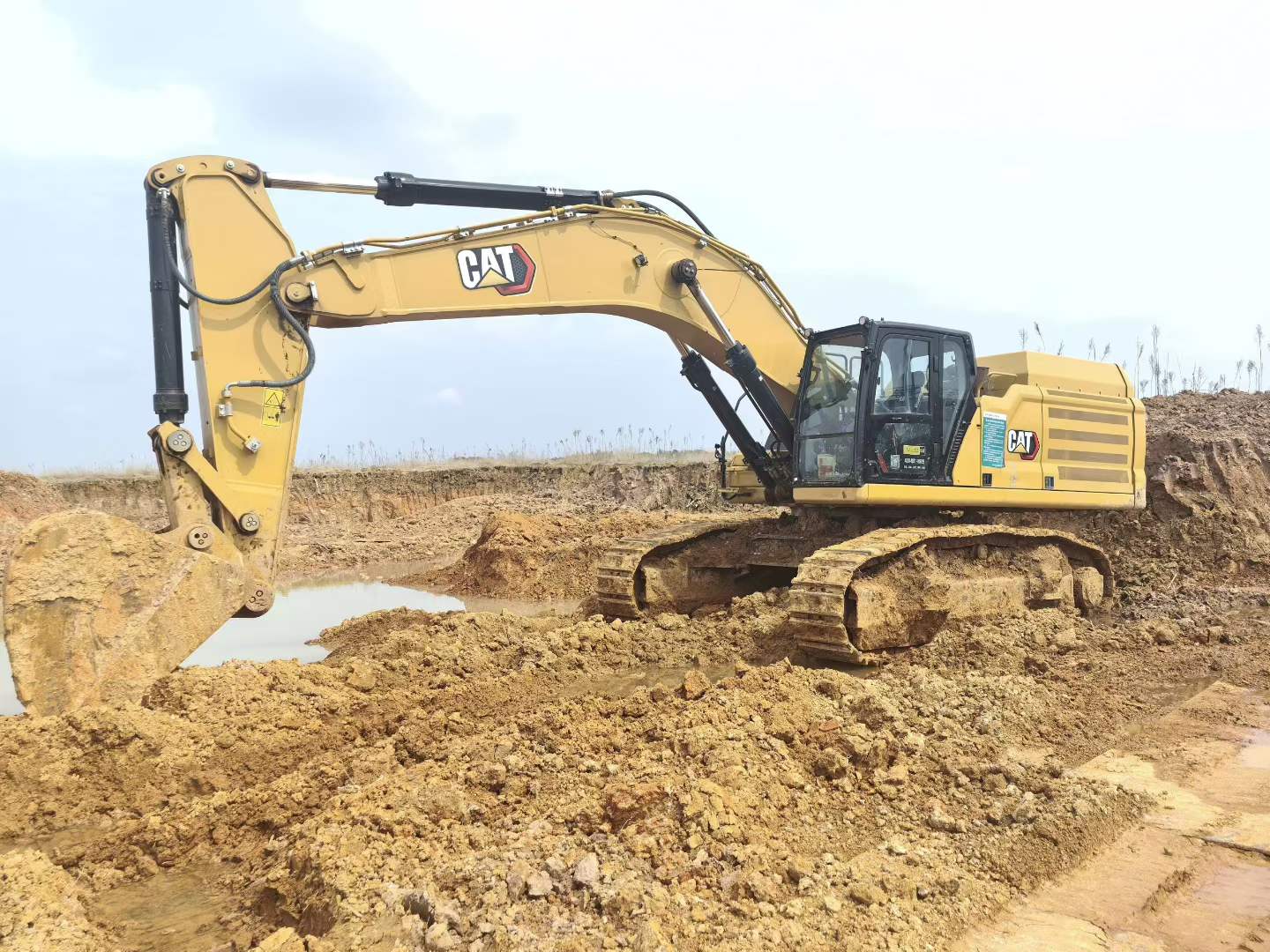

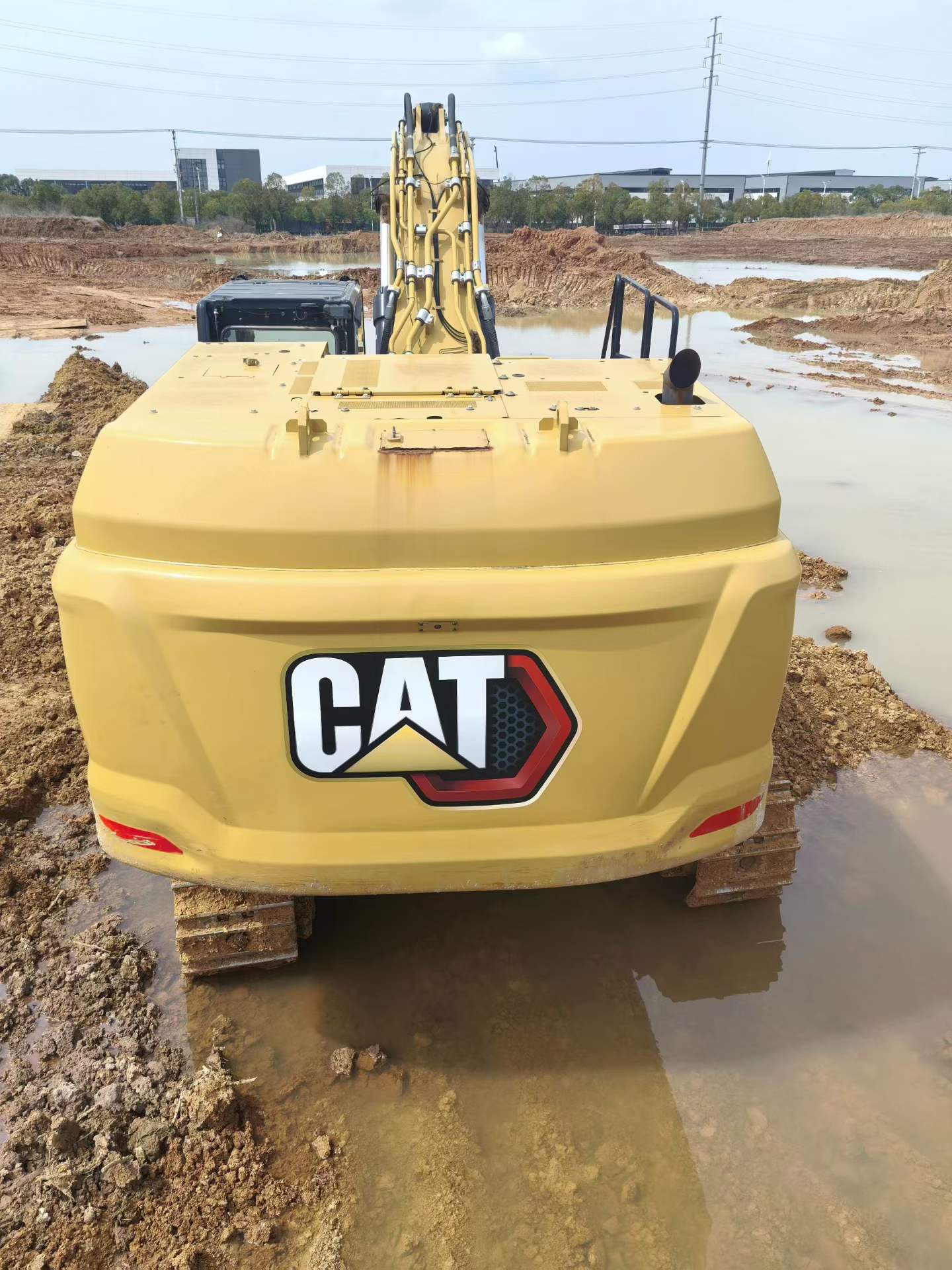

2023 Caterpillar CAT355










Product Description
Commanding precision and operator confidence define this 2023 Caterpillar 新一代CAT355 液压挖掘机, currently stationed in Guangdong, Huizhou. Engineered with advanced hydraulic systems, this next-generation excavator delivers responsive control across demanding worksite conditions. Operators benefit from exceptional stability during extended boom reach and heavy lifting operations, reducing fatigue while maintaining productivity throughout full shift cycles.
Cabin design prioritizes 360-degree visibility, enabling precise bucket positioning and enhanced jobsite awareness. Key operator-focused features include:
- Ergonomic control layout minimizing repetitive strain during complex maneuvers
- Reinforced undercarriage providing stable platform on uneven terrain
- Climate-controlled workspace maintaining concentration in variable weather conditions

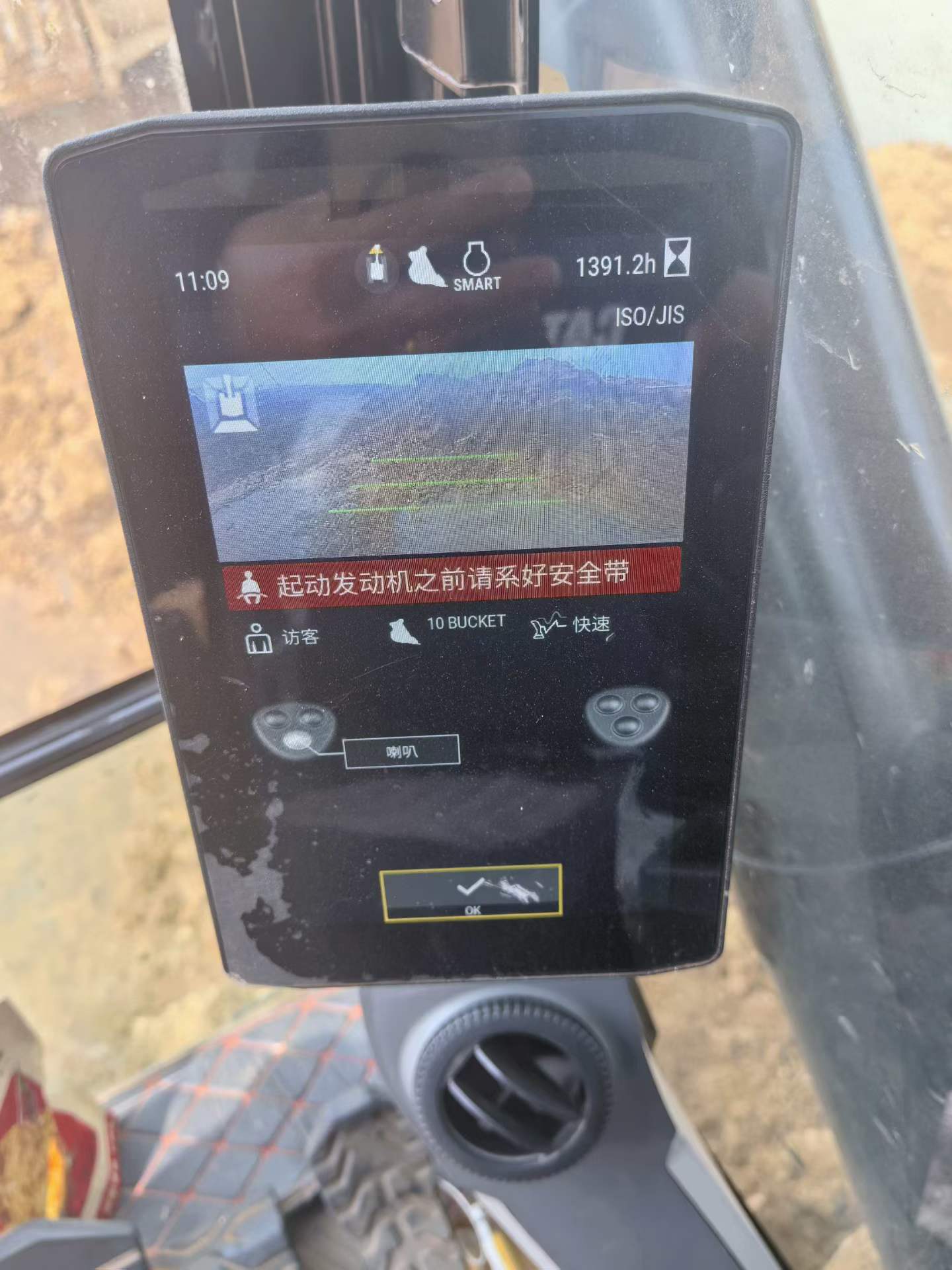

- Intuitive monitoring systems delivering real-time performance data at operator eye level
- Low-vibration cab mounting reducing physical stress during rock breaking or demolition tasks
With minimal operating hours since manufacture, this CAT355 represents proven Caterpillar engineering focused on daily operational efficiency. Suitable f
| Specifications | Value |
|---|---|
| No. | 1038884 |
| Tonnage (tons) | 55 |
| Working weight (kg) | 51400/53300 |
| Bucket capacity (m³) | 4.0/3.8 (Heavy Bucket/Rock bucket) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C13B |
| Rated power (kw/rpm) | 332/1700 |
| Cylinder diameter × stroke (mm) | 130*157 |
| Displacement (L) | 12.5 |
| Rotation speed (rpm) | 8.3 |
| Bucket digging force (kN) | 293/296 |
| Rod digging force (kN) | 240/241 |
| Maximum tractive force (kN) | 351 |
| Travel speed (km/h) | 4.5 |
| Turning torque (Nm) | 189k |
| Maximum flow of main pump (l/min) | 779 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 35 |
| Fuel Tank (L) | 715 |
| Hydraulic Tank (L) | 217 |
| Engine Oil changes (L) | 40 |
| Coolant (L) | 52 |
| Hydraulic System (L) | 550 |
| Total transport length (mm) | 11660/11630 |
| Total transport width (mm) | 3530/3180-3180 |
| Total transport height (mm) | 3230/3380 |
| Counterweight ground clearance (mm) | 1280/1435 |
| Minimum ground clearance (mm) | 475/710 |
| Back end turning radius (mm) | 3760/3760 |
| Total track length (mm) | 5370/5350 |
| Track gauge (mm) | 2740/2390-2890 |
| Track plate width (mm) | 600 |
| Center distance of support wheel (mm) | 4360/4340 |
| Maximum digging radius (mm) | 10770/10710 |
| Maximum digging depth (mm) | 6770/6590 |
| Maximum excavation height (mm) | 10090/10260 |
| Maximum unloading height (mm) | 6580/6770 |
| Maximum vertical digging depth (mm) | 4110/3930 |
Overview
No.1038884
Brand Name:
CaterpillarModel Number:
CAT355Year:
2023
Location:
Guangdong China
Pub Date:
