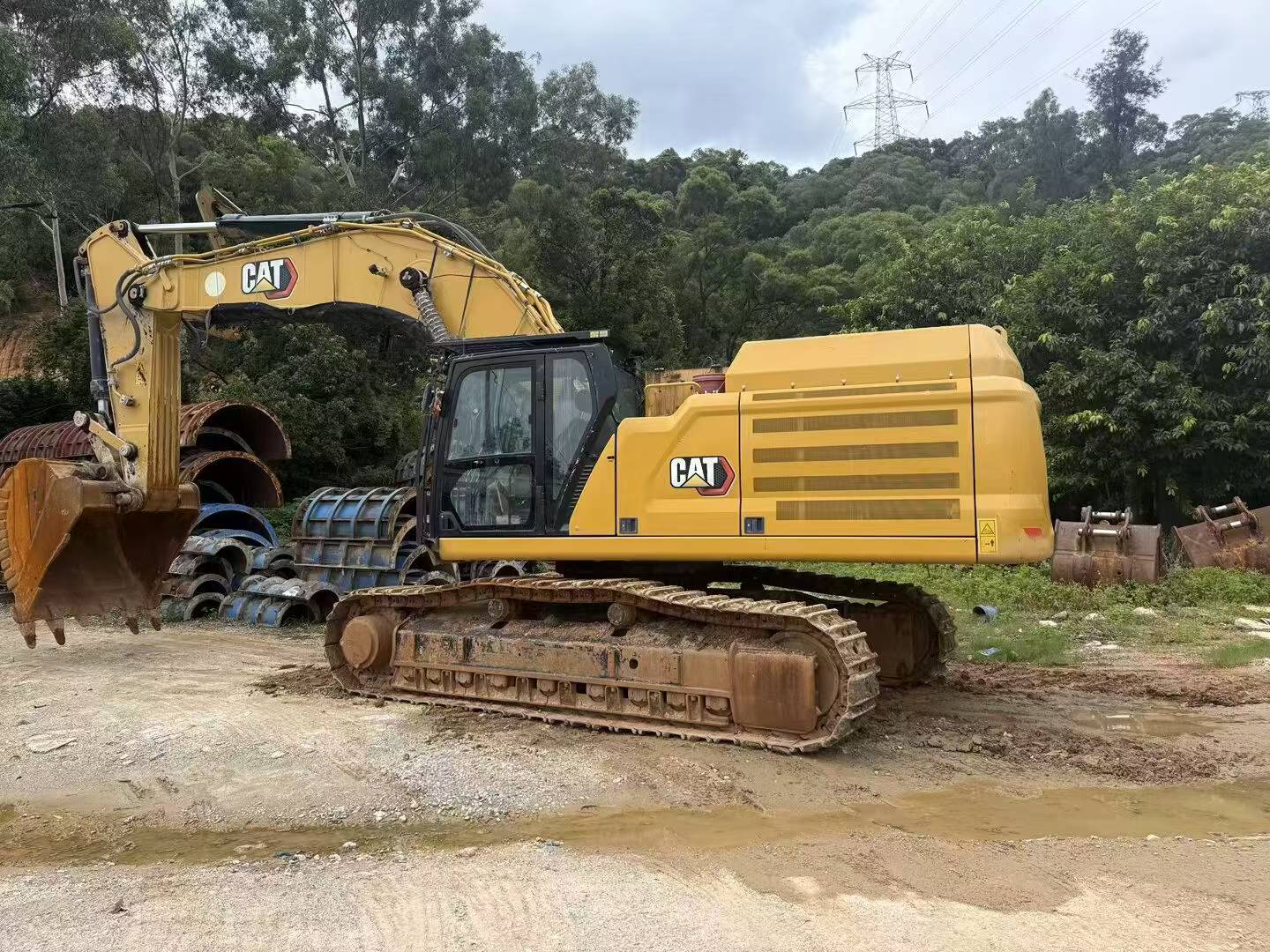

2023 Caterpillar CAT355








Product Description
Discover the 2023 Caterpillar CAT355, a robust and reliable excavator designed for heavy-duty applications. Located in Guangdong, China, this used machine is ready to meet your industrial needs with its proven performance and durability. The CAT355 is known for its efficiency and power, making it an ideal choice for construction, mining, and large-scale earthmoving projects. Contact us directly for more details and to arrange a viewing.
- Year: 2023
- Brand: Caterpillar
- Model: CAT355
- Location: Guangdong, China
| Specifications | Value |
|---|---|
| No. | 1140855 |
| Tonnage (tons) | 55 |
| Working weight (kg) | 51400/53300 |
| Bucket capacity (m³) | 4.0/3.8 (Heavy Bucket/Rock bucket) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C13B |
| Rated power (kw/rpm) | 332/1700 |
| Cylinder diameter × stroke (mm) | 130*157 |
| Displacement (L) | 12.5 |
| Rotation speed (rpm) | 8.3 |
| Bucket digging force (kN) | 293/296 |
| Rod digging force (kN) | 240/241 |
| Maximum tractive force (kN) | 351 |
| Travel speed (km/h) | 4.5 |
| Turning torque (Nm) | 189k |
| Maximum flow of main pump (l/min) | 779 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 35 |
| Fuel Tank (L) | 715 |
| Hydraulic Tank (L) | 217 |
| Engine Oil changes (L) | 40 |
| Coolant (L) | 52 |
| Hydraulic System (L) | 550 |
| Total transport length (mm) | 11660/11630 |
| Total transport width (mm) | 3530/3180-3180 |
| Total transport height (mm) | 3230/3380 |
| Counterweight ground clearance (mm) | 1280/1435 |
| Minimum ground clearance (mm) | 475/710 |
| Back end turning radius (mm) | 3760/3760 |
| Total track length (mm) | 5370/5350 |
| Track gauge (mm) | 2740/2390-2890 |
| Track plate width (mm) | 600 |
| Center distance of support wheel (mm) | 4360/4340 |
| Maximum digging radius (mm) | 10770/10710 |
| Maximum digging depth (mm) | 6770/6590 |
| Maximum excavation height (mm) | 10090/10260 |
| Maximum unloading height (mm) | 6580/6770 |
| Maximum vertical digging depth (mm) | 4110/3930 |
