2013 Caterpillar CT16
Product Description
Expand your fleet capacity with this 2013 Caterpillar CT16 compact track loader, currently located in Shaoxing, Zhejiang. Built for contractors managing multiple jobsites simultaneously, this unit delivers reliable auxiliary power when your primary machines are committed elsewhere. Caterpillar's proven CT16 platform offers the maneuverability and lifting performance necessary for tight-access applications—utility trenching, landscaping prep, and material staging—without the capital outlay of new equipment.
- Year: 2013
- Brand: Caterpillar
- Model: CT16
- Current Location: Shaoxing, Zhejiang, China
Integrate this loader as a dedicated rental asset or rotational backup to minimize downtime across projects. Its compact footprint and rubber track system protect finished surfaces while maintaining traction on soft ground. For growing operations requiring scalable equipment solutions, this CT16 represents a cost-effective fleet expansion strategy. Contact Fair Trade Machinery for detailed inspection reports, shipping logistics to your region, and competitive export pricing.
| Specifications | Value |
|---|---|
| No. | 1011438 |
| Tonnage (tons) | 16 |
| Working weight (kg) | 17600 |
| Bucket capacity (m³) | 0.65 |
| Boom length (mm) | 5100 |
| Rod length (mm) | 2600 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

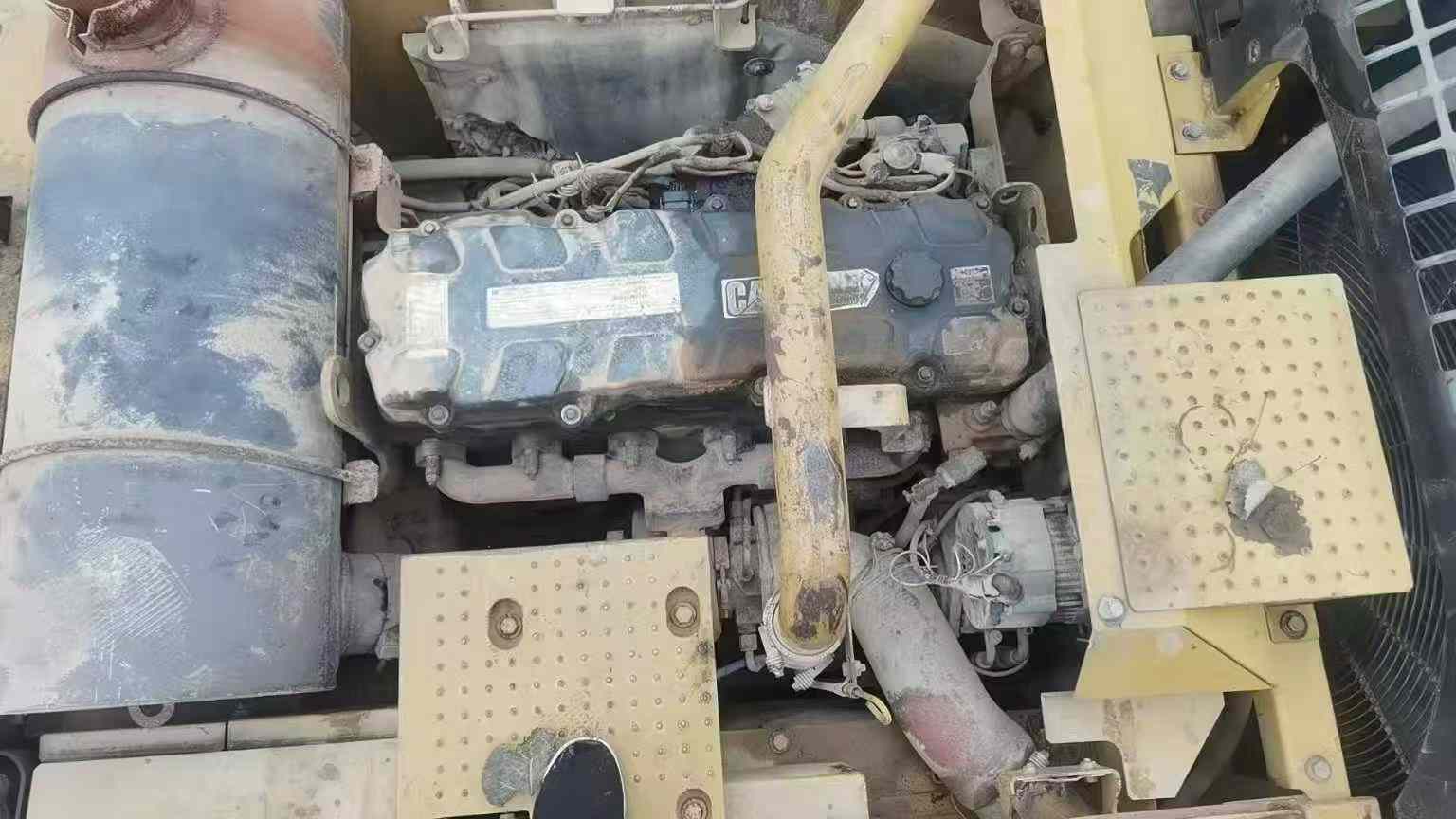

| Engine type | Caterpillar Cat C4.4 ACERT |
| Rated power (kw/rpm) | 89 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 105 x 127 |
| Displacement (L) | 4.4 |
| Working form | Meet EU Stage IIIB emission standards |
| Ground specific pressure (Kpa) | 49 |
| Rotation speed (rpm) | 9.3 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 111 |
| Rod digging force (kN) | 88 |
| Maximum tractive force (kN) | 156.2 |
| Travel speed (km/h) | 5.2 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | 300 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 22.6 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Pilot pump flow (L/min) | 25.8 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 110 x 1039 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 120 x 1331 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 110 x 1193 |
| Fuel Tank (L) | 290 |
| Hydraulic Tank (L) | 106 |
| Engine Oil changes (L) | 13.5 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 190 |
| Total transport length (mm) | 8570 |
| Total transport width (mm) | 2520/2590/2690 (with different width tracks) |
| Total transport height (mm) | 3180 (to the top of the boom) |
| Full cab height (mm) | 2890 |
| Counterweight ground clearance (mm) | 1010 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2500 |
| Total track length (mm) | 3970 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500/600/700 |
| Total track width (mm) | 2520/2590/2690 |
| Maximum digging radius (mm) | 8910 |
| Maximum digging depth (mm) | 6090 |
| Maximum excavation height (mm) | 8920 |
| Maximum unloading height (mm) | 6280 |
| Maximum vertical digging depth (mm) | 4930 |
| Maximum excavation radius of stop surface (mm) | 8780 |
| Maximum effective digging depth (mm) | 5870 |
