2012 Caterpillar CT18
Product Description
Built for precision work in confined spaces, this 2012 Caterpillar CT18 compact excavator delivers immediate productivity on trenching, foundation digging, and utility installation projects. Powered by Caterpillar's proven diesel engine, this machine combines responsive hydraulics with a minimal tail swing radius, allowing operators to maneuver efficiently around obstacles and structures without sacrificing digging force.
Currently located in Maoming, Guangdong, this unit arrives site-ready for grading operations, demolition tasks, and landscape preparation. Standard features include:
- Compact footprint ideal for urban construction and renovation projects

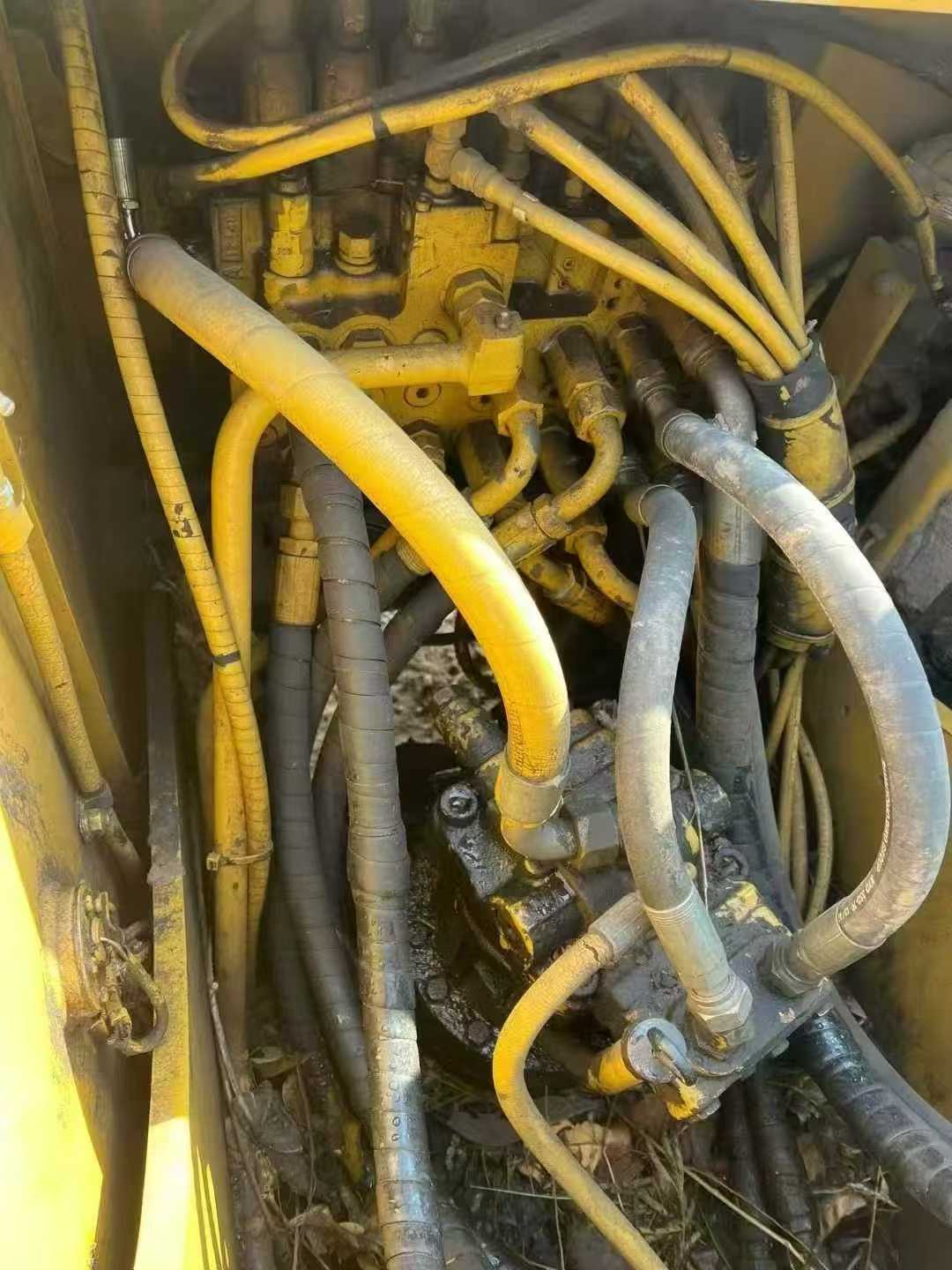

- Reliable hydraulic system engineered for consistent bucket and arm control

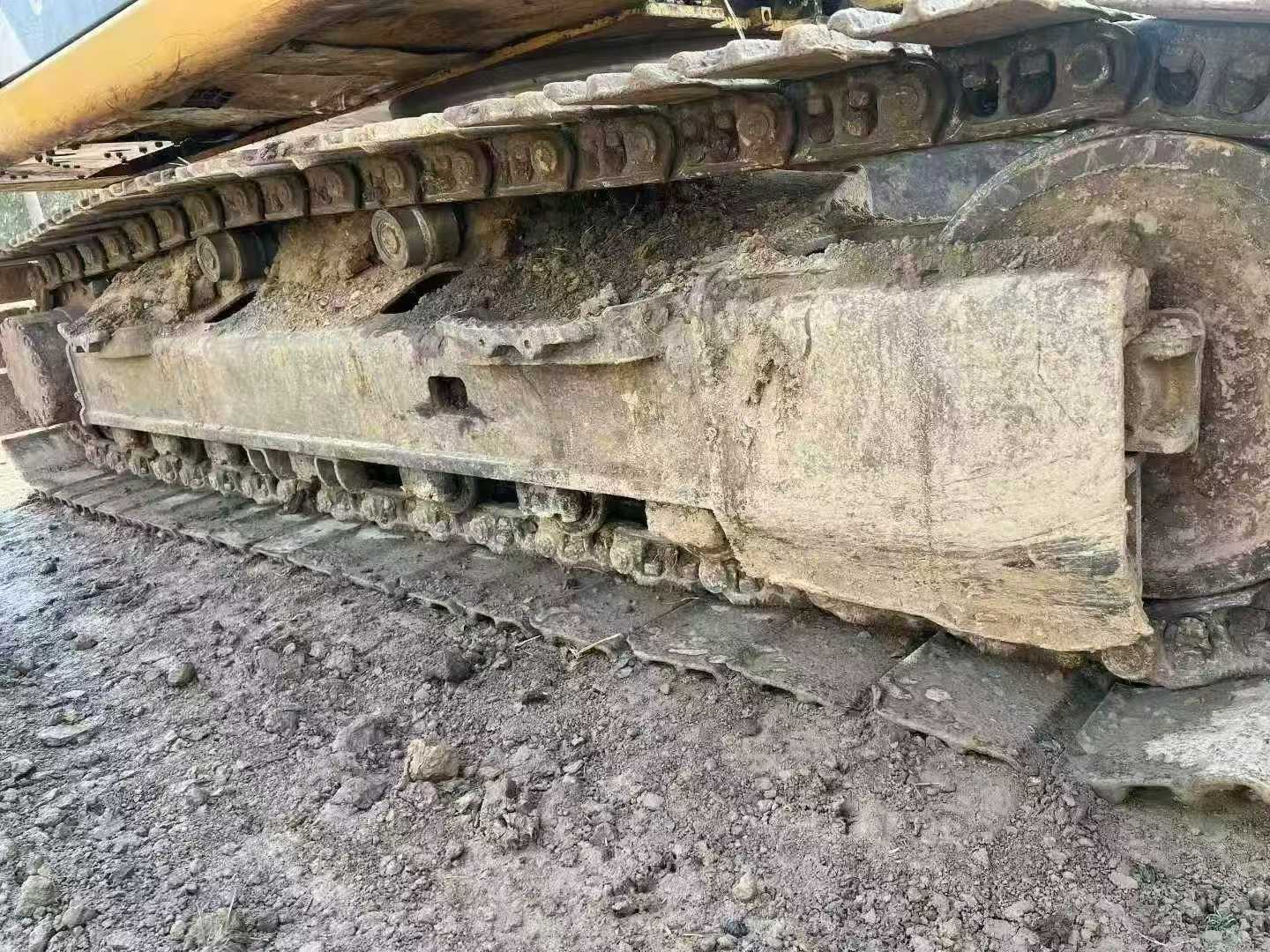

- Durable undercarriage designed for mixed terrain conditions
- Operator station configured for extended shifts with clear sight lines
Contact Fair Trade Machinery today to acquire a compact excavator that transitions directly from transport to trench work, foundation excavation, or material handling without delay.
| Specifications | Value |
|---|---|
| No. | 1016320 |
| Tonnage (tons) | 18 |
| Working weight (kg) | 17690-17840 |
| Bucket capacity (m³) | 0.8 Universal /0.73 standard |
| Boom length (mm) | 5100 |
| Rod length (mm) | 2600 (Heavy bucket pole) |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar Cat C4.2 ACERT |
| Rated power (kw/rpm) | 86 (Net power) |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.25 |
| Working form | Meets the emission requirements of US EPA Tier 3 and European IIIA Directive 97/68/EC. |
| Ground specific pressure (Kpa) | 42.0-42.3 |
| Rotation speed (rpm) | 10.2 |
| Bucket digging force (kN) | 114.5 |
| Rod digging force (kN) | 80.4 |
| Maximum tractive force (kN) | 157 |
| Travel speed (km/h) | 5.6 |
| Maximum flow of main pump (l/min) | 150 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 22.55 |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Pilot pump flow (L/min) | 26.2 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 100 x 1048 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 120 x 1331 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 110 x 1193 |
| Fuel Tank (L) | 300 |
| Hydraulic Tank (L) | 106 |
| Engine Oil changes (L) | 17.5 |
| Coolant (L) | 22 |
| Hydraulic System (L) | 190 (including fuel tank) |
| Total transport length (mm) | 8540 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 3030 (to the top of the boom) |
| Full cab height (mm) | 2870 |
| Counterweight ground clearance (mm) | 1030 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2500 |
| Total track length (mm) | 3970 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2590 |
| Maximum digging depth (mm) | 6070 |
| Maximum excavation height (mm) | 8920 |
| Maximum unloading height (mm) | 6310 |
| Maximum vertical digging depth (mm) | 5350 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 8750 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 5840 |
Overview
No.1016320
Brand Name：
CaterpillarModel Number：
CT18Year：
2012
Location：
Guangdong China
Pub Date：
