2015 Caterpillar CT18
Product Description
Expand your operational capacity with this 2015 Caterpillar CT18, a proven compact track loader engineered for contractors demanding reliable fleet performance. Currently located in Xuzhou, Jiangsu, this machine delivers the backup power your team needs when primary equipment is deployed or scheduled workloads exceed single-unit capacity.
Built on Caterpillar's reputation for durability, the CT18 integrates seamlessly into existing fleets without requiring specialized operator training or maintenance protocols. Its compact footprint enables deployment across multiple job sites while maintaining the lifting capacity and hydraulic performance contractors expect from the Cat brand.
- Immediate availability for fleet augmentation
- Standardized Cat controls reduce operator transition time
- Proven 2015 model year with established service history
- Strategic Xuzhou location facilitates regional deployment
- Ideal secondary unit for overlapping project timelines
Minimize downtime and maximize project flexibility. This CT18 represents a cost-effective solution for contractors seeking to strengthen fleet depth without compromising on manufacturer quality or parts availability.
| Specifications | Value |
|---|---|
| No. | 1005804 |
| Tonnage (tons) | 18 |
| Working weight (kg) | 17690-17840 |
| Bucket capacity (m³) | 0.8 Universal /0.73 standard |
| Boom length (mm) | 5100 |
| Rod length (mm) | 2600 (Heavy bucket pole) |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

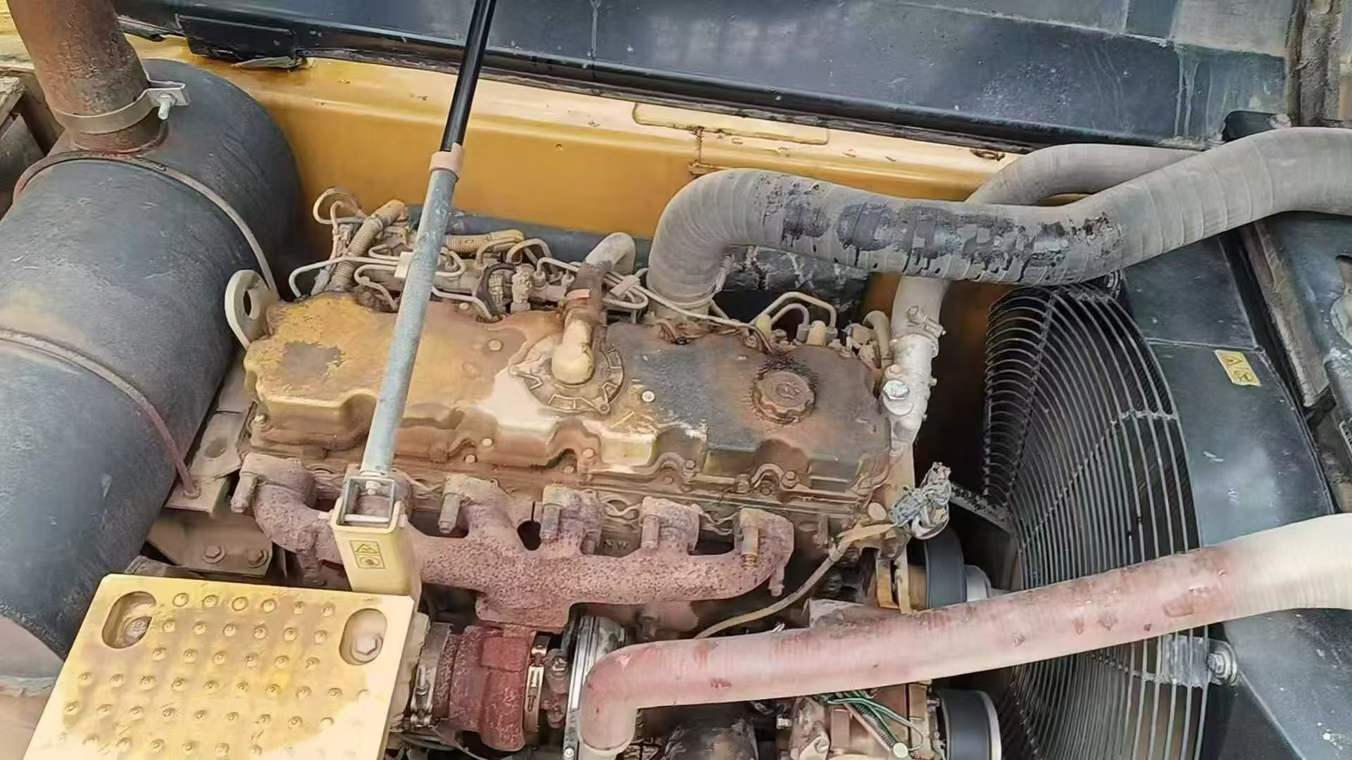

| Engine type | Caterpillar Cat C4.2 ACERT |
| Rated power (kw/rpm) | 86 (Net power) |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.25 |
| Working form | Meets the emission requirements of US EPA Tier 3 and European IIIA Directive 97/68/EC. |
| Ground specific pressure (Kpa) | 42.0-42.3 |
| Rotation speed (rpm) | 10.2 |
| Bucket digging force (kN) | 114.5 |
| Rod digging force (kN) | 80.4 |
| Maximum tractive force (kN) | 157 |
| Travel speed (km/h) | 5.6 |
| Maximum flow of main pump (l/min) | 150 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 22.55 |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Pilot pump flow (L/min) | 26.2 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 100 x 1048 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 120 x 1331 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 110 x 1193 |
| Fuel Tank (L) | 300 |
| Hydraulic Tank (L) | 106 |
| Engine Oil changes (L) | 17.5 |
| Coolant (L) | 22 |
| Hydraulic System (L) | 190 (including fuel tank) |
| Total transport length (mm) | 8540 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 3030 (to the top of the boom) |
| Full cab height (mm) | 2870 |
| Counterweight ground clearance (mm) | 1030 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2500 |

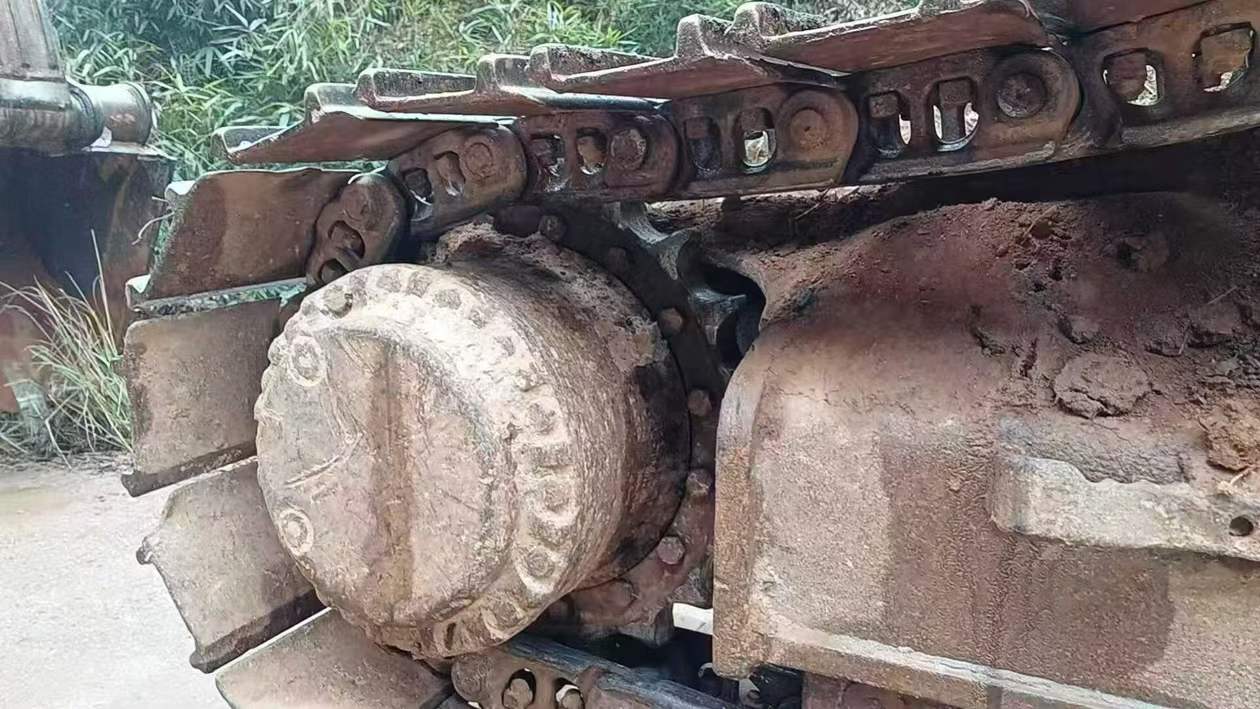

| Total track length (mm) | 3970 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2590 |
| Maximum digging depth (mm) | 6070 |
| Maximum excavation height (mm) | 8920 |
| Maximum unloading height (mm) | 6310 |
| Maximum vertical digging depth (mm) | 5350 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 8750 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 5840 |
Overview
No.1005804
Brand Name：
CaterpillarModel Number：
CT18Year：
2015
Location：
Jiangsu China
Pub Date：
