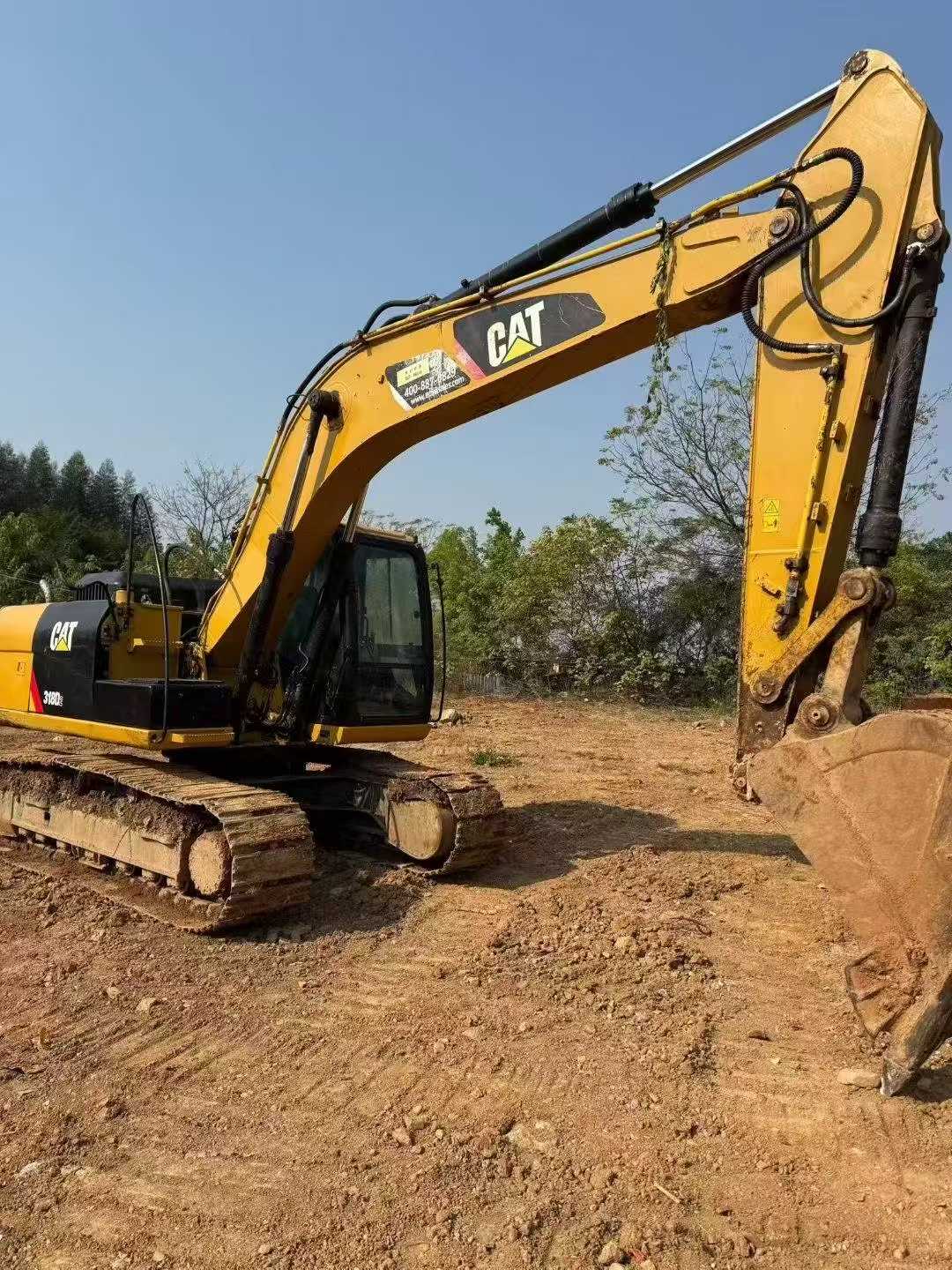

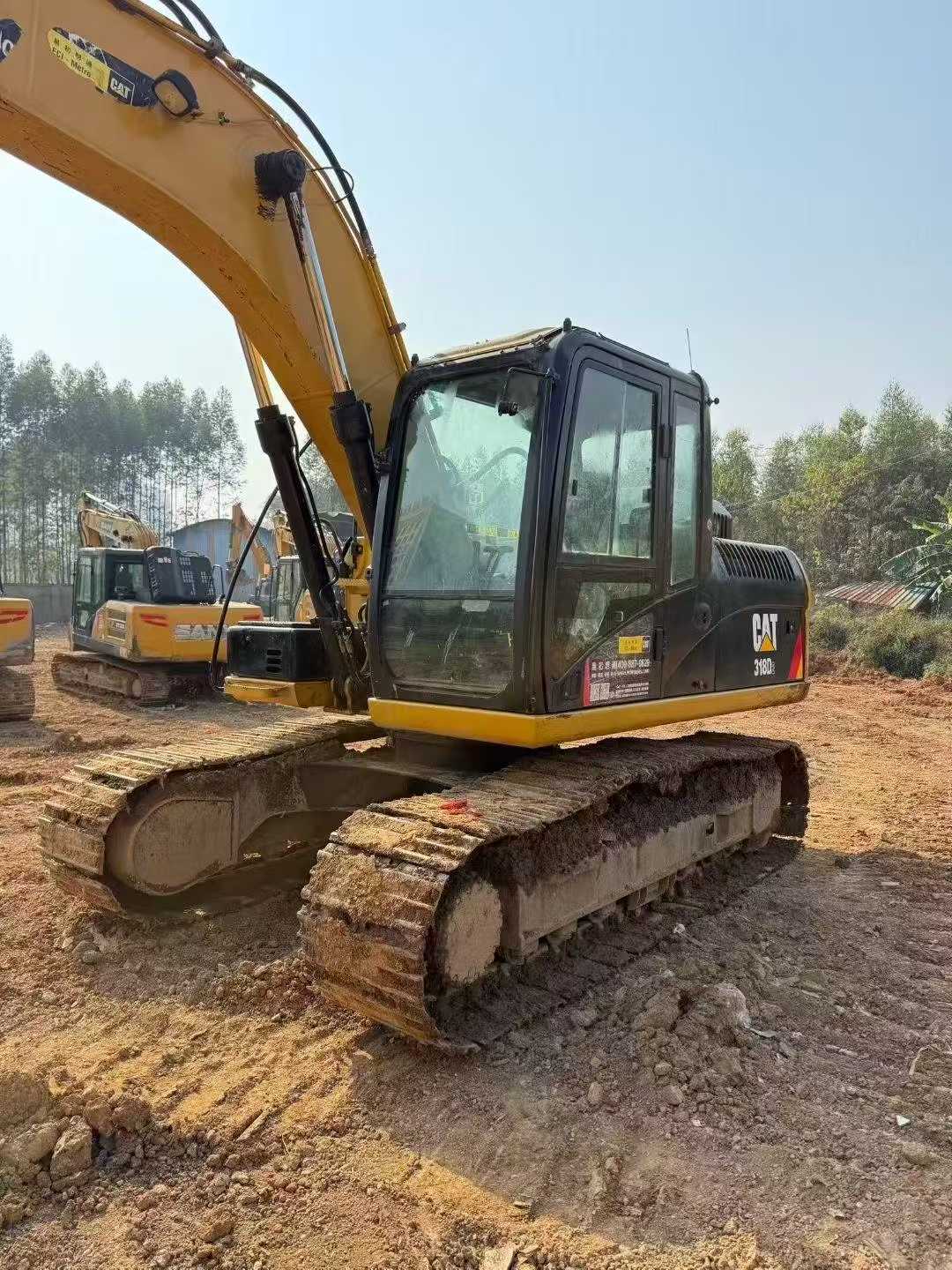

2017 Caterpillar CT18
Product Description

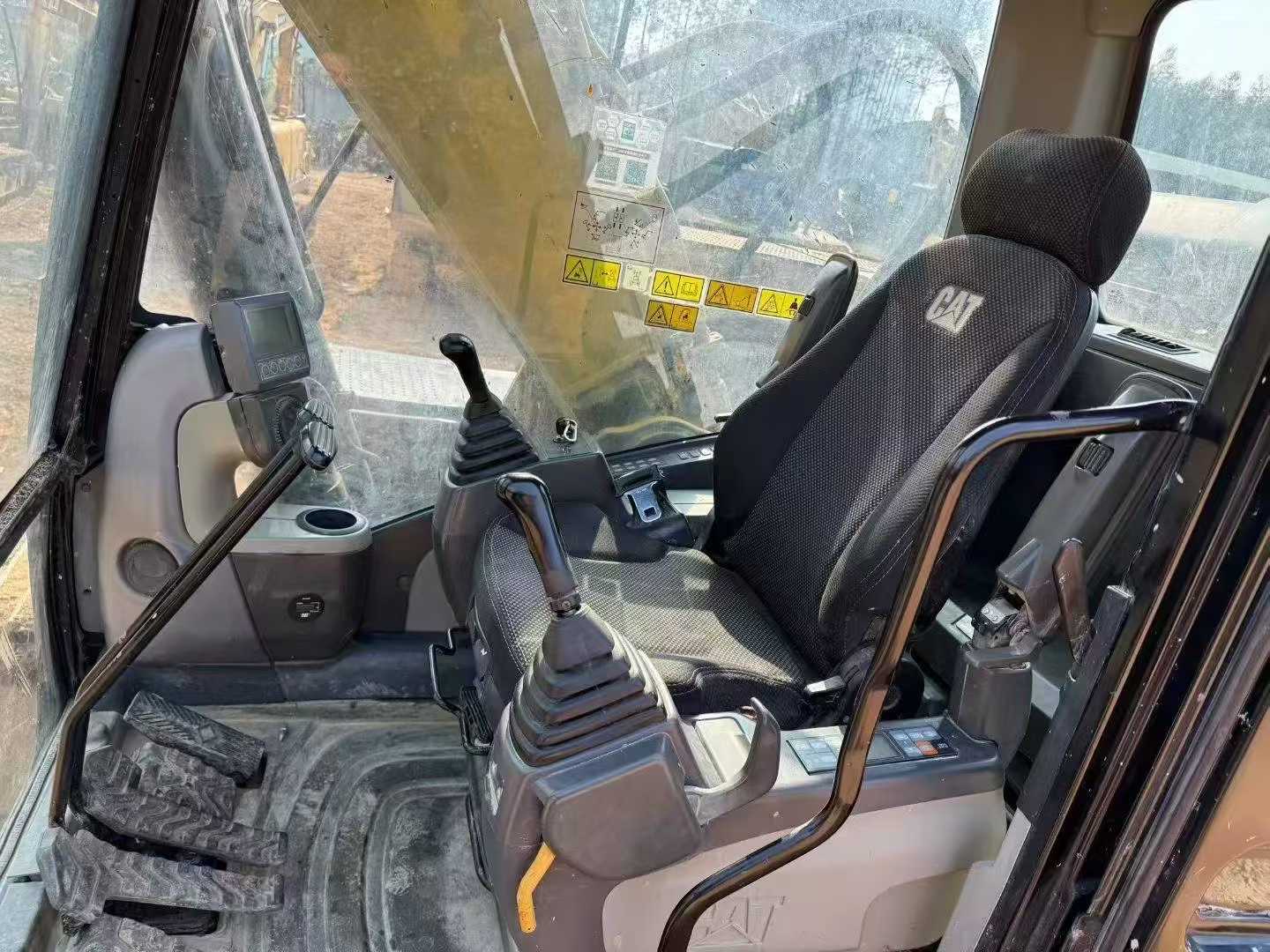

Featuring superior handling and stability, this 2017 Caterpillar CT18, currently located in 广西柳州, is a reliable choice for operators. With its robust design, it ensures a smooth and efficient operation even on challenging terrains. Inside the cabin, operators benefit from enhanced visibility, which is crucial for precision and safety during work. This model comes equipped with features that focus on operator comfort and control, making it an ideal option for those who value performance and reliability.
- Year: 2017
- Brand: Caterpillar
- Model: CT18
- Location: 广西柳州
| Specifications | Value |
|---|---|
| No. | 1004387 |
| Tonnage (tons) | 18 |
| Working weight (kg) | 17690-17840 |
| Bucket capacity (m³) | 0.8 Universal /0.73 standard |
| Boom length (mm) | 5100 |
| Rod length (mm) | 2600 (Heavy bucket pole) |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

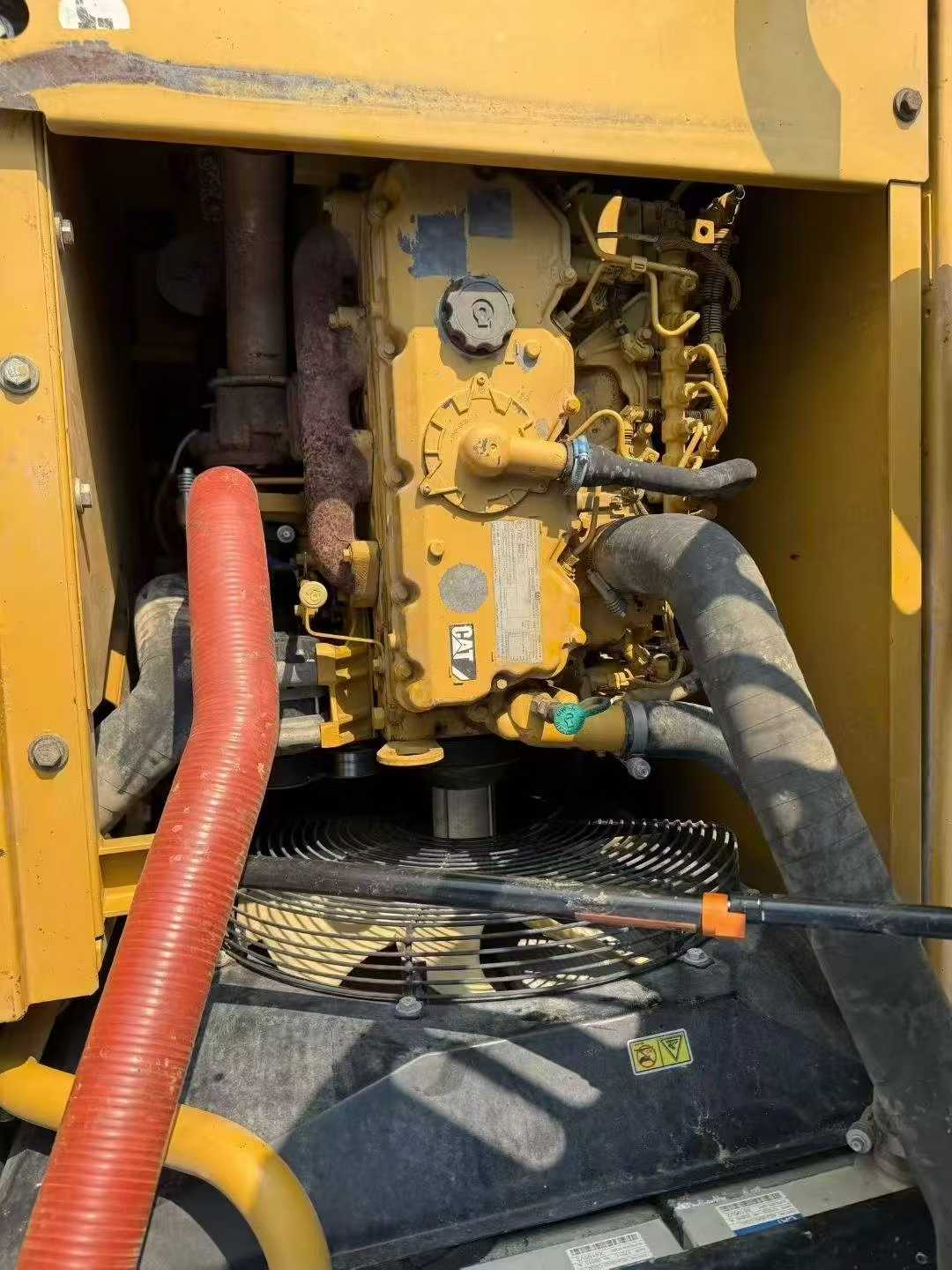

| Engine type | Caterpillar Cat C4.2 ACERT |
| Rated power (kw/rpm) | 86 (Net power) |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.25 |
| Working form | Meets the emission requirements of US EPA Tier 3 and European IIIA Directive 97/68/EC. |
| Ground specific pressure (Kpa) | 42.0-42.3 |
| Rotation speed (rpm) | 10.2 |
| Bucket digging force (kN) | 114.5 |
| Rod digging force (kN) | 80.4 |
| Maximum tractive force (kN) | 157 |
| Travel speed (km/h) | 5.6 |
| Maximum flow of main pump (l/min) | 150 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 22.55 |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Pilot pump flow (L/min) | 26.2 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 100 x 1048 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 120 x 1331 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 110 x 1193 |
| Fuel Tank (L) | 300 |
| Hydraulic Tank (L) | 106 |
| Engine Oil changes (L) | 17.5 |
| Coolant (L) | 22 |
| Hydraulic System (L) | 190 (including fuel tank) |
| Total transport length (mm) | 8540 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 3030 (to the top of the boom) |
| Full cab height (mm) | 2870 |
| Counterweight ground clearance (mm) | 1030 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2500 |
| Total track length (mm) | 3970 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2590 |
| Maximum digging depth (mm) | 6070 |
| Maximum excavation height (mm) | 8920 |
| Maximum unloading height (mm) | 6310 |
| Maximum vertical digging depth (mm) | 5350 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 8750 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 5840 |
see more
Overview
No.1004387
Brand Name：
CaterpillarModel Number：
CT18Year：
2017
Location：
Guangxi China
Pub Date：
