2018 Caterpillar CT18
Product Description
Designed for precision work in demanding environments, this 2018 Caterpillar CT18 mini excavator delivers exceptional operator control and all-day comfort. Positioned in Guangxi, this compact machine combines responsive hydraulics with intuitive handling characteristics that reduce operator fatigue during extended shifts.
Operator-centric features include:
- Enhanced cabin visibility with strategically positioned structural elements for clear sightlines to attachment points and work zones
- Ergonomic control layout minimizing reach distances and reducing repetitive strain
- Stable platform design ensuring predictable machine behavior across varied terrain conditions
- Low-effort joystick controls providing proportional response for delicate grading and trenching operations
- Reduced vibration transmission to the operator station for improved comfort and control accuracy
Built to Caterpillar's 2018 manufacturing standards, this CT18 offers the handling precision required for confined jobsites while maintaining the stability necessary for productive excavation work. Currently available in Guangxi for operators seeking reliable performance in a compact footprint.
| Specifications | Value |
|---|---|
| No. | 1004872 |
| Tonnage (tons) | 18 |
| Working weight (kg) | 17690-17840 |
| Bucket capacity (m³) | 0.8 Universal /0.73 standard |
| Boom length (mm) | 5100 |
| Rod length (mm) | 2600 (Heavy bucket pole) |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

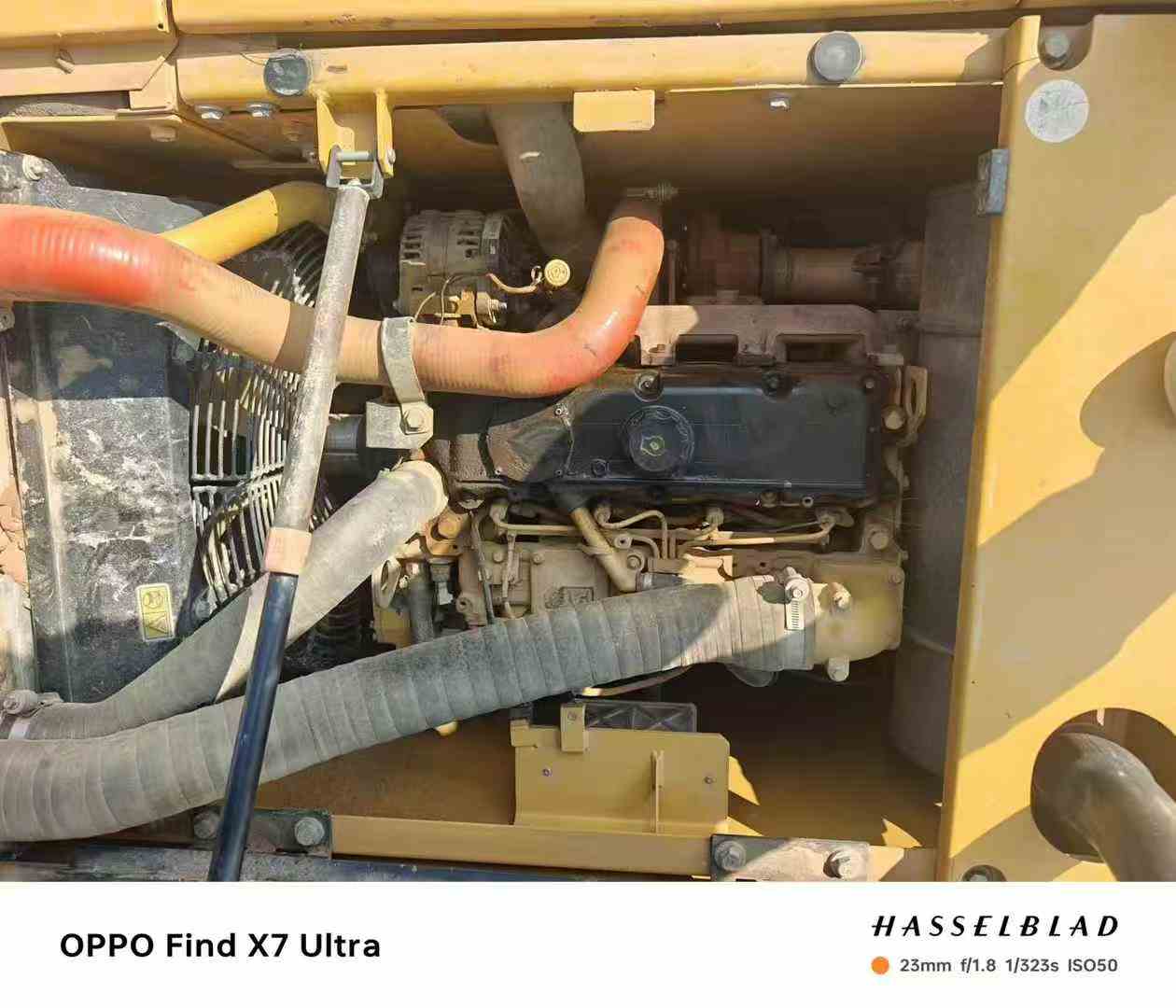

| Engine type | Caterpillar Cat C4.2 ACERT |
| Rated power (kw/rpm) | 86 (Net power) |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.25 |
| Working form | Meets the emission requirements of US EPA Tier 3 and European IIIA Directive 97/68/EC. |
| Ground specific pressure (Kpa) | 42.0-42.3 |
| Rotation speed (rpm) | 10.2 |
| Bucket digging force (kN) | 114.5 |
| Rod digging force (kN) | 80.4 |
| Maximum tractive force (kN) | 157 |
| Travel speed (km/h) | 5.6 |
| Maximum flow of main pump (l/min) | 150 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 22.55 |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Pilot pump flow (L/min) | 26.2 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 100 x 1048 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 120 x 1331 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 110 x 1193 |
| Fuel Tank (L) | 300 |
| Hydraulic Tank (L) | 106 |
| Engine Oil changes (L) | 17.5 |
| Coolant (L) | 22 |
| Hydraulic System (L) | 190 (including fuel tank) |
| Total transport length (mm) | 8540 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 3030 (to the top of the boom) |
| Full cab height (mm) | 2870 |
| Counterweight ground clearance (mm) | 1030 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2500 |
| Total track length (mm) | 3970 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2590 |
| Maximum digging depth (mm) | 6070 |
| Maximum excavation height (mm) | 8920 |
| Maximum unloading height (mm) | 6310 |
| Maximum vertical digging depth (mm) | 5350 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 8750 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 5840 |
