2020 Caterpillar E70B
Product Description

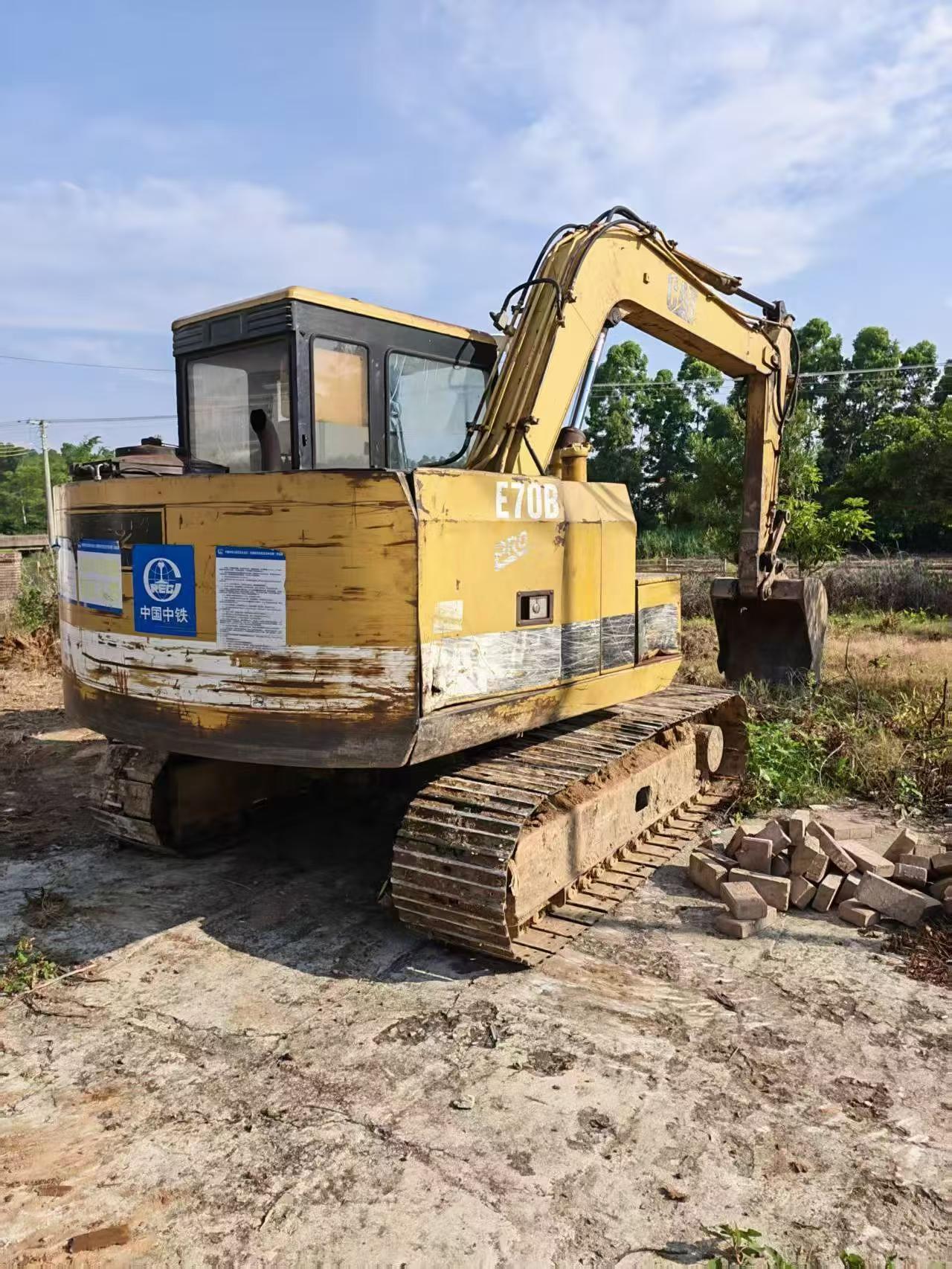

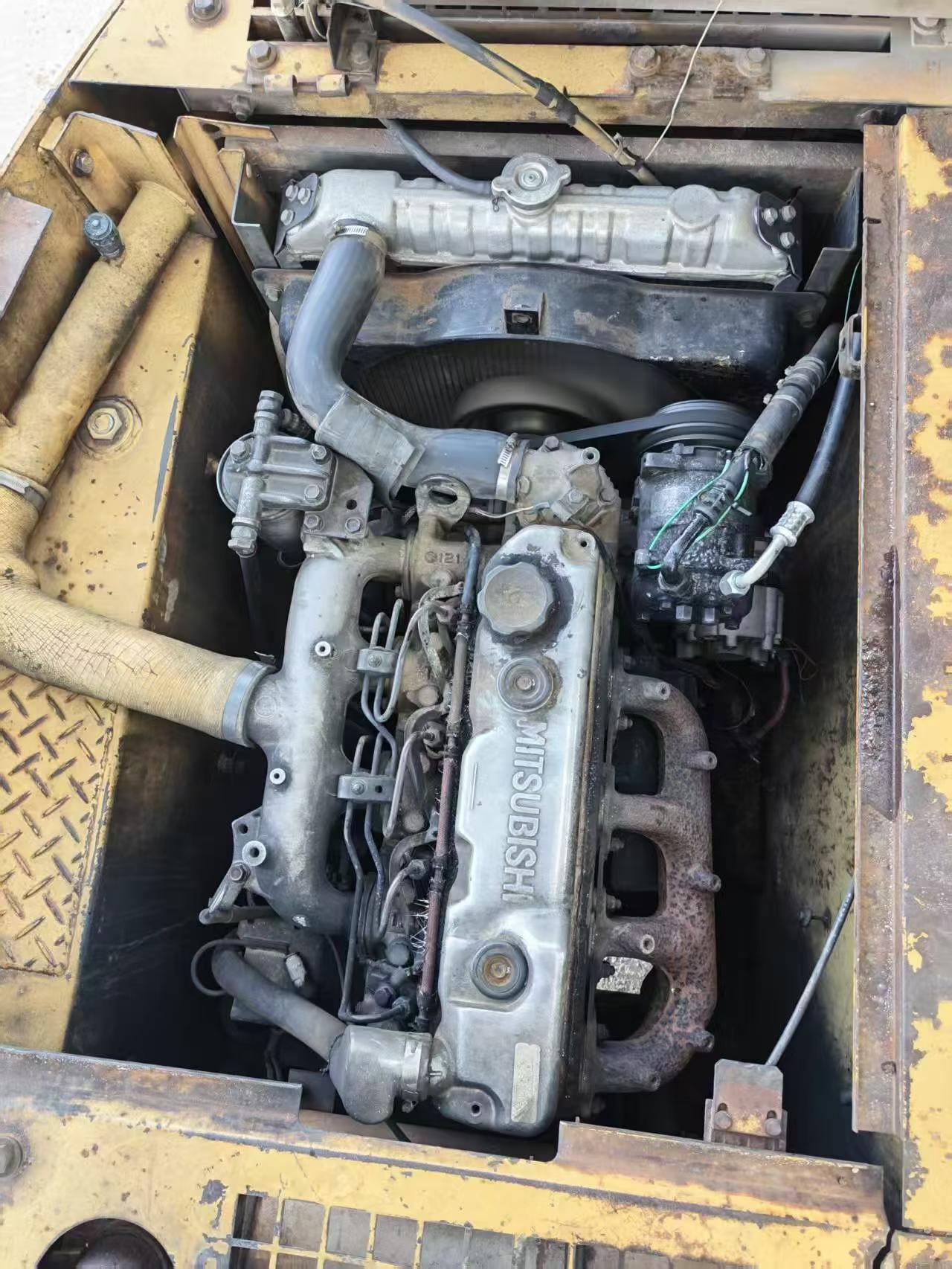

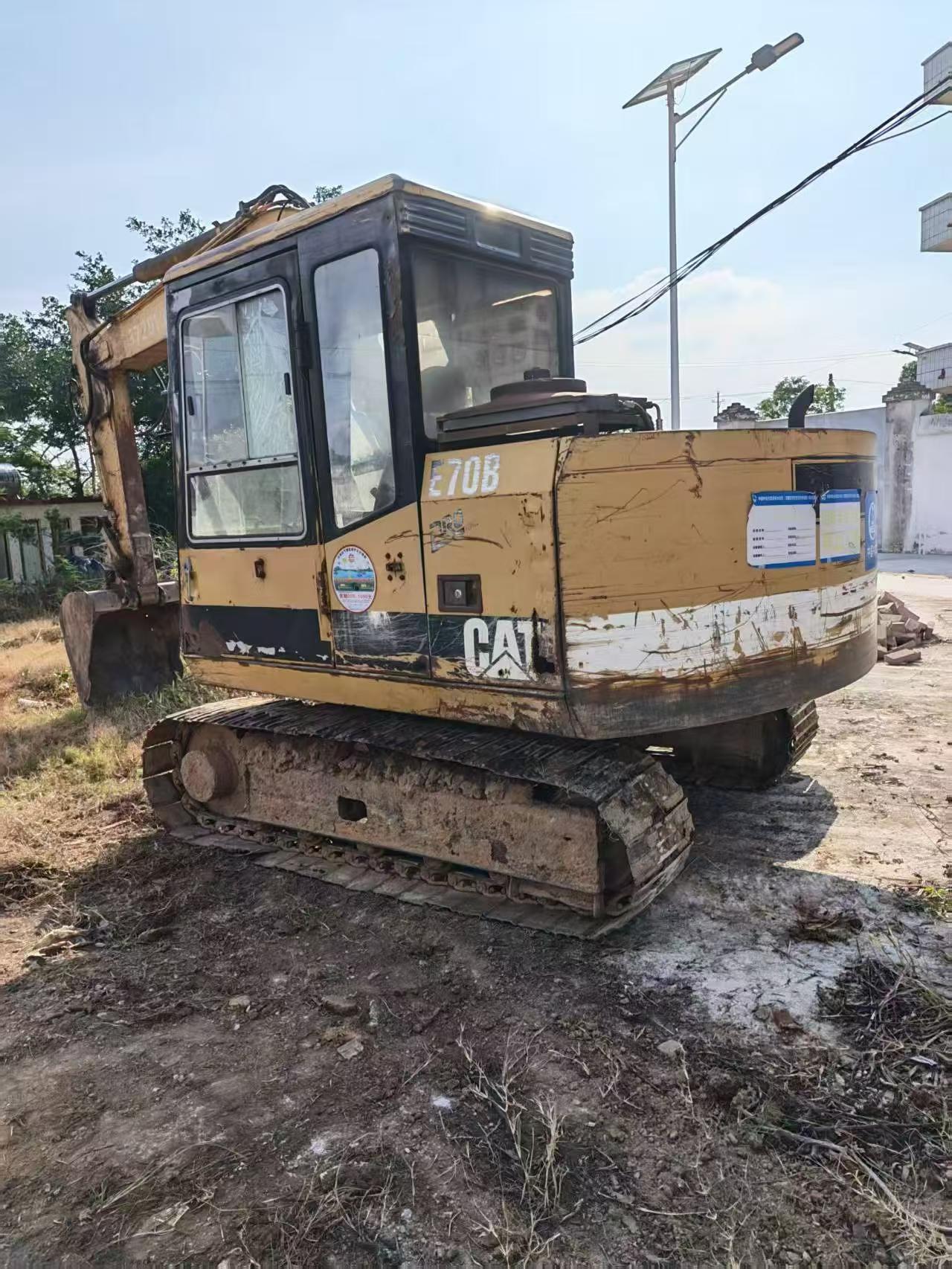

Built for precision control and long-shift productivity, the 2020 Caterpillar E70B mini excavator delivers reliable 8-ton performance from its Guangdong, China base. Powered by a Mitsubishi 4D32 engine producing 40.3 kW at 1,800 RPM with a 3.6L displacement, this compact machine handles demanding excavation tasks without compromise. Operators benefit from an ergonomically designed cab with strong all-around sightlines, minimizing blind spots and supporting confident maneuvering in confined work zones.
- Working Weight: 6,920 kg with a ground pressure of just 32.4 kPa for stable footing on varied terrain
- Bucket Digging Force: 45.1 kN with selectable capacities of 0.14 / 0.28 / 0.34 m³
- Maximum Digging Depth: 3,780 mm | Maximum Excavation Radius: 5,930 mm
- Maximum Unloading Height: 4,460 mm for efficient truck-loading operations
- Track Plate Width: 450 mm | Travel Speed: 4.1 km/h for controlled site movement
- Hydraulic System Capacity: 110 L fuel tank and 105 L hydraulic system for extended operation
- Compact Transport Profile: 2,260 mm width and 1,750 mm back-end turning radius for tight-site access
| Specifications | Value |
|---|---|
| No. | 1095377 |
| Tonnage (tons) | 8 |
| Working weight (kg) | 6920 |
| Bucket capacity (m³) | 0.28/0.14/0.34 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | MITSUBISHI 4D32 |
| Rated power (kw/rpm) | 40.3/1800 |
| Displacement (L) | 3.6 |
| Ground specific pressure (Kpa) | 32.4 |
| Bucket digging force (kN) | 45.1 |
| Travel speed (km/h) | 4.1 |
| Fuel Tank (L) | 110 |
| Engine Oil changes (L) | 9 |
| Coolant (L) | 16 |
| Hydraulic System (L) | 105 |
| Total transport width (mm) | 2260 |
| Full cab height (mm) | 2570 |
| Counterweight ground clearance (mm) | 780 |
| Minimum ground clearance (mm) | 300 |
| Back end turning radius (mm) | 1750 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2000 |
| Maximum digging depth (mm) | 3780 |
| Maximum excavation height (mm) | 6505 |
| Maximum unloading height (mm) | 4460 |
| Maximum vertical digging depth (mm) | 3070 |
| Maximum excavation radius of stop surface (mm) | 5930 |
see more
Overview
No.1095377
Brand Name：
CaterpillarModel Number：
E70BYear：
2020
Location：
Guangdong China
