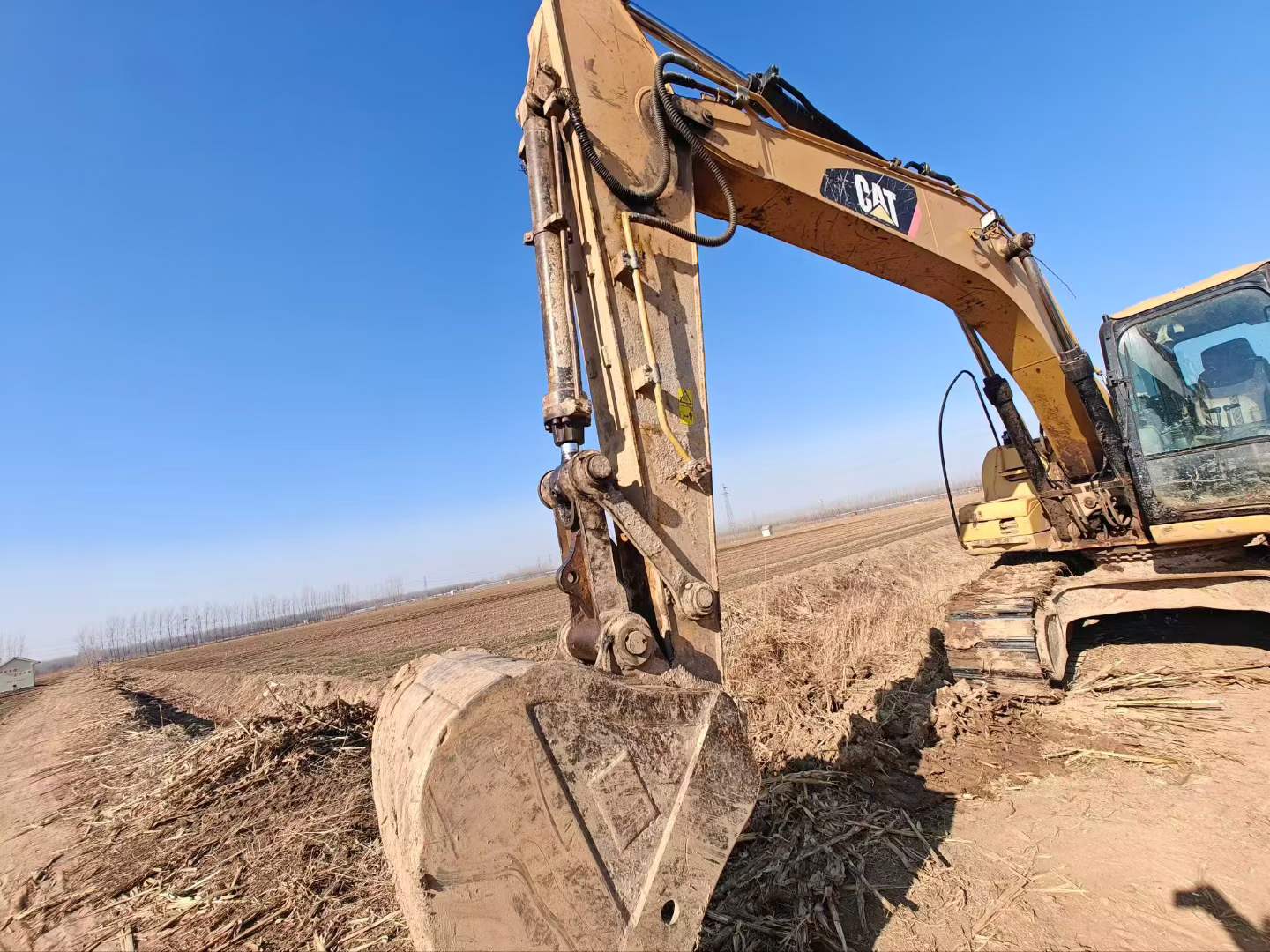

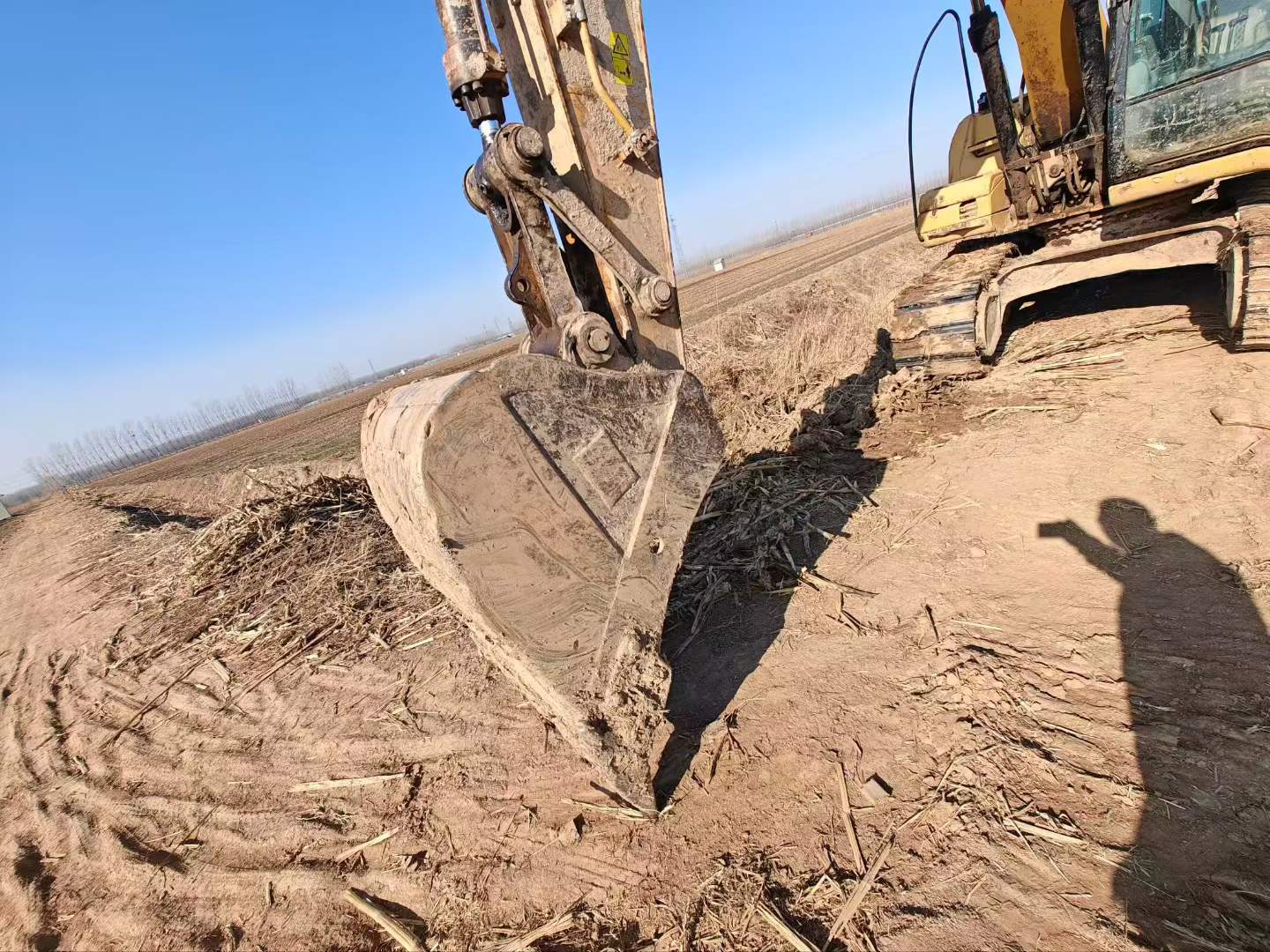

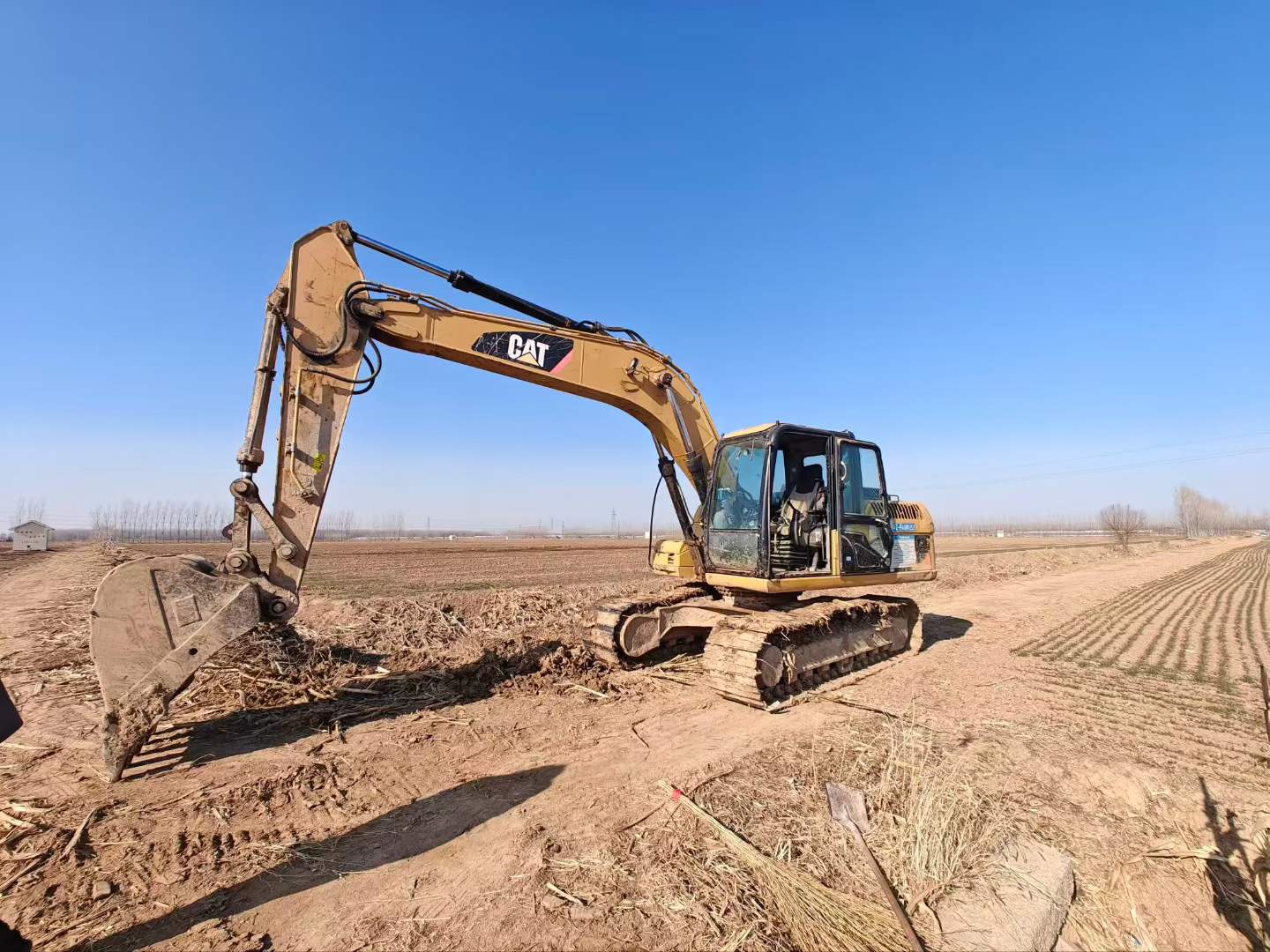

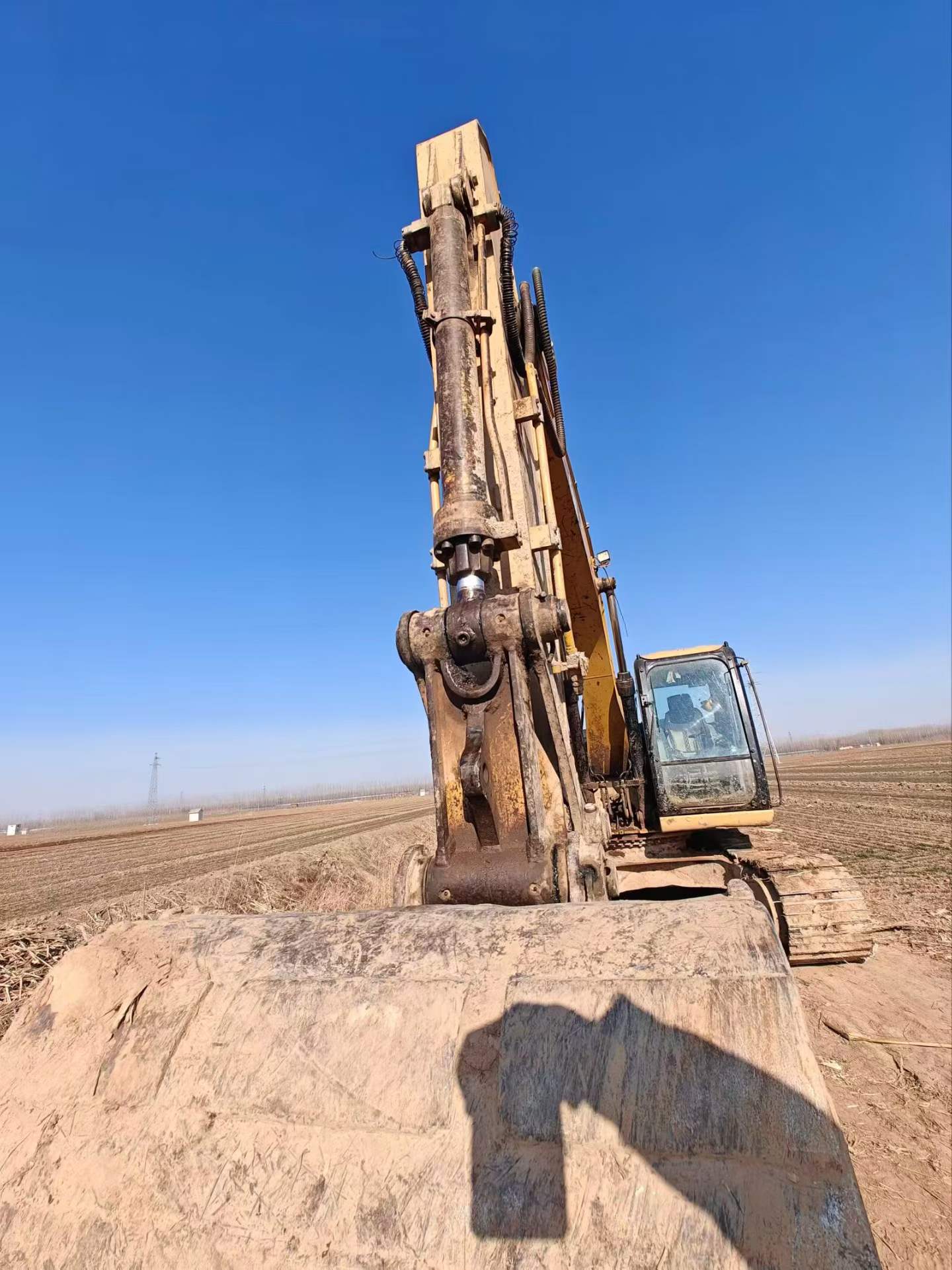

2010 Caterpillar M315D
Product Description
With a working weight of 17,900 kg and powered by the CATERPILLAR C4.4 Acert engine, this 2010 Caterpillar M315D excavator delivers reliable performance for your construction needs. Located in 山东济南, it offers a rated power of 108 kW at 2000 rpm, ensuring efficient operation.
- Equipped with a backhoe bucket, providing versatile digging capabilities with capacities ranging from 0.34 to 1.1 m³.
- Features a full cab height of 3150 mm, offering excellent visibility and comfort for the operator.
- Boasts a maximum excavation depth of 5590 mm and a maximum unloading height of 6950 mm, enhancing productivity on the job site.
- Stability is assured with a wheelbase of 2550 mm and a minimum ground clearance of 370 mm, making it suitable for various terrains.
- Smooth and precise control is provided by a hydraulic system with a main overflow set pressure of 35 MPa, ensuring optimal handling and maneuverability.
| Specifications | Value |
|---|---|
| No. | 1002490 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 17900 |
| Bucket capacity (m³) | 0.78/0.34/1.1 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | CATERPILLAR C4.4 Acert |
| Rated power (kw/rpm) | 108(101)/2000 |
| Total displacement (L) | 4.4 |
| Forward speed (Km/h) | 34 |
| Rotation speed (rpm) | 10.5 |
| Main overflow set pressure (Mpa) | 35 |
| Fuel Tank (L) | 235 |
| Engine Oil changes (L) | 8 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 220 |
| Total transport length (mm) | 8480 |
| Total transport width (mm) | 2550 |
| Total transport height (mm) | 3150 |
| Full cab height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1262 |
| Wheelbase (mm) | 2550 |
| Total tire outside width (mm) | 2550 |
| Minimum ground clearance (mm) | 370 |
| Back end turning radius (mm) | 2215 |
| Maximum excavation radius (mm) | 8910 |
| Maximum digging depth (mm) | 5590 |
| Maximum excavation height (mm) | 10040 |
| Maximum unloading height (mm) | 6950 |
| Maximum vertical digging depth (mm) | 3720 |
see more
Overview
No.1002490
Brand Name：
CaterpillarModel Number：
M315DYear：
2010
Location：
Shandong China
Pub Date：
