2016 Caterpillar M315D2
Product Description

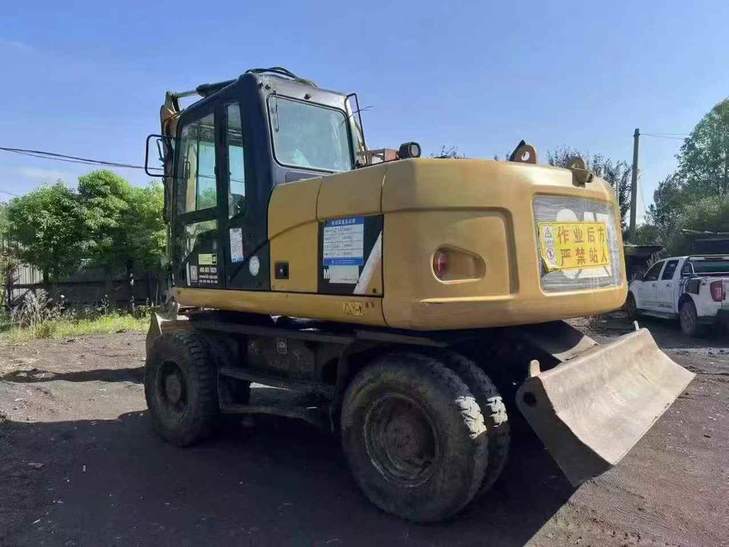

Proven reliability meets American engineering in this 2016 Caterpillar M315D2 wheeled excavator, currently located in Guizhou. With over seven years of field-tested performance, this 15-ton workhorse demonstrates the durability that Caterpillar's joint venture manufacturing is known for worldwide. Powered by the robust Cat® C4.4 ACERT™ engine delivering 108 kW at 2000 rpm, this machine combines 550 N.m of maximum torque with a 190 l/min hydraulic flow rate to handle demanding excavation tasks with consistent power.
Built to endure challenging job sites, this M315D2 features:
- Operating weight: 13,500-15,200 kg with 0.60 m³ backhoe bucket capacity
- Impressive 58% climbing ability and 76 kN maximum tractive force
- Dual-speed mobility: 9/37 km/h for efficient site-to-site travel
- 9.8 rpm rotation speed with 6,200 mm minimum turning radius
- Generous 235L fuel tank for extended operation
- 370 mm ground clearance for rough terrain capability
Battle-tested design backed by Caterpillar's legendary build quality makes this excavator a dependable asset for contractors requiring proven performance.
| Specifications | Value |
|---|---|
| No. | 1022262 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 13500 ~ 15200 |
| Bucket capacity (m³) | 0.60 |
| Country of origin | America |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cat® C4.4 ACERT™ |
| Rated power (kw/rpm) | 108/2000 |
| Total displacement (L) | 4.4 |
| Cylinder diameter × stroke (mm) | 105 x 127 |
| Maximum torque (N.m) | 550/1400 |
| Number of cylinders (PCS) | 4 |
| Forward speed (Km/h) | 9/37 |
| Rotation speed (rpm) | 9.8 |
| Climbing ability (%) | 58 |
| Maximum tractive force (kN) | 76 |
| Maximum flow of main pump (l/min) | 190 |
| Fuel Tank (L) | 235 |
| Coolant (L) | 31 |
| Hydraulic System (L) | 180 |
| Minimum ground clearance (mm) | 370 |
| Minimum turning radius of front working device (mm) | 6200 |
Overview
No.1022262
Brand Name：
CaterpillarModel Number：
M315D2Year：
2016
Location：
Guizhou China
Pub Date：
