Product Description

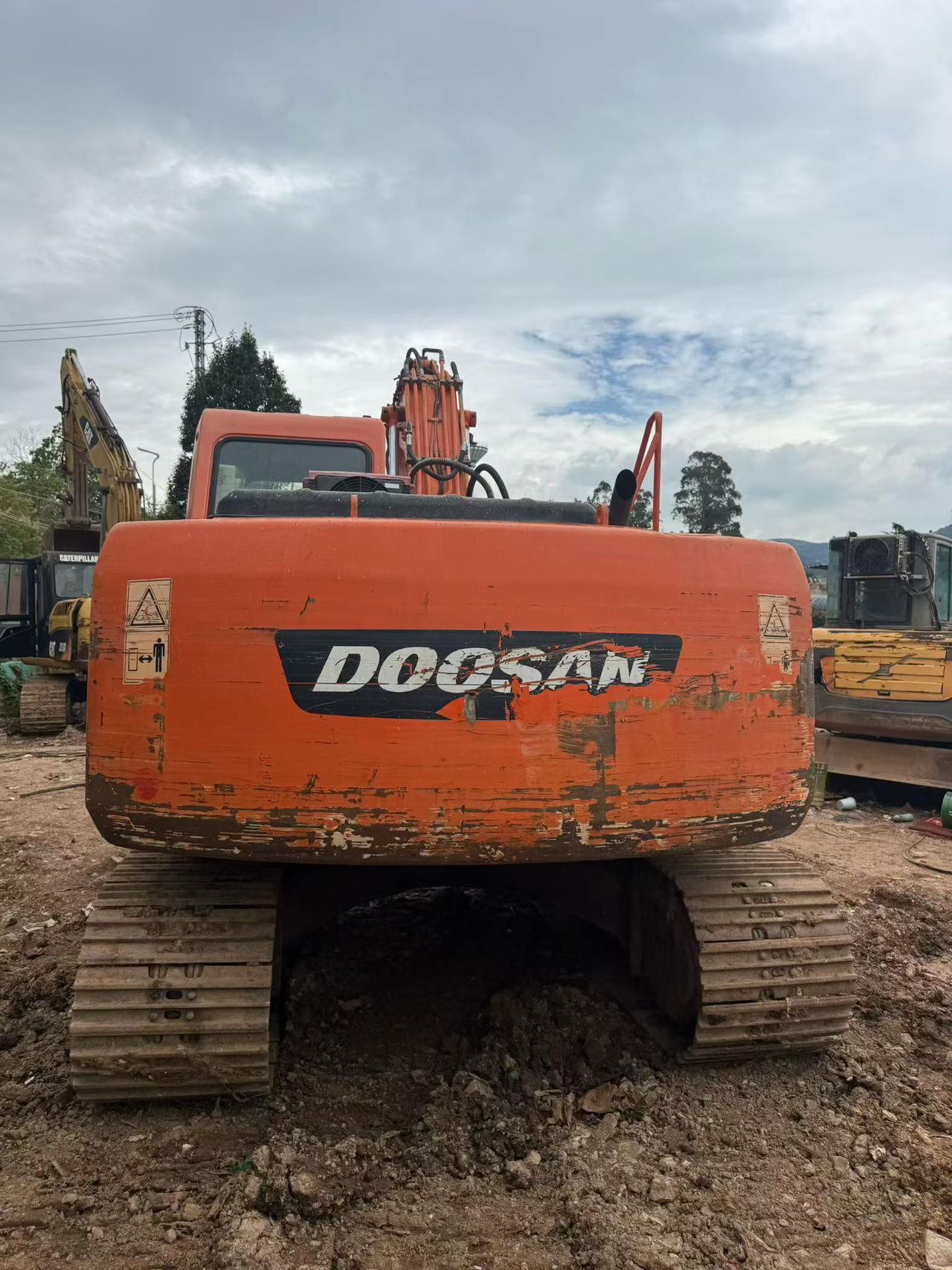

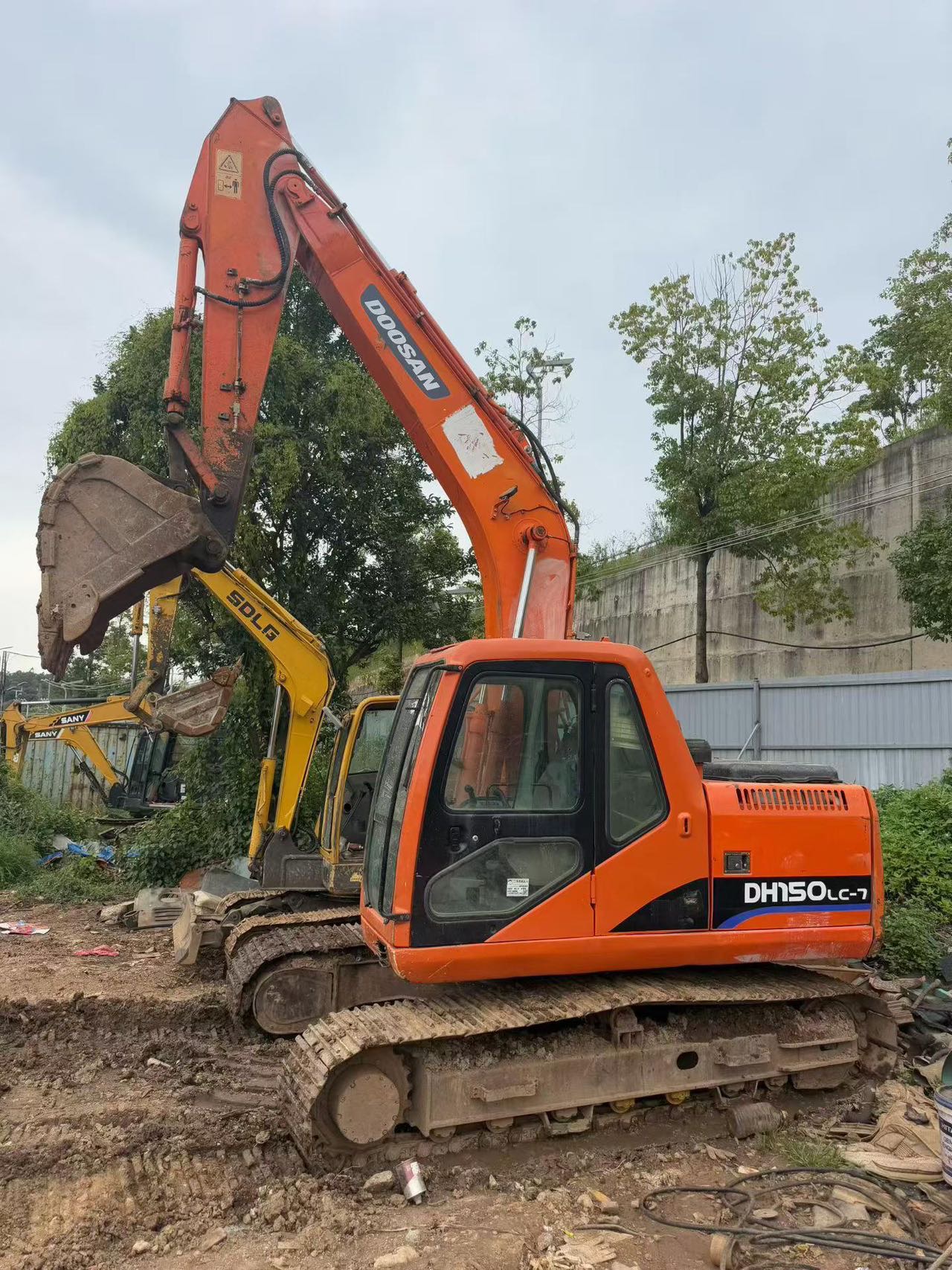

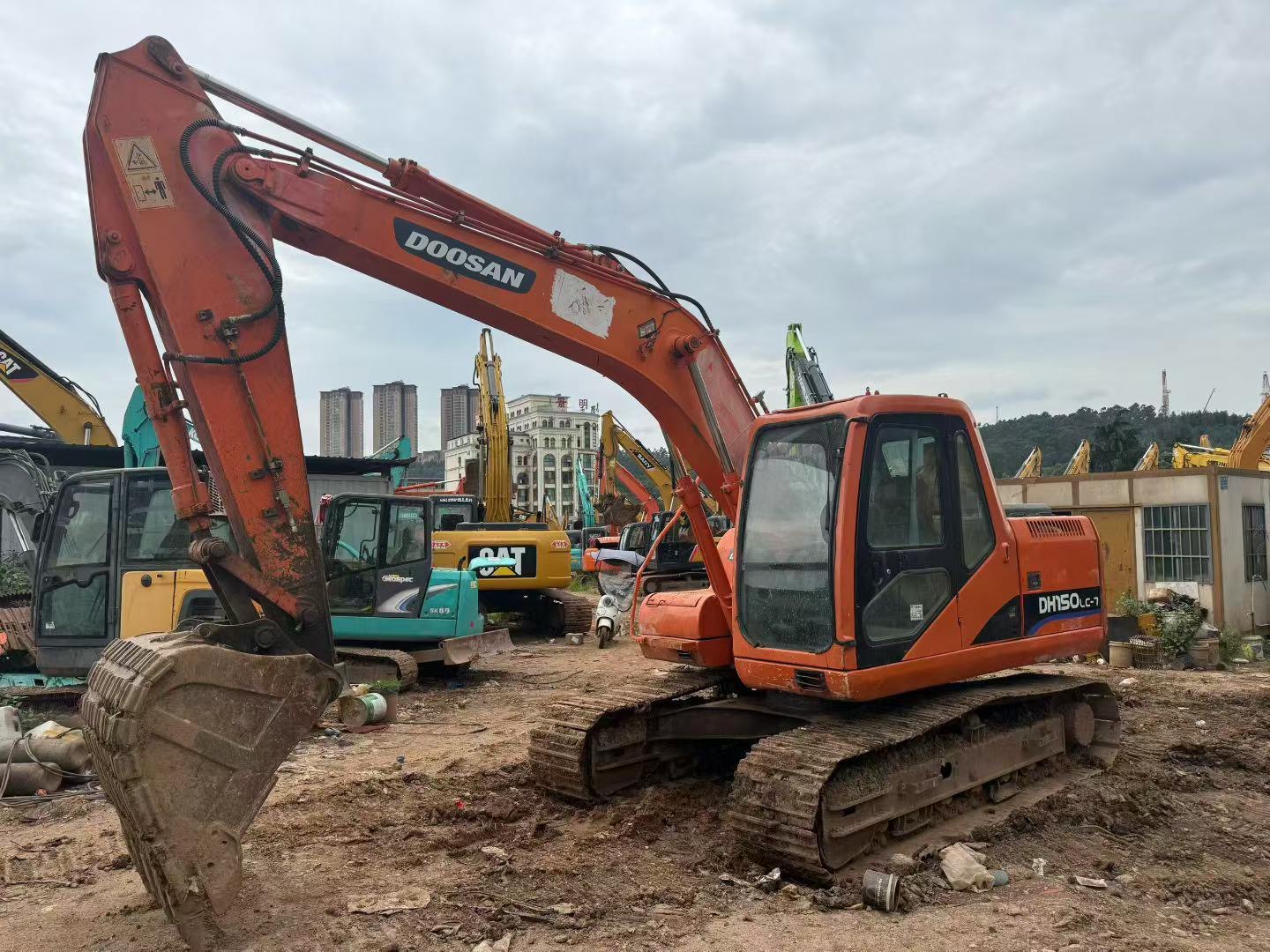

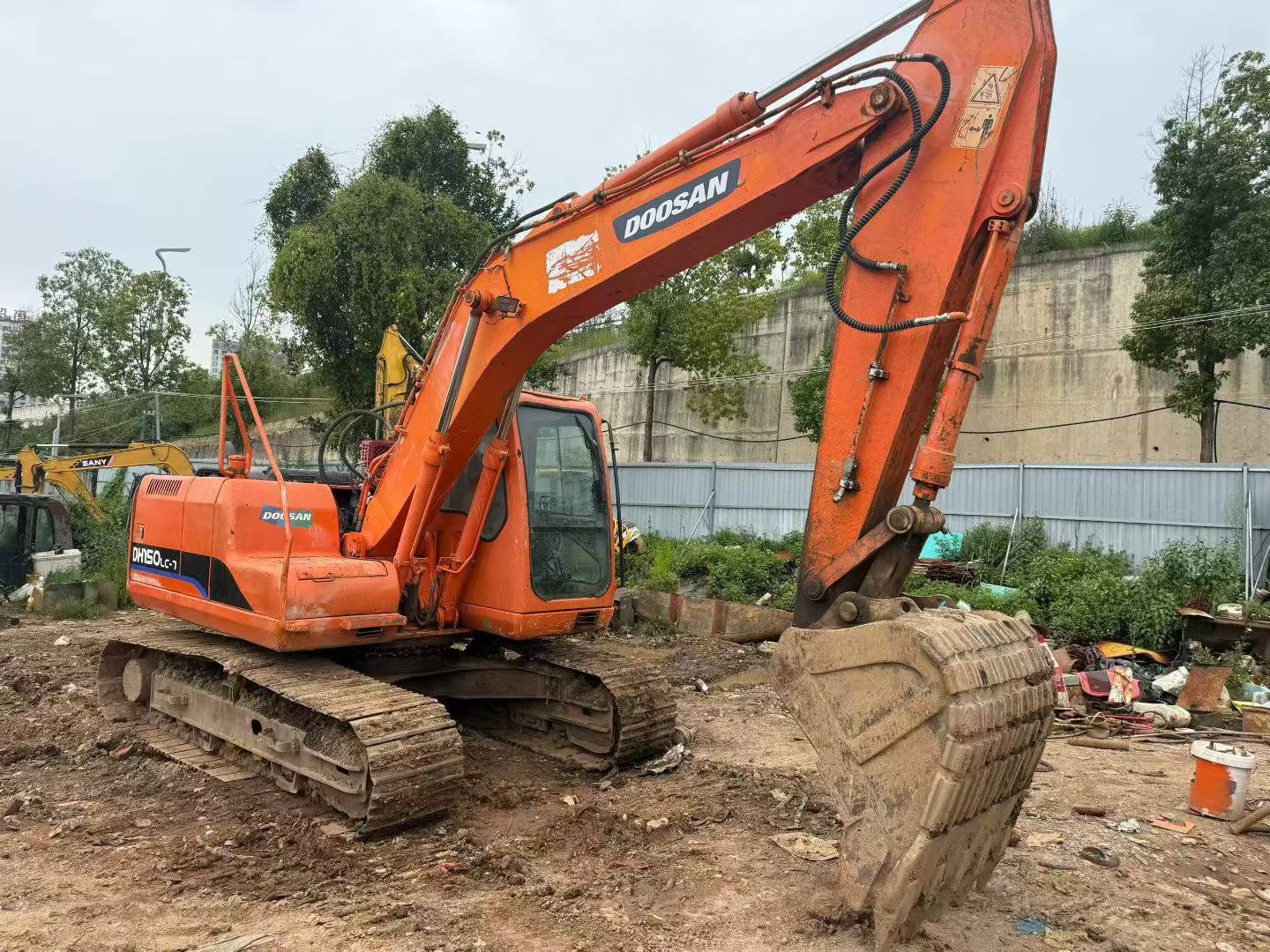

Discover the reliability and efficiency of the 2012 Doosan 150W-7, now available in Anhui, China. This machine has been well-maintained and is equipped with a new undercarriage and hydraulic pump, ensuring optimal performance and longevity. The 150W-7 is known for its robust construction and versatile capabilities, making it an excellent choice for various industrial applications. With no operational issues, this excavator is ready to meet your project needs at a competitive price. Ideal for contractors and construction companies looking for a dependable and cost-effective solution.
- Year: 2012
- Brand: Doosan
- Model: 150W-7
- Location: Anhui, China

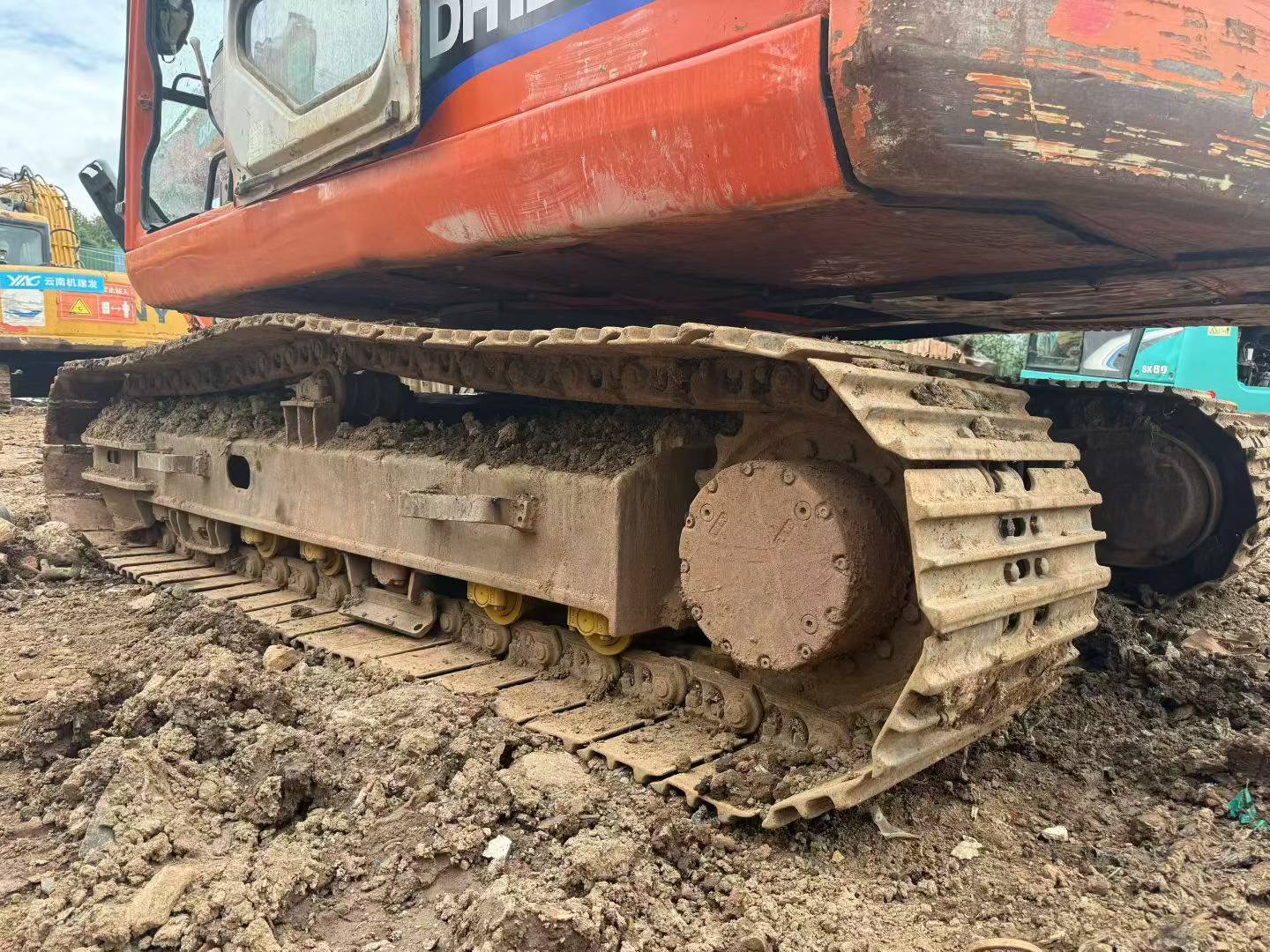

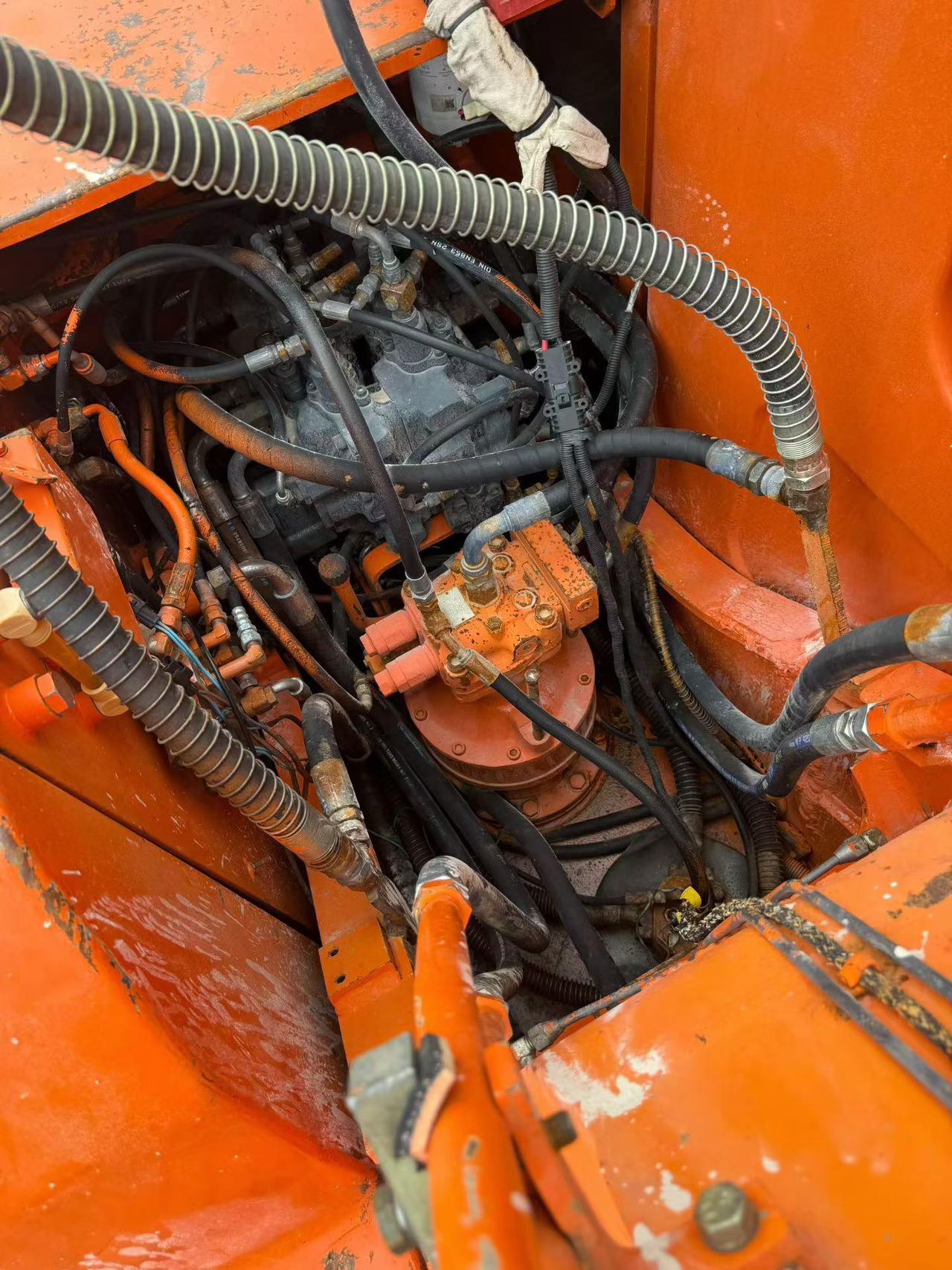

- New undercarriage and hydraulic pump
- No operational issues
- Competitive pricing
| Specifications | Value |
|---|---|
| No. | 1133898 |
| Tonnage (tons) | 15 |
| Working weight (kg) | 12900 |
| Bucket capacity (m³) | 0.57 |
| Boom length (mm) | 4300 |
| Rod length (mm) | 2100/2500 |
| Country of origin | Yantai |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

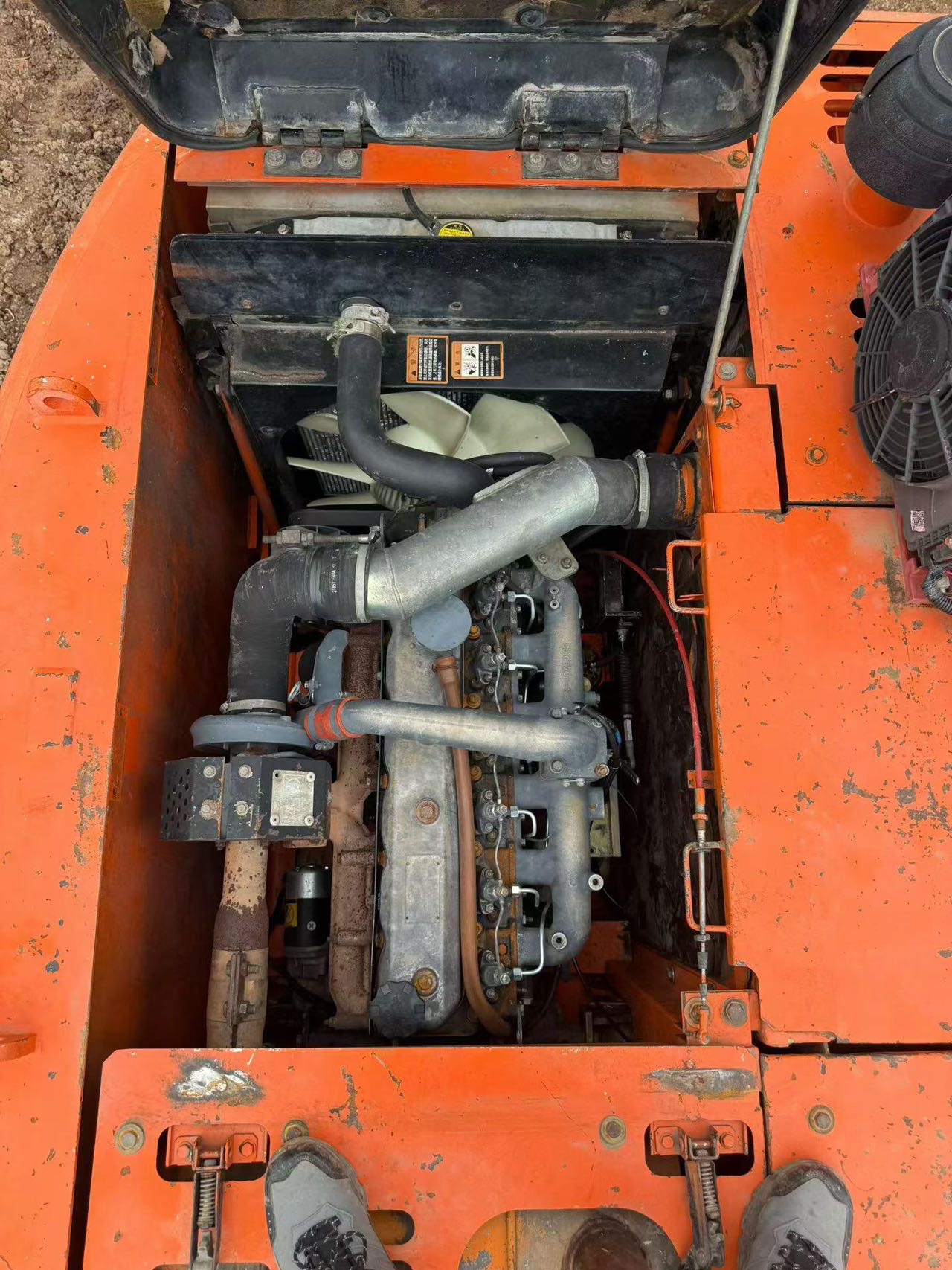

| Engine type | DB58TIS |
| Rated power (kw/rpm) | 96/2200 |
| Cooling mode | Air cooling |
| Cylinder diameter × stroke (mm) | 102 x 118 |
| Number of cylinders (PCS) | 6 |
| Forward speed (Km/h) | 10-37 |
| Rotation speed (rpm) | 12.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 94.1 |
| Rod digging force (kN) | 68.6 |
| Minimum turning radius (m) | 77 |
| Maximum tractive force (kN) | 62 |
| Driving form | Hydraulic drive |
| Maximum flow of main pump (l/min) | 2 x 162 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 26.5 |
| Boom cylinder - Cylinder diameter × stroke (mm) | 2-110 x 1030 |
| Bucket rod cylinder - Cylinder diameter × stroke (mm) | 1-110 x 1085 |
| Bucket cylinder - Cylinder diameter × stroke (mm) | 1-95 x 885 |

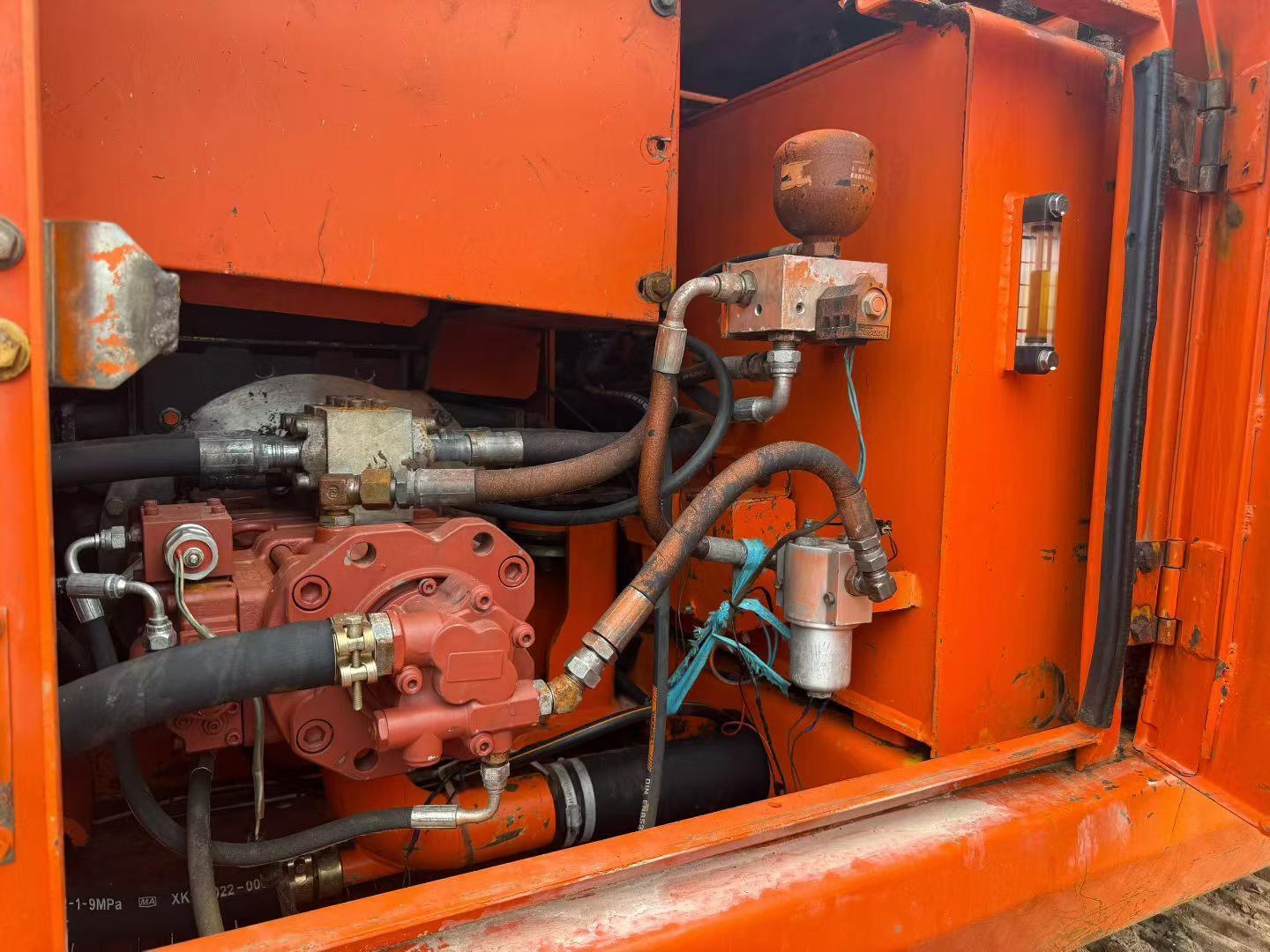

| Main pump type | Variable axial plunger pump |
| Working Hydraulic Circuit (Mpa) | Standard 22.7/ Supercharged 34.3 |
| Fuel Tank (L) | 280 |
| Hydraulic Tank (L) | 95 |
| Total transport length (mm) | 7250 |
| Total transport width (mm) | 2495 |
| Total transport height (mm) | 3125(to top of cab) |
| Full cab height (mm) | 3116 |
| Counterweight ground clearance (mm) | 1241 |
| Wheelbase (mm) | 2800 |
| Single tire width (mm) | 582 |
| Total tire outside width (mm) | 2496 |
| Wheel base (mm) | 1914 |
| Minimum ground clearance (mm) | 350 |
| Back end turning radius (mm) | 2210 |
| Maximum digging radius (mm) | 7530 |
| Maximum excavation radius (mm) | 7295/7728 |
| Maximum digging depth (mm) | 4615 |
| Maximum excavation height (mm) | 8015 |
| Maximum unloading height (mm) | 5630 |
| Maximum vertical digging depth (mm) | 4086/4675 |
| Minimum turning radius (mm) | 2210 |
