2020 Doosan 150W-7

1/3

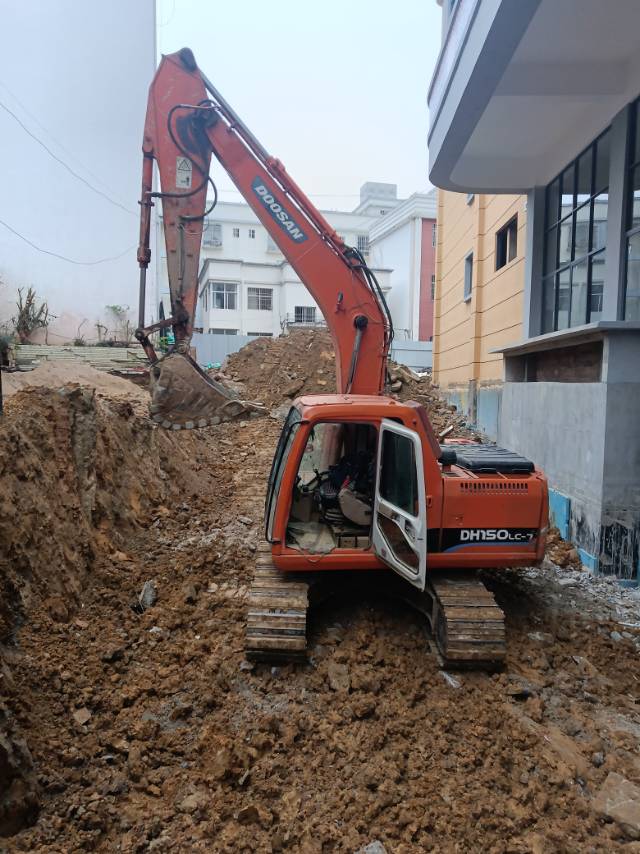

Buy Doosan 150W-7 Used Excavator / 1

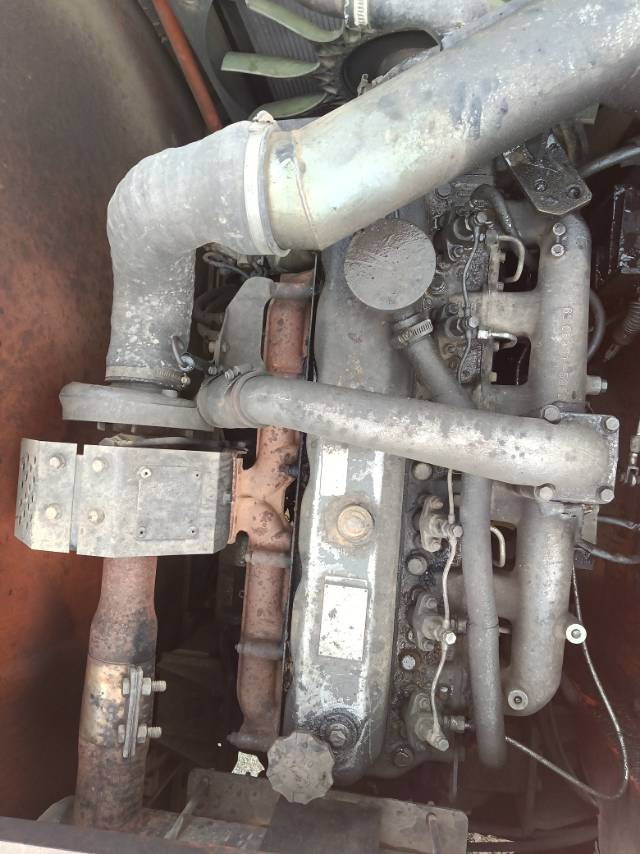

Buy Doosan 150W-7 Used Excavator / 2

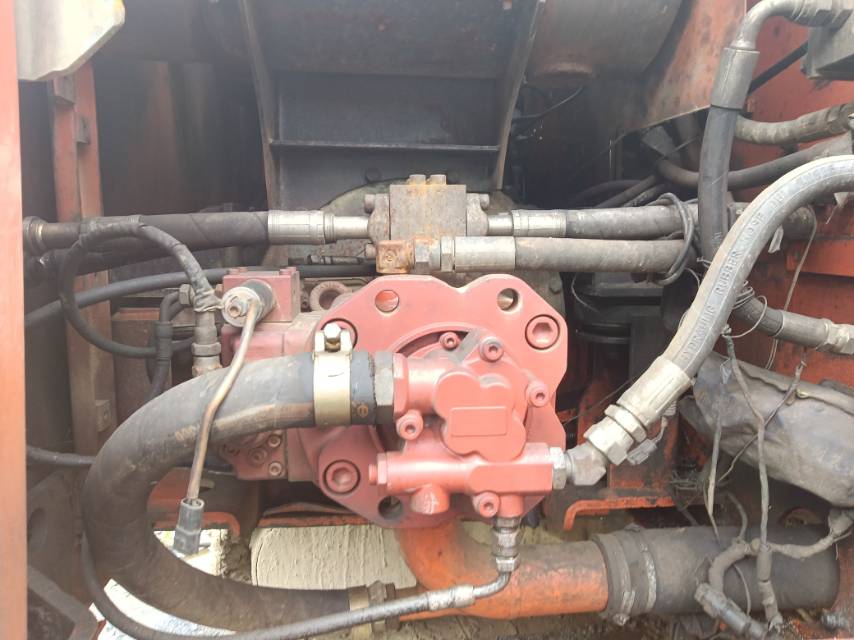

Buy Doosan 150W-7 Used Excavator / 3

Product Description

Discover the reliability and efficiency of the 2020 Doosan 150W-7, now available in Yunnan, China. This used heavy machine is known for its robust performance and durability, making it a preferred choice for various industrial applications. The 150W-7 model is designed to maintain optimal operating temperatures, ensuring that both oil and water temperatures remain within safe and efficient ranges. This feature not only enhances the machine's longevity but also reduces maintenance costs. Priced competitively, this Doosan 150W-7 offers an excellent balance of value and performance, ideal for businesses looking to maximize their investment without compromising on quality.

  • Year: 2020
  • Brand: Doosan
  • Model: 150W-7
  • Location: Yunnan, China
SpecificationsValue
No.1113651
Tonnage (tons)15
Working weight (kg)12900
Bucket capacity (m³)0.57
Boom length (mm)4300
Rod length (mm)2100/2500
Country of originYantai
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeDB58TIS
Rated power (kw/rpm)96/2200
Cooling modeAir cooling
Cylinder diameter × stroke (mm)102 x 118
Number of cylinders (PCS)6
Forward speed (Km/h)10-37
Rotation speed (rpm)12.5
Climbing ability (%)70
Bucket digging force (kN)94.1
Rod digging force (kN)68.6
Minimum turning radius (m)77
Maximum tractive force (kN)62
Driving formHydraulic drive
Maximum flow of main pump (l/min)2 x 162
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)26.5
Boom cylinder - Cylinder diameter × stroke (mm)2-110 x 1030
Bucket rod cylinder - Cylinder diameter × stroke (mm)1-110 x 1085
Bucket cylinder - Cylinder diameter × stroke (mm)1-95 x 885
Main pump typeVariable axial plunger pump
Working Hydraulic Circuit (Mpa)Standard 22.7/ Supercharged 34.3
Fuel Tank (L)280
Hydraulic Tank (L)95
Total transport length (mm)7250
Total transport width (mm)2495
Total transport height (mm)3125(to top of cab)
Full cab height (mm)3116
Counterweight ground clearance (mm)1241
Wheelbase (mm)2800
Single tire width (mm)582
Total tire outside width (mm)2496
Wheel base (mm)1914
Minimum ground clearance (mm)350
Back end turning radius (mm)2210
Maximum digging radius (mm)7530
Maximum excavation radius (mm)7295/7728
Maximum digging depth (mm)4615
Maximum excavation height (mm)8015
Maximum unloading height (mm)5630
Maximum vertical digging depth (mm)4086/4675
Minimum turning radius (mm)2210
