Product Description

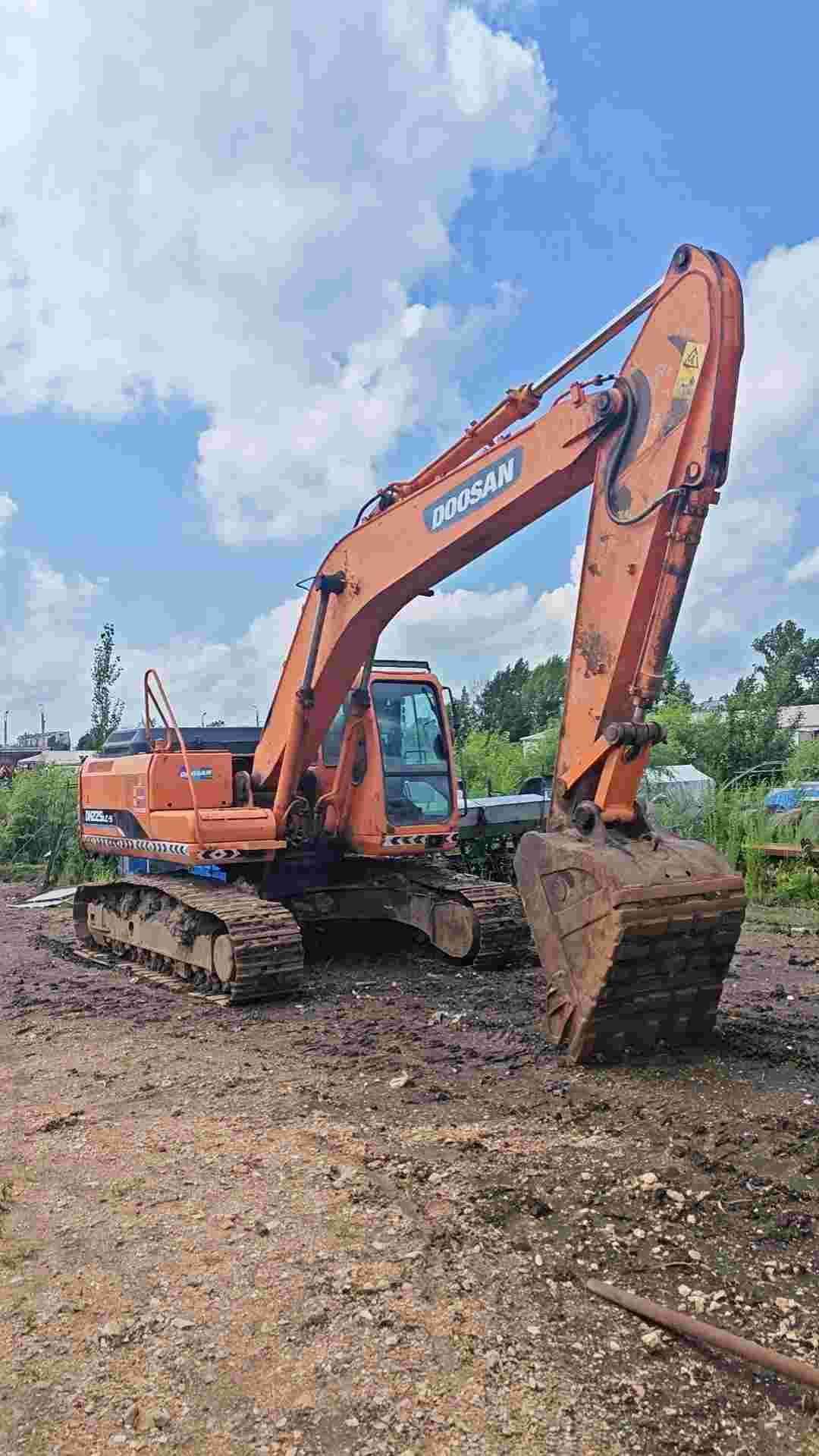

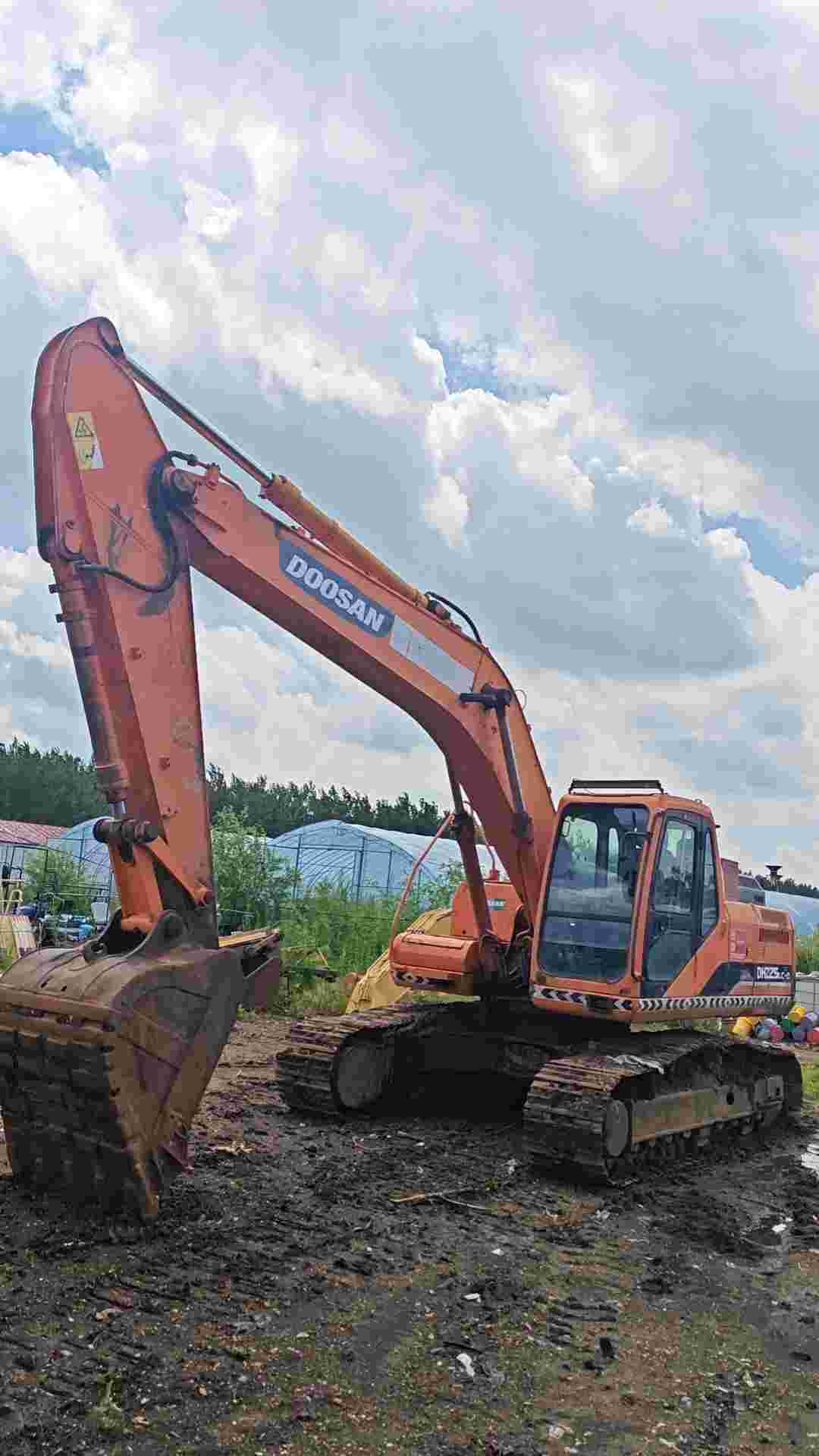

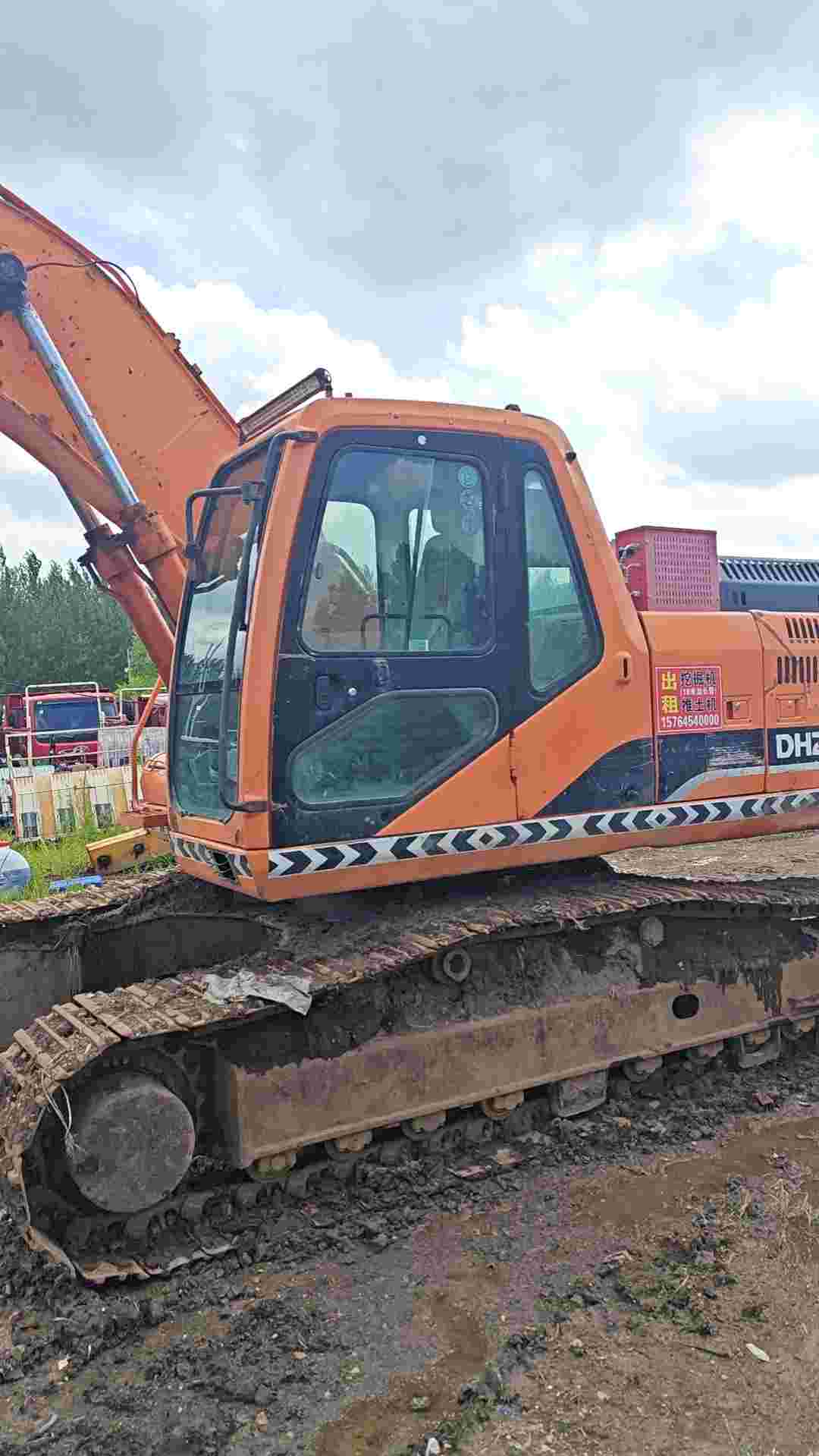

This 2020 Doosan 225LC-9 excavator is available from Heilongjiang, China. The machine features new tracks, offering extended service life and reduced immediate maintenance costs. The 225LC-9 is a mid-size crawler excavator known for reliable hydraulic performance and operator comfort in demanding earthmoving applications.
- Year: 2020
- Model: Doosan 225LC-9

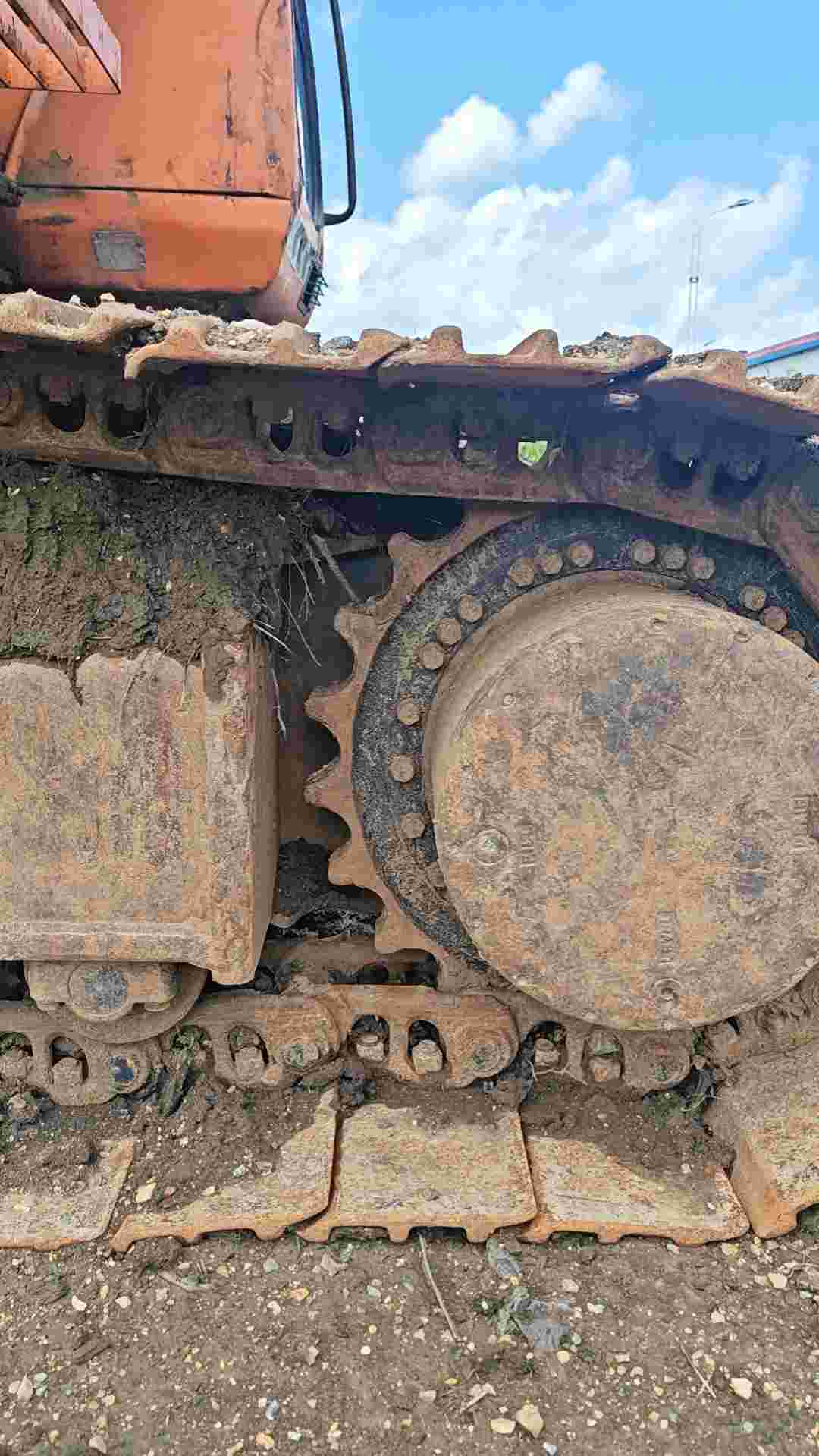

- Condition: New tracks installed
- Location: Heilongjiang, China
- Price: 80,000 RMB
Suitable for construction, site preparation, and material handling. Inspection welcomed. Contact us for shipping arrangements and additional documentation.
| Specifications | Value |
|---|---|
| No. | 1106160 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 22200 |
| Bucket capacity (m³) | 0.39 ~ 1.49 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Yantai, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

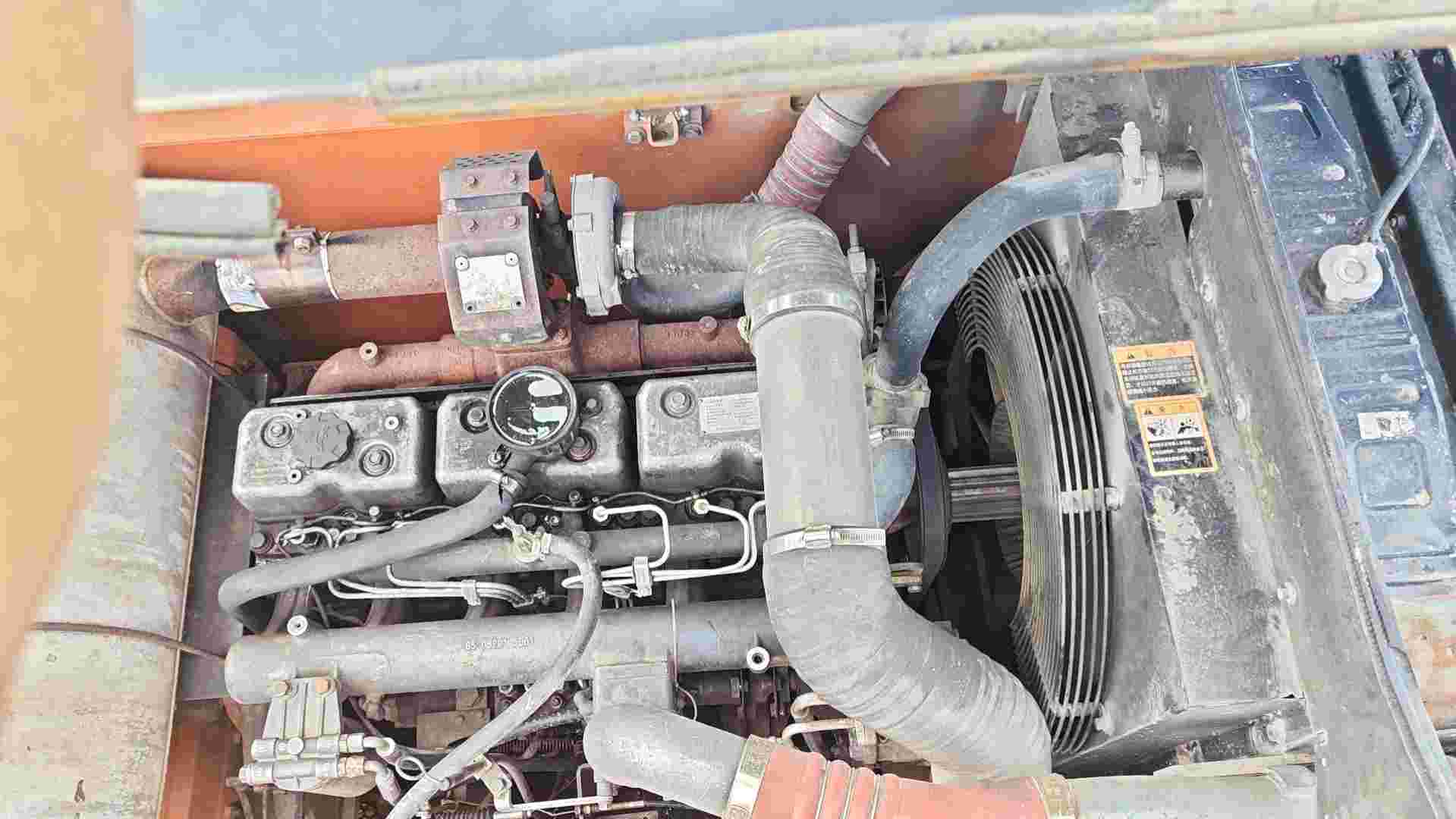

| Engine type | DE08TIS |
| Rated power (kw/rpm) | 110 / 1950 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.071 |
| Working form | Direct injection mechanically controlled engine |
| Ground specific pressure (Kpa) | 46 |
| Rotation speed (rpm) | 12.4 |
| Bucket digging force (kN) | 136.3 / 144.1 |
| Rod digging force (kN) | 97.1 / 102.9 |
| Travel speed (km/h) | 5.4/3.1 |

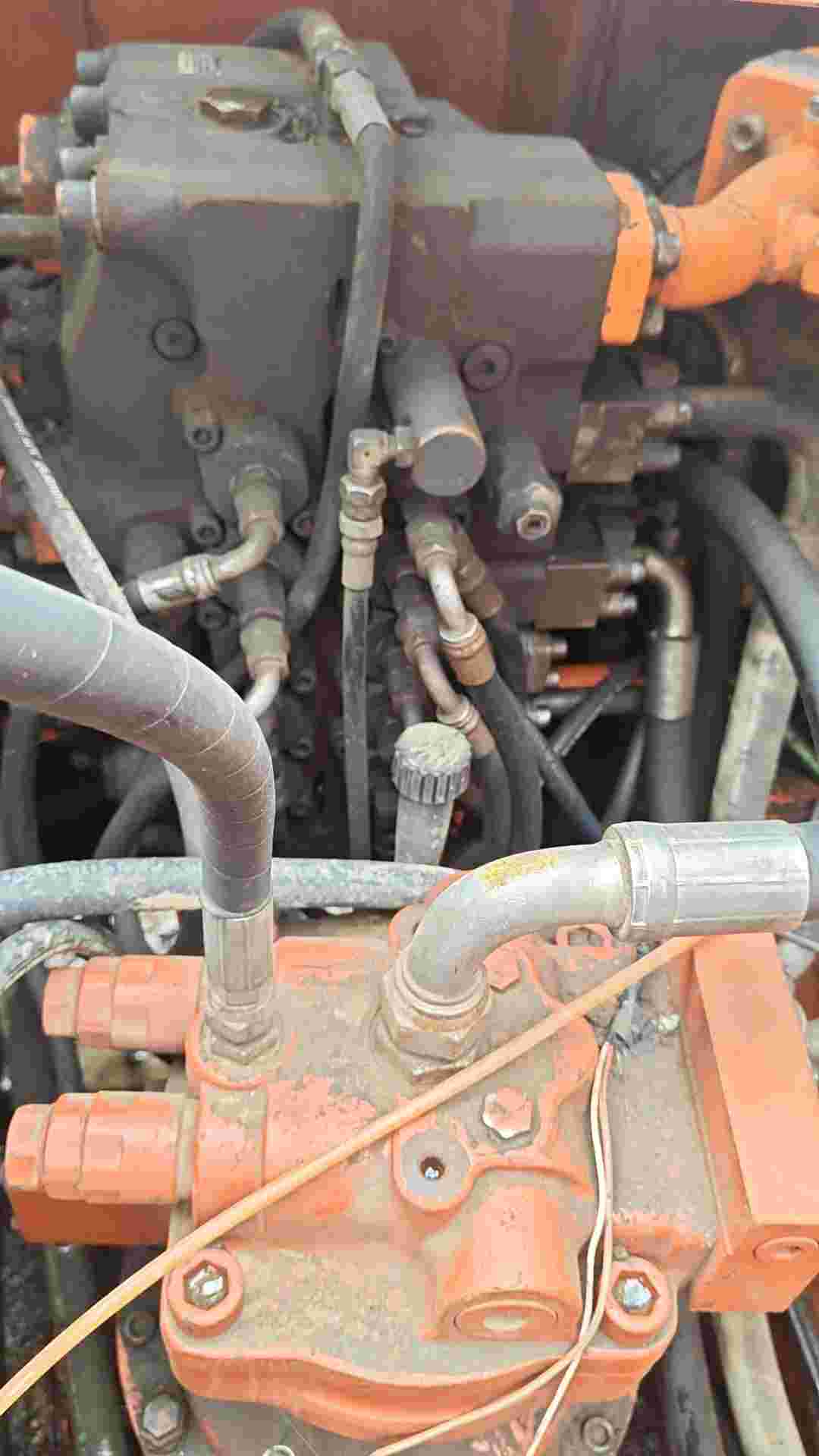

| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |
| Maximum flow of main pump (l/min) | 2 x 211 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Rotary Hydraulic Circuit (Mpa) | 27.5 |

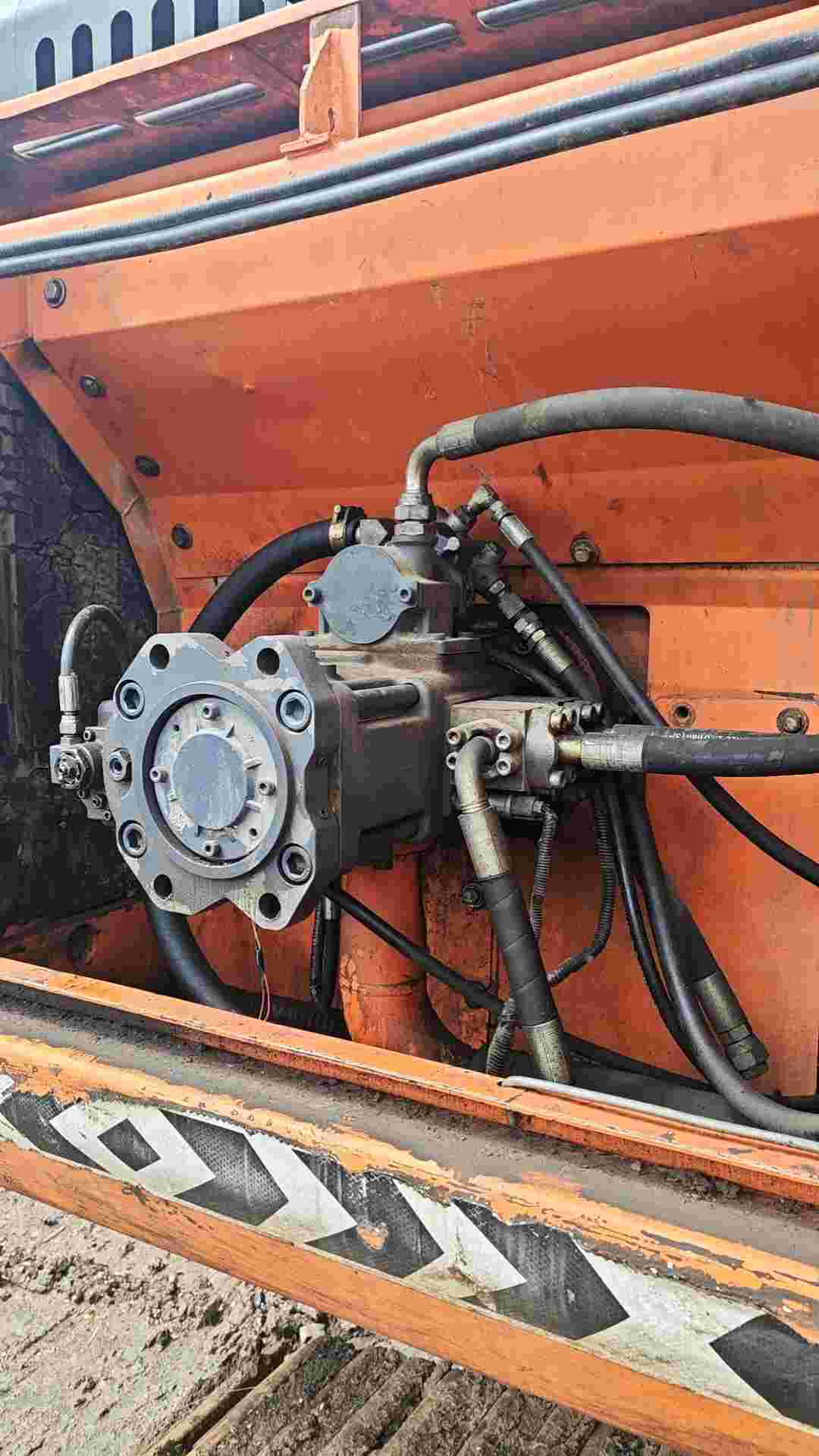

| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | Standard 32.4/ Supercharged 34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 80 x 1050 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135 x 95 x 1538 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 85 x 1245 |
| Fuel Tank (L) | 350 |
| Hydraulic Tank (L) | 240 |
| Engine Oil changes (L) | 28 |
| Coolant (L) | 42 |
| Total transport length (mm) | 9600 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3000(to top of cab) |
| Counterweight ground clearance (mm) | 1105 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 3570 |
| Back end turning radius (mm) | 2840 |
| Total track length (mm) | 4440 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Maximum digging radius (mm) | 9910 |
| Maximum digging depth (mm) | 6625 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6810 |
| Maximum vertical digging depth (mm) | 6045 |
| Maximum excavation radius of stop surface (mm) | 9735 |
