Product Description

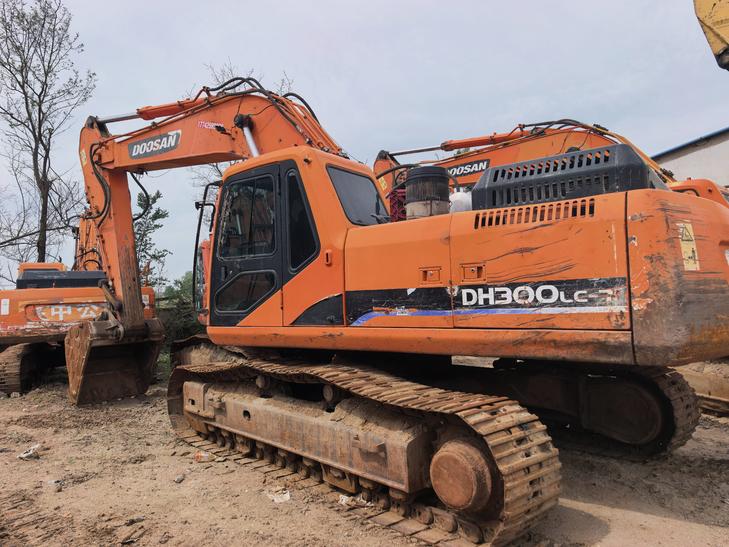

Discover the reliability and performance of the 2010 Doosan 300LC-7, now available in Liaoning, China. This excavator is ready for immediate deployment to your construction site, requiring no additional investment or modifications. Ideal for a wide range of heavy-duty applications, this model has been a trusted choice in the industry for its robust design and durability. Ensure your project stays on schedule with equipment that's built to last and ready to work.
- Year: 2010
- Brand: Doosan
- Model: 300LC-7
- Location: Liaoning, China
| Specifications | Value |
|---|---|
| No. | 1130496 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 29600 |
| Bucket capacity (m³) | 1.27 |
| Boom length (mm) | 6245/10000 |
| Rod length (mm) | 2500/3750/3100/7000 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | DE08TIS |
| Rated power (kw/rpm) | 147(200) / 1900 |
| Cylinder diameter × stroke (mm) | 111 x 139 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.07 |
| Working form | 4-stroke, water-cooled, direct spray |
| Ground specific pressure (Kpa) | 56 |
| Rotation speed (rpm) | 10.1 |
| Bucket digging force (kN) | 188 / 199.9 |
| Rod digging force (kN) | 127.5 / 135.3 |
| Travel speed (km/h) | 5.0 / 3.1 |
| Turning torque (Nm) | 92 |
| Main overflow set pressure (Mpa) | Standard 27.9/ Supercharged 34.3 |
| Maximum flow of main pump (l/min) | 2 x 246 |
| Traveling Hydraulic Circuit (Mpa) | 32.5 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Main pump type | Variable axial plunger pump |
| Pilot pump flow (L/min) | 28.5 |
| Fuel Tank (L) | 450 |
| Hydraulic Tank (L) | 290 |
| Total transport length (mm) | 10620 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3365(to top of the upper arm) |
| Full cab height (mm) | 3255 |
| Counterweight ground clearance (mm) | 1175 |
| Minimum ground clearance (mm) | 500 |
| Back end turning radius (mm) | 3200 |
| Onboard width (mm) | 2960 |
| Total track length (mm) | 4930 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Track ground length (mm) | 4010 |
| Maximum digging radius (mm) | 10705 |
| Maximum digging depth (mm) | 7190 |
| Maximum excavation height (mm) | 10495 |
| Maximum unloading height (mm) | 7470 |
| Maximum vertical digging depth (mm) | 6220 |
| Maximum excavation radius of stop surface (mm) | 9950/11105/10540/17320 |
| Maximum effective digging depth (mm) | 6505/7810/7150/13680 |
