Product Description

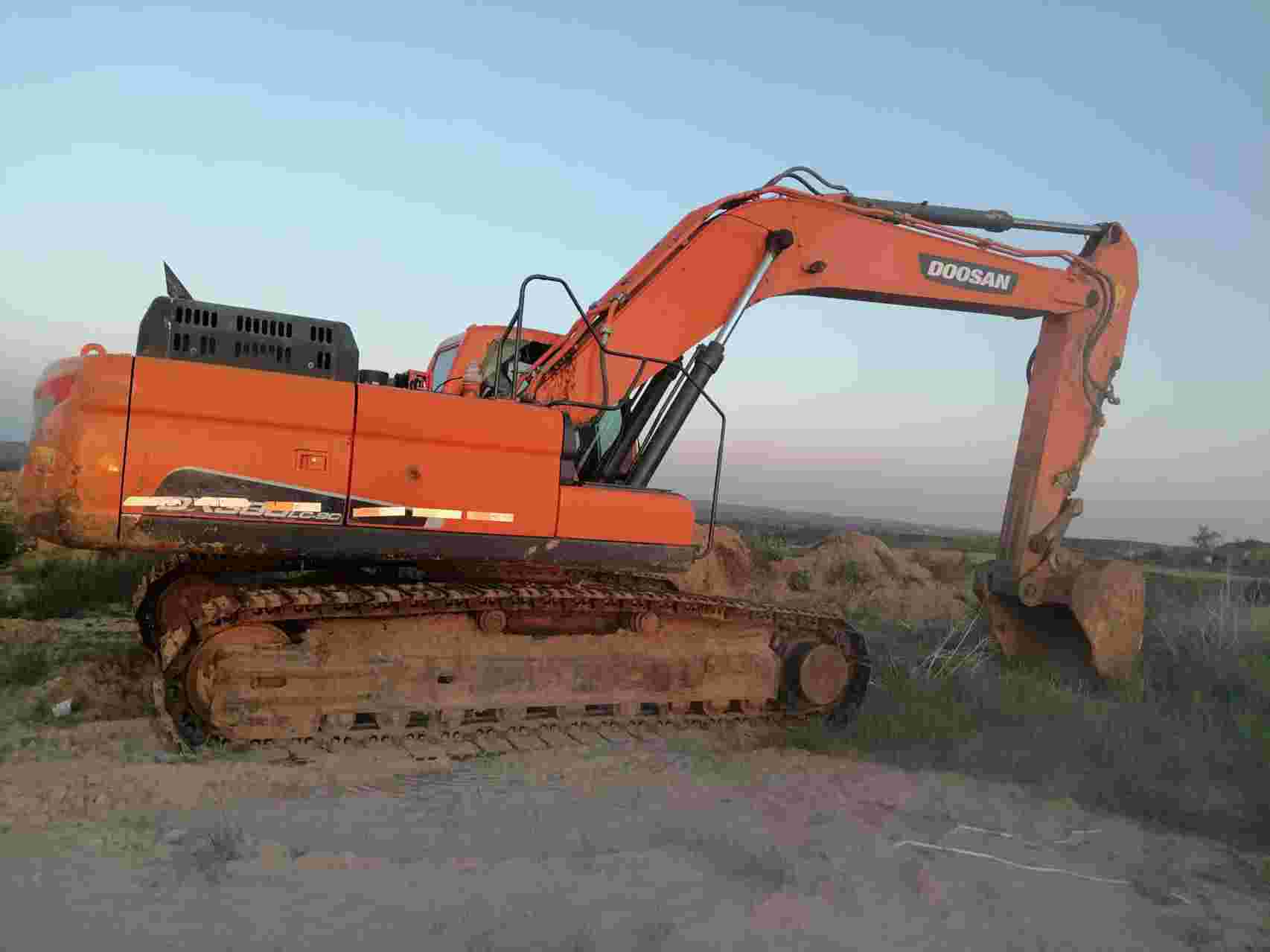

This 2019 Doosan DX300LC-7 hydraulic excavator is currently located in Shaanxi, China and available for export. The machine comes equipped with both hammer and bucket attachments, offering versatility for demolition and earthmoving applications. The 30-ton class excavator features Doosan's proven reliability and fuel efficiency, making it suitable for medium to heavy-duty construction and mining operations.
Key features include:
- Doosan DX300LC-7 crawler excavator
- Manufacturing year: 2019
- Hydraulic hammer attachment included
- Standard excavation bucket included
- Operating weight class: approximately 30 tonnes
- Current location: Shaanxi Province, China
- Suitable for demolition, excavation, and material handling
This used excavator represents an economical option for contractors seeking reliable performance in demanding job site conditions. Inspection welcome by appointment.
| Specifications | Value |
|---|---|
| No. | 1083620 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 29600 |
| Bucket capacity (m³) | 1.27 |
| Boom length (mm) | 6245/10000 |
| Rod length (mm) | 2500/3750/3100/7000 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | DE08TIS |
| Rated power (kw/rpm) | 147(200) / 1900 |
| Cylinder diameter × stroke (mm) | 111 x 139 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.07 |
| Working form | 4-stroke, water-cooled, direct spray |
| Ground specific pressure (Kpa) | 56 |
| Rotation speed (rpm) | 10.1 |
| Bucket digging force (kN) | 188 / 199.9 |
| Rod digging force (kN) | 127.5 / 135.3 |
| Travel speed (km/h) | 5.0 / 3.1 |
| Turning torque (Nm) | 92 |
| Main overflow set pressure (Mpa) | Standard 27.9/ Supercharged 34.3 |
| Maximum flow of main pump (l/min) | 2 x 246 |
| Traveling Hydraulic Circuit (Mpa) | 32.5 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Main pump type | Variable axial plunger pump |
| Pilot pump flow (L/min) | 28.5 |
| Fuel Tank (L) | 450 |
| Hydraulic Tank (L) | 290 |
| Total transport length (mm) | 10620 |
| Total transport width (mm) | 3200 |
| Total transport height (mm) | 3365(to top of the upper arm) |
| Full cab height (mm) | 3255 |
| Counterweight ground clearance (mm) | 1175 |
| Minimum ground clearance (mm) | 500 |
| Back end turning radius (mm) | 3200 |
| Onboard width (mm) | 2960 |
| Total track length (mm) | 4930 |
| Track gauge (mm) | 2600 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3200 |
| Track ground length (mm) | 4010 |
| Maximum digging radius (mm) | 10705 |
| Maximum digging depth (mm) | 7190 |
| Maximum excavation height (mm) | 10495 |
| Maximum unloading height (mm) | 7470 |
| Maximum vertical digging depth (mm) | 6220 |
| Maximum excavation radius of stop surface (mm) | 9950/11105/10540/17320 |
| Maximum effective digging depth (mm) | 6505/7810/7150/13680 |
