Product Description

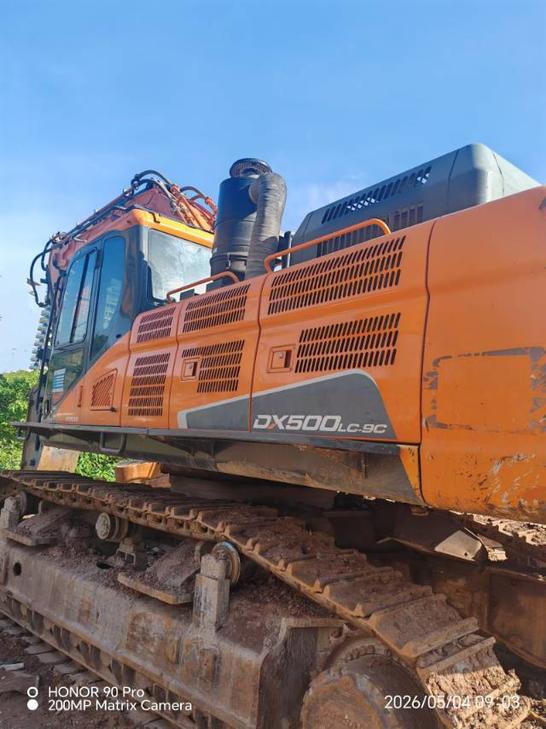

Well-maintained 2020 Doosan DX500 excavator now available from Sichuan, China. This heavy-duty machine shows 6,000 actual operating hours, reflecting careful usage and proper maintenance throughout its service life. The DX500 series is recognized for its robust construction and reliable performance in demanding excavation applications.
Key highlights:
- Manufacturing year: 2020
- Actual hours: 6,000
- Current location: Sichuan Province, China
- Condition: Used, operational
This excavator represents a solid investment for contractors seeking proven Doosan engineering at a competitive price point. Suitable for earthmoving, site development, and general construction projects. Inspection welcomed for qualified buyers.
| Specifications | Value |
|---|---|
| No. | 1082507 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5550 |
| Bucket capacity (m³) | 0.09-0.2 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Yantai, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 38.1/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Working form | Air-to-air cooling |
| Bucket digging force (kN) | 37.7 |
| Rod digging force (kN) | 28.4 |
| Maximum flow of main pump (l/min) | 55 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 20.6 |
| Rotary Hydraulic Circuit (Mpa) | 21.6 |
| Main pump type | Variable axial piston pump ×2 |
| Working Hydraulic Circuit (Mpa) | 20.6 |
| Pilot pump flow (L/min) | 9.9 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880 |
| Total transport height (mm) | 2575 |
| Full cab height (mm) | 2575 |
| Minimum ground clearance (mm) | 350 |
| Back end turning radius (mm) | 1650 |
| Onboard width (mm) | 1885 |
| Total track length (mm) | 2540 |
| Track gauge (mm) | 1480 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 1880 |
| Track ground length (mm) | 1990 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3820 |
| Maximum excavation height (mm) | 5760 |
| Maximum unloading height (mm) | 4030 |
