Product Description

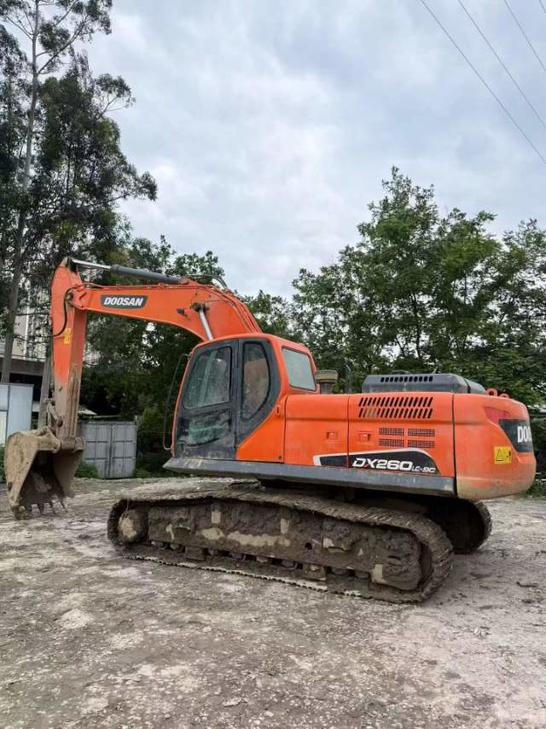

This 2021 Doosan DX260-9C hydraulic excavator is available from Zhejiang, China. The machine comes off a recently completed project and shows well-maintained condition throughout its major components. Factory-installed air conditioning system remains fully operational. Hydraulic performance is stable with smooth, coordinated control response across all functions.
- Year: 2021
- Model: Doosan DX260-9C
- Application: Earthmoving operations
- Location: Zhejiang Province, China
- Condition: Well-maintained major components
- Features: Original factory A/C system, stable hydraulic performance
Machine is available for immediate inspection and test operation. Suitable for contractors seeking reliable mid-size excavator capacity with recent manufacturing date and documented operational history.
| Specifications | Value |
|---|---|
| No. | 1083387 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 25060 |
| Bucket capacity (m³) | 1.4 |
| Boom length (mm) | 5900 |
| Rod length (mm) | 3000 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | DL06A-C3 |
| Rated power (kw/rpm) | 140 / 2200 |
| Cylinder diameter × stroke (mm) | 100 *125 |
| Number of cylinders (PCS) | 6 |
| Working form | orthostitial |
| Rotation speed (rpm) | 10.0 |
| Bucket digging force (kN) | 166.6 |
| Rod digging force (kN) | 114.7 |
| Travel speed (km/h) | 5.8 / 3.4 |
| Turning torque (Nm) | 8140 |
| Maximum flow of main pump (l/min) | 2 x 219 |
| Fuel Tank (L) | 410 |
| Hydraulic System (L) | 240 |
| Total transport length (mm) | 10,055 |
| Total transport width (mm) | 3,200 |
| Total transport height (mm) | 2,960 |
| Full cab height (mm) | 845 |
| Counterweight ground clearance (mm) | 1110 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2,995 |
| Onboard width (mm) | 1,010 |
| Total track length (mm) | 4,625 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3,200 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 10 |
| Number of track plates (single side) (PCS) | 51 |
| Maximum digging radius (mm) | 10175 |
| Maximum digging depth (mm) | 6810 |
| Maximum excavation height (mm) | 9,705 |
| Maximum unloading height (mm) | 7024 |
| Maximum vertical digging depth (mm) | 4742 |
| Maximum excavation radius of stop surface (mm) | 10,004 |
| Maximum effective digging depth (mm) | 6810 |
