Product Description

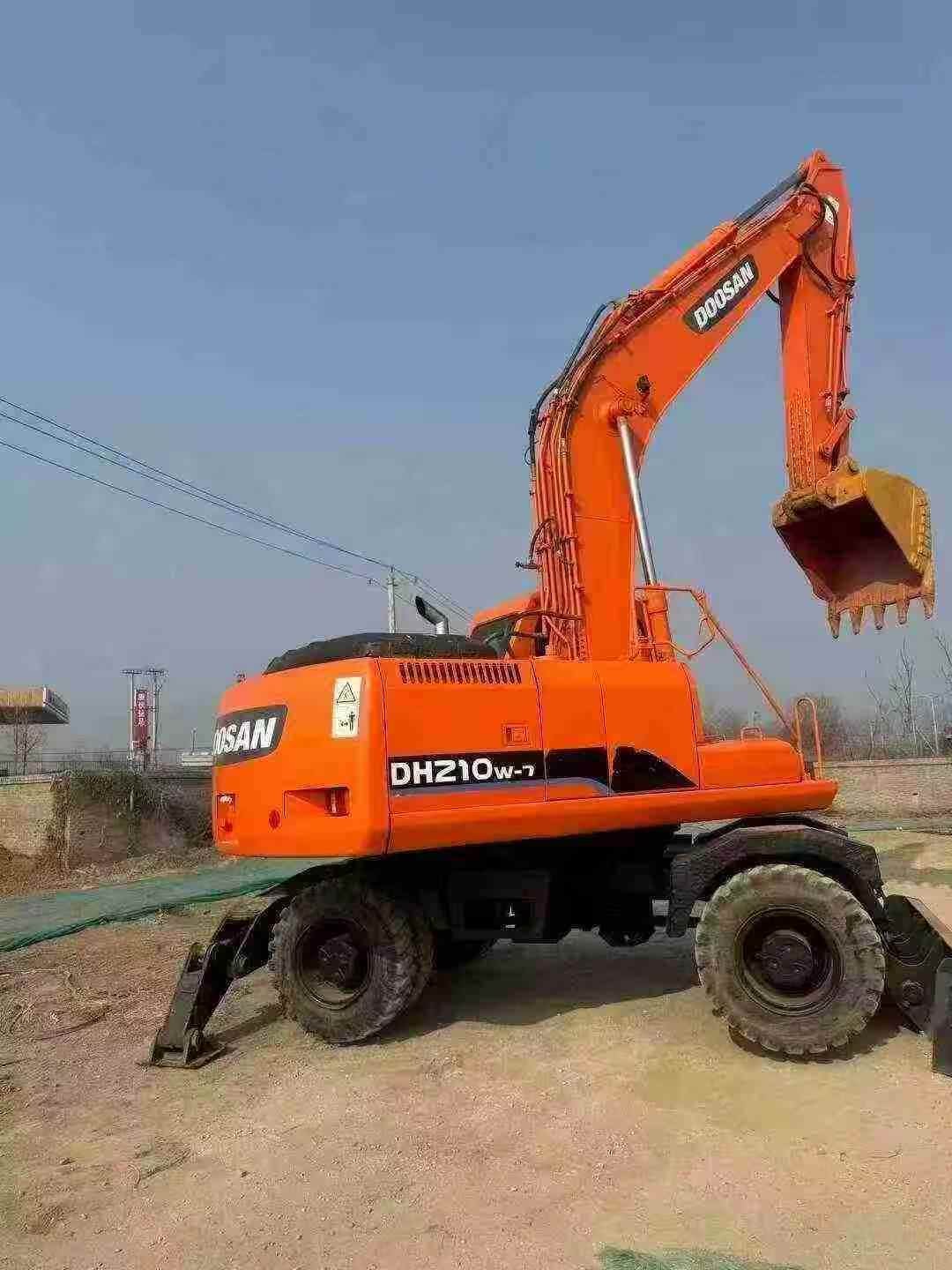

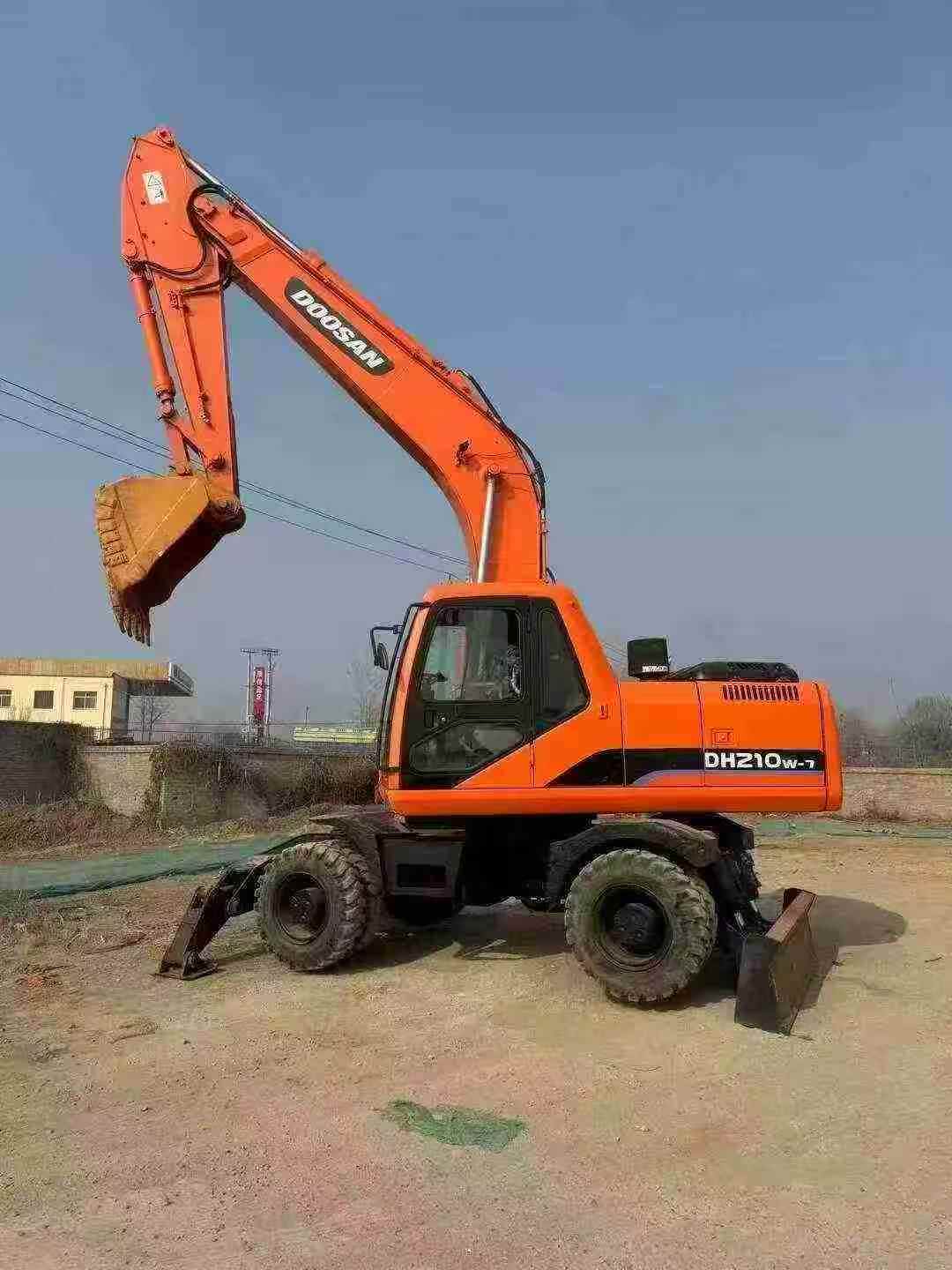

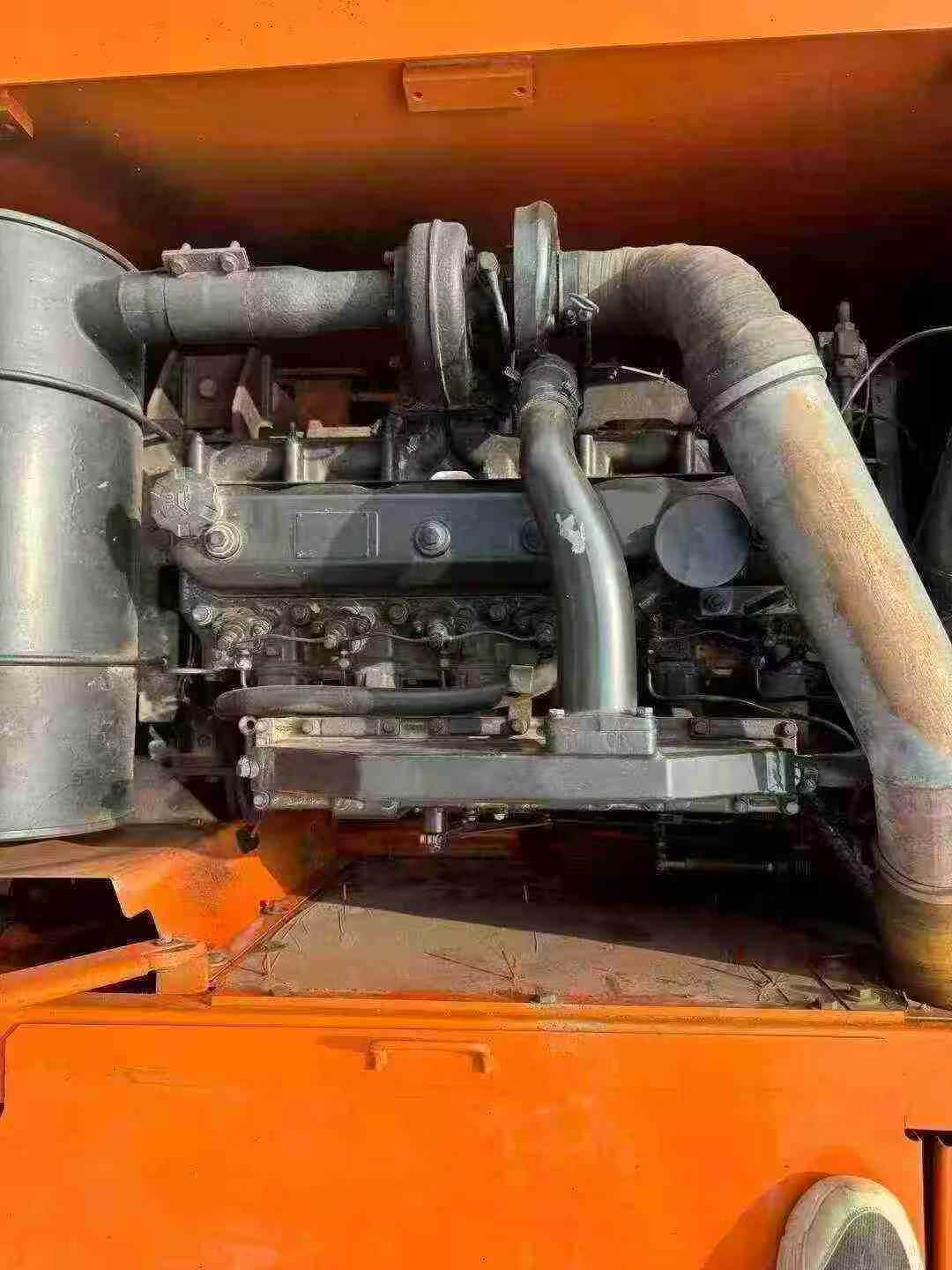

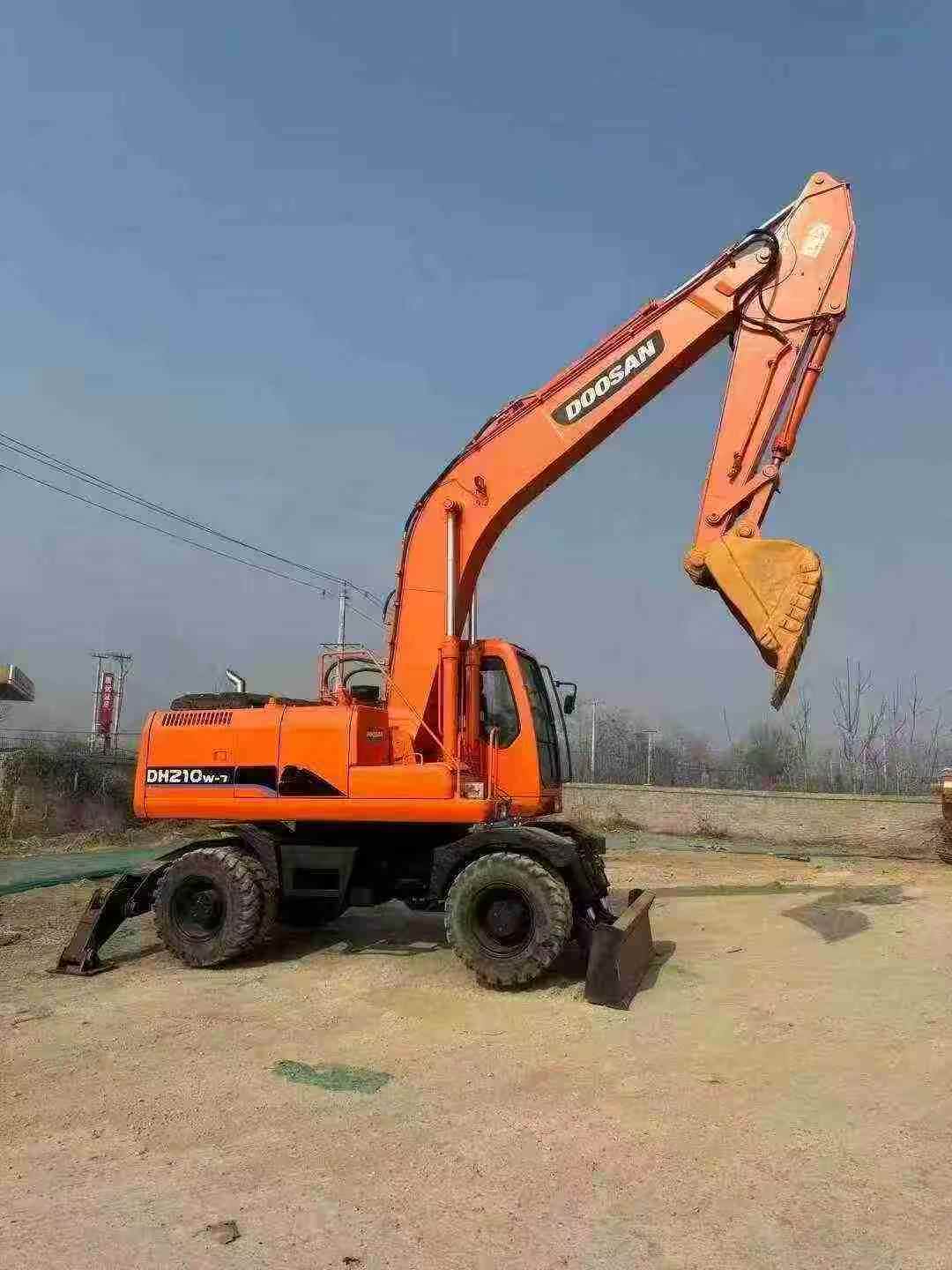

Engineered for demanding wheeled excavation applications, this 2016 Doosan DH210W-7 delivers robust performance through precision hydraulics and proven powertrain technology. At its core, the DB58TIS six-cylinder engine generates 115 kW at 2200 rpm, backed by 5.785 liters of displacement and a four-stroke, water-cooled direct injection system that ensures consistent power delivery across extended work cycles.
Hydraulic superiority defines this 20-ton class machine. Dual variable axial plunger pumps supply 2 x 239 L/min flow capacity, while working circuits operate at 30.8 MPa standard or 33.6 MPa supercharged modes. This translates to exceptional digging forces: 148 kN bucket force and 104 kN arm force, enabling efficient material handling in challenging conditions.
- Maximum digging reach: 9,896 mm with 6,558 mm depth capability
- 0.86 m³ bucket capacity optimized for productivity
- 35 km/h road speed with 3.6 m turning radius for superior mobility
- 350L fuel tank supporting extended operational periods
- Joint venture manufacturing quality from Yantai facility
Currently located in Hebei, this wheeled excavator combines hydraulic precision with mechanical reliability f
| Specifications | Value |
|---|---|
| No. | 1009999 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19800 |
| Bucket capacity (m³) | 0.86 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900/2400 |
| Country of origin | Yantai, China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | DB58TIS |
| Rated power (kw/rpm) | 115 / 2200 |
| Total displacement (L) | 5.785 |
| remark | Four-stroke, water-cooled, direct spray |
| Cylinder diameter × stroke (mm) | 102 x 118 |
| Maximum torque (N.m) | 60 |
| Number of cylinders (PCS) | 6 |
| Forward speed (Km/h) | 35 / 9.3 |
| Rotation speed (rpm) | 12.2 |
| Climbing ability (%) | 59.6% (30.8°) persisted |
| Bucket digging force (kN) | 148 |
| Rod digging force (kN) | 104 |
| Minimum turning radius (m) | 3.6 |
| Driving form | Hydraulic drive |
| Maximum flow of main pump (l/min) | 2 x 239 |
| Traveling Hydraulic Circuit (Mpa) | 33.6 |
| Rotary Hydraulic Circuit (Mpa) | 27 |
| Main pump type | Variable axial plunger pump |
| Working Hydraulic Circuit (Mpa) | Standard 30.8/ Supercharged 33.6 |
| Pilot pump flow (L/min) | 22.1 |
| Fuel Tank (L) | 350 |
| Hydraulic Tank (L) | 118 |
| Total transport length (mm) | 9524 |
| Total transport width (mm) | 2470 |
| Total transport height (mm) | 3608(to top of arm) |
| Full cab height (mm) | 3111 |
| Counterweight ground clearance (mm) | 1254 |
| Wheelbase (mm) | 2850 |
| Single tire width (mm) | 596 |
| Total tire outside width (mm) | 2470 |
| Wheel base (mm) | 1874 |
| Minimum ground clearance (mm) | 340 |
| Back end turning radius (mm) | 2750 |
| Maximum digging radius (mm) | 9896 |
| Maximum excavation radius (mm) | 9694/9363 |
| Maximum digging depth (mm) | 6558 |
| Maximum excavation height (mm) | 9673 |
| Maximum unloading height (mm) | 6823 |
| Maximum vertical digging depth (mm) | 5865 |
| Minimum turning radius (mm) | 2750 |
