Product Description

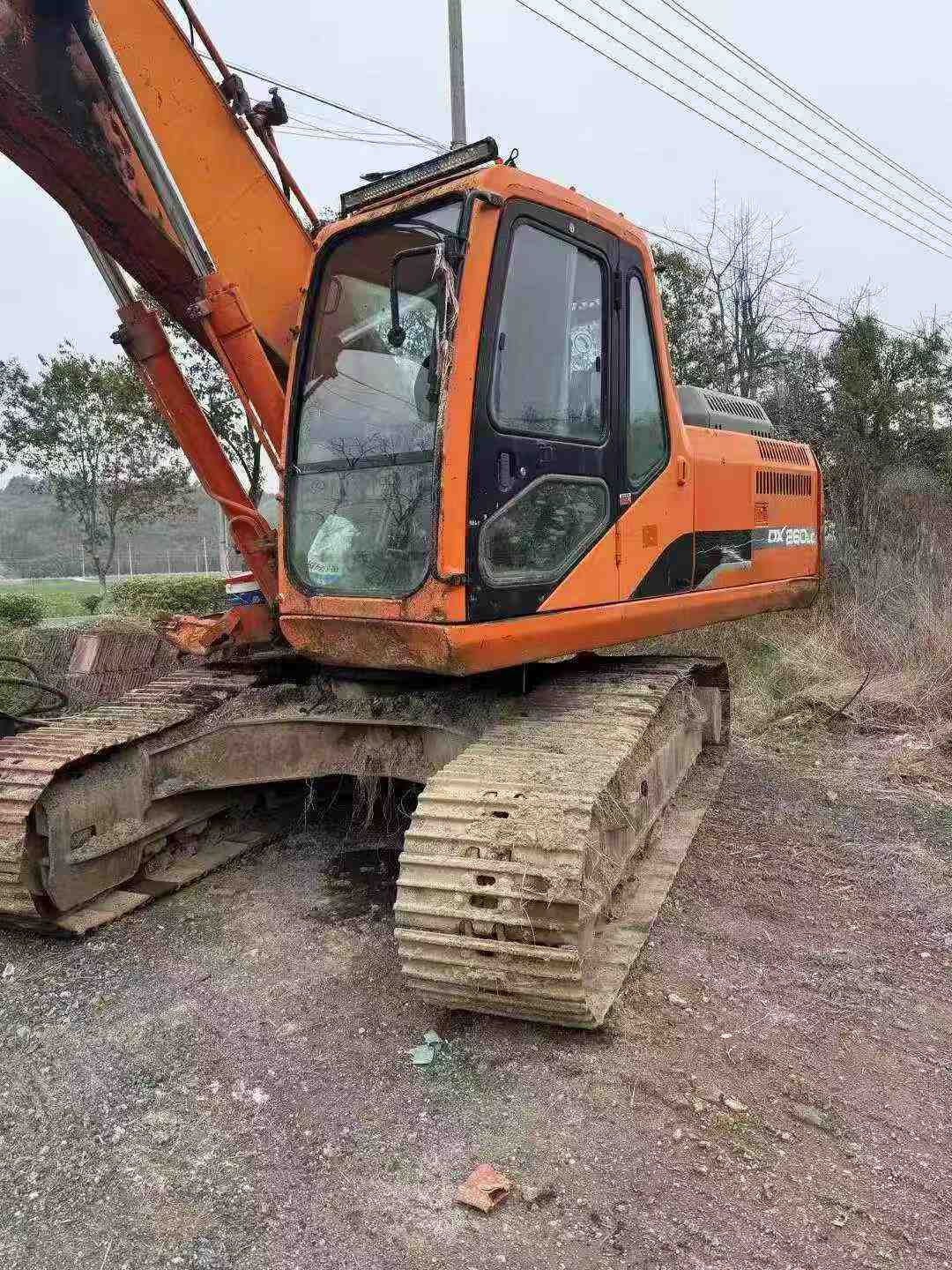

With a robust working weight of 20,600 kg and a bucket capacity of 0.86 m³, the Doosan DH215-7 from 2013 is an ideal fleet addition for busy contractors. This excavator, located in 浙江绍兴, offers reliable performance with its Doosan DB58T1 engine, delivering 147 kW at 2000 rpm. Featuring a boom length of 5700 mm and rod lengths of 2400/2900/3500 mm, it ensures versatility in various construction tasks. The machine's maximum digging depth of 6660 mm and maximum unloading height of 6810 mm make it suitable for deep and high-reach operations. Equipped with air cooling and a 350 L fuel tank, this unit is ready to handle extended work periods. Its compact design, with a total transport width of 2800 mm, also facilitates easy transportation between job sites.
- Working weight: 20,600 kg
- Bucket capacity: 0.86 m³
- Boom length: 5700 mm
- Maximum digging depth: 6660 mm
- Fuel Tank: 350 L
| Specifications | Value |
|---|---|
| No. | 1033027 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20600 |
| Bucket capacity (m³) | 0.86 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2400/2900/3500 |
| Country of origin | Yantai, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Doosan DB58T1 |
| Rated power (kw/rpm) | 147/2000 |
| Cooling mode | Air cooling |
| Ground specific pressure (Kpa) | 52 |
| Rotation speed (rpm) | 12.1 |
| Bucket digging force (kN) | 136.2/144.1 |
| Rod digging force (kN) | 100/104.9 |
| Travel speed (km/h) | 3.1-5.4 |
| Fuel Tank (L) | 350 |
| Total transport length (mm) | 9550 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3100 |
| Full cab height (mm) | 3100 |
| Minimum ground clearance (mm) | 480 |
| Back end turning radius (mm) | 2750 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 22800 |
| Maximum digging radius (mm) | 9970 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6810 |
| Maximum vertical digging depth (mm) | 5600 |
| Maximum excavation radius of stop surface (mm) | 9780 |
| Maximum effective digging depth (mm) | 6460 |
