Product Description

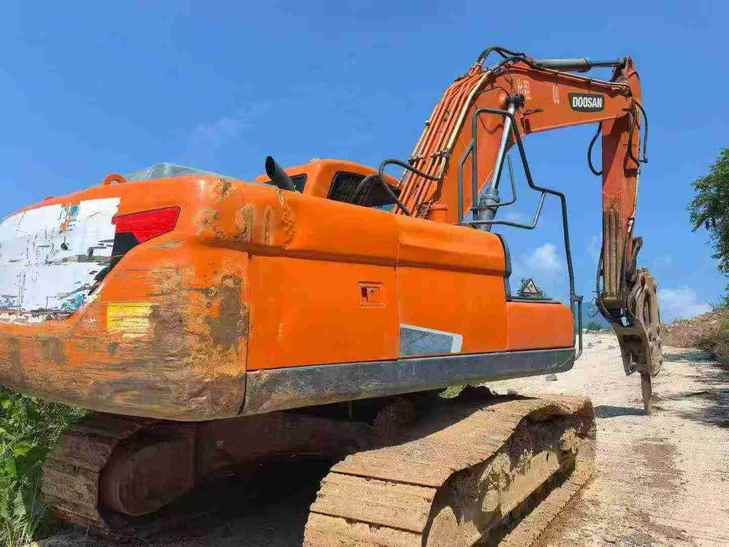

Available now in Sichuan Luzhou, this 2018 Doosan DH215-7 excavator eliminates factory wait times and gets you operational fast. Powered by a robust Doosan DB58T1 engine delivering 147 kW at 2000 rpm, this 21-ton workhorse combines proven reliability with immediate deployment capability. With a maximum digging depth of 6,660 mm and reach extending to 9,970 mm, it tackles demanding earthmoving projects across construction, mining, and infrastructure sectors.
- Operating weight: 20,600 kg with 0.86 m³ bucket capacity
- Dual arm configurations: 2,400/2,900/3,500 mm rod lengths for versatile applications
- Powerful digging forces: 144.1 kN bucket, 104.9 kN arm
- Extended reach: 9,970 mm maximum radius, 9,660 mm dig height
- 350L fuel tank supports extended operation cycles
- Transport dimensions: 9,550 × 2,800 × 3,100 mm
- Strategic Sichuan location enables rapid mobilization nationwide
Skip months of lead time. This joint-venture manufactured unit ships directly from Luzhou, cutting logistics delays and accelerating your project timeline. Inspect on-site and deploy within days, not quarters.
| Specifications | Value |
|---|---|
| No. | 1031225 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20600 |
| Bucket capacity (m³) | 0.86 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2400/2900/3500 |
| Country of origin | Yantai, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Doosan DB58T1 |
| Rated power (kw/rpm) | 147/2000 |
| Cooling mode | Air cooling |
| Ground specific pressure (Kpa) | 52 |
| Rotation speed (rpm) | 12.1 |
| Bucket digging force (kN) | 136.2/144.1 |
| Rod digging force (kN) | 100/104.9 |
| Travel speed (km/h) | 3.1-5.4 |
| Fuel Tank (L) | 350 |
| Total transport length (mm) | 9550 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3100 |
| Full cab height (mm) | 3100 |
| Minimum ground clearance (mm) | 480 |
| Back end turning radius (mm) | 2750 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 22800 |
| Maximum digging radius (mm) | 9970 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6810 |
| Maximum vertical digging depth (mm) | 5600 |
| Maximum excavation radius of stop surface (mm) | 9780 |
| Maximum effective digging depth (mm) | 6460 |
