Product Description
Proven in demanding conditions since 2018, this Doosan DH215-7 excavator delivers consistent performance backed by superior engineering. Operating at 21 tons with a robust 20,600 kg working weight, this machine combines the reliability of a Doosan DB58T1 engine (147 kW at 2000 rpm) with intelligent design from Yantai's respected manufacturing facility. Its 0.86 m³ bucket capacity and impressive 136.2 kN bucket digging force handle heavy-duty excavation with confidence.
Built to last through years of rigorous operation, this workhorse features a maximum digging reach of 9,970 mm and excavation depth of 6,660 mm. The air-cooled system ensures durability in variable climates, while the 350-liter fuel tank supports extended work cycles. Currently located in Chongqing, this DH215-7 represents proven value for contractors seeking dependable mid-size excavation power.
- Five years of field-tested reliability
- Maximum digging height: 9,660 mm
- Multiple rod length configurations: 2,400/2,900/3,500 mm
- Travel speed range: 3.1-5.4 km/h
- Compact transport dimensions: 9,550 × 2,800 × 3,100 mm
| Specifications | Value |
|---|---|
| No. | 1039041 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20600 |
| Bucket capacity (m³) | 0.86 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2400/2900/3500 |
| Country of origin | Yantai, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

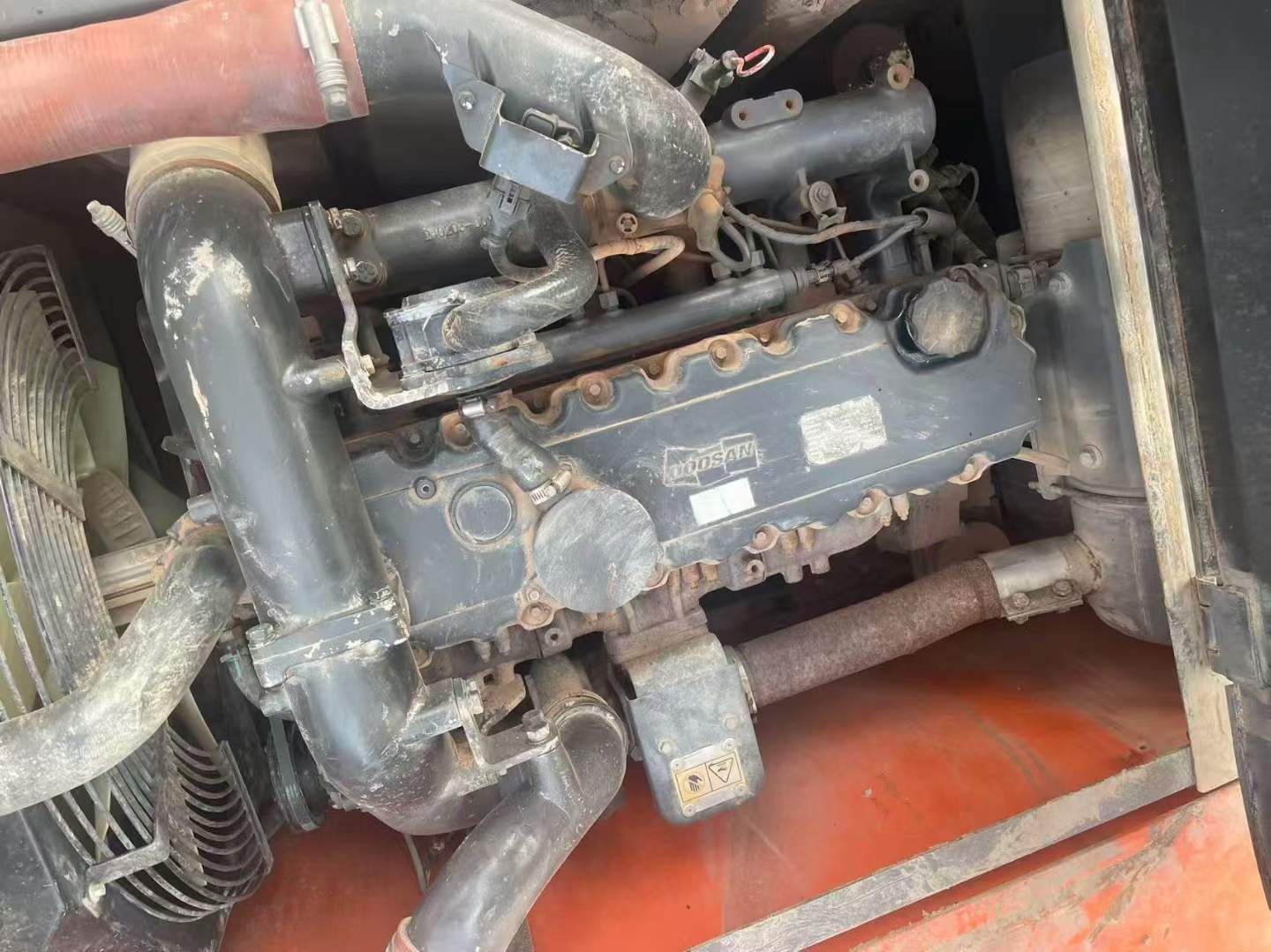

| Engine type | Doosan DB58T1 |
| Rated power (kw/rpm) | 147/2000 |
| Cooling mode | Air cooling |
| Ground specific pressure (Kpa) | 52 |
| Rotation speed (rpm) | 12.1 |
| Bucket digging force (kN) | 136.2/144.1 |
| Rod digging force (kN) | 100/104.9 |
| Travel speed (km/h) | 3.1-5.4 |
| Fuel Tank (L) | 350 |
| Total transport length (mm) | 9550 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3100 |
| Full cab height (mm) | 3100 |
| Minimum ground clearance (mm) | 480 |
| Back end turning radius (mm) | 2750 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 22800 |
| Maximum digging radius (mm) | 9970 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6810 |
| Maximum vertical digging depth (mm) | 5600 |
| Maximum excavation radius of stop surface (mm) | 9780 |
| Maximum effective digging depth (mm) | 6460 |
