Product Description
Built for heavy-duty excavation and precision grading, this 2019 Doosan DH215-7 delivers 147 kW of reliable power through its proven DB58T1 engine. With a 21-ton operating weight and 0.86 m³ bucket capacity, this machine tackles trenching, foundation work, and site preparation with consistent performance. The 5700mm boom and adjustable arm configurations (2400/2900/3500mm) provide maximum digging depth of 6660mm and reach extending to 9970mm, making it ideal for deep utility installations and large-scale earthmoving projects.
Currently located in Jiangxi Province, this excavator features a robust undercarriage with 600mm track plates and 2200mm gauge for stable operation on varied terrain. The 350-liter fuel tank supports extended work shifts, while bucket digging force of 144.1 kN cuts through compacted soil and rocky conditions. Air-cooled system ensures dependable operation in demanding environments. Track-mounted mobility (3.1-5.4 km/h travel speed) and compact 2750mm rear swing radius enable efficient maneuvering in confined job sites.
Site-ready specifications include:
- Maximum digging height: 9660mm for loading high-sided trucks
- Maximum unloading height: 6810mm
- 480mm ground cleara
| Specifications | Value |
|---|---|
| No. | 1029813 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20600 |
| Bucket capacity (m³) | 0.86 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2400/2900/3500 |
| Country of origin | Yantai, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

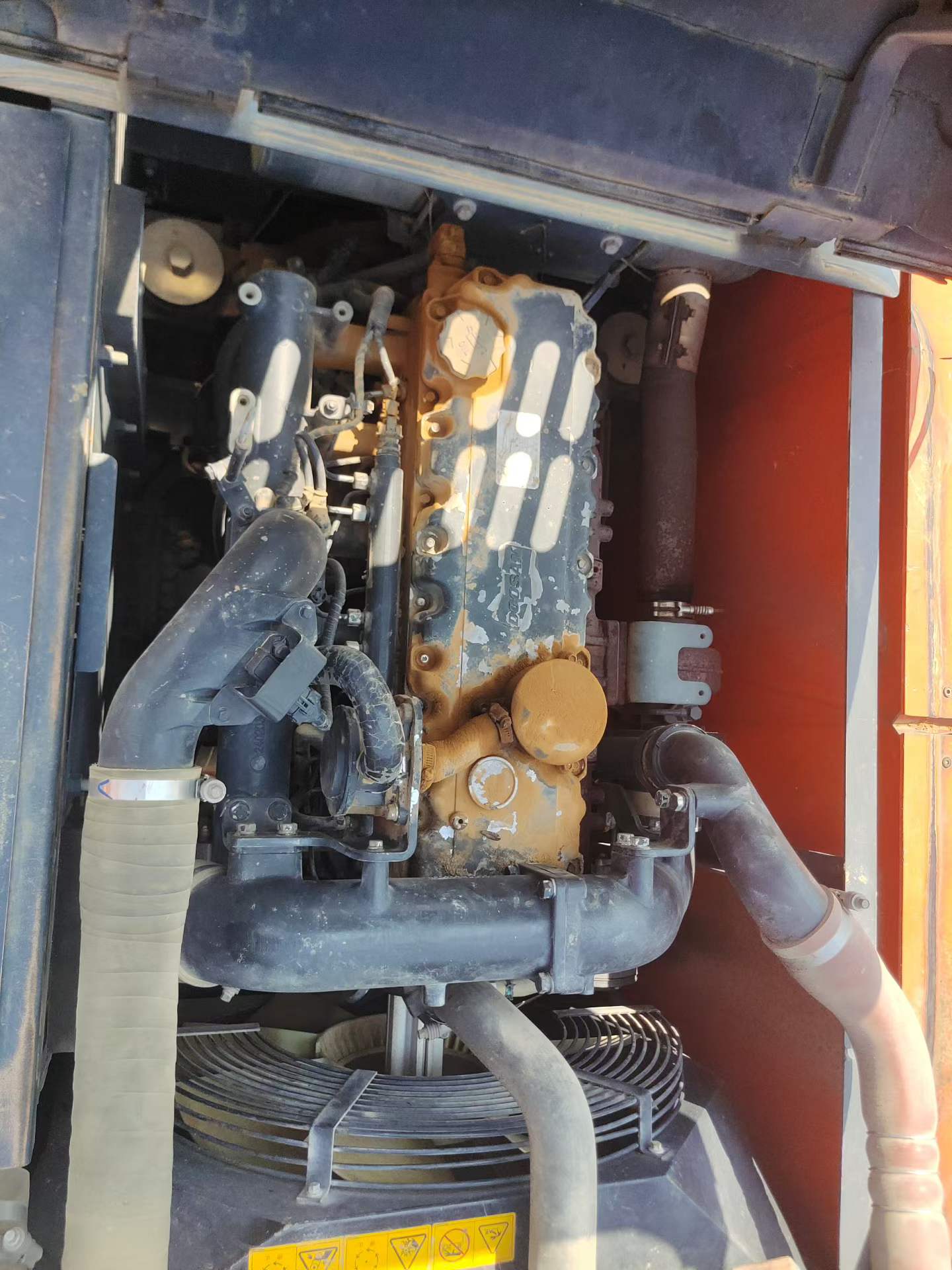

| Engine type | Doosan DB58T1 |
| Rated power (kw/rpm) | 147/2000 |
| Cooling mode | Air cooling |
| Ground specific pressure (Kpa) | 52 |
| Rotation speed (rpm) | 12.1 |
| Bucket digging force (kN) | 136.2/144.1 |
| Rod digging force (kN) | 100/104.9 |
| Travel speed (km/h) | 3.1-5.4 |
| Fuel Tank (L) | 350 |
| Total transport length (mm) | 9550 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3100 |
| Full cab height (mm) | 3100 |
| Minimum ground clearance (mm) | 480 |
| Back end turning radius (mm) | 2750 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 22800 |
| Maximum digging radius (mm) | 9970 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6810 |
| Maximum vertical digging depth (mm) | 5600 |
| Maximum excavation radius of stop surface (mm) | 9780 |
| Maximum effective digging depth (mm) | 6460 |
