Product Description

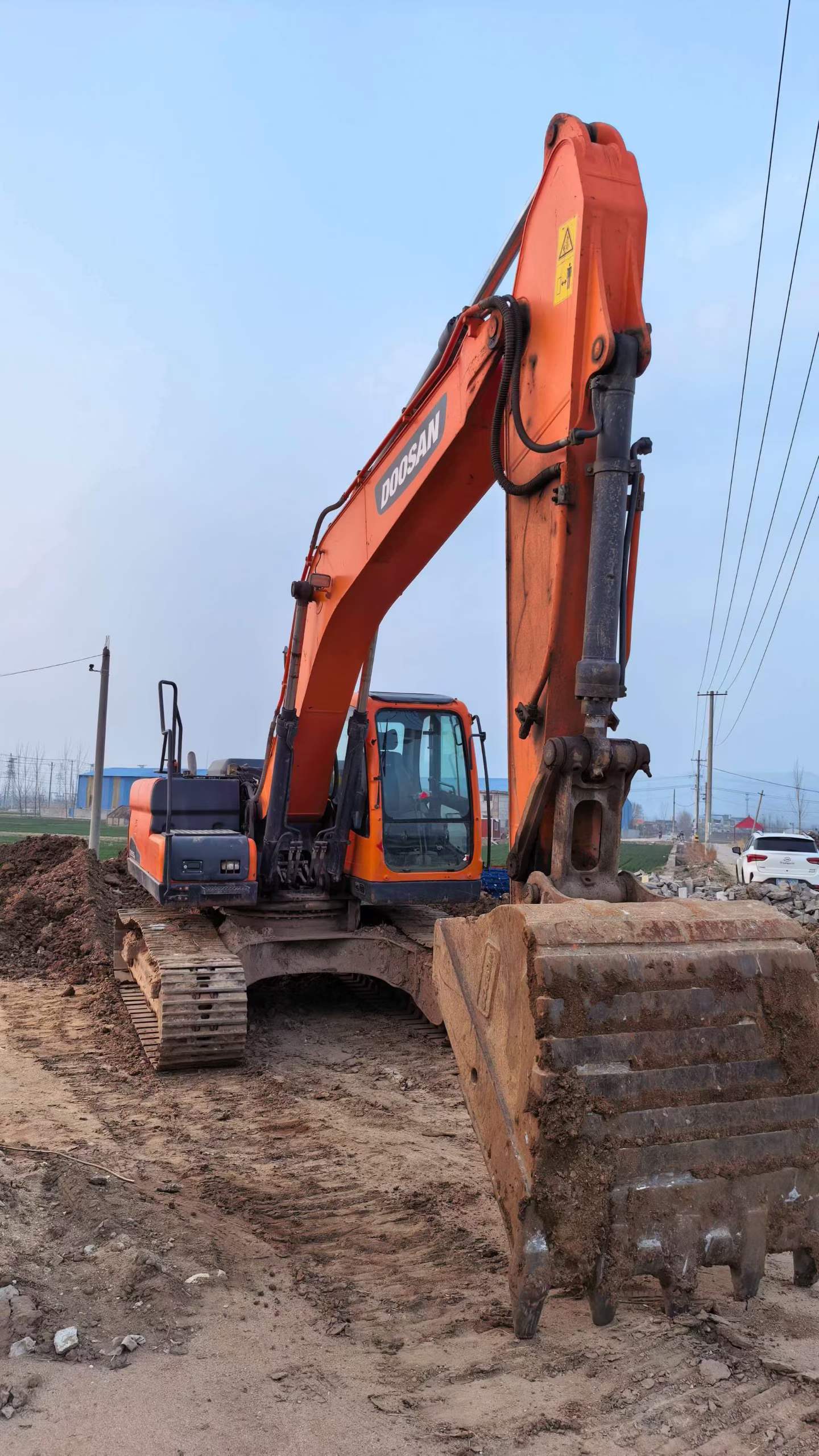

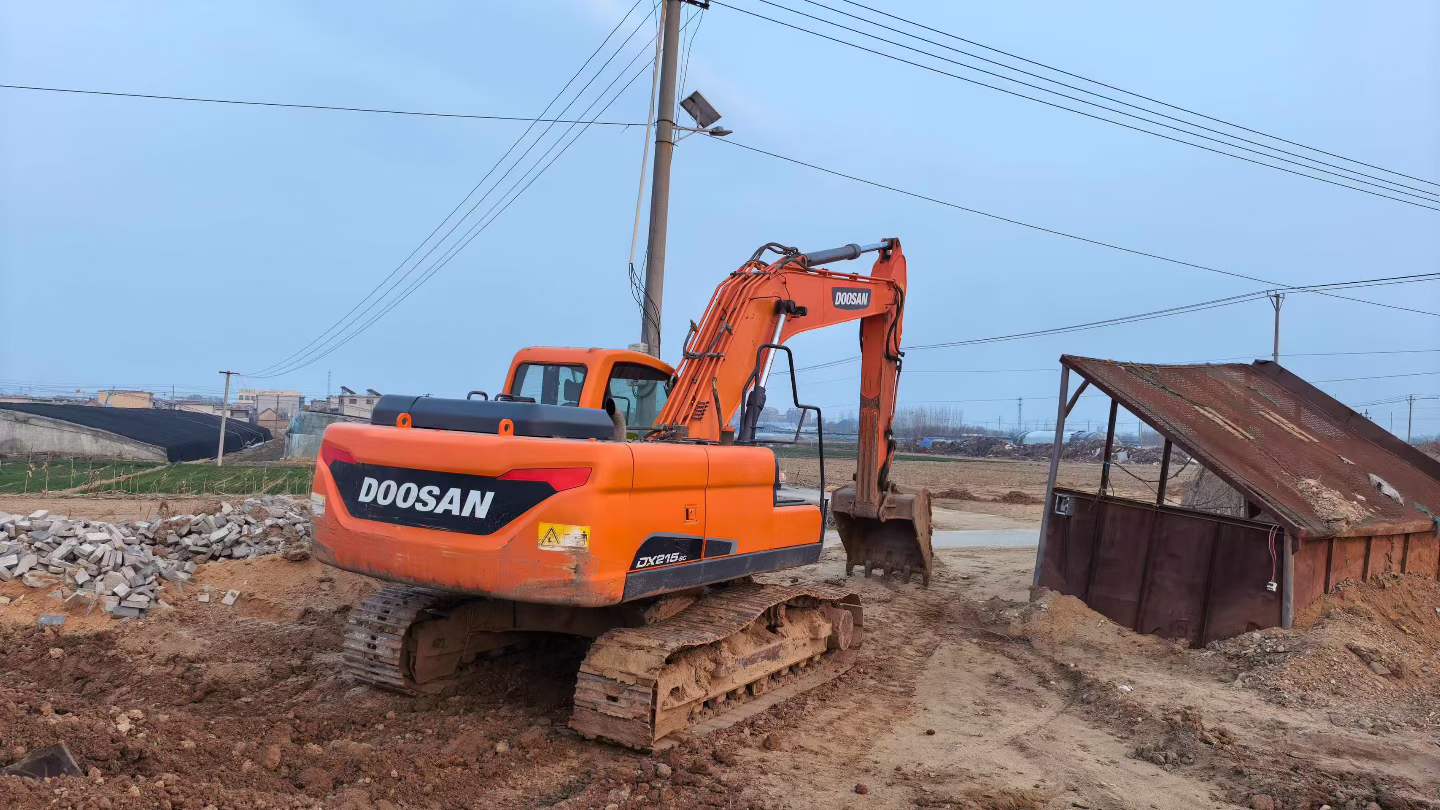

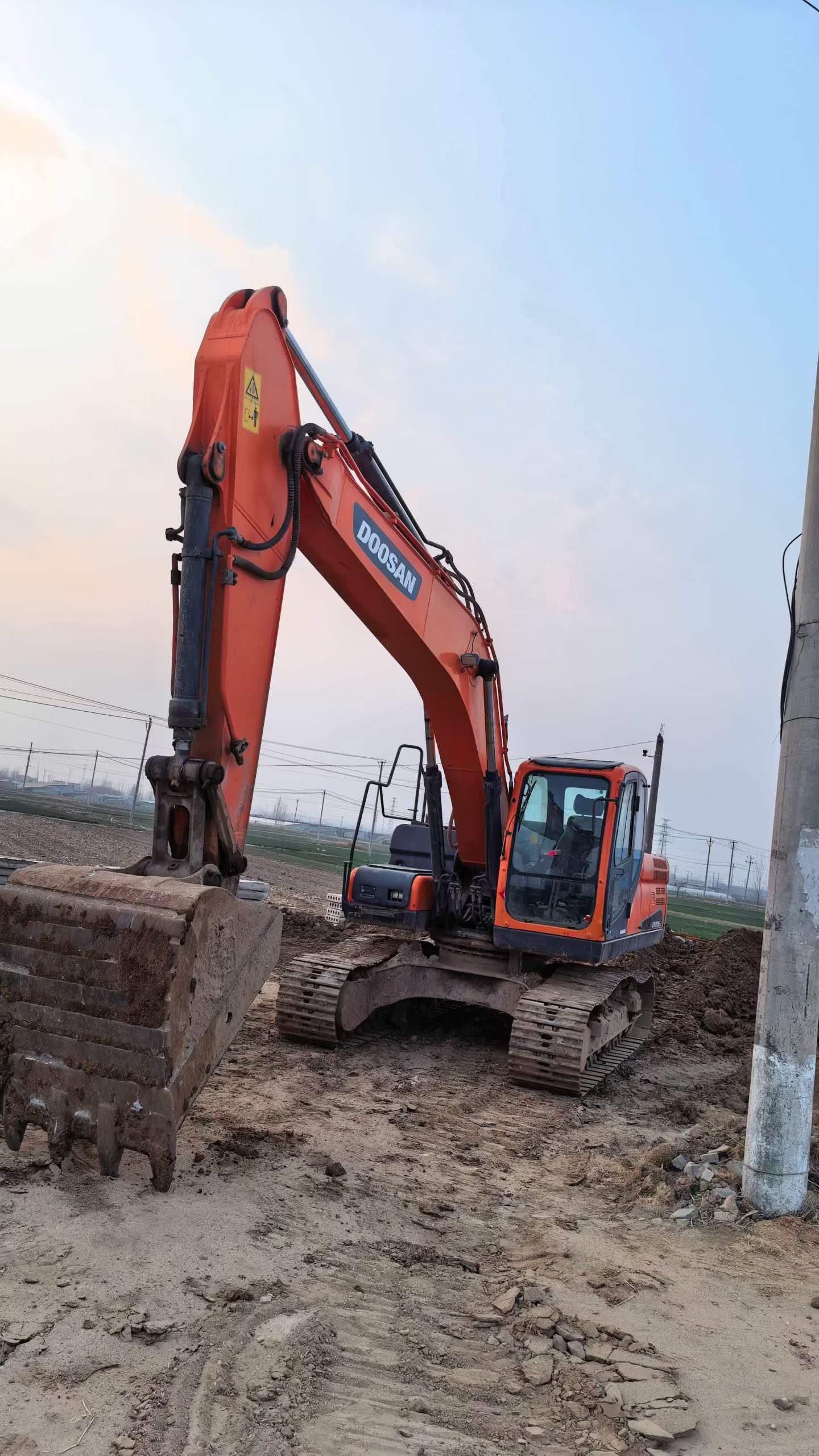

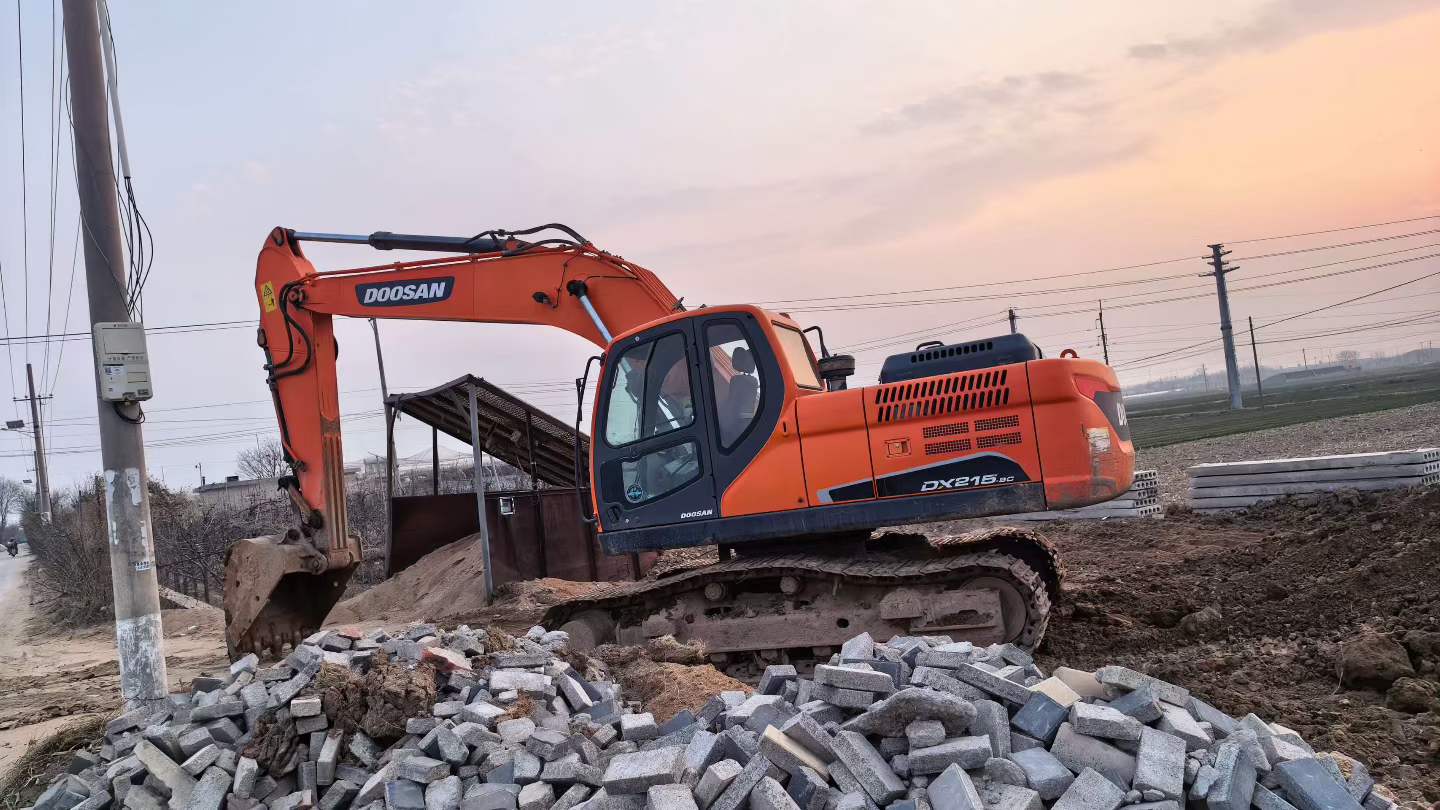

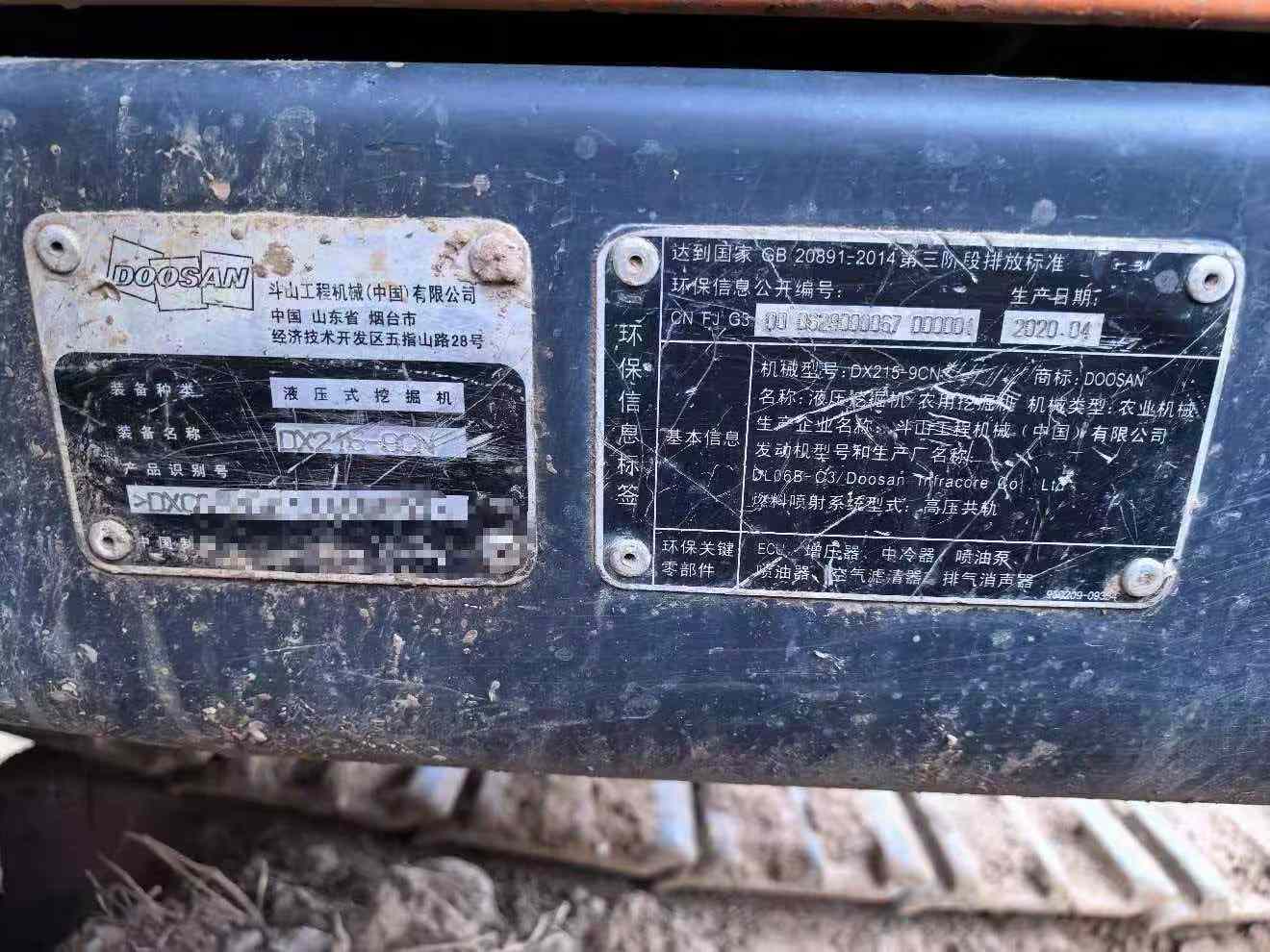

Cut factory wait times and get to work faster with this 2020 Doosan DH215-7 excavator, ready for immediate deployment from Shandong Province. Powered by a robust Doosan DB58T1 engine delivering 147kW at 2000 rpm, this 21-ton workhorse combines proven reliability with the performance your projects demand. Operating weight of 20,600 kg and a 0.86 m³ bucket capacity make it ideal for medium to heavy-duty excavation, grading, and loading operations.
- Maximum digging reach of 9,970 mm and depth of 6,660 mm for versatile site coverage
- Multiple rod configurations (2400/2900/3500 mm) adapt to varied job requirements
- Bucket digging force up to 144.1 kN tackles challenging ground conditions
- 350L fuel tank supports extended operating shifts with fewer refueling interruptions
- Compact 2,750 mm rear turning radius enables efficient work in confined spaces
- Located in Shandong—available now for rapid shipping to your construction site
Skip months of lead time. This machine is inspection-ready and positioned for fast logistics throughout Asia and beyond. Secure your equipment today and maintain project momentum.
| Specifications | Value |
|---|---|
| No. | 1028438 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20600 |
| Bucket capacity (m³) | 0.86 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2400/2900/3500 |
| Country of origin | Yantai, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

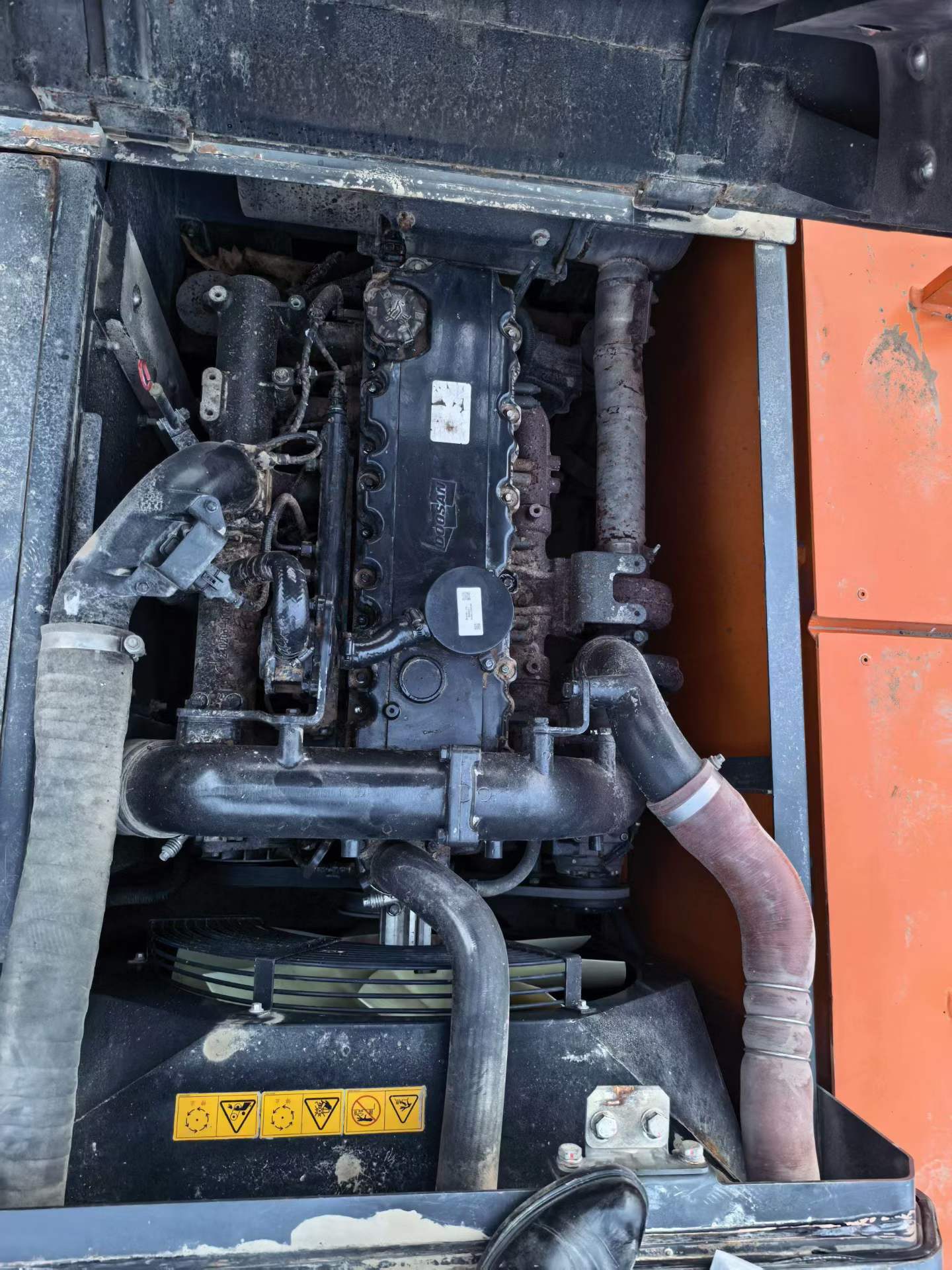

| Engine type | Doosan DB58T1 |
| Rated power (kw/rpm) | 147/2000 |
| Cooling mode | Air cooling |
| Ground specific pressure (Kpa) | 52 |
| Rotation speed (rpm) | 12.1 |
| Bucket digging force (kN) | 136.2/144.1 |
| Rod digging force (kN) | 100/104.9 |
| Travel speed (km/h) | 3.1-5.4 |
| Fuel Tank (L) | 350 |
| Total transport length (mm) | 9550 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3100 |
| Full cab height (mm) | 3100 |
| Minimum ground clearance (mm) | 480 |
| Back end turning radius (mm) | 2750 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 22800 |
| Maximum digging radius (mm) | 9970 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6810 |
| Maximum vertical digging depth (mm) | 5600 |
| Maximum excavation radius of stop surface (mm) | 9780 |
| Maximum effective digging depth (mm) | 6460 |
