Product Description

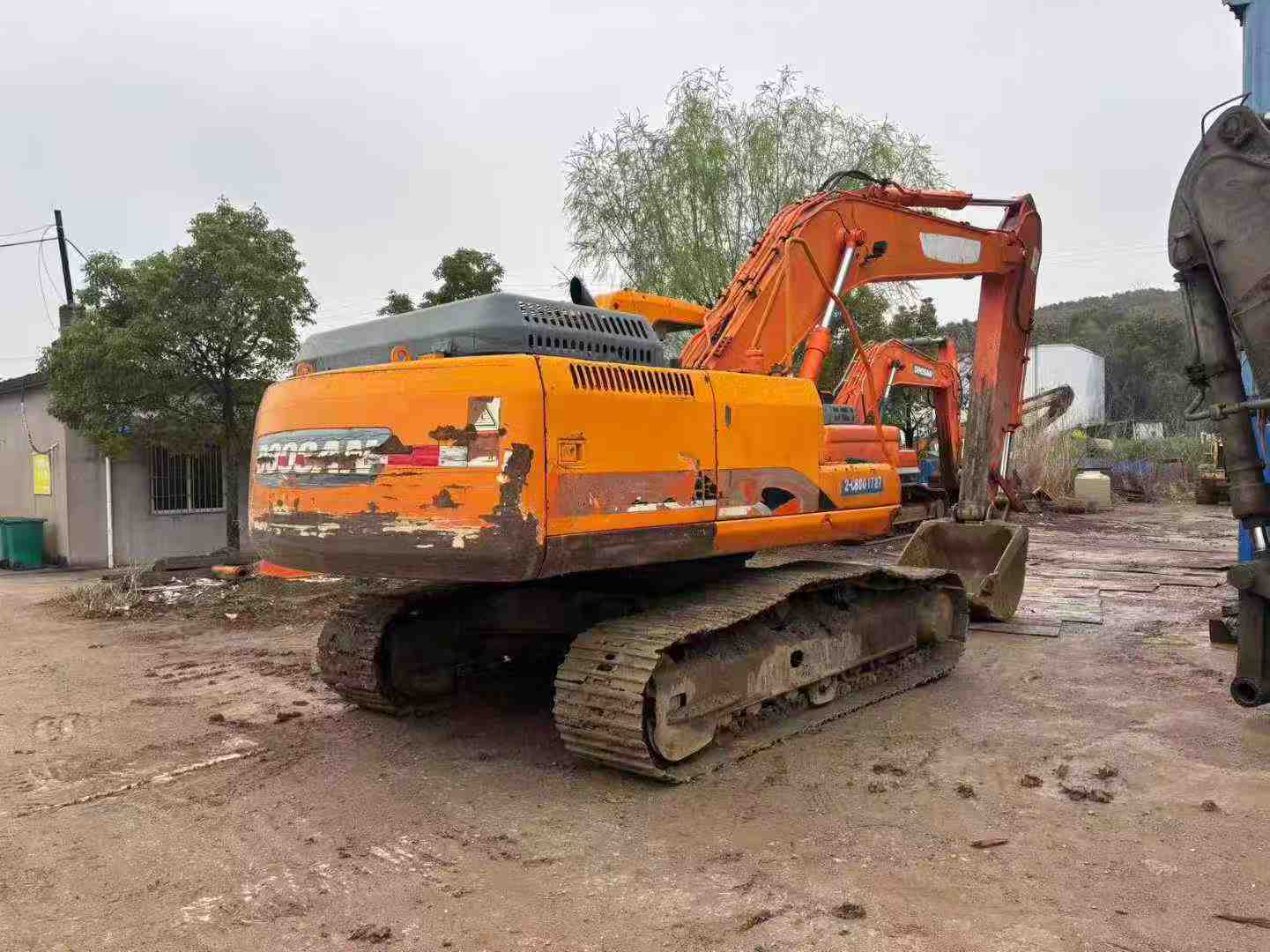

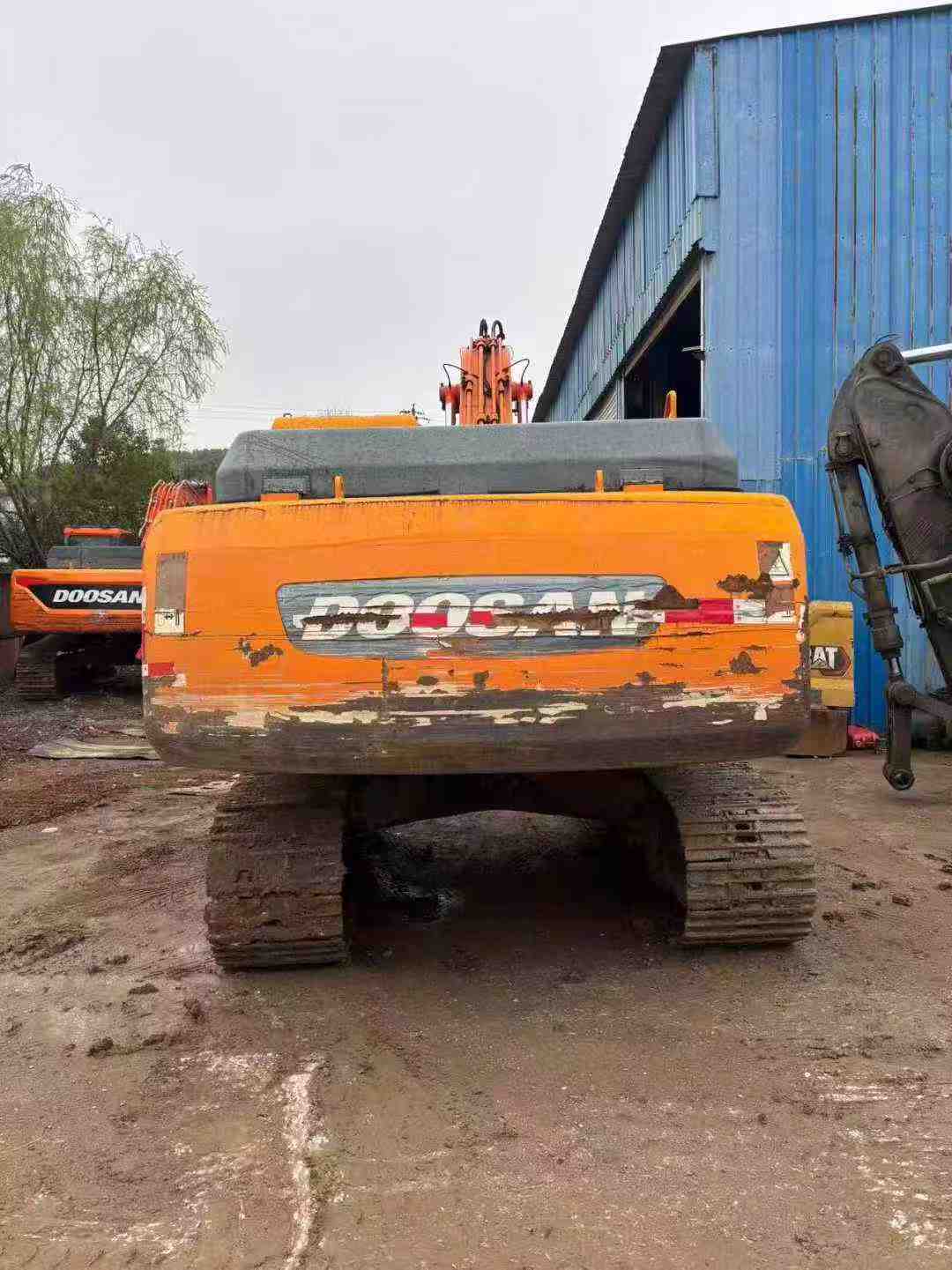

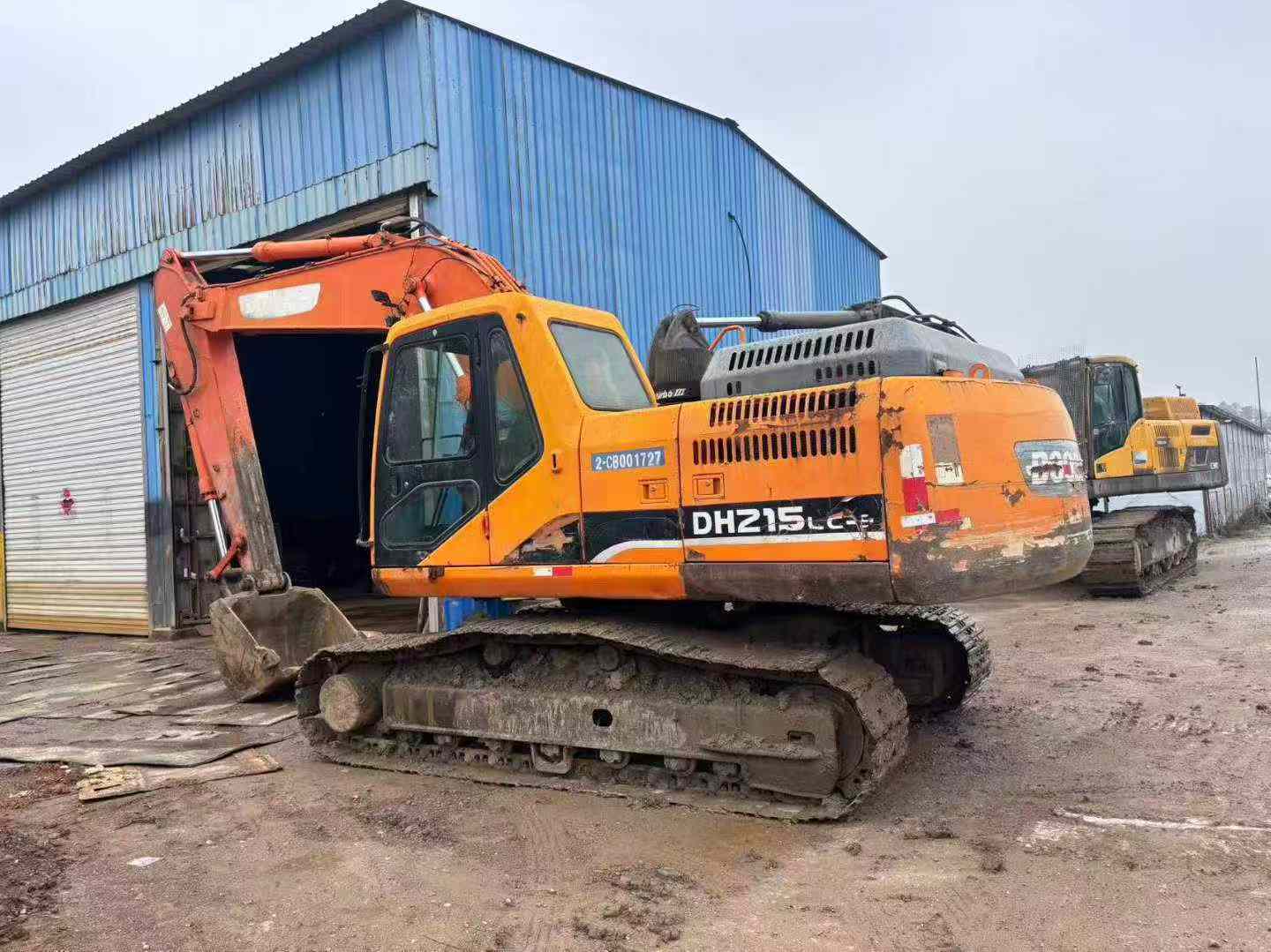

Available now in Hangzhou, Zhejiang, this 2010 Doosan DH215-9 excavator delivers 21-ton performance without factory wait times. Powered by a Doosan DE08TIS engine producing 110kW at 1950rpm, this machine features a 5700mm boom and 2900mm arm for a maximum digging reach of 9970mm and depth of 6660mm. Fast deployment to your site means your projects stay on schedule.
Skip the lead times and secure immediate productivity with proven specifications:
- Operating weight: 21,000kg with 0.86/1.0m³ bucket capacity
- Dual variable piston pumps: 2×211 L/min maximum flow
- Water-cooled 6-cylinder engine: 8.071L displacement
- Hydraulic system: 34.3MPa working pressure (supercharged)
- Travel speed: 5.4km/h high / 3.1km/h low
- Transport dimensions: 9600×2800×2870mm
Located in a major logistics hub, this DH215-9 offers rapid mobilization across domestic and international markets. Direct acquisition eliminates months of manufacturing delays, putting reliable Doosan engineering to work on your jobsite immediately. Contact Fair Trade Machinery for shipping arrangements and technical verification.
| Specifications | Value |
|---|---|
| No. | 1034315 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21000 |
| Bucket capacity (m³) | 0.86/1.0 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Yantai, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

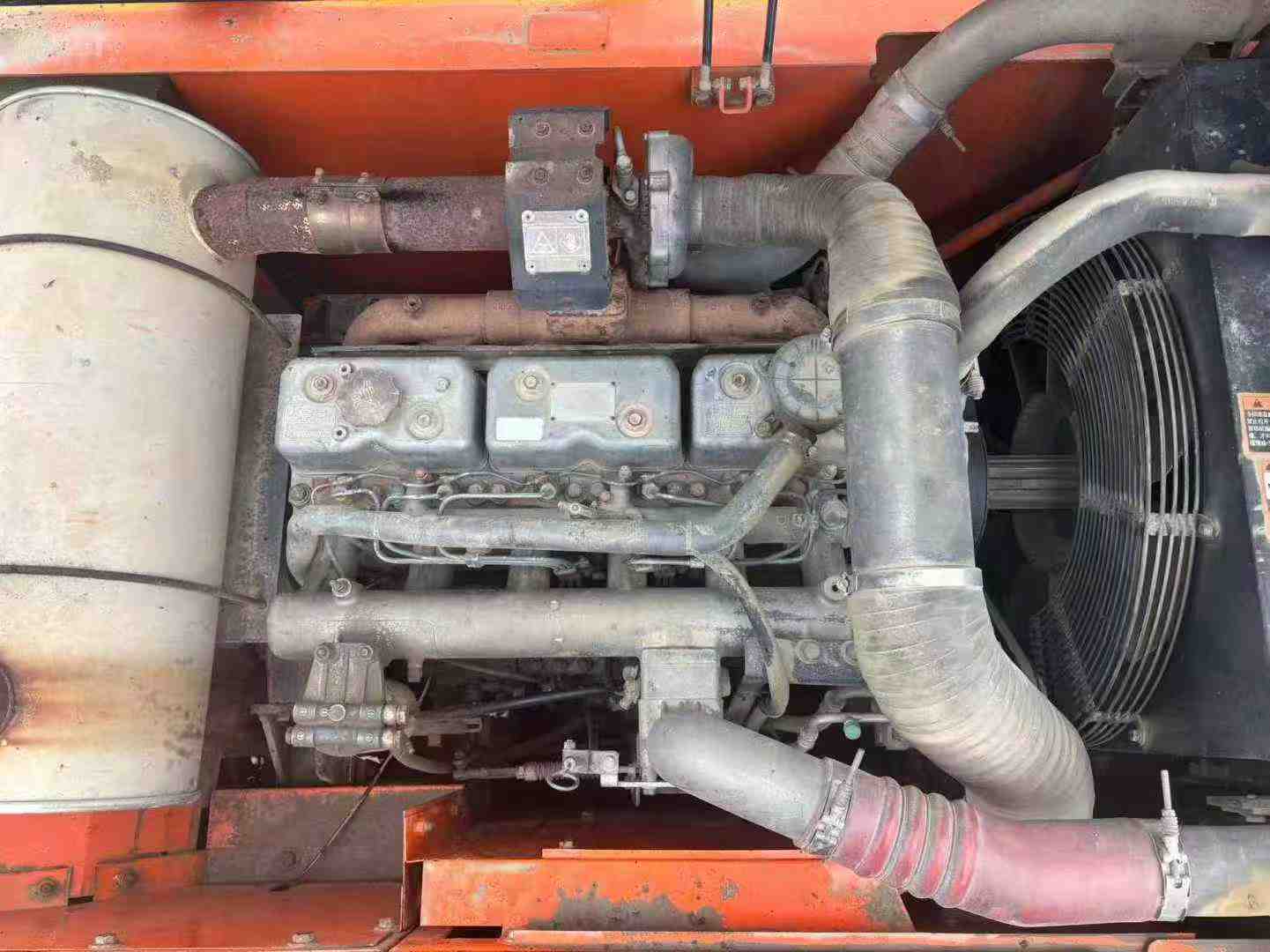

| Engine type | Doosan Doosan DE08TIS |
| Rated power (kw/rpm) | 110/1950 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.071 |
| Working form | Direct injection mechanically controlled engine |
| Ground specific pressure (Kpa) | 49 |
| Rotation speed (rpm) | 12.4 |
| Travel speed (km/h) | 5.4/3.1 |

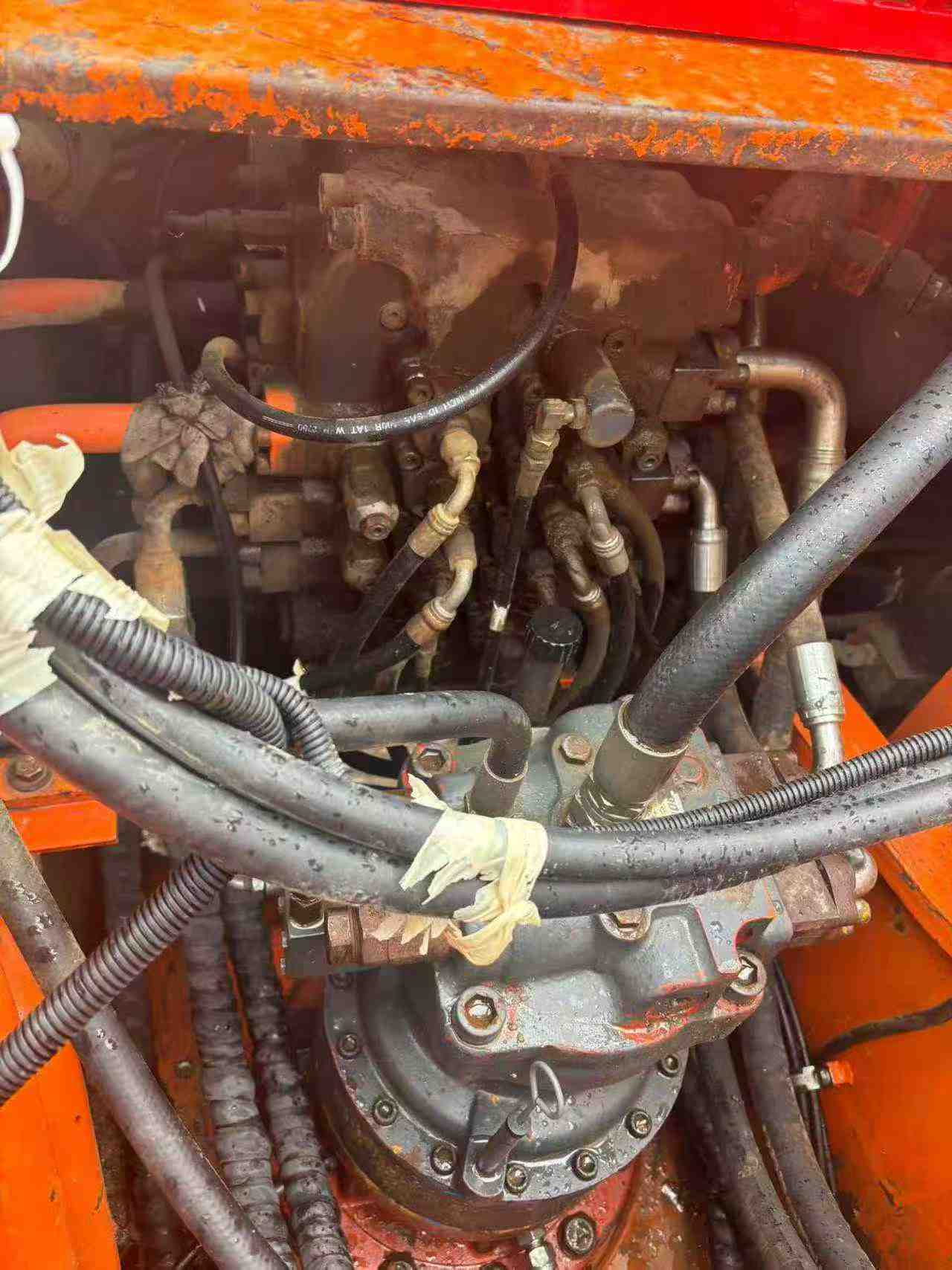

| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |
| Maximum flow of main pump (l/min) | 2 x 211 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Rotary Hydraulic Circuit (Mpa) | 27.5 |

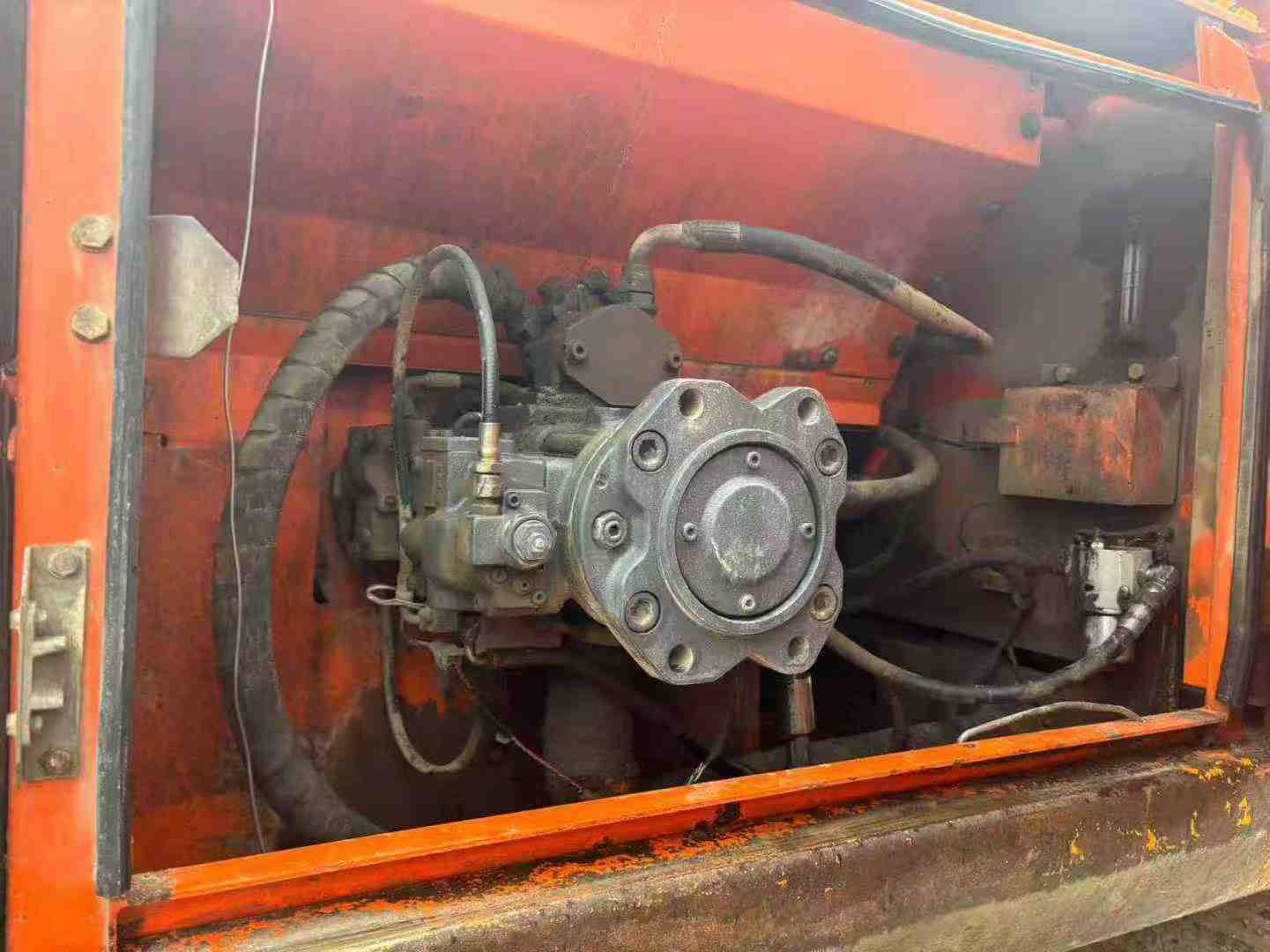

| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | Standard 32.4/ Supercharged 34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 80 x 1050 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135 x 95 x 1538 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 85 x 1245 |
| Fuel Tank (L) | 350 |
| Hydraulic Tank (L) | 240 |
| Engine Oil changes (L) | 28 |
| Coolant (L) | 42 |
| Total transport length (mm) | 9600 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2870(to top of boom) |
| Full cab height (mm) | 3000 |
| Counterweight ground clearance (mm) | 1105 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 3960 |
| Back end turning radius (mm) | 2840 |
| Total track length (mm) | 4065 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Maximum digging radius (mm) | 9970 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6810 |
| Maximum vertical digging depth (mm) | 5600 |
| Maximum excavation radius of stop surface (mm) | 9780 |
