2014 Doosan DH215-9

1/7

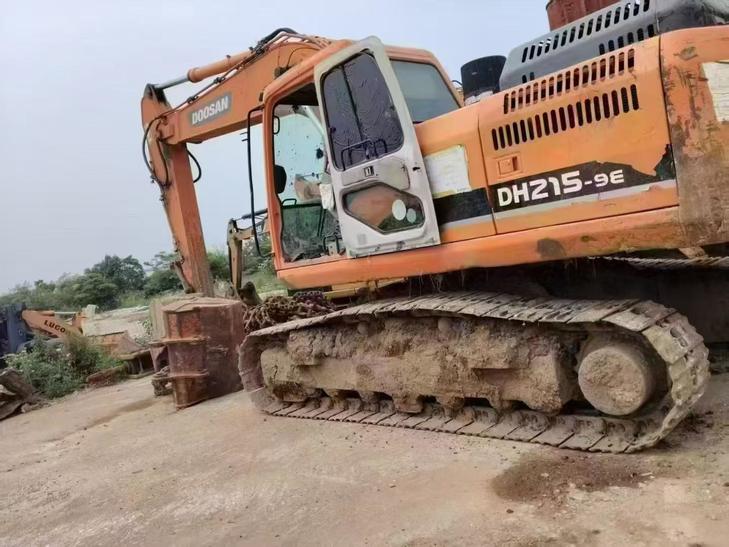

Buy Doosan DH215-9 Used Excavator / 1
Buy Doosan DH215-9 Used Excavator / 2
Buy Doosan DH215-9 Used Excavator / 3
Buy Doosan DH215-9 Used Excavator / 4
Buy Doosan DH215-9 Used Excavator / 5
Buy Doosan DH215-9 Used Excavator / 6
Buy Doosan DH215-9 Used Excavator / 7

Product Description

This 2014 Doosan DH215-9 hydraulic excavator is available from Hunan, China. With approximately 69,000 hours of operation, this 21-ton class machine represents a proven workhorse in the field. The DH215-9 series is recognized for its fuel-efficient engine and reliable hydraulic system, delivering consistent performance in earthmoving, trenching, and material handling applications.

Key features of this excavator include:

  • Doosan DL06 engine with reduced emissions compliance
  • Operating weight approximately 21,500 kg
  • Standard bucket capacity suitable for general excavation work
  • Robust undercarriage designed for extended service life
  • Spacious operator cab with improved visibility

This unit is currently located in Hunan Province and available for inspection. Suitable for contractors seeking dependable mid-size excavation equipment with established OEM support and parts availability throughout Asia-Pacific markets.

SpecificationsValue
No.1085086
Tonnage (tons)21
Working weight (kg)21000
Bucket capacity (m³)0.86/1.0
Boom length (mm)5700
Rod length (mm)2900
Country of originYantai, Shandong Province
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeDoosan Doosan DE08TIS
Rated power (kw/rpm)110/1950
Cooling modewater-cooling
Number of cylinders (PCS)6
Displacement (L)8.071
Working formDirect injection mechanically controlled engine
Ground specific pressure (Kpa)49
Rotation speed (rpm)12.4
Travel speed (km/h)5.4/3.1
Rotary hydraulic motor typeAxial plunger type ×1
Type of walking hydraulic motorAxial plunger type x 2
Maximum flow of main pump (l/min)2 x 211
Traveling Hydraulic Circuit (Mpa)32.4
Rotary Hydraulic Circuit (Mpa)27.5
Main pump typeVariable piston pump
Working Hydraulic Circuit (Mpa)Standard 32.4/ Supercharged 34.3
Bucket cylinders - Number × diameter × stroke (mm)1-120 x 80 x 1050
Bucket rod cylinders - Number × diameter × stroke (mm)1-135 x 95 x 1538
Boom cylinders - Number × diameter × stroke (mm)2-120 x 85 x 1245
Fuel Tank (L)350
Hydraulic Tank (L)240
Engine Oil changes (L)28
Coolant (L)42
Total transport length (mm)9600
Total transport width (mm)2800
Total transport height (mm)2870(to top of boom)
Full cab height (mm)3000
Counterweight ground clearance (mm)1105
Minimum ground clearance (mm)480
Minimum turning radius of front working device (mm)3960
Back end turning radius (mm)2840
Total track length (mm)4065
Track plate width (mm)600
Total track width (mm)2800
Maximum digging radius (mm)9970
Maximum digging depth (mm)6660
Maximum excavation height (mm)9660
Maximum unloading height (mm)6810
Maximum vertical digging depth (mm)5600
Maximum excavation radius of stop surface (mm)9780
see more

Overview

No.1085086

Brand Name:

Doosan

Model Number:

DH215-9

Year:

2014

Location:

Hunan China

Pub Date
