Product Description

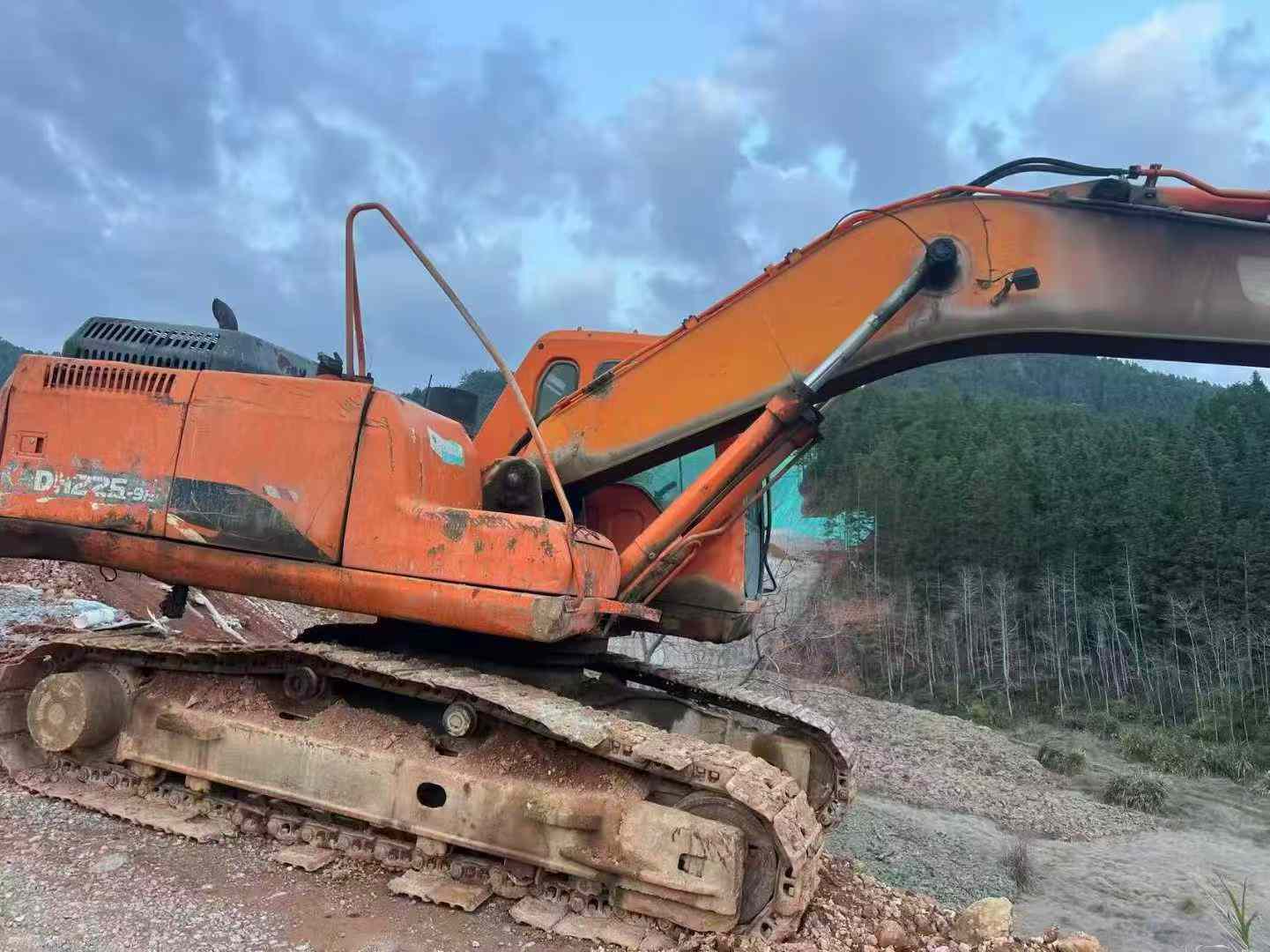

Built for high-output earthmoving and excavation work, this 2016 Doosan DH215-9 delivers 110kW of Doosan DE08TIS power across 21 tons of proven hydraulic performance. Operating weight of 21,000kg provides the stability needed for deep trenching, foundation work, and site preparation, while dual variable piston pumps push 422 L/min combined flow for responsive digging cycles. Maximum digging depth reaches 6,660mm with a 9,970mm working radius, handling everything from utility installation to mass excavation projects.
- 0.86-1.0m³ bucket capacity tackles varied material loads
- 5,700mm boom and 2,900mm arm optimize reach and breakout force

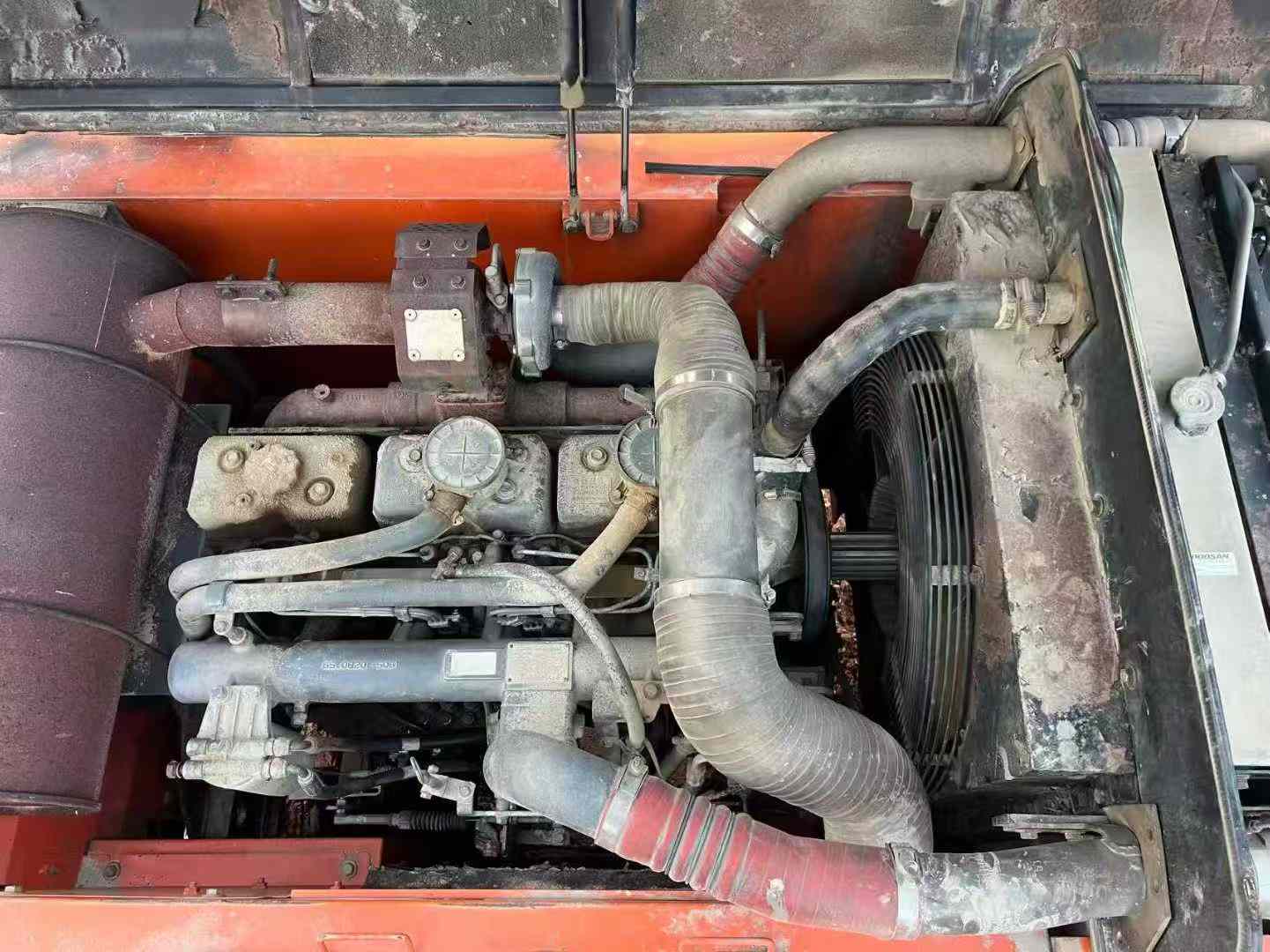

- Water-cooled 6-cylinder engine (8.071L displacement) ensures reliable performance
- 34.3 MPa working hydraulic circuit delivers strong cylinder force
- 12.4 RPM swing speed and 5.4 km/h travel speed maintain productivity
- 350L fuel tank supports extended operating shifts
- Currently located in Jinhua, Zhejiang—ready for immediate deployment
Equipped with factory backhoe configuration and axial piston hydraulic motors, this machine is field-ready for contractors requiring dependable mid-size excavation capacity on grading, demoli
| Specifications | Value |
|---|---|
| No. | 1031935 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21000 |
| Bucket capacity (m³) | 0.86/1.0 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Yantai, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Doosan Doosan DE08TIS |
| Rated power (kw/rpm) | 110/1950 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.071 |
| Working form | Direct injection mechanically controlled engine |
| Ground specific pressure (Kpa) | 49 |
| Rotation speed (rpm) | 12.4 |
| Travel speed (km/h) | 5.4/3.1 |
| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |
| Maximum flow of main pump (l/min) | 2 x 211 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Rotary Hydraulic Circuit (Mpa) | 27.5 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | Standard 32.4/ Supercharged 34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 80 x 1050 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135 x 95 x 1538 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 85 x 1245 |
| Fuel Tank (L) | 350 |
| Hydraulic Tank (L) | 240 |
| Engine Oil changes (L) | 28 |
| Coolant (L) | 42 |
| Total transport length (mm) | 9600 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2870(to top of boom) |
| Full cab height (mm) | 3000 |
| Counterweight ground clearance (mm) | 1105 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 3960 |
| Back end turning radius (mm) | 2840 |
| Total track length (mm) | 4065 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Maximum digging radius (mm) | 9970 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6810 |
| Maximum vertical digging depth (mm) | 5600 |
| Maximum excavation radius of stop surface (mm) | 9780 |
