Product Description

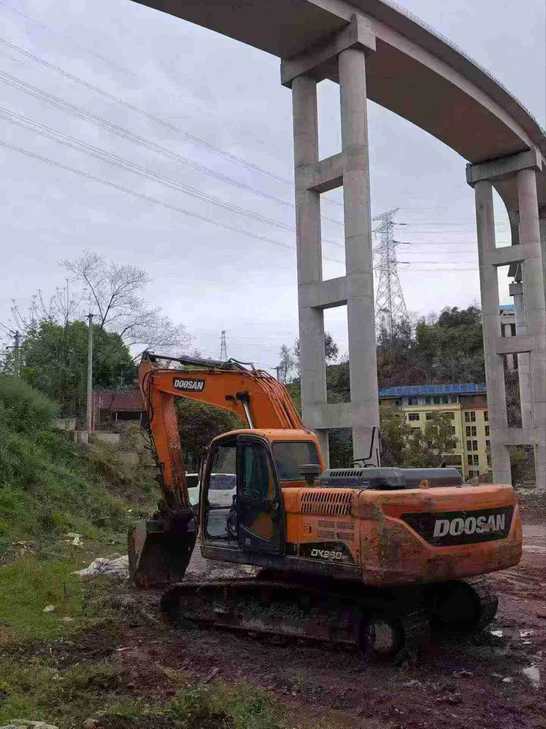

Proven performance meets exceptional value in this 2020 Doosan DH215-9 excavator, now available from our Luzhou, Sichuan facility. Built at Doosan's Yantai manufacturing base, this 21-ton workhorse delivers reliable productivity backed by one of the industry's most trusted names in heavy equipment. Operating weight of 21,000 kg combines with a robust Doosan DE08TIS engine producing 110 kW at 1950 rpm, ensuring consistent power delivery across demanding jobsites.
Doosan's reputation for durability translates directly into lower ownership costs. Parts availability throughout global markets means minimal downtime, while the brand's strong resale value protects your investment. Technical specifications include a 5700mm boom, 2900mm arm, and bucket capacities of 0.86-1.0 m³, providing maximum digging depth of 6660mm and reach extending to 9970mm.
- Water-cooled 6-cylinder engine with 8.071L displacement
- Dual variable piston pumps delivering 2 × 211 L/min flow
- 350L fuel capacity for extended operation
- 600mm track plates with 2800mm gauge width
- Compact transport dimensions: 9600mm × 2800mm × 2870mm
Backed by Doosan's joint-venture manufacturing quality and comprehensive
| Specifications | Value |
|---|---|
| No. | 1045722 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21000 |
| Bucket capacity (m³) | 0.86/1.0 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Yantai, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Doosan Doosan DE08TIS |
| Rated power (kw/rpm) | 110/1950 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.071 |
| Working form | Direct injection mechanically controlled engine |
| Ground specific pressure (Kpa) | 49 |
| Rotation speed (rpm) | 12.4 |
| Travel speed (km/h) | 5.4/3.1 |
| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |
| Maximum flow of main pump (l/min) | 2 x 211 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Rotary Hydraulic Circuit (Mpa) | 27.5 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | Standard 32.4/ Supercharged 34.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 80 x 1050 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135 x 95 x 1538 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 85 x 1245 |
| Fuel Tank (L) | 350 |
| Hydraulic Tank (L) | 240 |
| Engine Oil changes (L) | 28 |
| Coolant (L) | 42 |
| Total transport length (mm) | 9600 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2870(to top of boom) |
| Full cab height (mm) | 3000 |
| Counterweight ground clearance (mm) | 1105 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 3960 |
| Back end turning radius (mm) | 2840 |
| Total track length (mm) | 4065 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Maximum digging radius (mm) | 9970 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6810 |
| Maximum vertical digging depth (mm) | 5600 |
| Maximum excavation radius of stop surface (mm) | 9780 |
