Product Description

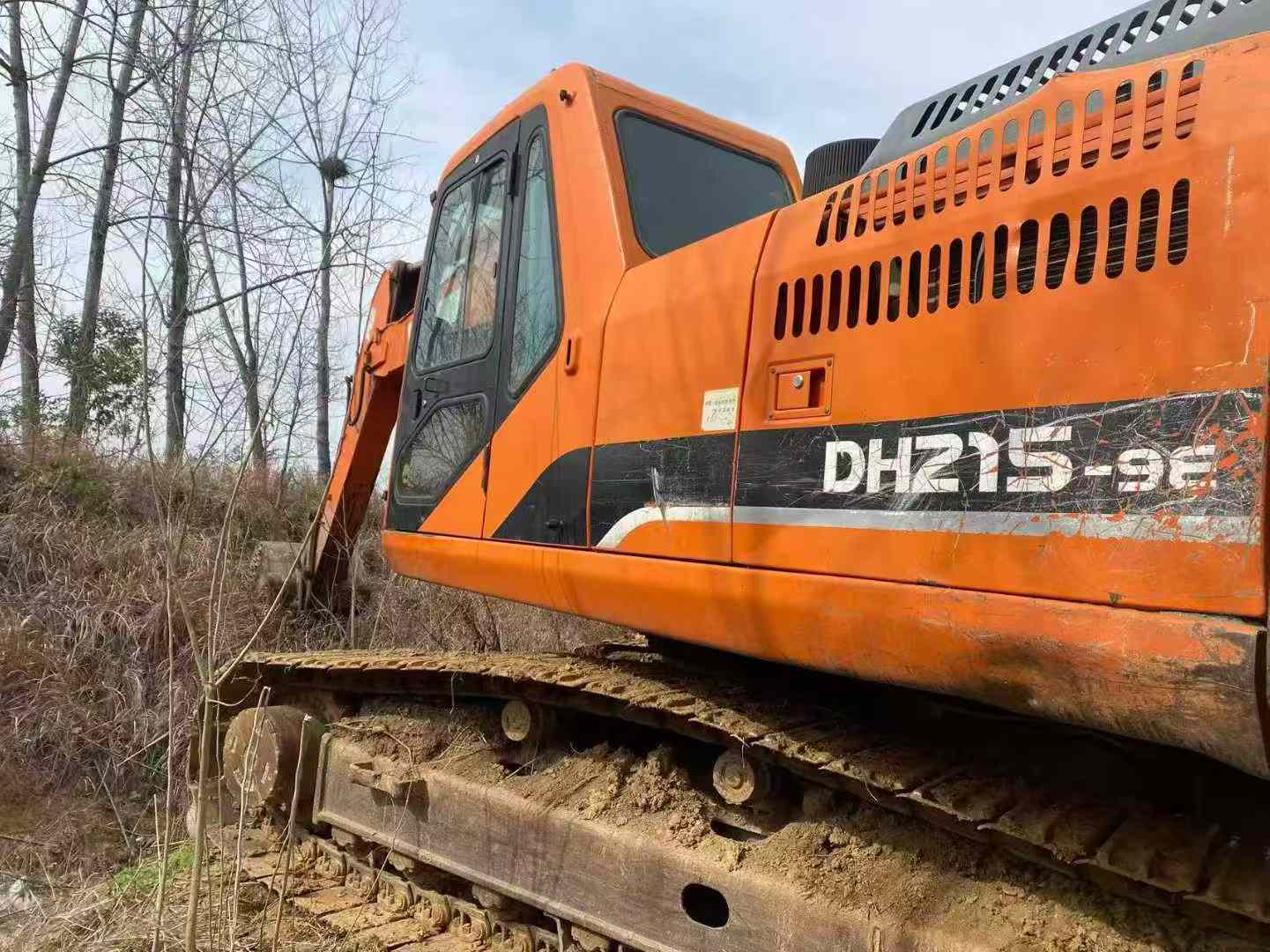

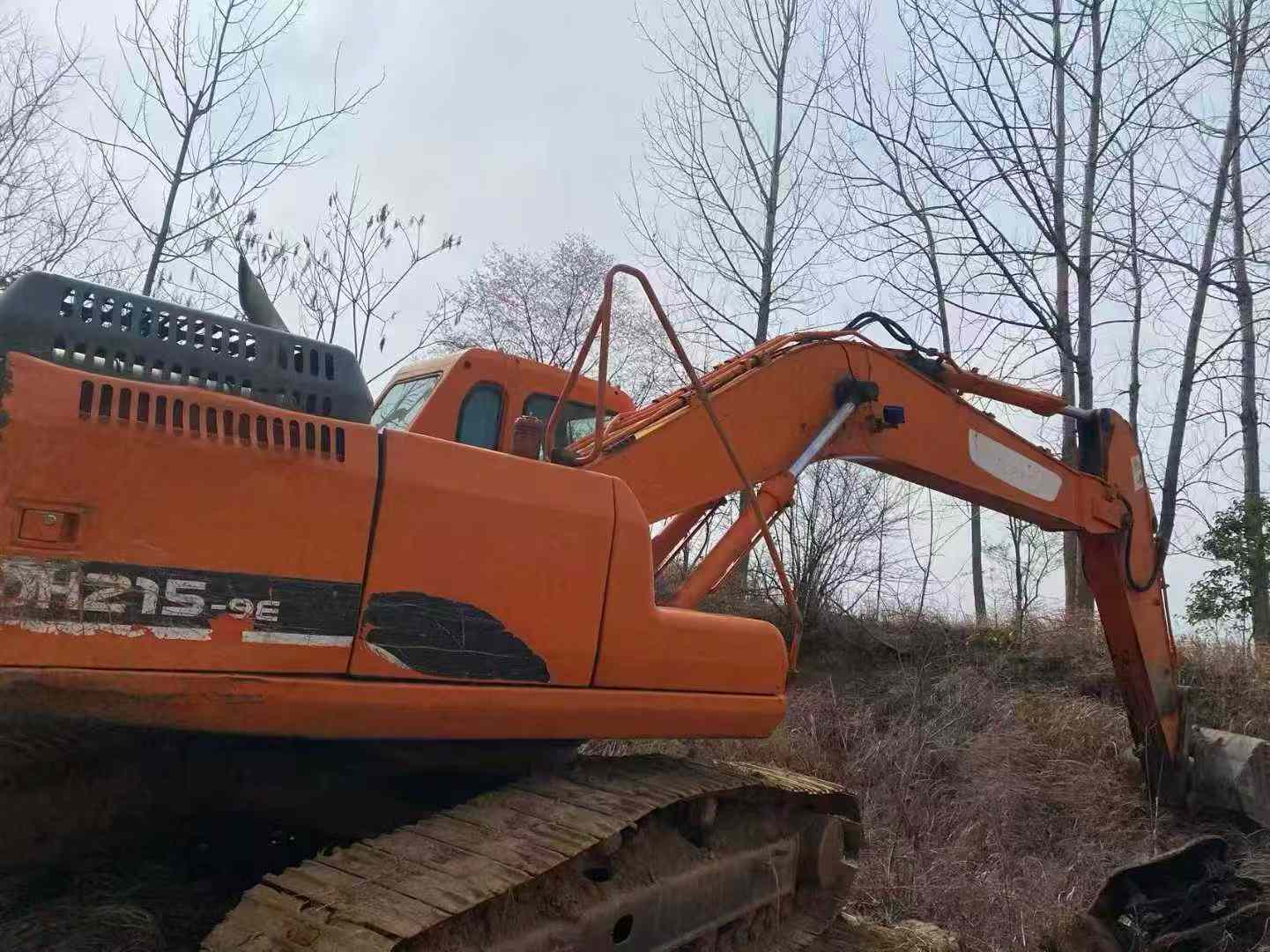

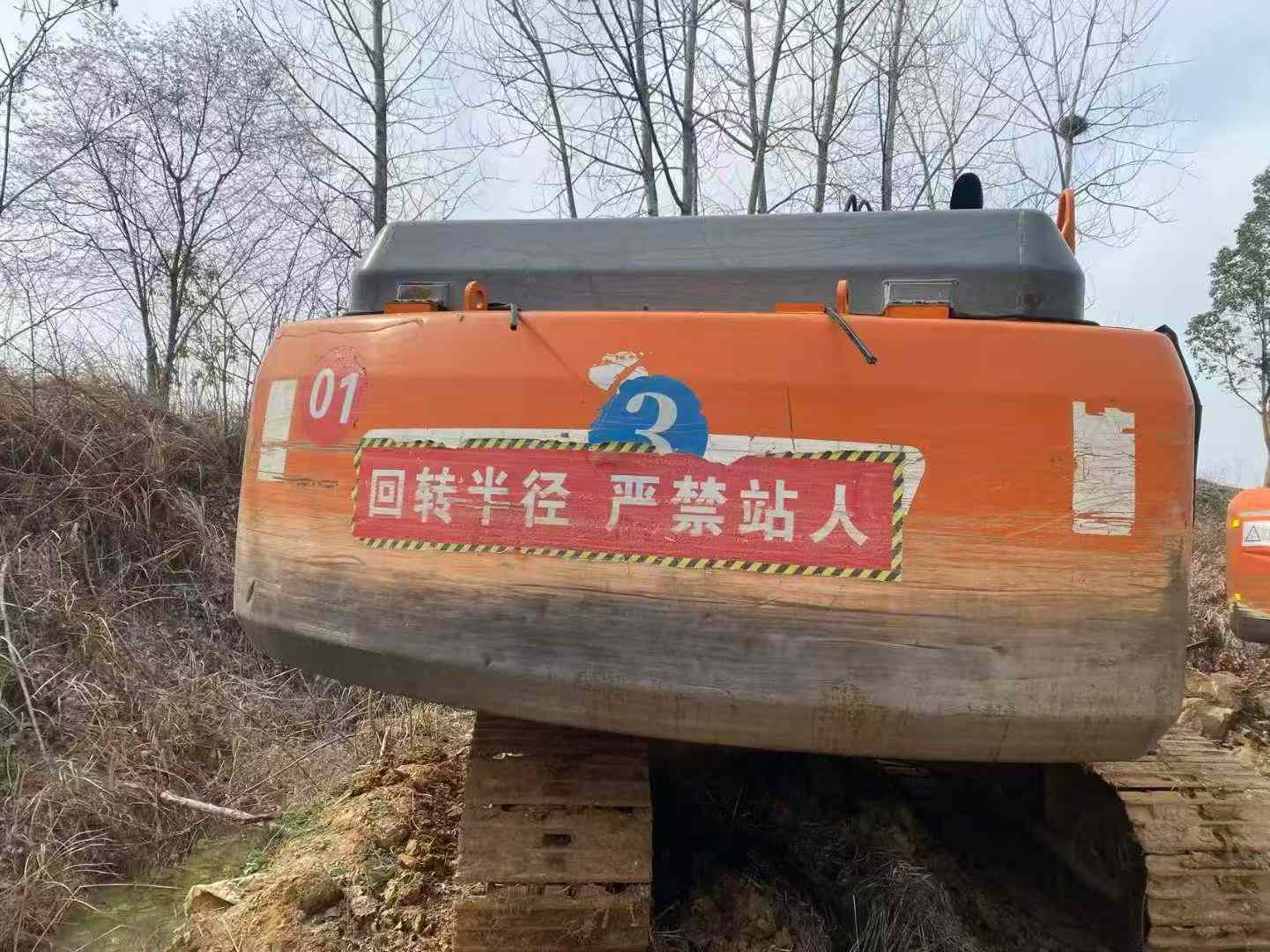

Proven over a decade of demanding service, this 2013 Doosan DH215-9E excavator exemplifies the durability that built the brand's reputation. Operating at 22 tons with a robust 21,300 kg working weight, this machine delivers consistent performance through its DE08TIS engine generating 110 kW at 1950 rpm. Manufactured as a joint venture import from Yantai, Shandong Province, it combines proven mechanical engineering with field-tested reliability.
With an impressive 9,965 mm maximum digging radius and 6,655 mm digging depth, this workhorse tackles substantial excavation projects with authority. The 0.86 m³ bucket capacity, backed by 144.1 kN digging force, moves material efficiently shift after shift. Twin variable piston pumps supply 2 x 212 l/min flow to the hydraulic system, ensuring responsive control across all functions.
- Working Weight: 21,300 kg with 5,700 mm boom, 2,900 mm arm
- Power System: 8.07L turbocharged diesel, mechanically controlled
- Hydraulic Performance: 32.4 MPa working pressure, dual axial plunger travel motors
- Transport Dimensions: 9,645 mm L × 2,990 mm W × 3,025 mm H
- Current Location: Jinhua, Zhejiang Province
Built to endure, engineered to pe
| Specifications | Value |
|---|---|
| No. | 1026441 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 21300 |
| Bucket capacity (m³) | 0.86 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Yantai, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

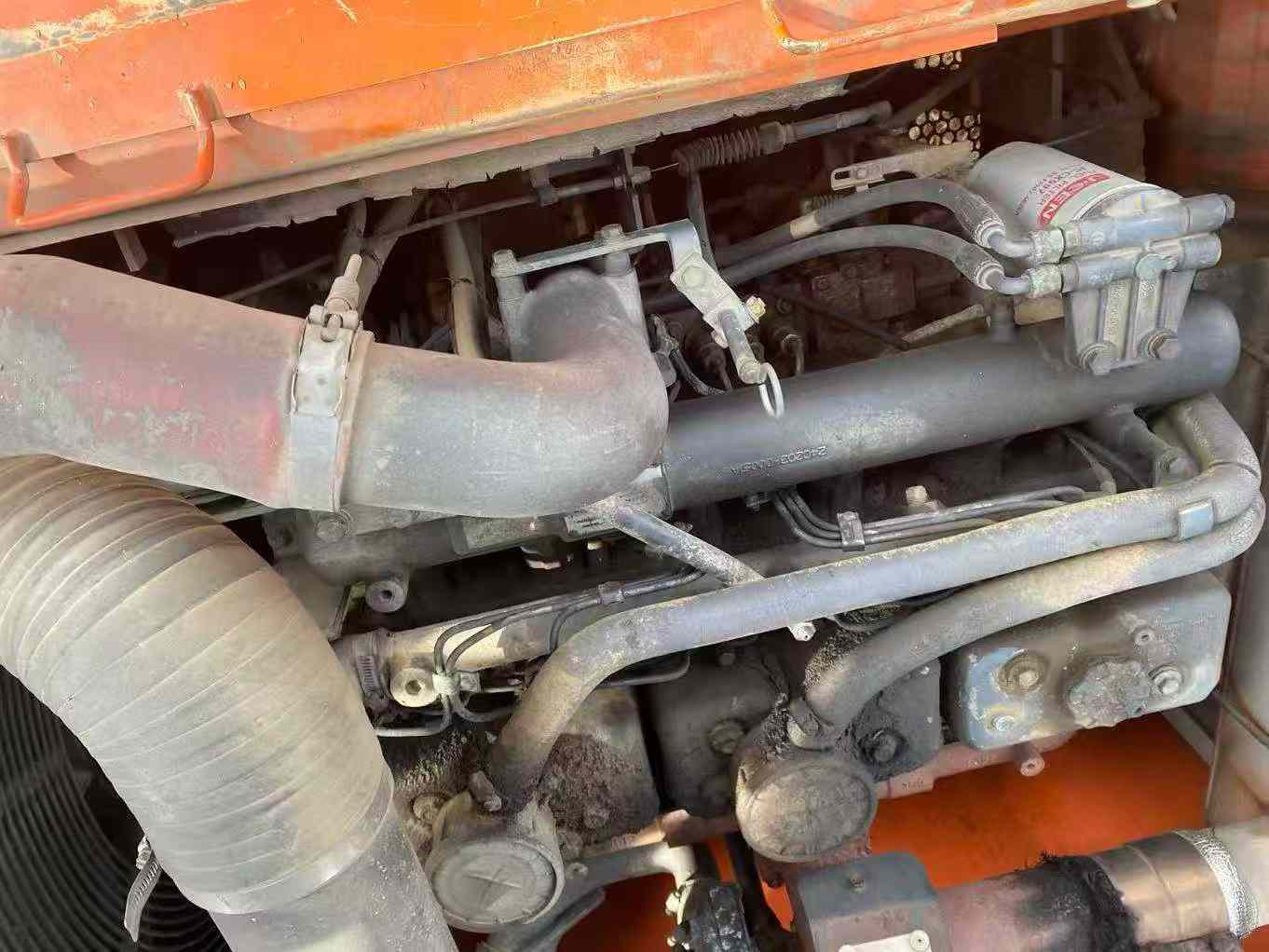

| Engine type | DE08TIS |
| Rated power (kw/rpm) | 110 / 1950 |
| Cylinder diameter × stroke (mm) | 111 x 139 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.07 |
| Working form | Direct injection type; Mechanically controlled engine; turbocharging |
| Ground specific pressure (Kpa) | 49 |
| Rotation speed (rpm) | 12.4 |
| Bucket digging force (kN) | 144.1 |
| Rod digging force (kN) | 102.9 |
| Travel speed (km/h) | 5.4 / 3.1 |
| Turning torque (Nm) | 61.5 |

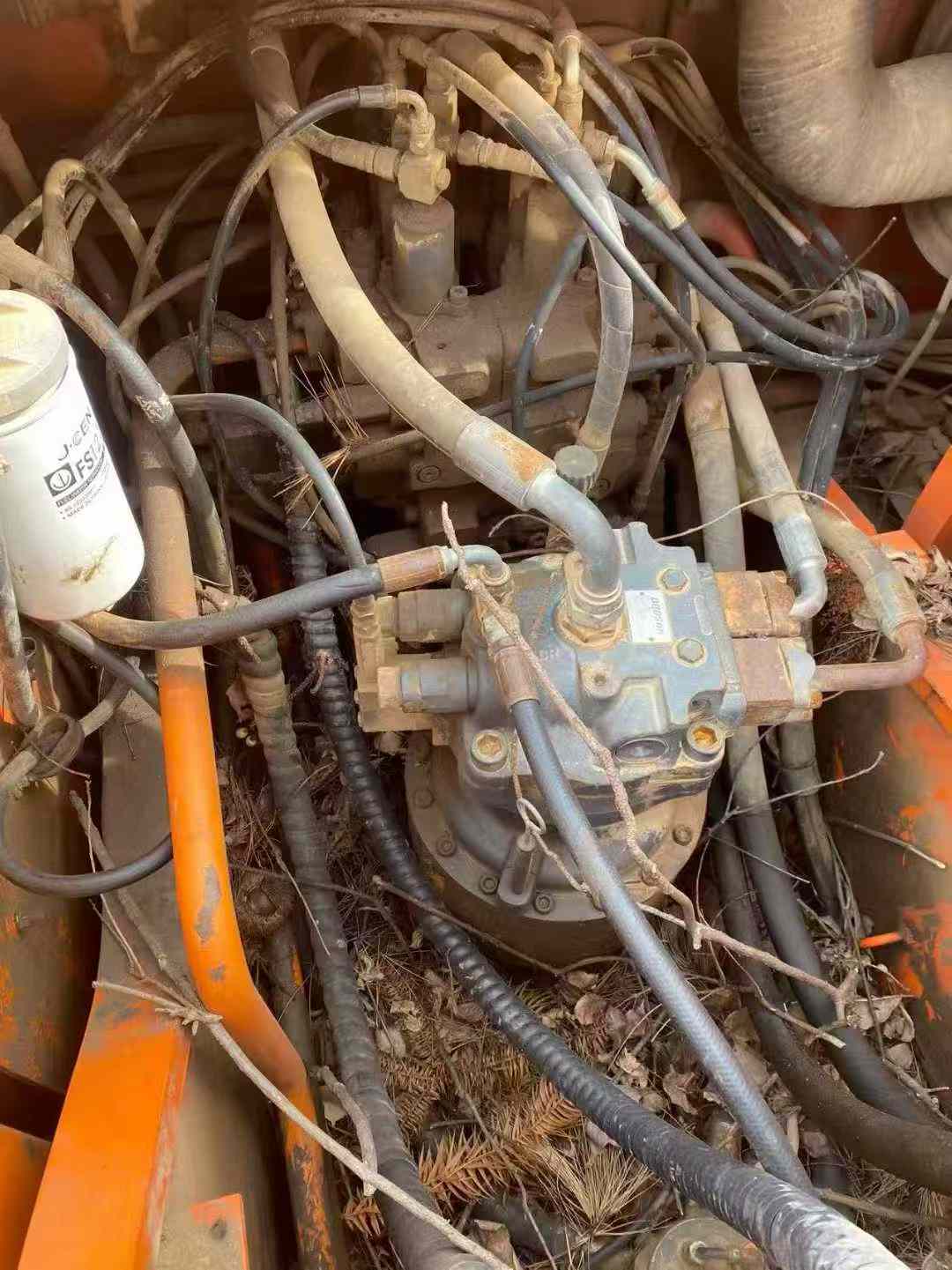

| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |
| Maximum flow of main pump (l/min) | 2 x 212 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Rotary Hydraulic Circuit (Mpa) | 27.5 |

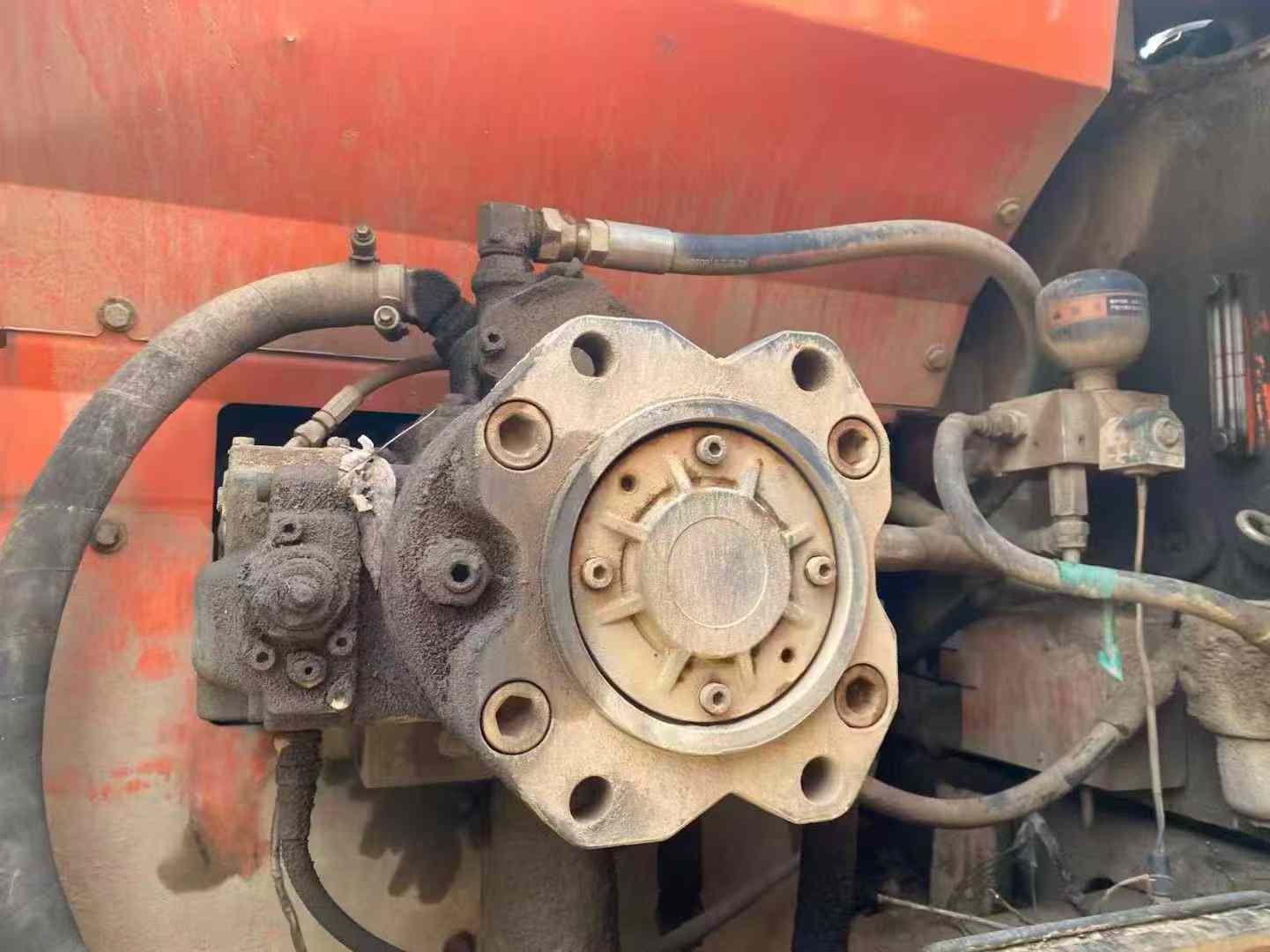

| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 32.4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 80 x 1050 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135 x 95 x 1538 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 85 x 1280 |
| Fuel Tank (L) | 310 |
| Hydraulic Tank (L) | 135 |
| Engine Oil changes (L) | 32 |
| Coolant (L) | 42 |
| Total transport length (mm) | 9645 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3025 (to top of cab) |
| Full cab height (mm) | 3025 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 3685 |

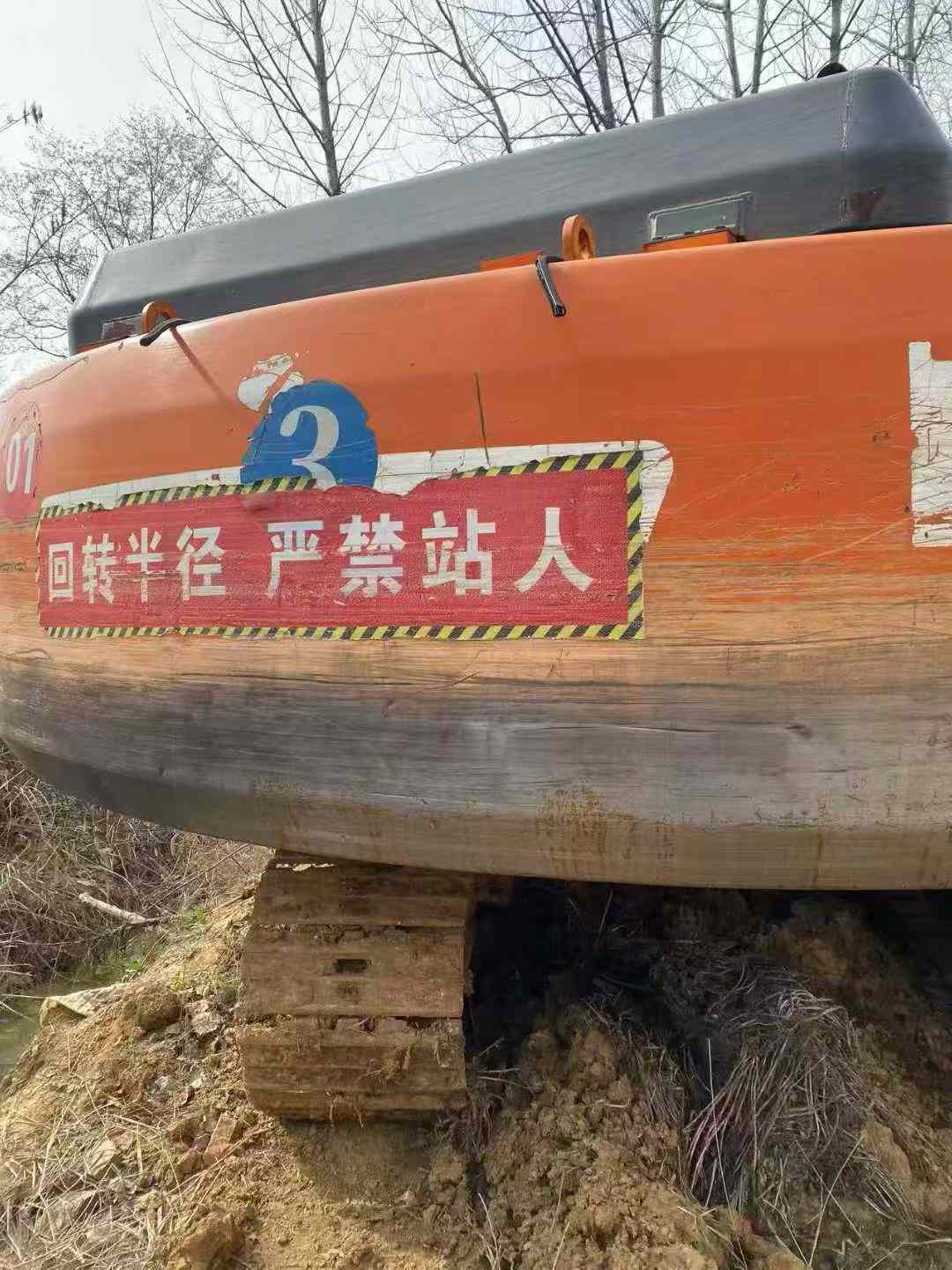

| Back end turning radius (mm) | 2840 |

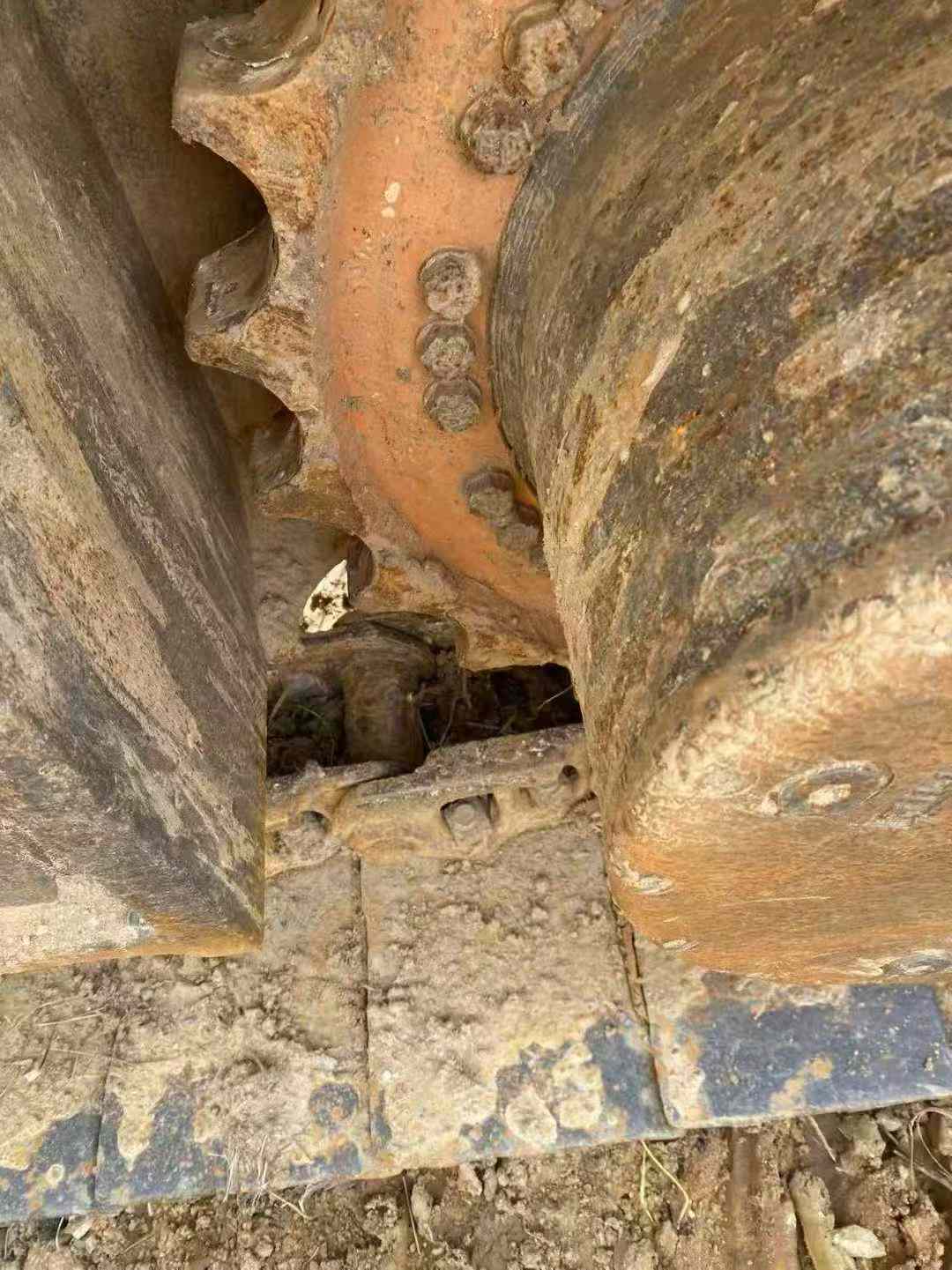

| Total track length (mm) | 4070 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Maximum digging radius (mm) | 9965 |
| Maximum digging depth (mm) | 6655 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6800 |
| Maximum vertical digging depth (mm) | 5980 |
| Maximum excavation radius of stop surface (mm) | 9780 |
| Maximum effective digging depth (mm) | 6470 |
