Product Description

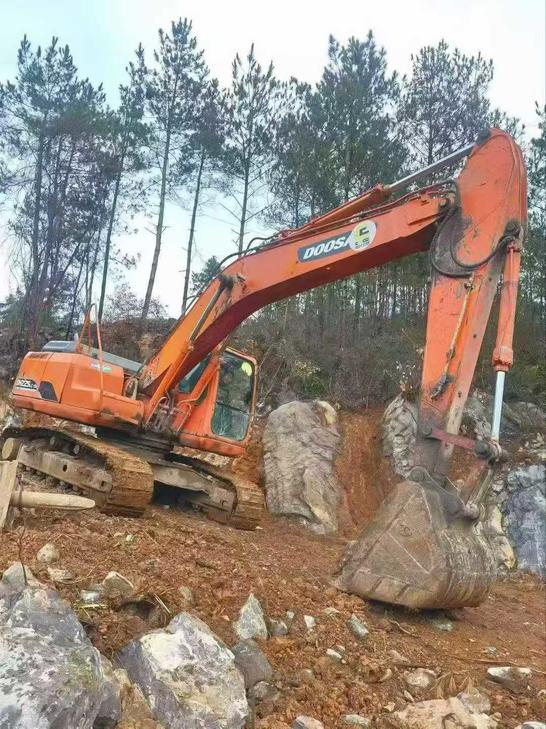

Expand your operational capacity with this 2016 Doosan DH215-9E excavator, a proven 22-ton workhorse built for demanding job sites. Powered by a robust DE08TIS engine delivering 110 kW at 1950 rpm, this machine provides consistent performance whether you're running sequential projects or managing workload peaks across multiple sites.
Engineered in Yantai with joint-venture precision, the DH215-9E combines a 5700mm boom and 2900mm arm to deliver 9965mm maximum digging reach and 6655mm digging depth. Dual variable piston pumps supply 424 L/min total flow, ensuring responsive hydraulics during high-demand cycles. The 0.86 m³ backhoe bucket generates 144.1 kN digging force, while the mechanically-controlled turbocharged engine maintains fuel efficiency in the 310L tank.
Key Fleet Benefits:
- 21,300 kg working weight offers stability without transport complications
- 12.4 rpm rotation speed accelerates load-cycle times
- 600mm track plates distribute 49 kPa ground pressure across soft terrain
- Compact 2840mm rear swing radius enables confined-area maneuverability
- Currently located in Chongqing for expedited deployment
Add reliable tonnage to your fl
| Specifications | Value |
|---|---|
| No. | 1019688 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 21300 |
| Bucket capacity (m³) | 0.86 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Yantai, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | DE08TIS |
| Rated power (kw/rpm) | 110 / 1950 |
| Cylinder diameter × stroke (mm) | 111 x 139 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.07 |
| Working form | Direct injection type; Mechanically controlled engine; turbocharging |
| Ground specific pressure (Kpa) | 49 |
| Rotation speed (rpm) | 12.4 |
| Bucket digging force (kN) | 144.1 |
| Rod digging force (kN) | 102.9 |
| Travel speed (km/h) | 5.4 / 3.1 |
| Turning torque (Nm) | 61.5 |
| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |
| Maximum flow of main pump (l/min) | 2 x 212 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Rotary Hydraulic Circuit (Mpa) | 27.5 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 32.4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 80 x 1050 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135 x 95 x 1538 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 85 x 1280 |
| Fuel Tank (L) | 310 |
| Hydraulic Tank (L) | 135 |
| Engine Oil changes (L) | 32 |
| Coolant (L) | 42 |
| Total transport length (mm) | 9645 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3025 (to top of cab) |
| Full cab height (mm) | 3025 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 3685 |
| Back end turning radius (mm) | 2840 |
| Total track length (mm) | 4070 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Maximum digging radius (mm) | 9965 |
| Maximum digging depth (mm) | 6655 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6800 |
| Maximum vertical digging depth (mm) | 5980 |
| Maximum excavation radius of stop surface (mm) | 9780 |
| Maximum effective digging depth (mm) | 6470 |
