Product Description
Ready to deploy from 湖南 (Hunan), this 2016 Doosan DH215-9E excavator eliminates factory wait times and accelerates your project timeline. Built for the 22-ton class with a robust 21,300 kg working weight, this machine delivers 144.1 kN bucket digging force and reaches 9,965 mm maximum digging radius—ideal for infrastructure, earthmoving, and site preparation work across China and beyond.

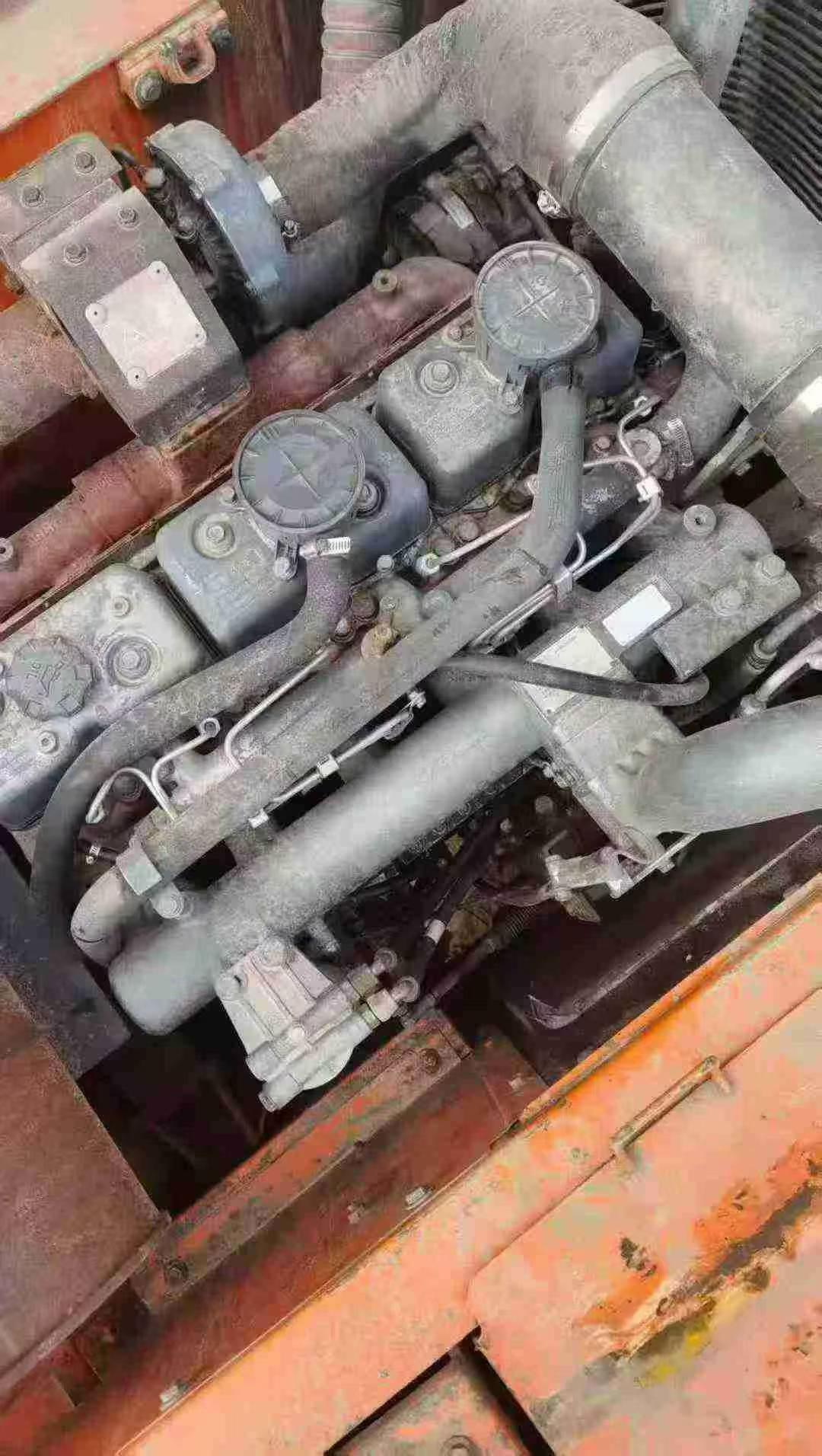

Powered by a reliable DE08TIS engine producing 110 kW at 1,950 rpm, this backhoe excavator combines proven hydraulics with efficient fuel consumption. Dual variable piston pumps supply 2 × 212 l/min flow, while the 0.86 m³ bucket capacity handles high-volume excavation tasks with consistent performance.
- Available Now: Skip months of production delays—this unit ships directly from 湖南
- Fast Deployment: Compact transport dimensions (9,645 × 2,990 × 3,025 mm) simplify logistics
- Proven Performance: 6,655 mm digging depth and 9,660 mm digging height for versatile applications
- Efficient Operation: 310 L fuel tank and 135 L hydraulic reservoir support extended work cycles
Secure immediate equipment availability and maintain proj
| Specifications | Value |
|---|---|
| No. | 1024022 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 21300 |
| Bucket capacity (m³) | 0.86 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Yantai, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | DE08TIS |
| Rated power (kw/rpm) | 110 / 1950 |
| Cylinder diameter × stroke (mm) | 111 x 139 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.07 |
| Working form | Direct injection type; Mechanically controlled engine; turbocharging |
| Ground specific pressure (Kpa) | 49 |
| Rotation speed (rpm) | 12.4 |
| Bucket digging force (kN) | 144.1 |
| Rod digging force (kN) | 102.9 |
| Travel speed (km/h) | 5.4 / 3.1 |
| Turning torque (Nm) | 61.5 |
| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |
| Maximum flow of main pump (l/min) | 2 x 212 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Rotary Hydraulic Circuit (Mpa) | 27.5 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 32.4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 80 x 1050 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135 x 95 x 1538 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 85 x 1280 |
| Fuel Tank (L) | 310 |
| Hydraulic Tank (L) | 135 |
| Engine Oil changes (L) | 32 |
| Coolant (L) | 42 |
| Total transport length (mm) | 9645 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3025 (to top of cab) |
| Full cab height (mm) | 3025 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 3685 |
| Back end turning radius (mm) | 2840 |
| Total track length (mm) | 4070 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Maximum digging radius (mm) | 9965 |
| Maximum digging depth (mm) | 6655 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6800 |
| Maximum vertical digging depth (mm) | 5980 |
| Maximum excavation radius of stop surface (mm) | 9780 |
| Maximum effective digging depth (mm) | 6470 |
