Product Description

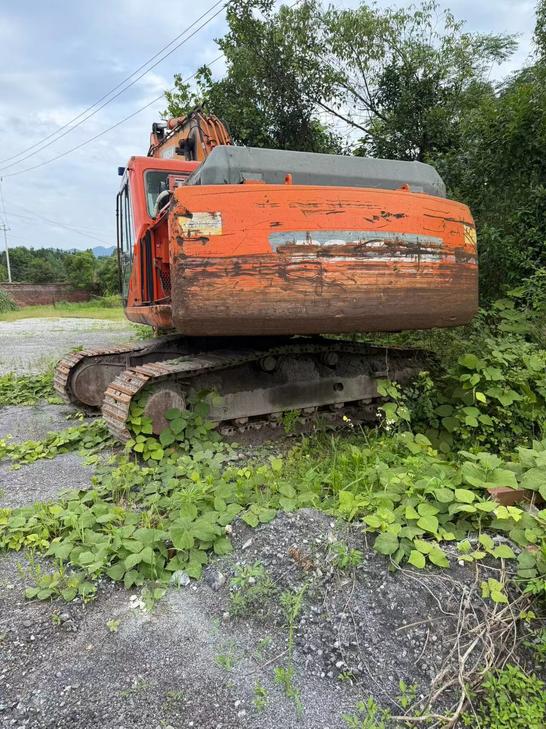

This 2020 Doosan DH215-9E hydraulic excavator is currently available in Guangdong, China, offering reliable performance for demanding construction and demolition applications. With approximately 7,000+ operating hours, this machine comes equipped with a hydraulic hammer attachment, making it well-suited for breaking, trenching, and general earthmoving tasks.
The DH215-9E features Doosan's proven Stage III emission-compliant engine technology, delivering optimal fuel efficiency and productivity. This unit has been maintained in good working condition and is ready for immediate deployment.
- Year: 2020
- Model: Doosan DH215-9E
- Operating Hours: 7,000+
- Included: Hydraulic hammer attachment
- Location: Guangdong, China
- Condition: Good working order
- Availability: In stock, ready for inspection
Detailed photos and operational videos are available upon request. Contact us to arrange inspection and discuss shipping logistics to your location.
| Specifications | Value |
|---|---|
| No. | 1083968 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 21300 |
| Bucket capacity (m³) | 0.86 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Yantai, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | DE08TIS |
| Rated power (kw/rpm) | 110 / 1950 |
| Cylinder diameter × stroke (mm) | 111 x 139 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.07 |
| Working form | Direct injection type; Mechanically controlled engine; turbocharging |
| Ground specific pressure (Kpa) | 49 |
| Rotation speed (rpm) | 12.4 |
| Bucket digging force (kN) | 144.1 |
| Rod digging force (kN) | 102.9 |
| Travel speed (km/h) | 5.4 / 3.1 |
| Turning torque (Nm) | 61.5 |
| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |
| Maximum flow of main pump (l/min) | 2 x 212 |
| Traveling Hydraulic Circuit (Mpa) | 32.4 |
| Rotary Hydraulic Circuit (Mpa) | 27.5 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 32.4 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 80 x 1050 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135 x 95 x 1538 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 85 x 1280 |
| Fuel Tank (L) | 310 |
| Hydraulic Tank (L) | 135 |
| Engine Oil changes (L) | 32 |
| Coolant (L) | 42 |
| Total transport length (mm) | 9645 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3025 (to top of cab) |
| Full cab height (mm) | 3025 |
| Minimum ground clearance (mm) | 480 |
| Minimum turning radius of front working device (mm) | 3685 |
| Back end turning radius (mm) | 2840 |
| Total track length (mm) | 4070 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Maximum digging radius (mm) | 9965 |
| Maximum digging depth (mm) | 6655 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6800 |
| Maximum vertical digging depth (mm) | 5980 |
| Maximum excavation radius of stop surface (mm) | 9780 |
| Maximum effective digging depth (mm) | 6470 |
