2020 Doosan DH370LC-9

1/9

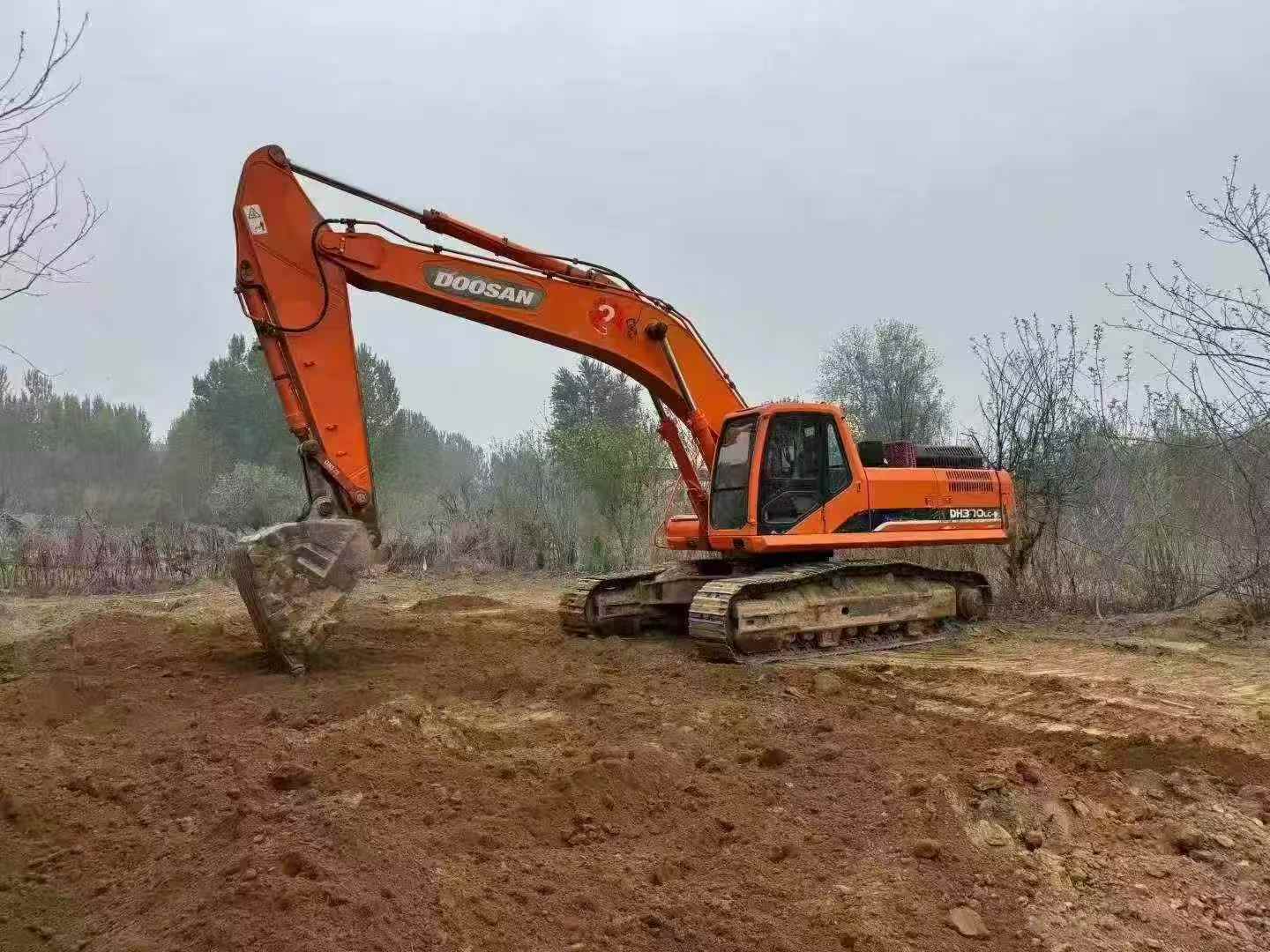

Buy Doosan DH370LC-9 Used Excavator / 1

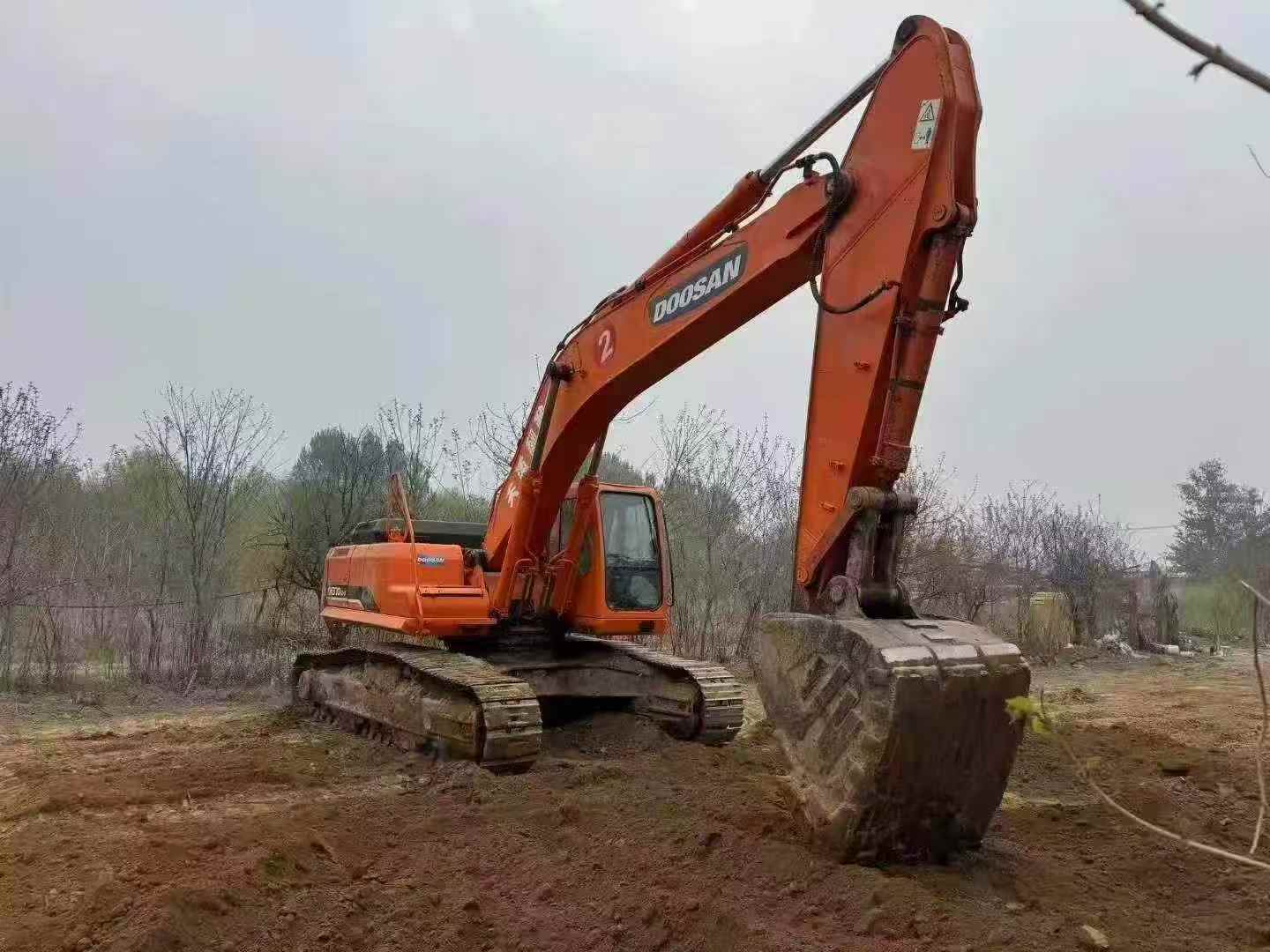

Buy Doosan DH370LC-9 Used Excavator / 2

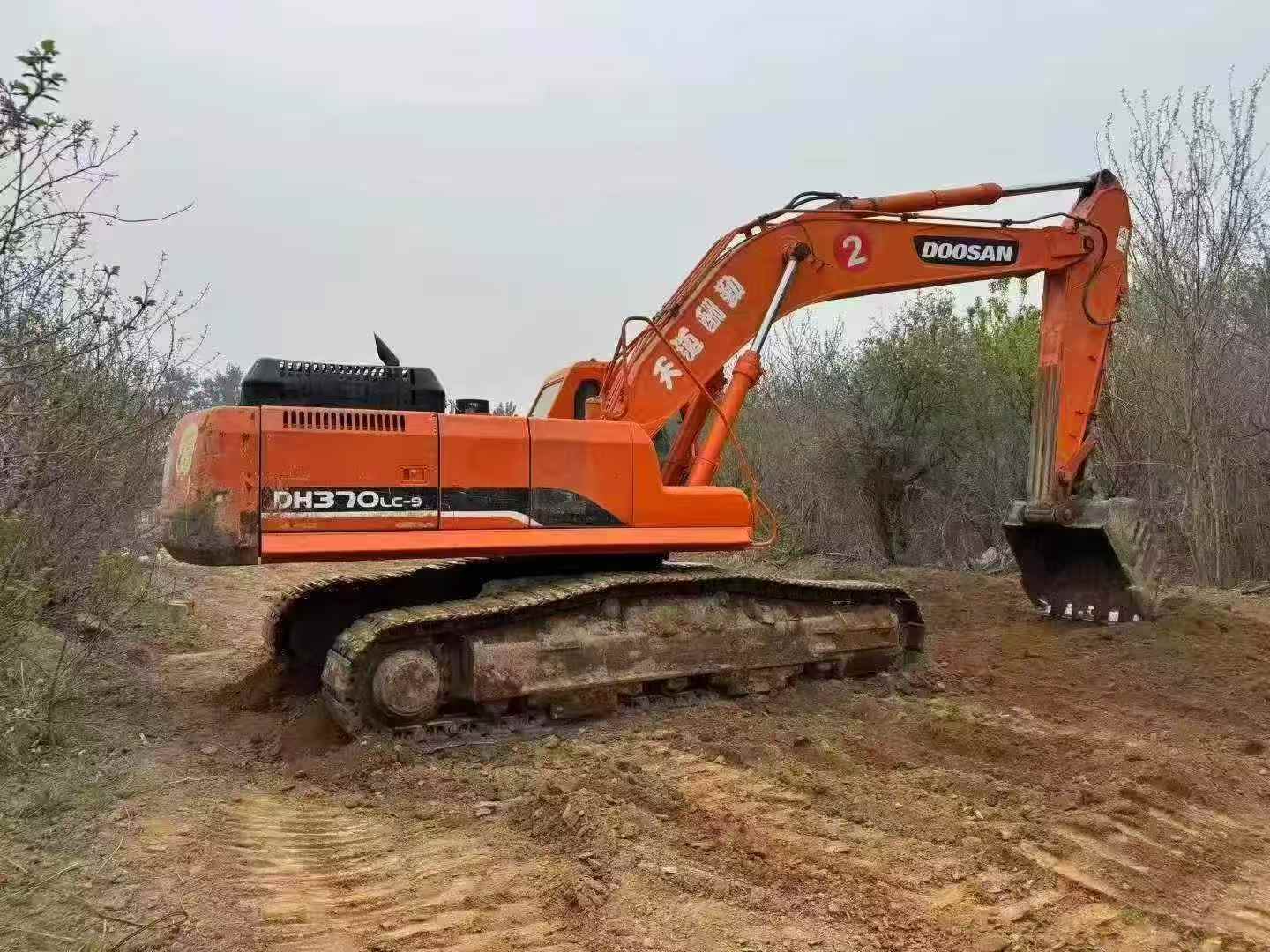

Buy Doosan DH370LC-9 Used Excavator / 3

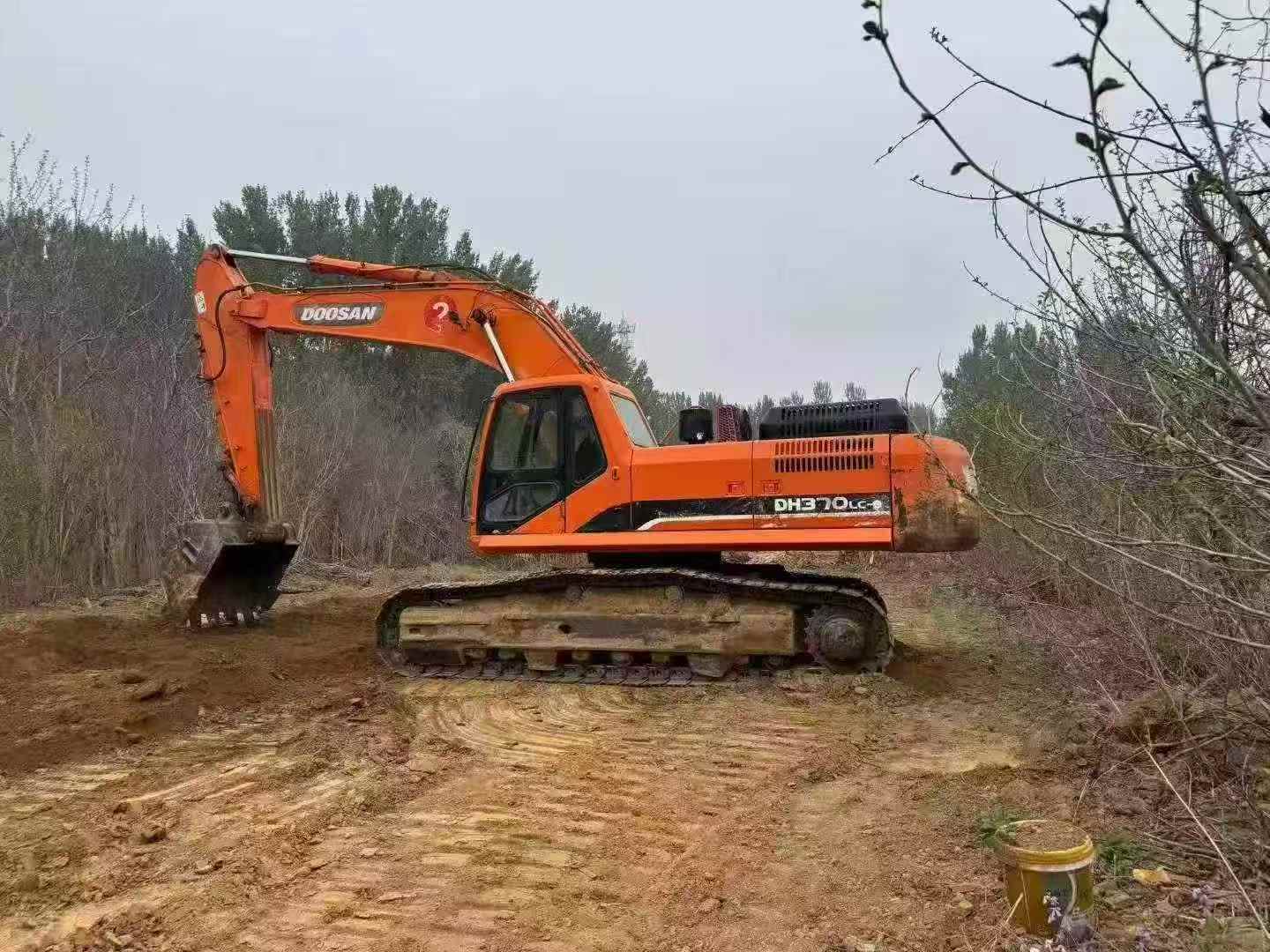

Buy Doosan DH370LC-9 Used Excavator / 4

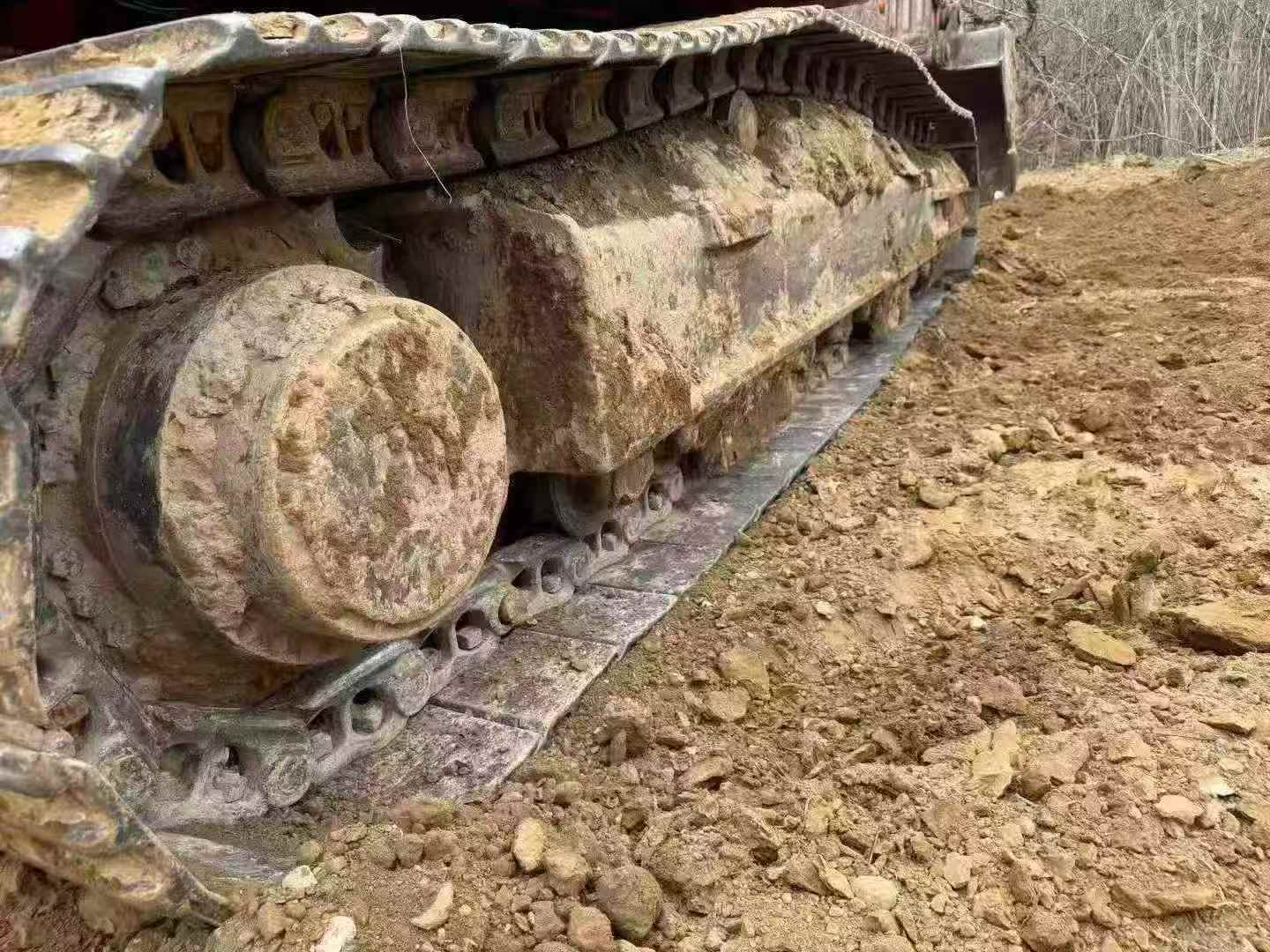

Buy Doosan DH370LC-9 Used Excavator / 5

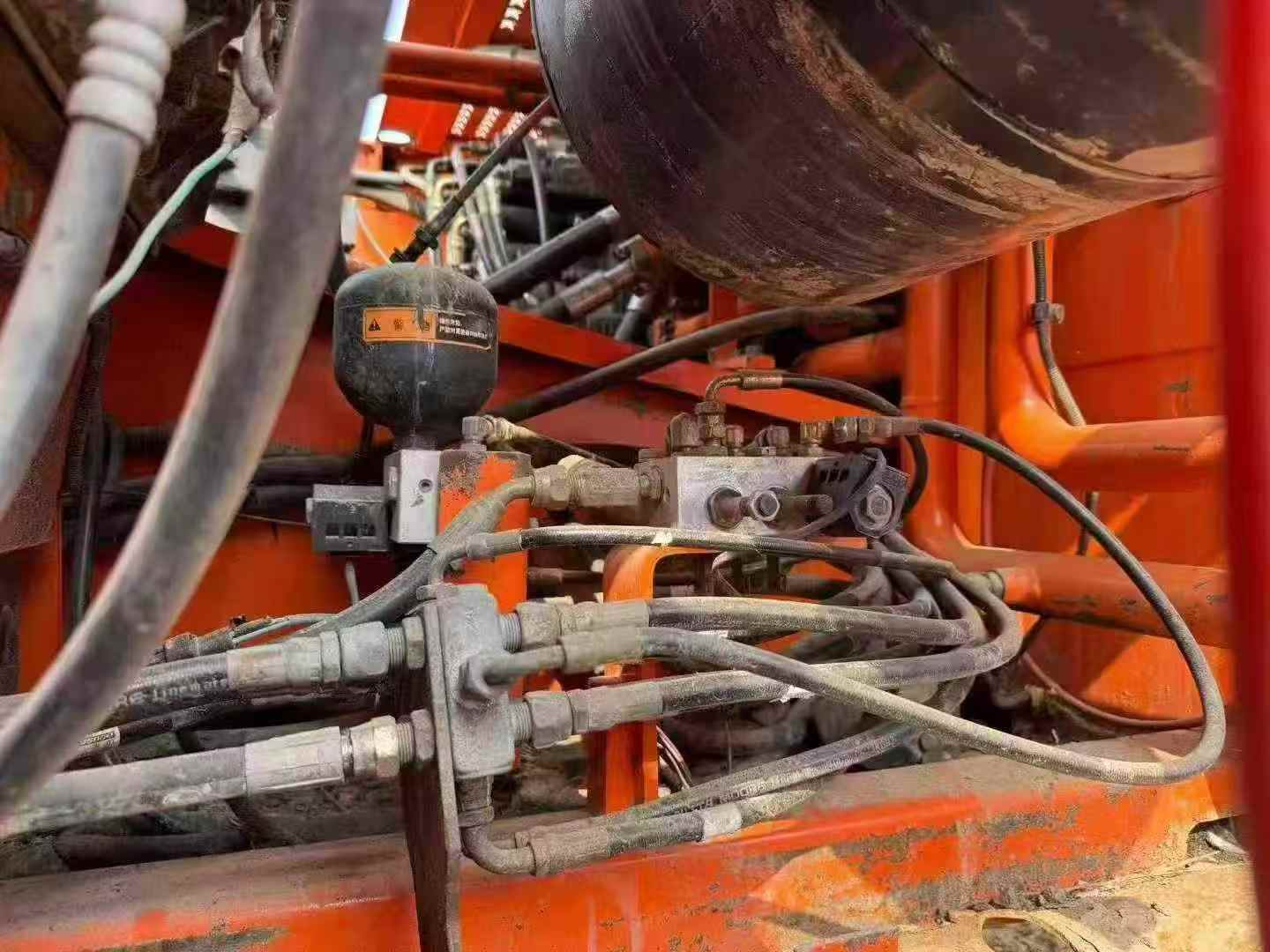

Buy Doosan DH370LC-9 Used Excavator / 6

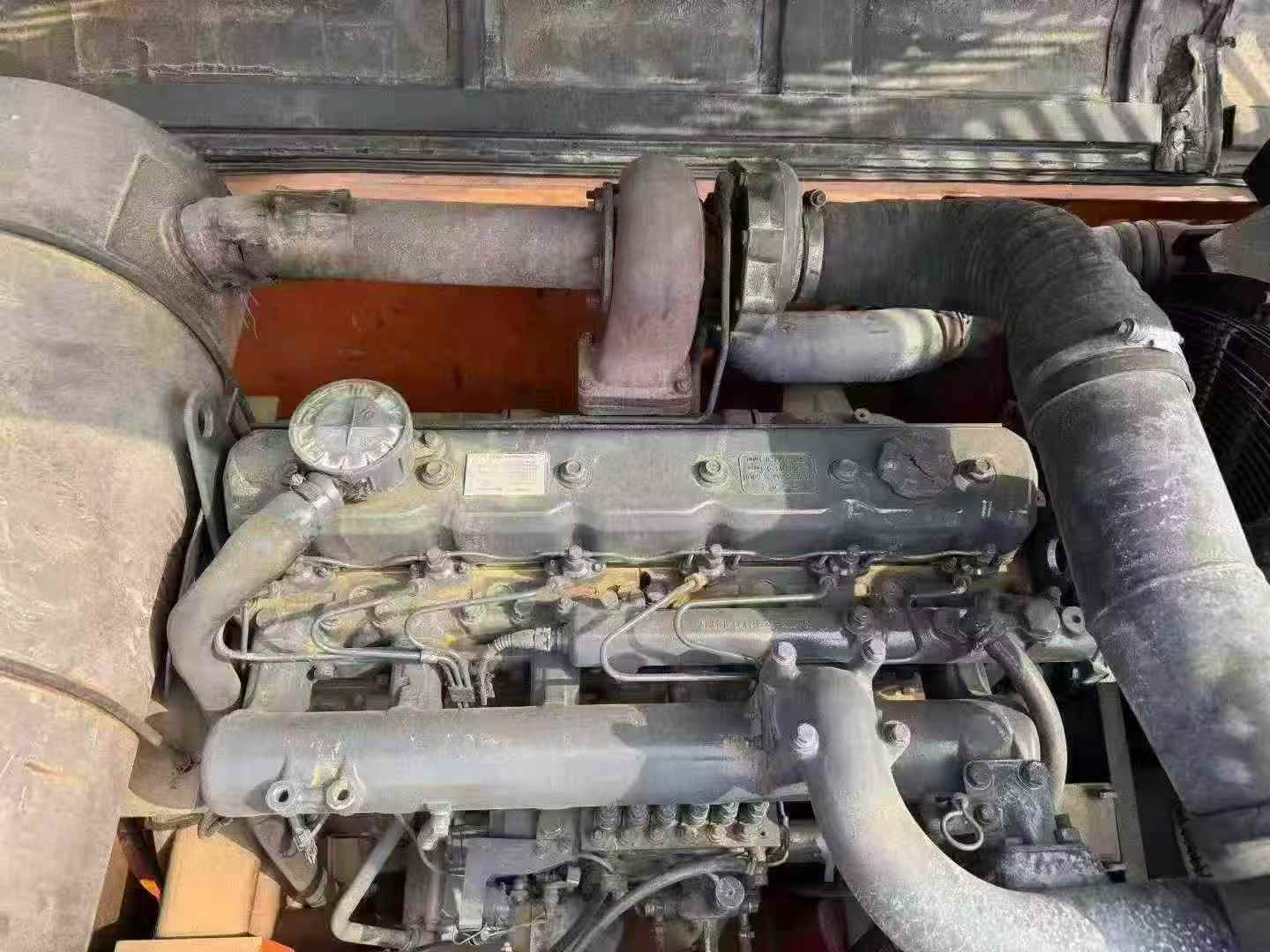

Buy Doosan DH370LC-9 Used Excavator / 7

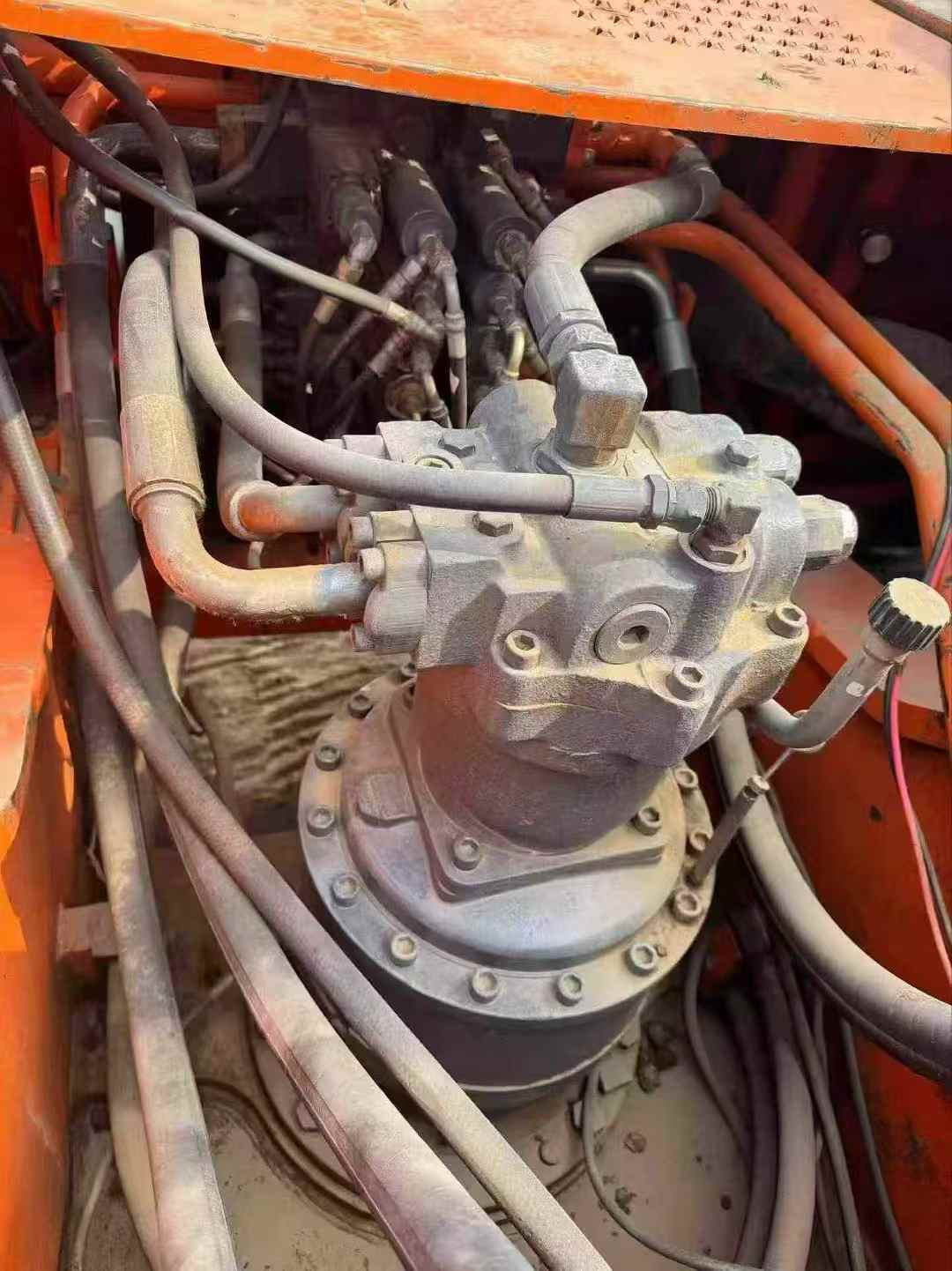

Buy Doosan DH370LC-9 Used Excavator / 8

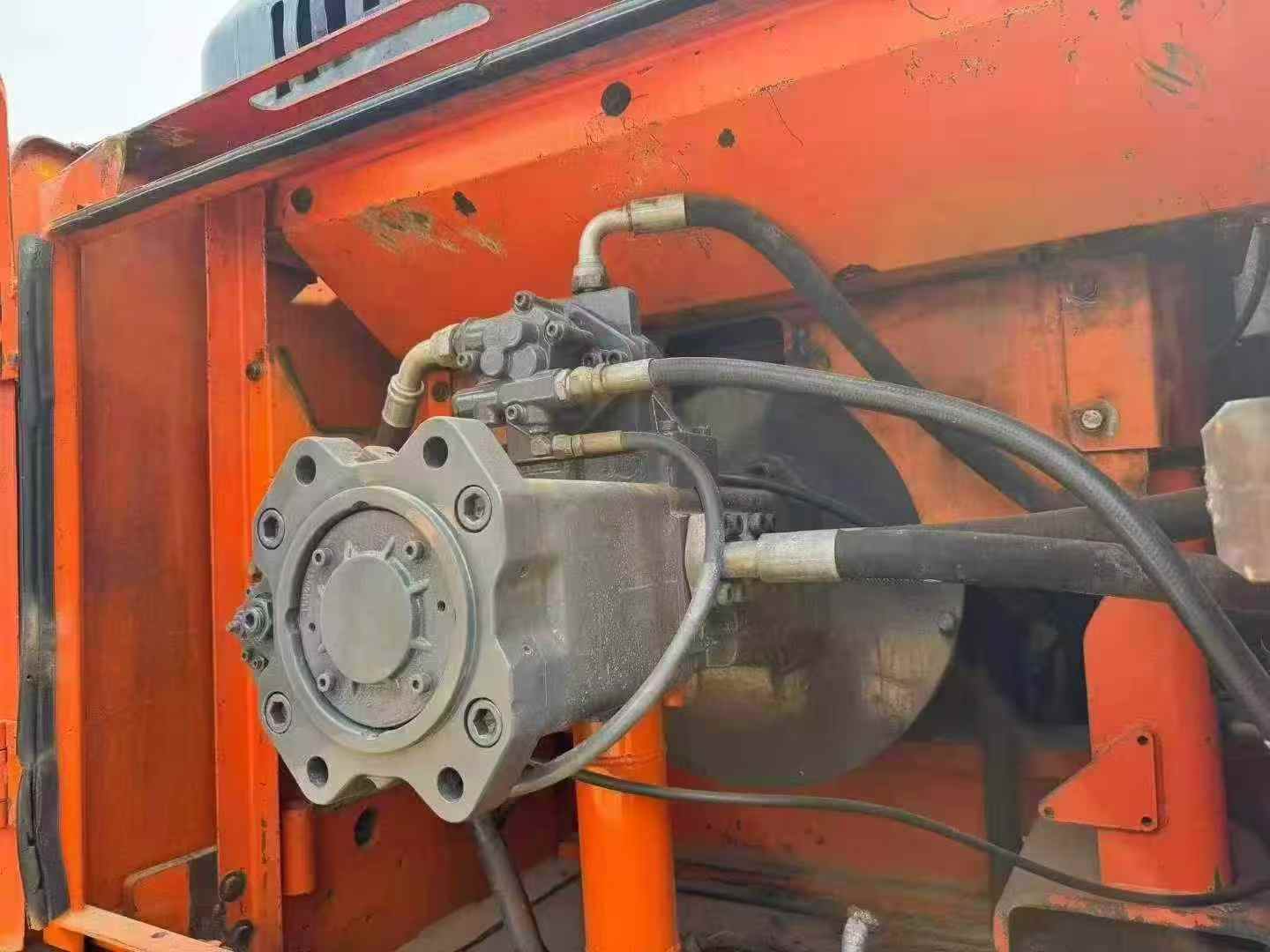

Buy Doosan DH370LC-9 Used Excavator / 9

Product Description

This 2020 Doosan DH370LC-9 hydraulic excavator offers reliable performance for mid-to-large scale earthmoving operations. Currently located in Hebei, China, this unit demonstrates well-maintained condition both internally and externally, with original bodywork showing minimal wear.

  • Engine and hydraulic systems operate efficiently with no major component issues
  • Undercarriage tracks and wear parts retain approximately 80-90% of original condition
  • Structural integrity verified—no frame damage or panel replacements
  • Complete documentation available including detailed photos and operational videos

The DH370LC-9 features Doosan's proven 36-ton class design with extended reach capabilities. All major components remain dry and operational. Competitively priced for export or domestic resale. Inspection welcomed.

SpecificationsValue
No.1082833
Tonnage (tons)37
Working weight (kg)37,800
Bucket capacity (m³)1.62
Country of originYantai, China
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeDoosan DE12TIA-C2
Rated power (kw/rpm)202/2000
Cooling modewater-cooling
Cylinder diameter × stroke (mm)123 x 155
Number of cylinders (PCS)6
Displacement (L)11.05
Working form4-stroke, water-cooled, direct spray
Rotation speed (rpm)9.3
Bucket digging force (kN)240
Rod digging force (kN)178
Travel speed (km/h)4.7/2.7
Maximum flow of main pump (l/min)2x275
Main pump typeVariable piston pump
Fuel Tank (L)550
Hydraulic Tank (L)460
Total transport length (mm)11315
Total transport width (mm)3350
Total transport height (mm)3460 (to the top of the boom)
Full cab height (mm)3170
Counterweight ground clearance (mm)1275
Minimum ground clearance (mm)540
Minimum turning radius of front working device (mm)4503
Back end turning radius (mm)3500
Onboard width (mm)2990
Total track length (mm)5215
Track plate width (mm)600
Total track width (mm)3350
Maximum digging radius (mm)11197
Maximum digging depth (mm)7553
Maximum excavation height (mm)10381
Maximum unloading height (mm)7389
Maximum vertical digging depth (mm)4621
Maximum excavation radius of stop surface (mm)10992
Maximum effective digging depth (mm)7385
see more

Overview

No.1082833

Brand Name:

Doosan

Model Number:

DH370LC-9

Year:

2020

Location:

Hebei China

Pub Date
