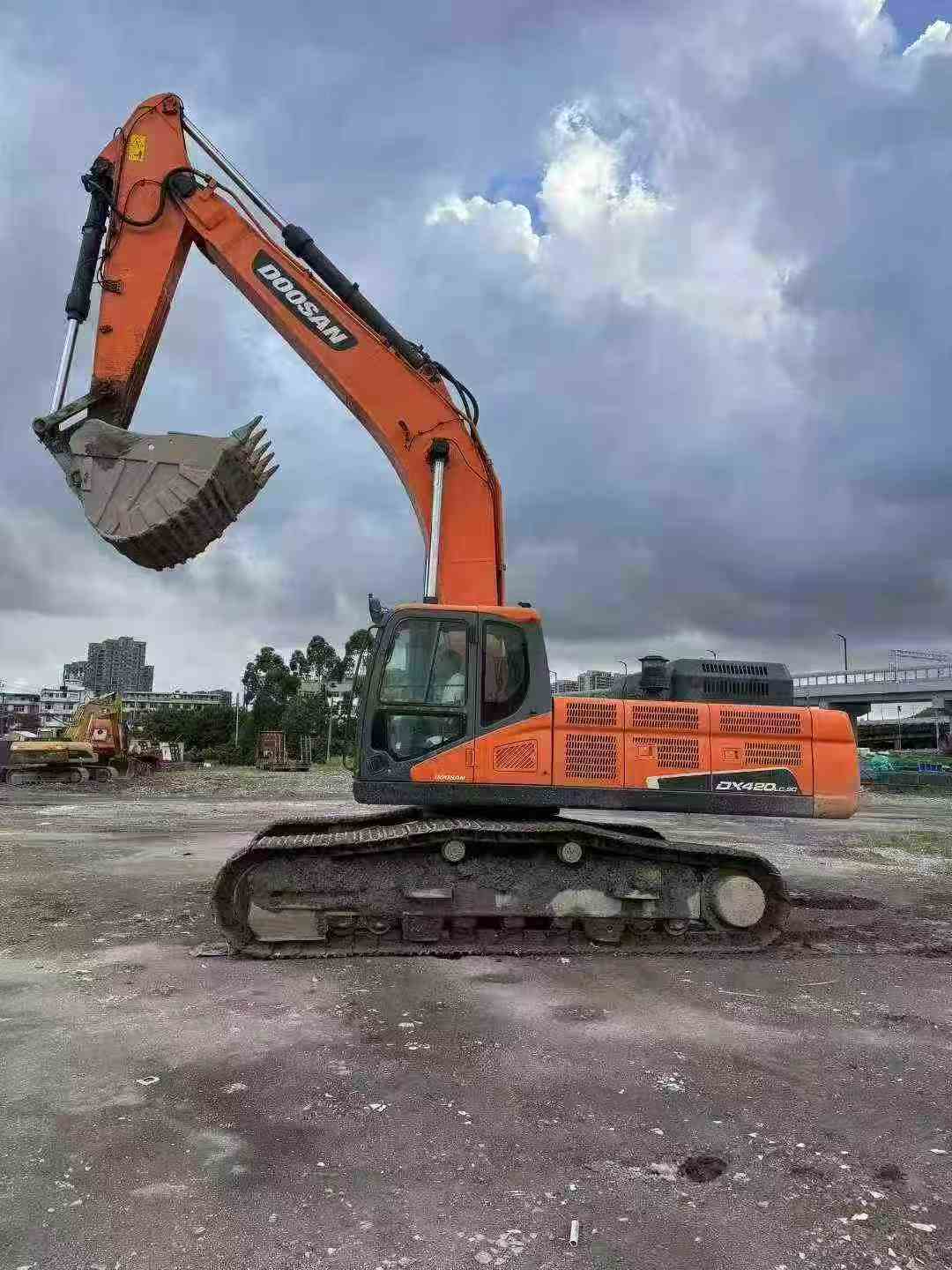

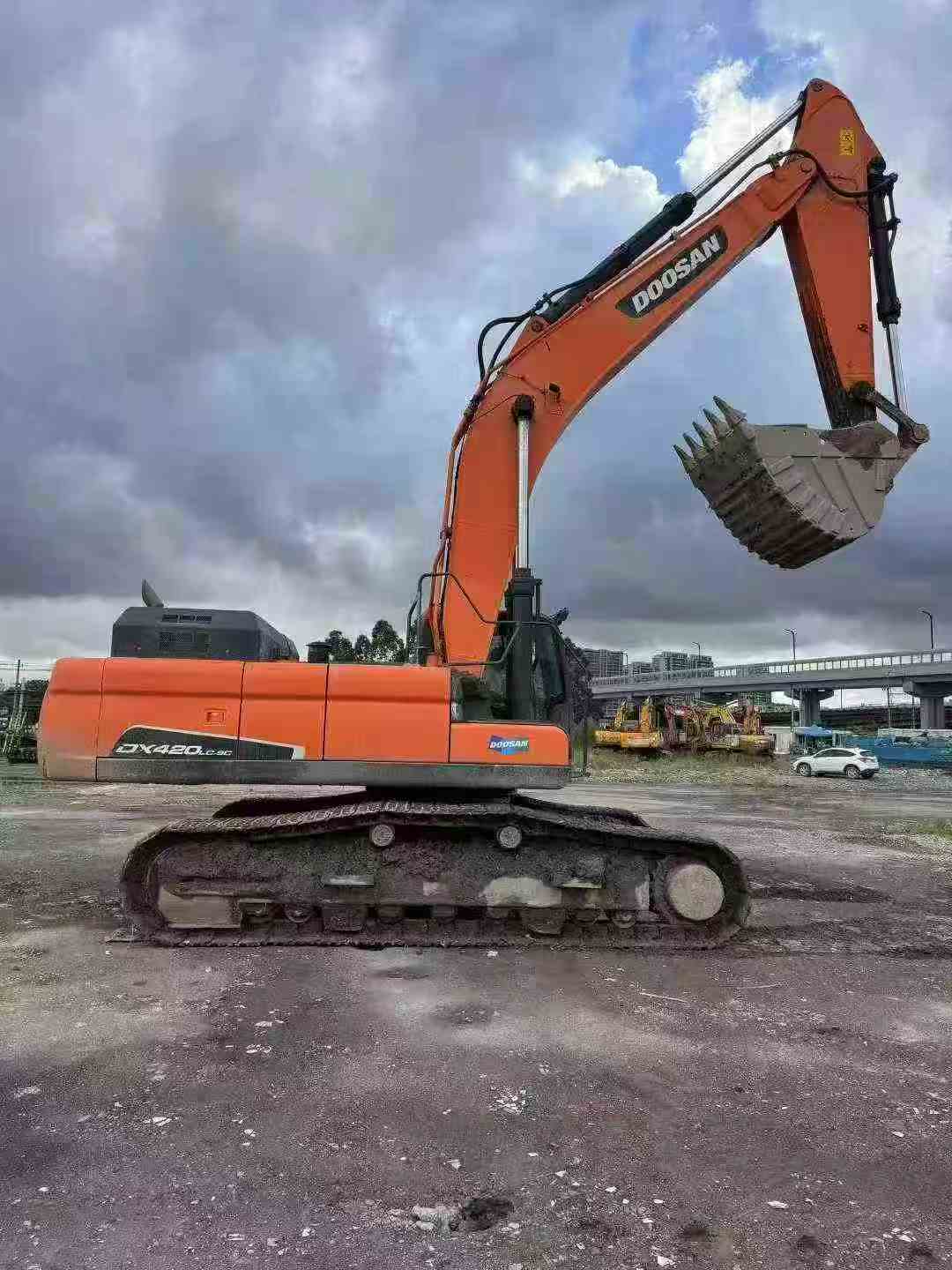

Name: Used Excavators 2020 Doosan DH420LC-7
Brand: Doosan
SKU: USED-1044097
Availability: InStock
Rating: 4.9 (70 reviews)

Sany

Caterpillar

XCMG

Hitachi

Komatsu

Doosan

Kobelco

Hyundai

Volvo

Sumitomo

Kato

Case

Yanmar

JohnDeere

Liebherr

Powered by a Doosan DE12TIS engine delivering 210 kW at 2000 rpm, this 2020 DH420LC-7 combines proven hydraulic architecture with exceptional digging performance. Operating at 41,200 kg working weight with dual 315 L/min main pumps, the machine generates bucket digging force up to 264.6 kN and rod force reaching 218.5 kN—engineered for high-production quarrying, deep foundation work, and mass excavation.

<ul>
<li>Hydraulic System: Parallel inclined axial piston pumps, 34.3 MPa boost circuit, water-cooled efficiency</li>
<li>Reach Capability: 11,520 mm maximum digging radius, 7,725 mm digging depth</li>
<li>Bucket Range: 1.44–2.18 m³ capacity with multiple rod configurations (2600/3250/4000 mm)</li>
<li>Mobility: 5.5 km/h travel speed, 3,660 mm rear swing radius, 600 mm track plates</li>
<li>Location: Wenzhou, Zhejiang Province</li>
</ul>

Built at Doosan's Yantai facility, the DH420LC-7 represents joint-venture manufacturing standards with consistent component sourcing. Current availability in Zhejiang offers regional buyers reduced logistics costs and faster deployment timelines.

Engineered with a robust 254kW diesel engine delivering peak torque at 1900 rpm, this 2021 XCMG XE380K crawler excavator represents precision-grade heavy machinery from China's leading manufacturer. Operating at a 38-ton class with a working weight of 38,500 kg, this machine generates exceptional bucket digging force of 292 kN through advanced hydraulic systems designed for demanding excavation tasks.

<ul>
<li>Year: 2021</li>
<li>Model: XCMG XE380K</li>
<li>Rated Power: 254 kW @ 1900 rpm</li>
<li>Operating Weight: 38,500 kg</li>
<li>Bucket Capacity: 1.9–2.1 m³</li>
<li>Bucket Digging Force: 292 kN</li>
<li>Maximum Digging Radius: 10,968 mm</li>
<li>Configuration: Backhoe</li>
<li>Location: Zhejiang, China</li>
</ul>

Built for large-scale earthmoving operations, this fuel-efficient excavator combines reach, power, and reliability. Proven engineering ensures consistent performance across mining, infrastructure, and demolition applications. Available for immediate inspection in Zhejiang.

XCMG XE380K

Engineered with Komatsu's proven SAA6D114E turbocharged engine, this PC360-7 delivers 180 kW at 1900 rpm through an 8.27L displacement system with water-cooled, direct injection technology. Hydraulic performance stands at the core of productivity: a 535 L/min main pump flow rate powers dual axial plunger travel motors and a single rotary motor, maintaining precise control across working pressures of 37.3 MPa (travel) and 27.9 MPa (rotation). Digging force reaches 227 kN at the bucket and 171 kN at the rod, supported by a 1.6 m³ capacity bucket and 6470 mm boom paired with a 3185 mm stick.

<ul>
 <li>Operating weight: 33,000 kg with 36-ton class performance</li>
 <li>Maximum digging reach: 11,100 mm / depth: 7,380 mm</li>
 <li>Three-speed travel: 3.2 / 4.5 / 5.5 km/h for site versatility</li>
 <li>Fuel capacity: 605L for extended operational shifts</li>
 <li>Ground pressure: 67.7 kPa on 600 mm triple-grouser tracks</li>
</ul>

Built in 2021 and currently located in Zhejiang, this joint-venture manufactured excavator represents Komatsu's commitment to hydraulic efficiency and structural durability in demanding earthmoving applications.

Komatsu PC360-7

Acquire proven excavation power without the premium price tag. This 2021 XCMG XE380K delivers 38-ton performance with a robust 254kW rated power output at 1900 rpm, offering exceptional value for contractors seeking maximum productivity on a controlled budget. Engineered with a substantial 292kN bucket digging force and an impressive 10,968mm maximum digging radius, this machine tackles demanding earthmoving projects with professional-grade efficiency.

<ul>
<li>Working Weight: 38,500 kg</li>
<li>Bucket Capacity: 1.9-2.1 m³</li>
<li>Rated Power: 254 kW @ 1900 rpm</li>
<li>Bucket Digging Force: 292 kN</li>
<li>Maximum Digging Radius: 10,968 mm</li>
<li>Fuel Type: Diesel</li>
<li>Configuration: Backhoe</li>
<li>Origin: Made in China</li>
<li>Current Location: Zhejiang Province</li>
</ul>

Invest strategically in tested 2021 technology at a fraction of new equipment costs. With minimal operational hours and full backhoe capability, this XE380K represents intelligent capital allocation for mining, construction, and civil engineering operations requiring reliable heavy-duty excavation capacity.

Engineered for precision and operator confidence, this 2020 Doosan DH500 delivers 50-ton performance with joint venture-grade reliability. Currently located in Zhejiang, this excavator combines responsive hydraulics with a spacious cabin designed for extended shifts on demanding jobsites.

Operators benefit from enhanced visibility across all working angles, reducing blind spots during complex maneuvers. The ergonomic control layout minimizes fatigue, while integrated climate systems maintain comfort in variable conditions. Stability remains consistent across uneven terrain, supported by the machine's proven undercarriage design and optimized weight distribution.

<ul>
<li>50-ton operating capacity with traditional power configuration</li>
<li>Backhoe bucket attachment for versatile excavation tasks</li>
<li>2020 model year ensuring modern operational standards</li>
<li>Joint venture/Import manufacturing for quality assurance</li>
<li>Based in Zhejiang, ready for inspection and deployment</li>
</ul>

Suitable for infrastructure projects, mining support, and large-scale earthmoving operations where operator efficiency directly impacts productivity. Standard maintenance records available upon request.

Doosan DH500

Expand your fleet capacity with this 2021 Doosan DH420LC-7 excavator, a proven 42-ton workhorse engineered for contractors managing multiple job sites. Powered by a Doosan DE12TIS engine delivering 210 kW at 2000 rpm, this machine handles demanding excavation, trenching, and material handling with consistent reliability. Currently located in Zhejiang, it features a water-cooled system and dual 315 L/min main pumps that maintain hydraulic performance under continuous operation.

<ul>
<li>Operating Weight: 41,200 kg with superior stability</li>
<li>Bucket Capacity: 1.44–2.18 m³ for versatile loading</li>
<li>Maximum Digging Reach: 11,520 mm</li>
<li>Maximum Digging Depth: 7,725 mm</li>
<li>Bucket Digging Force: Up to 264.6 kN</li>
<li>Engine: Doosan DE12TIS, 210 kW rated power</li>
</ul>

Built at Doosan's Yantai facility with joint-venture quality standards, this DH420LC-7 integrates seamlessly into existing fleets requiring backup equipment or expanded excavation capability. Multiple rod length configurations (2600/3250/4000 mm) adapt to varied site conditions without downtime.

Doosan DH420LC-7

Engineered with precision by Sumitomo's joint venture manufacturing, this 2022 SH210-6 delivers 117.3 kW of rated power at 1800 rpm through a robust 5.193L displacement engine. Hydraulic performance stands at the core: a 34.3/36.8 MPa working circuit powers bucket digging forces up to 152 kN and rod forces reaching 110 kN, ensuring penetration through demanding materials. Operating at 21 tons with a 0.85-1.0 m³ bucket capacity, this excavator combines a 5700mm boom and 2900/2400mm rod configuration for a maximum digging reach of 9900mm and depth capabilities extending to 6650mm.

<ul>
<li>Variable capacity piston pump walking motor for precise mobility control</li>
<li>410L fuel tank and 240L hydraulic system capacity supporting extended operation cycles</li>
<li>11.5 rpm rotation speed with 2750mm rear turning radius optimizing site maneuverability</li>
<li>70% climbing ability and 47/36 kPa ground pressure minimizing surface disruption</li>
<li>Compact transport dimensions: 9400×2800×2970mm for logistical efficiency</li>
</ul>

Currently located in Zhejiang, this backhoe excavator represents Sumitomo's proven SH-6 series engineering—built for contractors requiring reliable performance in infrastructure, mining, and civil co

Sumitomo SH210-6

Backed by proven engineering and global service networks, this 2021 Doosan DX380LC-5 delivers the reliability contractors demand when purchasing pre-owned equipment. Operating at 38 tons with a 40,200 kg working weight, this excavator combines the robust Scania DC09 5-cylinder engine with dual 350 l/min pumps for consistent hydraulic performance across demanding applications.

Doosan's widespread parts distribution and strong resale retention make this model a strategic investment. Key performance specifications include:

<ul>
<li>Bucket digging force: 259 kN with 189 kN arm force</li>
<li>Maximum digging reach: 11,170 mm</li>
<li>Maximum digging depth: 7,460 mm</li>
<li>Maximum excavation height: 10,390 mm</li>
<li>Maximum tractive effort: 397 kN</li>
</ul>

Currently located in Zhejiang, this joint venture/import unit represents a lower-risk entry point into the 38-ton class. Standardized components and Doosan's established dealer network across Asia ensure ongoing operational support and competitive parts pricing throughout the machine's service life.

Doosan DX380LC-5

Engineered with Komatsu's proven SA4D102E engine delivering 84.7 kW at 2100 rpm, this 2016 PC160-6 represents refined hydraulic excavator design in the 16-ton class. The 3.9L displacement powerplant drives a sophisticated hydraulic system with 120L capacity, generating an impressive 135.3 kN bucket digging force through optimized valve technology and cylinder geometry.

Built for precision earthmoving operations, this joint-venture manufactured unit combines a 0.67 m³ backhoe bucket with exceptional reach parameters: 8190 mm maximum excavation radius and 5240 mm digging depth. The compact 2417 mm rear turning radius enables confined-space productivity while maintaining stability through 51 Kpa ground pressure distribution across 500 mm track plates.

<ul>
<li>Working weight: 16,300 kg with optimal counterweight configuration</li>
<li>Maximum excavation height: 8735 mm for high-reach applications</li>
<li>Transport dimensions: 8565 × 2490 × 2829 mm (cab height)</li>
<li>Fuel capacity: 250L for extended operational periods</li>
<li>Located in Lishui, Zhejiang Province</li>
</ul>

PC160-6 series architecture emphasizes component durability and serviceability, with accessible fluid change points and proven drivetrain relia

Komatsu PC160-6

Built to withstand the toughest job sites, this 2011 Hitachi EX360-5 hydraulic excavator exemplifies proven durability in the 36-ton class. Equipped with traditional power systems and joint venture manufacturing standards, this workhorse delivers consistent performance year after year. Its backhoe bucket configuration tackles demanding excavation, trenching, and material handling with reliable efficiency.

<ul>
<li>Year: 2011</li>
<li>Model: Hitachi EX360-5</li>
<li>Operating Weight: 36 tons</li>
<li>Power Type: Traditional diesel power</li>
<li>Bucket Configuration: Backhoe</li>
<li>Manufacturing: Joint venture/Import quality</li>
<li>Current Location: Lishui, Zhejiang Province</li>
</ul>

Over a decade of operational history proves this excavator's robust construction and longevity. Designed for heavy-duty earthmoving, demolition, and infrastructure projects, the EX360-5 combines field-tested reliability with straightforward maintenance. Currently positioned in Zhejiang, this machine is ready for immediate deployment on your next project.

Hitachi EX360-5

Ready to deploy from Zhejiang, this 2022 Sany SY245H mid-size excavator eliminates factory wait times and delivers immediate productivity to your jobsite. Powered by a robust 147kW D06FRC engine generating 750 N·m of torque, this 24-ton machine combines proven reliability with the digging performance your operations demand. With 175 kN bucket digging force and a maximum reach of 10,225mm, it tackles demanding excavation tasks across construction, mining, and infrastructure projects.

<ul>
 <li>Available Now: Skip 6-12 month factory lead times—inspect and ship directly from Zhejiang</li>
 <li>Operational Specs: 1.3-1.5m³ bucket capacity, 6,705mm max dig depth, 3,800mm turning radius</li>
 <li>Reliable Power: Water-cooled 6-cylinder engine (6.373L displacement) with 475L fuel capacity for extended shifts</li>
 <li>Transport-Ready Dimensions: 10,290mm length × 3,190mm width × 3,190mm height</li>
 <li>Fast Global Deployment: Strategic Zhejiang location ensures efficient container loading and competitive freight rates</li>
</ul>

Backed by complete technical documentation and pre-shipment inspection reports, this SY245H represents immediate e

Sany SY245H

Invest smart with this 2017 XCMG XE215D excavator—delivering flagship performance at a fraction of new equipment costs. Built in Xuzhou with proven reliability, this 21-ton workhorse combines a powerful 135kW QSB7 turbocharged engine with dual plunger pumps (2 x 225 l/min) for exceptional hydraulic efficiency. Currently located in Zhejiang, it offers maximum digging reach of 9,940mm and depth of 6,680mm, backed by impressive bucket digging force of 149kN.

<ul>
<li>Operating Weight: 21,900 kg with 0.8-1.3 m³ bucket capacity</li>
<li>Engine: QSB7 6-cylinder, 6.7L displacement, 740 N.m max torque</li>
<li>Hydraulic System: 31.5/34.3 MPa main overflow pressure for demanding applications</li>
<li>Working Range: 9,620mm max excavation height, 6,780mm unloading height</li>
<li>Mobility: 35% climbing ability, 5.4 km/h travel speed</li>
</ul>

Acquire proven XCMG engineering quality without the premium price tag. This 2017 model provides immediate ROI through lower acquisition costs while maintaining the productivity standards your projects demand. Ideal for contractors seeking reliable, cost-effective excavation solutions.

XCMG XE215D

Built for demanding excavation and grading operations, this 2011 Komatsu PC200-8 delivers 20-ton performance with proven reliability. Powered by a Komatsu SAA6D107E-1 turbocharged engine producing 110 kW at 2000 rpm, this machine tackles heavy digging tasks with 149 kN bucket force and 108 kN arm force. Maximum digging depth reaches 6620mm with a 9875mm working radius, making it ideal for foundation work, trenching, and site preparation.

Currently located in Changzhou, Jiangsu Province, this excavator features a 0.8m³ backhoe bucket, 5700mm boom, and 2925mm arm configuration. Hydraulic systems deliver 439 L/min flow for responsive control during precision grading or demolition projects. With 400L fuel capacity and robust undercarriage including 600mm track plates, expect full-shift productivity on varied terrain.

<ul>
<li>Working weight: 19,900 kg</li>
<li>Maximum digging height: 10,000mm</li>
<li>Travel speed: up to 5.5 km/h</li>
<li>70% climbing ability for sloped sites</li>
<li>EPA Tier 3 / EU Stage IIIA compliant engine</li>
</ul>

Ready to deploy on your next excavation, earthmoving, or demolition project.

Komatsu PC200-8

Engineered with Kobelco's proven hydraulic architecture, this 2016 SK200 delivers consistent 20-ton performance through a dual variable displacement axial piston pump system operating at 34.3 MPa (37.8 MPa in supercharged mode). Power comes from the Mitsubishi 6D34-TLU2D engine—a water-cooled, turbocharged six-cylinder unit rated at 110 kW at 2000 rpm, featuring built-in intercooling for sustained output in demanding conditions.

Digging force reaches 143 kN at the bucket (157 kN supercharged) and 97.1 kN at the rod (107 kN supercharged), backed by a robust 0.8 m³ backhoe bucket. The machine maintains 70% gradeability and operates across two travel speeds—4.0 km/h and 6.0 km/h—with selectable 600 mm or 800 mm track plates to optimize ground pressure between 35-45 kPa.

Currently located in Changzhou, Jiangsu, this joint-venture manufactured excavator represents Kobelco's commitment to hydraulic efficiency and structural integrity. The 340-liter fuel tank supports extended operation cycles, while the 11 rpm swing speed ensures productive cycle times across infrastructure and earthmoving applications.

Kobelco SK200

Engineered with Volvo's proven hydraulic system, this 2016 EC240 excavator delivers 24 tons of controlled digging force for demanding earthmoving operations. Powered by a reliable traditional diesel engine developed through joint venture manufacturing standards, the machine maintains consistent performance across extended duty cycles. Hydraulic flow optimization reduces cycle times while minimizing fuel consumption, making it suitable for high-volume excavation projects.

The EC240 series represents Volvo's commitment to durability and precision engineering. Factory-equipped with a backhoe configuration, this unit handles trenching, loading, and site preparation with equal efficiency. Currently located in Jiangxi Ji'an, the excavator features Volvo's reinforced boom structure and responsive joystick controls that provide operators with accurate bucket positioning. Import-grade components ensure parts compatibility and longevity in commercial applications.

<ul>
<li>Operating weight: 24 tons</li>
<li>Power system: Traditional diesel engine</li>
<li>Configuration: Backhoe attachment</li>
<li>Manufacturing standard: Joint venture/Import quality</li>
<li>Location: Jiangxi Ji'an, China</li>
</ul>

Volvo EC240

Available now in 江西吉安, this 2016 Caterpillar 311C excavator eliminates factory wait times and gets your operation moving immediately. Powered by proven traditional diesel technology, this 11-ton compact machine delivers reliable performance for urban construction, utility work, and tight-access projects across demanding job sites.

<ul>
<li>Year: 2016</li>
<li>Model: Caterpillar 311C</li>
<li>Operating Weight: 11 tons</li>
<li>Power System: Traditional diesel</li>
<li>Configuration: Backhoe equipped</li>
<li>Origin: Joint venture/Import quality</li>
<li>Current Location: 江西吉安, China</li>
</ul>

Skip the months-long procurement cycle. This Cat 311C is inspection-ready and positioned for fast deployment to your site. Backed by Caterpillar's joint venture manufacturing standards, it combines compact maneuverability with the hydraulic power needed for excavation, trenching, and material handling. Secure this unit today and maintain your project timeline without compromise.

Caterpillar 311C

Built for immediate deployment on demanding jobsites, this 2016 Hyundai R210-7 excavator delivers proven 21-ton performance across digging, grading, and demolition operations. Powered by traditional diesel technology and manufactured to joint venture/import standards, this machine combines operational reliability with the fuel efficiency contractors depend on for extended work cycles. Currently located in Chongqing, the backhoe configuration handles trenching, foundation work, and material handling with precision hydraulics and responsive controls.

<ul>
 <li>Operating Weight: 21 tons – optimal balance for medium to heavy-duty applications</li>
 <li>Power System: Traditional diesel engine for proven reliability and easy maintenance</li>
 <li>Configuration: Backhoe attachment ready for excavation and loading tasks</li>
 <li>Build Quality: Joint venture/import manufacturing ensures consistent performance standards</li>
 <li>Availability: Site-ready condition, located in Chongqing for regional deployment</li>
</ul>

Designed for contractors who need dependable equipment without delays, this R210-7 arrives ready to tackle foundation excavati

Specifications	Value
No.	1044097
Tonnage (tons)	42
Working weight (kg)	41200
Bucket capacity (m³)	1.44-2.18
Boom length (mm)	6700
Rod length (mm)	2600/3250/4000
Country of origin	Yantai, Shandong Province
power	Traditional power
manufacturer	Joint venture/Import
bucket	backhoe
Engine type	Doosan DE12TIS
Rated power (kw/rpm)	210/2000
Cooling mode	water-cooling
Rotation speed (rpm)	9.5
Bucket digging force (kN)	242.1/264.6
Rod digging force (kN)	218.5/139.1; 176.4/193.1; 152.9/166.6
Travel speed (km/h)	3.3-5.5
Maximum flow of main pump (l/min)	2 x 315
Traveling Hydraulic Circuit (Mpa)	26.5
Rotary Hydraulic Circuit (Mpa)	26.5
Main pump type	Parallel inclined axial piston pump
Working Hydraulic Circuit (Mpa)	Standard 31.4/ Supercharged 34.3
Pilot pump flow (L/min)	24
Total transport length (mm)	11690
Total transport width (mm)	3350
Total transport height (mm)	3575
Full cab height (mm)	3150
Counterweight ground clearance (mm)	1277
Minimum ground clearance (mm)	540
Back end turning radius (mm)	3660
Onboard width (mm)	2990
Total track length (mm)	5215
Track gauge (mm)	2750
Track plate width (mm)	600
Total track width (mm)	3350
Track ground length (mm)	4250
Maximum digging radius (mm)	11520
Maximum digging depth (mm)	7725
Maximum excavation height (mm)	11000
Maximum unloading height (mm)	7845
Maximum vertical digging depth (mm)	4400
Maximum excavation radius of stop surface (mm)	11310
Maximum effective digging depth (mm)	7570

2020 Doosan DH420LC-7
