2020 Doosan DH420LC-7

1/5

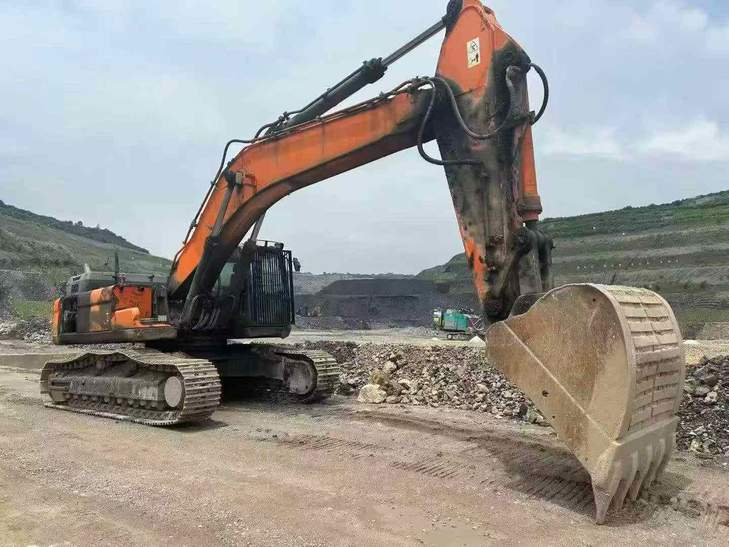

Buy Doosan DH420LC-7 Used Excavator / 1
Buy Doosan DH420LC-7 Used Excavator / 2
Buy Doosan DH420LC-7 Used Excavator / 3
Buy Doosan DH420LC-7 Used Excavator / 4
Buy Doosan DH420LC-7 Used Excavator / 5

Product Description

Discover the robust performance of the 2020 Doosan DH420LC-7, a powerful and reliable excavator designed for heavy-duty applications. Located in Sichuan, China, this used machine is priced at over 190,000 RMB, offering excellent value for your investment. Built to handle tough jobs with ease, the DH420LC-7 features a spacious and comfortable cab, advanced hydraulic systems, and superior fuel efficiency. Ideal for construction, mining, and infrastructure projects, this excavator ensures high productivity and durability. Trust in Doosan's reputation for quality and reliability to enhance your operational capabilities.

  • Year: 2020
  • Brand: Doosan
  • Model: DH420LC-7
  • Location: Sichuan, China
  • Priced at over 190,000 RMB
SpecificationsValue
No.1096449
Tonnage (tons)42
Working weight (kg)41200
Bucket capacity (m³)1.44-2.18
Boom length (mm)6700
Rod length (mm)2600/3250/4000
Country of originYantai, Shandong Province
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeDoosan DE12TIS
Rated power (kw/rpm)210/2000
Cooling modewater-cooling
Rotation speed (rpm)9.5
Bucket digging force (kN)242.1/264.6
Rod digging force (kN)218.5/139.1; 176.4/193.1; 152.9/166.6
Travel speed (km/h)3.3-5.5
Maximum flow of main pump (l/min)2 x 315
Traveling Hydraulic Circuit (Mpa)26.5
Rotary Hydraulic Circuit (Mpa)26.5
Main pump typeParallel inclined axial piston pump
Working Hydraulic Circuit (Mpa)Standard 31.4/ Supercharged 34.3
Pilot pump flow (L/min)24
Total transport length (mm)11690
Total transport width (mm)3350
Total transport height (mm)3575
Full cab height (mm)3150
Counterweight ground clearance (mm)1277
Minimum ground clearance (mm)540
Back end turning radius (mm)3660
Onboard width (mm)2990
Total track length (mm)5215
Track gauge (mm)2750
Track plate width (mm)600
Total track width (mm)3350
Track ground length (mm)4250
Maximum digging radius (mm)11520
Maximum digging depth (mm)7725
Maximum excavation height (mm)11000
Maximum unloading height (mm)7845
Maximum vertical digging depth (mm)4400
Maximum excavation radius of stop surface (mm)11310
Maximum effective digging depth (mm)7570
see more

Overview

No.1096449

Brand Name:

Doosan

Model Number:

DH420LC-7

Year:

2020

Location:

Sichuan China

Pub Date
