Product Description

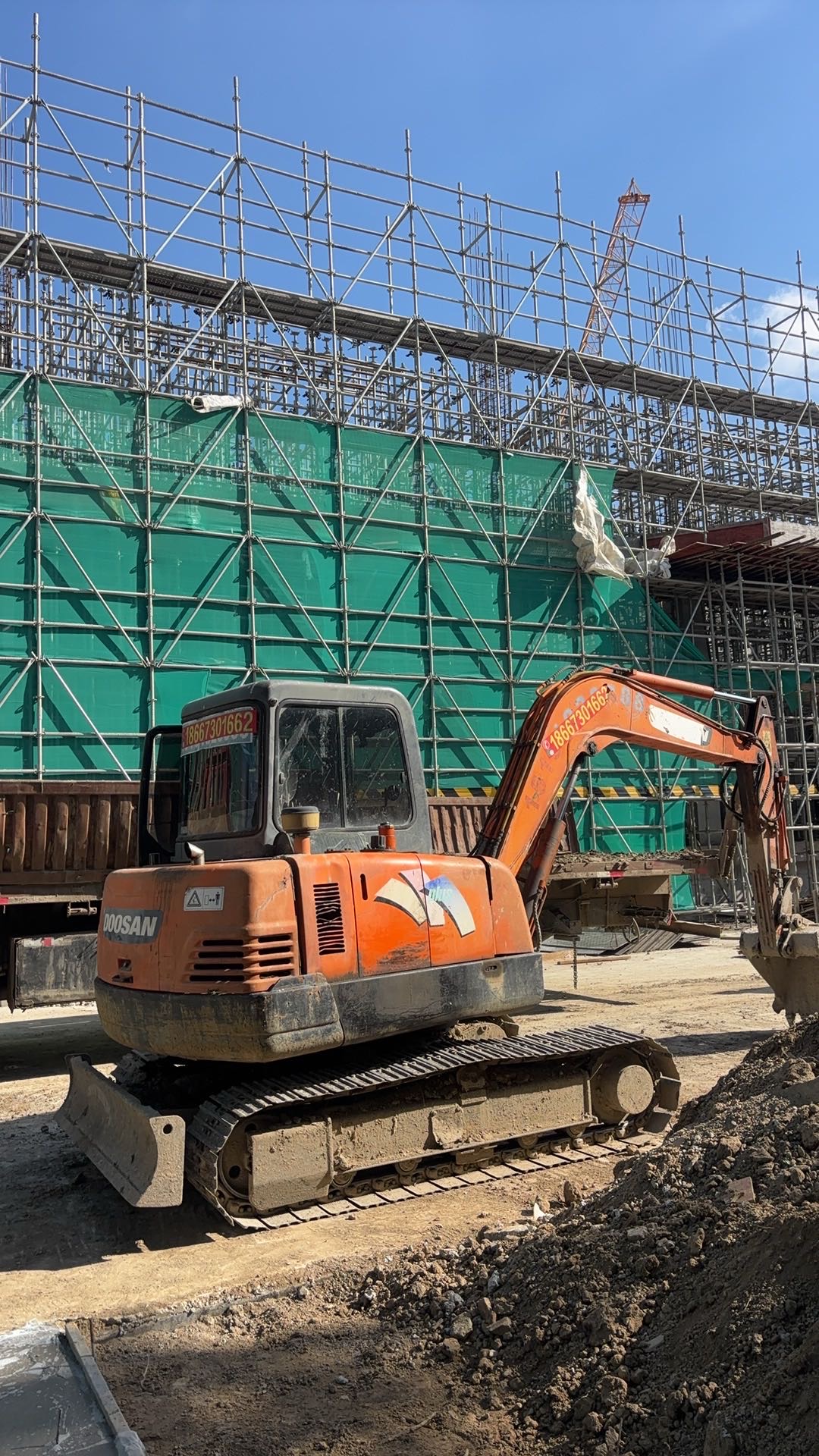

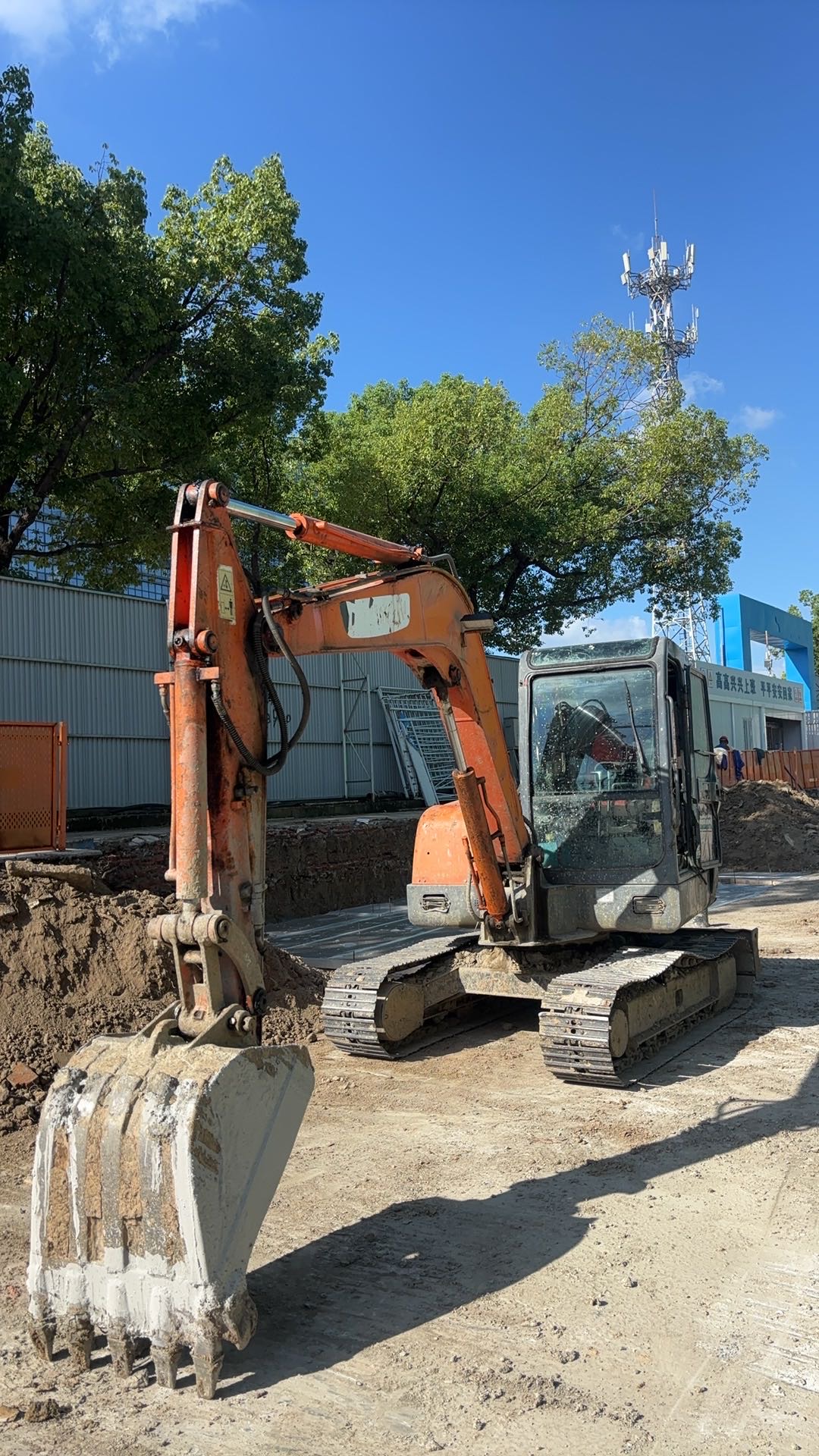

Discover the reliability and performance of this 2012 Doosan DH55G, available for immediate purchase in Zhejiang, China. This machine, with a robust Isuzu engine, has been meticulously maintained over its 13,000 operational hours, ensuring it remains a durable and efficient choice for your construction needs. Ideal for a variety of applications, the DH55G is known for its versatility and power, making it a valuable addition to any fleet. Invest in this well-maintained excavator to enhance your project's productivity and efficiency.
- Year: 2012
- Brand: Doosan
- Model: DH55G
- Location: Zhejiang, China
- Operational Hours: 13,000
- Engine: Isuzu
| Specifications | Value |
|---|---|
| No. | 1140449 |
| Tonnage (tons) | 5 |
| Working weight (kg) | 5250 |
| Bucket capacity (m³) | 0.13~0.175 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

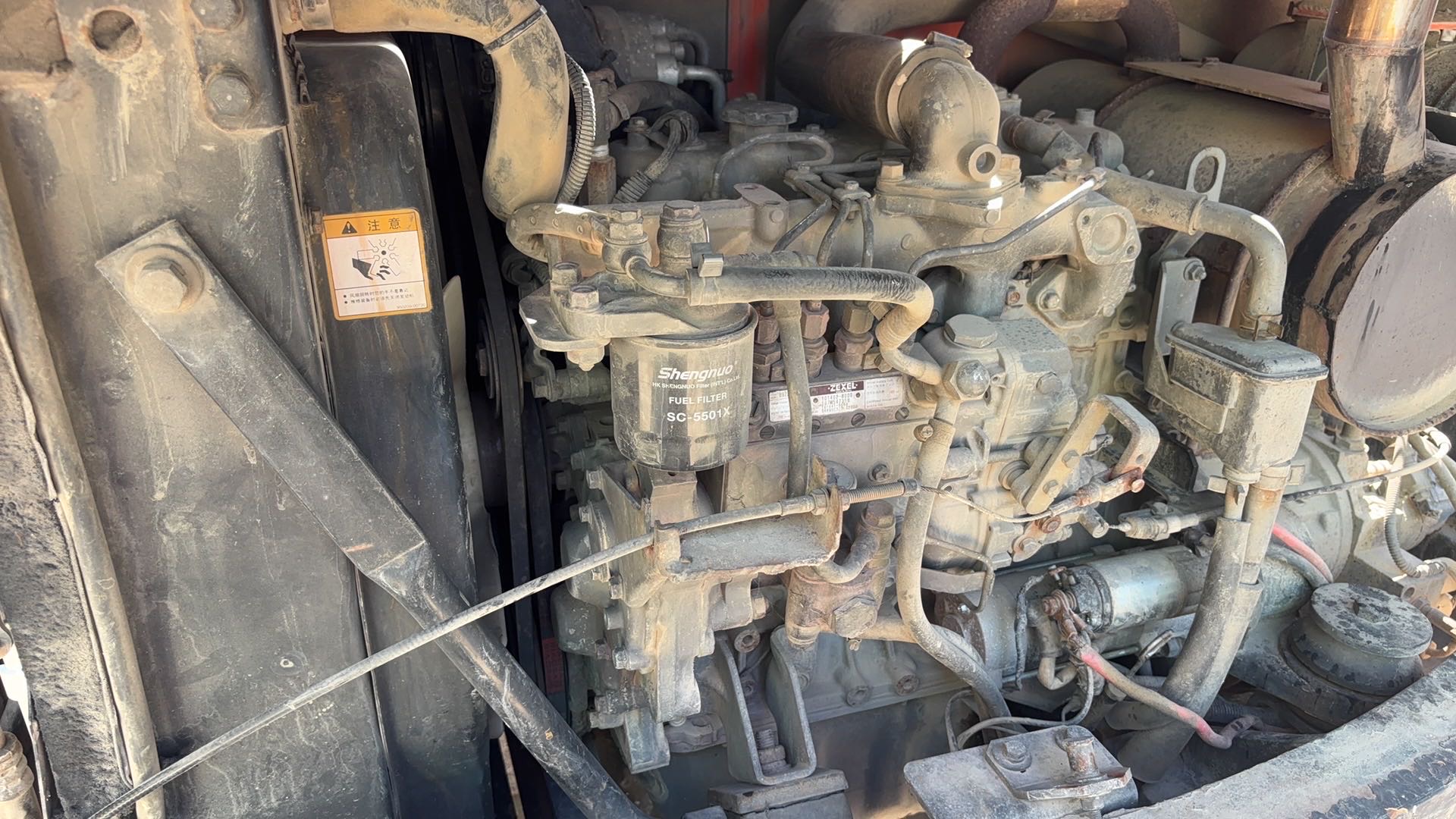

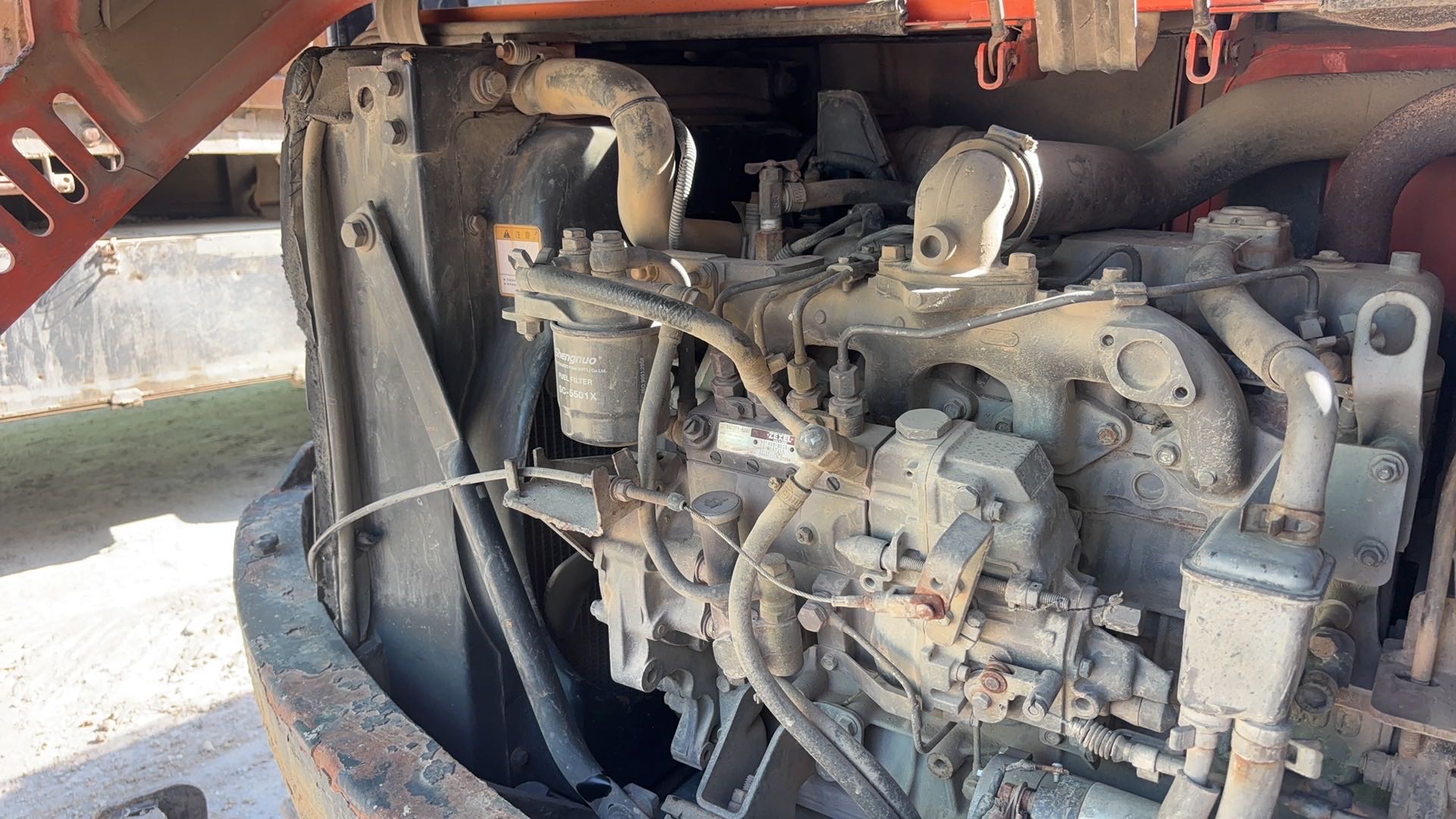

| Engine type | Isuzu 4JG1 |
| Rated power (kw/rpm) | 1349,40.5 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.771 |
| Rotation speed (rpm) | 0-9.0 |
| Climbing ability (%) | 30 |
| Bucket digging force (kN) | 3.71 |
| Rod digging force (kN) | 2.66 |
| Maximum tractive force (kN) | 4800 |
| Travel speed (km/h) | 3.8/2.1 |
| Maximum flow of main pump (l/min) | 2-55 |
| Traveling Hydraulic Circuit (Mpa) | 210 |
| Rotary Hydraulic Circuit (Mpa) | 220 |
| Main pump type | Kawasaki |
| Fuel Tank (L) | 115 |
| Hydraulic Tank (L) | 80 |
| Engine Oil changes (L) | 9.7 |
| Coolant (L) | 10 |
| Total transport length (mm) | 5940 |
| Total transport width (mm) | 2420 |
| Minimum ground clearance (mm) | 350 |

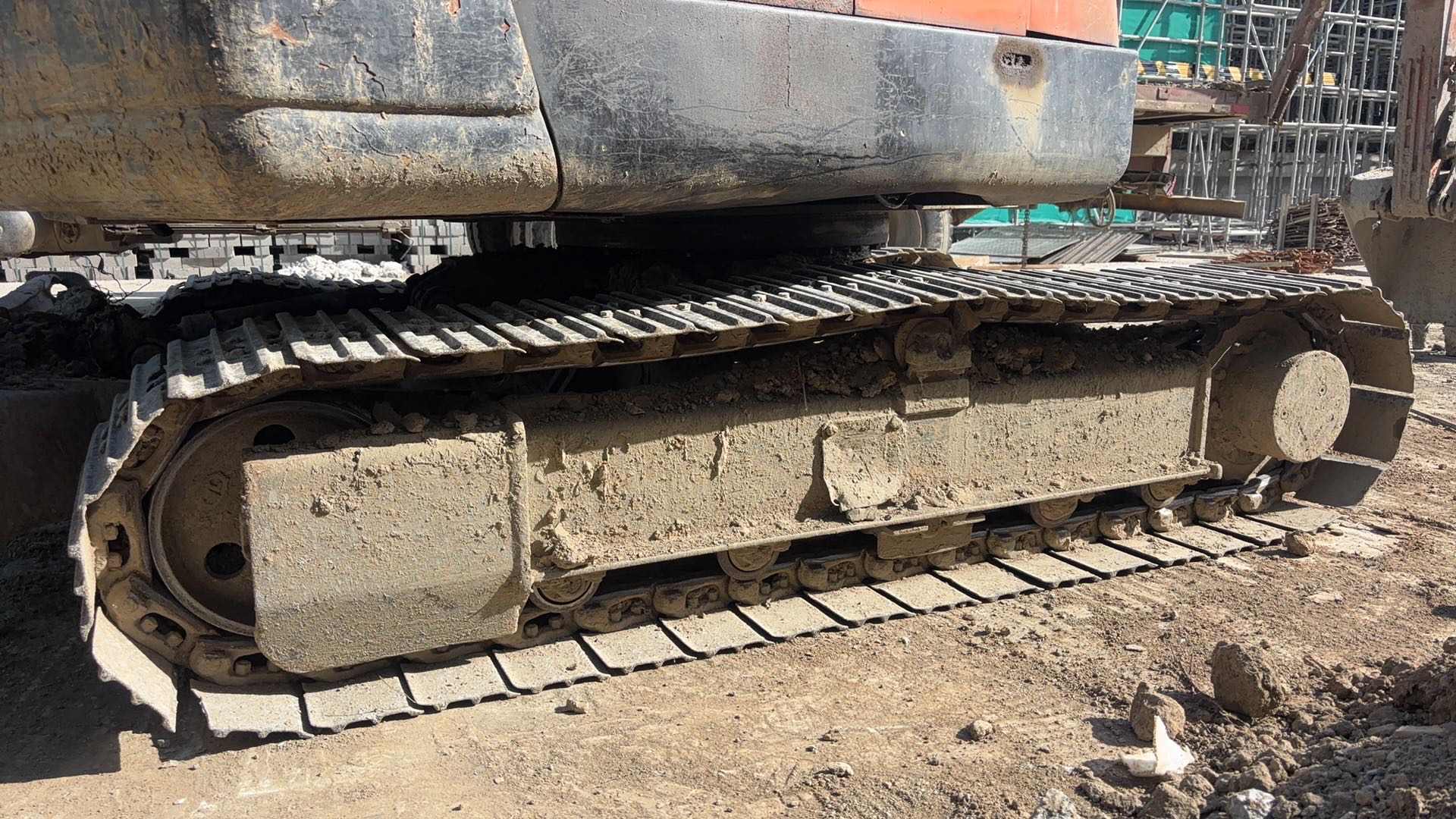

| Total track length (mm) | 2546 |
| Track gauge (mm) | 1408 |
| Total track width (mm) | 1880 |
| Maximum digging radius (mm) | 6100 |
| Maximum digging depth (mm) | 3890 |
| Maximum excavation height (mm) | 5330 |
| Maximum vertical digging depth (mm) | 3025 |
