Product Description

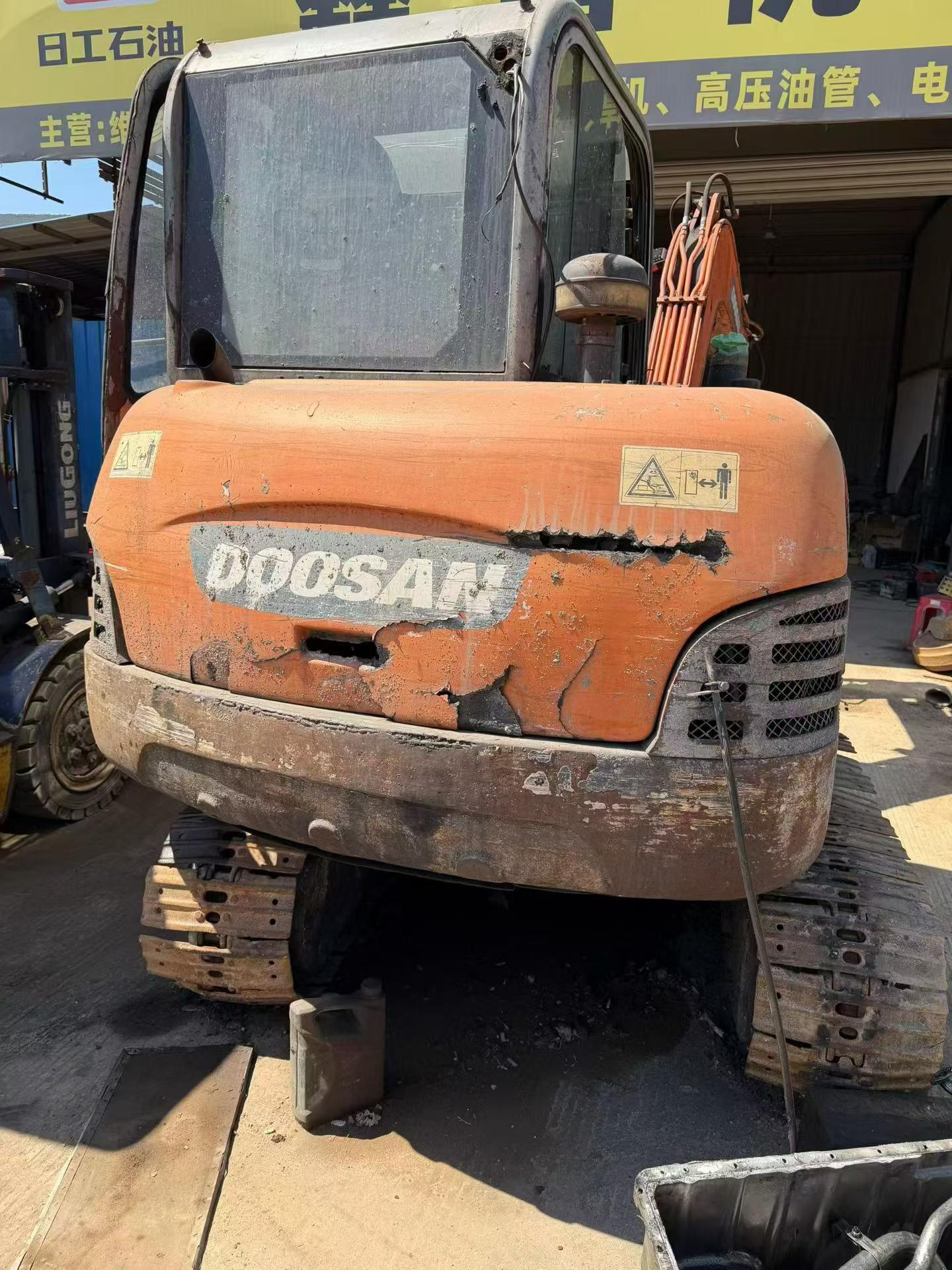

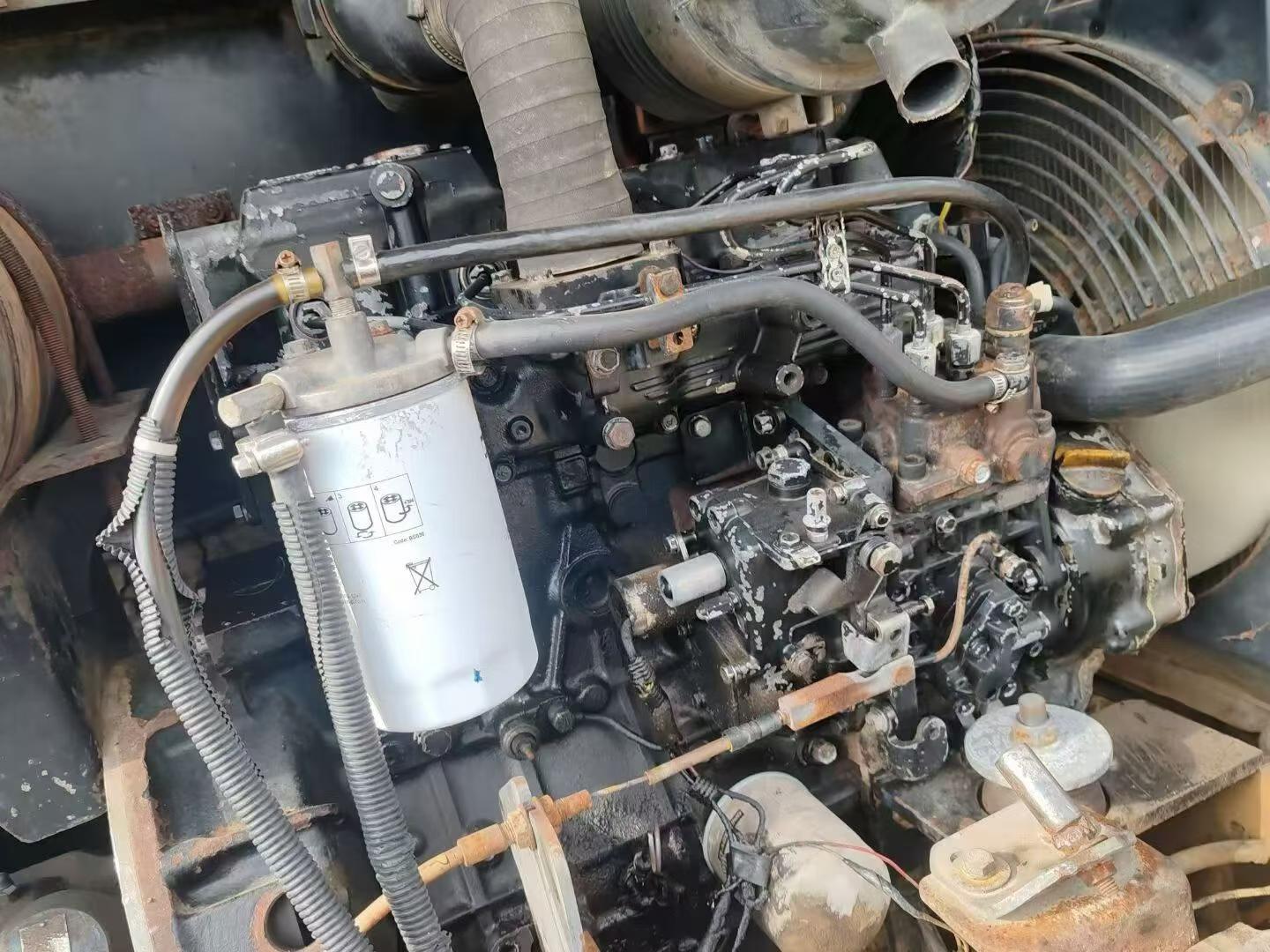

With a working weight of 5,550 kg and powered by a Yanmar 4TNV94L engine, this 2016 Doosan DH60-7 excavator ensures robust performance. Located in 浙江温州, it features a variable axial piston pump and an air-to-air cooling system, enhancing operational efficiency. Equipped with a backhoe bucket, it delivers a digging force of 37.7 kN, making it ideal for tough excavation tasks.
- Engineered for stability and ease of handling, the DH60-7 offers a minimum ground clearance of 350 mm and a total track length of 2,540 mm, ensuring smooth operation on various terrains.
- The full cab height of 2,575 mm and wide visibility from the operator's seat enhance safety and precision during operation.
- Featuring a boom length of 3,000 mm and a rod length of 1,600 mm, this excavator achieves a maximum digging depth of 3,820 mm, suitable for deep excavation projects.
| Specifications | Value |
|---|---|
| No. | 1033675 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5550 |
| Bucket capacity (m³) | 0.09-0.2 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Yantai, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 38.1/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Working form | Air-to-air cooling |
| Bucket digging force (kN) | 37.7 |
| Rod digging force (kN) | 28.4 |
| Maximum flow of main pump (l/min) | 55 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 20.6 |
| Rotary Hydraulic Circuit (Mpa) | 21.6 |
| Main pump type | Variable axial piston pump ×2 |
| Working Hydraulic Circuit (Mpa) | 20.6 |
| Pilot pump flow (L/min) | 9.9 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880 |
| Total transport height (mm) | 2575 |
| Full cab height (mm) | 2575 |
| Minimum ground clearance (mm) | 350 |
| Back end turning radius (mm) | 1650 |
| Onboard width (mm) | 1885 |
| Total track length (mm) | 2540 |
| Track gauge (mm) | 1480 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 1880 |
| Track ground length (mm) | 1990 |
| Maximum digging radius (mm) | 6150 |
| Maximum digging depth (mm) | 3820 |
| Maximum excavation height (mm) | 5760 |
| Maximum unloading height (mm) | 4030 |
